iCON P1-Nano Compact Control Surface

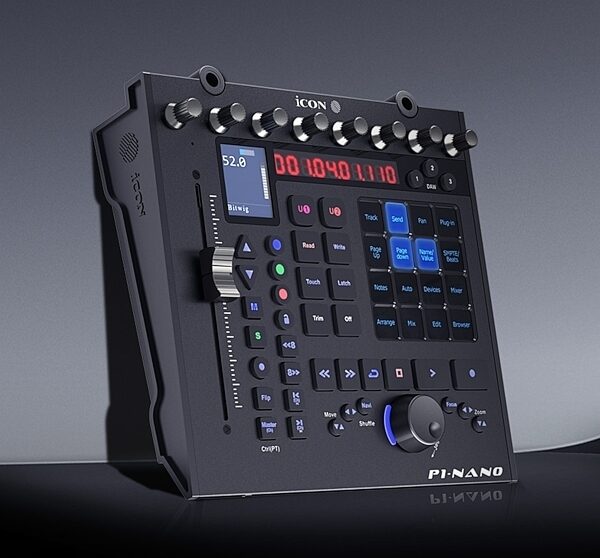

open zoom image for iCON P1-Nano Compact Control Surface, Open Box (Very Good), In Use

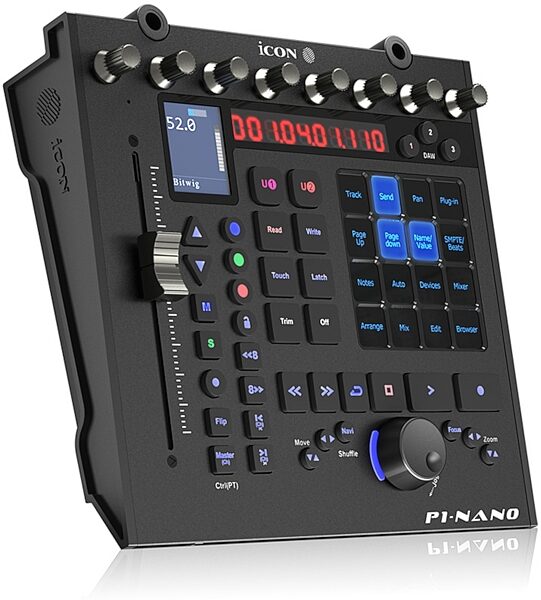

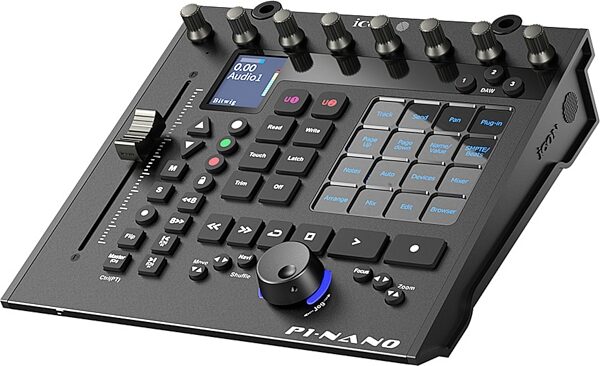

open zoom image for iCON P1-Nano Compact Control Surface, Open Box (Very Good), Angle

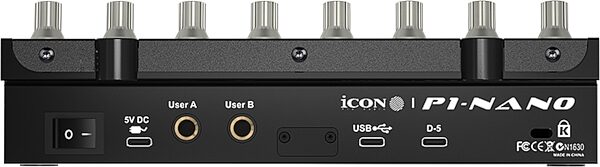

iCON P1-Nano Compact Control Surface, Open Box (Very Good), Action Position Back

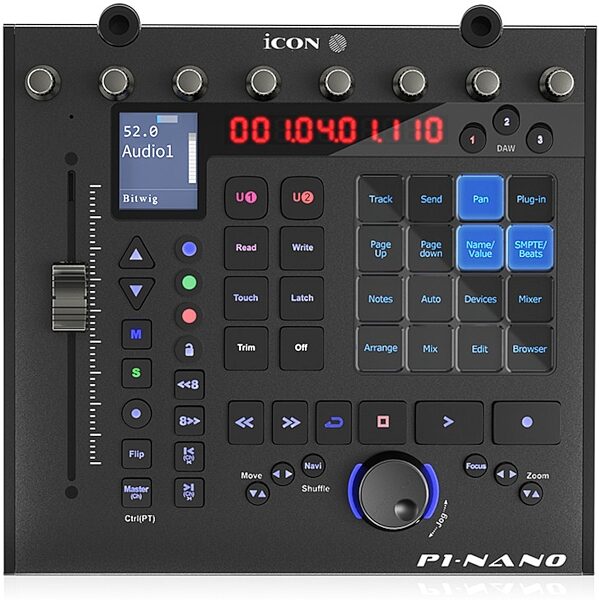

iCON P1-Nano Compact Control Surface, Open Box (Very Good), Main

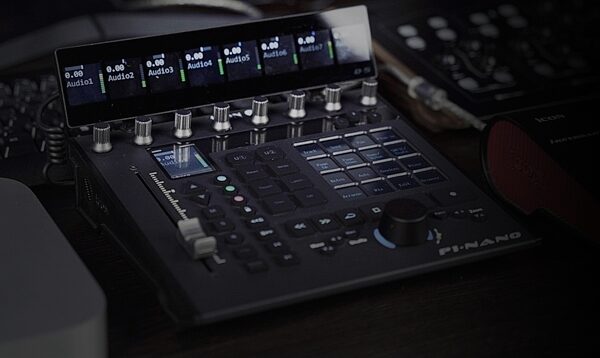

iCON P1-Nano Compact Control Surface, Open Box (Very Good), In Use

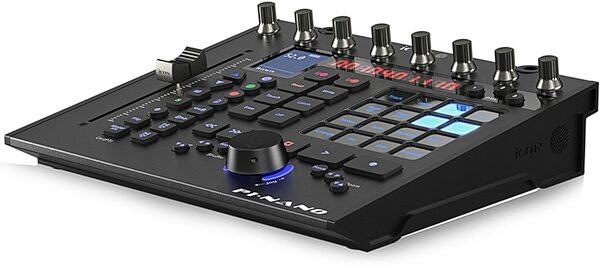

iCON P1-Nano Compact Control Surface, Open Box (Very Good), Angle

zZounds Gear Experts Say...

Serious DAW control doesn't have to consume your whole desk. iCON's P1-Nano gives you a cool customizable touchscreen and one fader, ideal for riding vocals.

Overview

The P1-Nano is a powerful full featured DAW controller with a single fader that gives you tactile control of your Digital Audio Workstation allowing you to streamline your workflow and get your projects done faster.

Customizable Touchscreen: The P1 Nano has a customizable touchscreen display that can be used to control 5 color coded layers of commands in your DAW and match your specific workflow. Quickly access the controls you need at the touch of a button.

Control Plugins and Automation: Use the 8 encoder knobs and the optional D5 display to control your session plugins. Illuminated automation command buttons and the motorized fader are perfect for riding vocals or automating sends.

Integration with popular DAWs: The P1 Nano gives you the ability to control up to 3 DAWs at one time with no interruption to your workflow. Control a wide range of popular DAWs, including Bitwig, Cubase/Nuendo, Logic Pro X, Ableton Live, and Pro Tools.

Features:

- 1x touch-sensitive motorized fader with 12-bit resolution
- Programmable 4 inch, 16 panel digital touch display showing DAW functions per 5 color modes - a potential total of 80 displayable and actionable functions
- Organize DAW functions in the 16 panel touchscreen easily via 'drag and drop' in the iMAP - changes made in real time
- Capability of connecting to 3 DAWs at one time via the DAW select buttons
- Extremely compact, durable and versatile
- On-board display showing channel name, control values, metering etc.
- 8 smooth… read more action dual-function encoder knobs (Rotate and Enter)
- 12-segment LED display shows timecode or location of your project in either SMPTE or beat clock (bars:beats:ticks) formats
- Smooth-action jog wheel shuttle for fast search, scrub and control
- Illuminated function buttons for 'Read', 'Write', 'Touch', 'Latch', 'Trim' and 'Off' - activated/deactivated as required per DAW
- Illuminated buttons for channel control including Mute, Solo and Record
- 6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast Forward and Loop
- Dedicated 'Flip' and 'Master' buttons for fader flipping and access to the master channel
- Illuminated "Zoom" button with 2 directional keys (Left/Right & Up/Down) - used in combination with the jog wheel
- Illuminated "Focus" button which allows the user to 'focus' in and adjust plug-in & EQ parameters etc. via the smooth-action jog wheel
- 2 illuminated "Track" buttons for selecting individual channels
- 2 illuminated "Bank" buttons for shifting 8-channels at a time
- Supports Universal Mackie Control and HUI protocols for seamless integration with compatible music production software
Supports Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Reaper, Reason, Samplitude, Studio One and Tracktion Waveform
iMapTM software downloadable from website product page
USB C high-speed connectivity
Firmware upgrade available via USB C connection and iMapTM software
User A & User B 1/4 inch inputs for connecting footswitch pedals
D5 display unit available (Optional)
Class-compliant with MacOS 10.15 or above & Windows 10 or above
Superior build quality and robust metal casing with Kensington lock port

Specs

- Type: DAW Control Surface
- Channels: Single Channel Control
- Faders: 1x 100mm touch-sensitive motorized fader
- Motorized Faders: 1x with 12-bit resolution
- Knobs: 8x dual-function encoder knobs (Rotate and Enter)
- Buttons: Multiple illuminated buttons including: Mute, Solo, Record, 6 transport buttons (Play, Stop, Rec, Rewind, Fast Forward, Loop), Read, Write, Touch, Latch, Trim, Off automation buttons, Flip, Master, Zoom, Focus, 2 Track buttons, 2 Bank buttons
- Display: 4-inch 16-panel programmable digital touchscreen (5 color-coded layers, 80 total functions) plus 12-segment LED display for timecode/beat clock
- Connectivity: USB-C high-speed connection
- Protocol Support: Universal Mackie Control and HUI protocols
- Power Supply: 5V DC via USB-C (0.9A or less current consumption)
- Compatibility: Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Reaper, Reason, Samplitude, Studio One, Tracktion Waveform - up to 3 DAWs simultaneously

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 2.77 lbs
Shipping Dimensions: 11 x 10 x 4 in
Manufacturer Part Number (MPN): P1-Nano

Open Box (Very Good)

Shipping Weight: 2.77 lbs
Shipping Dimensions: 11 x 10 x 4 in
Manufacturer Part Number (MPN): P1-Nano

Open Box (Like New)

Shipping Weight: 2.77 lbs
Shipping Dimensions: 11 x 10 x 4 in
Manufacturer Part Number (MPN): P1-Nano

Bundle with iCON D5 Display

Shipping Weight: 3.07 lbs
Shipping Dimensions: 11 x 10 x 4 in
Manufacturer Part Number (MPN): IPA-P1NANOD5-BUN

Open Box (Very Good), Bundle with iCON D5 Display

Shipping Weight: 3.07 lbs
Shipping Dimensions: 11 x 10 x 4 in
Manufacturer Part Number (MPN): IPA-P1NANOD5-BUN

Open Box (Like New), Bundle with iCON D5 Display

Shipping Weight: 3.07 lbs
Shipping Dimensions: 11 x 10 x 4 in
Manufacturer Part Number (MPN): IPA-P1NANOD5-BUN

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Web: https://support.iconproaudio.com/

Reviews

(1 ratings)

Submitted March 22, 2026 by Chris M

"Looks AMAZING...but..."

Overall:

(see rating details)

Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.

I was looking for a good DAW controller in the $200-$400 price range other than the Faderport> I've used the Faderport in the past. Liked it but wanted something new. The P1-Nano had everything that I wanted and more. I use Studio One (Pro) and it appears to work with it as well. I looked at the few reviews on line that I could find about it and most sounded positive. I should've looked longer. So I buy it. zZounds had it delivered quickly and safely, as usual. LOVE ZZOUNDS!!! Its a very sturdy and well made controller. Doesn't look or feel cheap in any way. The problems started with the iMap software that you need to use for it to work properly. Its the handshake between your DAW and the controller. There's even a VERY specific step-by-step process that needs to be followed or the controller wont function properly within your DAW. Anyway, The DAW connection wasn't the problem.You need to use the iMap software to update the firmware and change the button mapping on the nano itself. I got through the firmware update cleanly as well. But then the crashes started. EVERYTIME I opened iMap and tried to change any of the button mapping it crashes. Sometimes it crashes right after opening. My PC is more than capable and well within the minimum requirements for this thing. I went through all of the self-help steps and read as much troubleshooting information as I could find on the internet as I could. I've contacted the ICON support staff and I'm still waiting for a response. ***I do… read more have to say the the design of the touchscreen button layout is really damn cool. The whole thing is really well designed from a physical workflow aspect***THE VERDICT IS STILL OUT for me because I have the thing sitting 2 inches away and I'd like to figure it out BUT I would steer clear of this product for the time being.

Musical Background:
Songwritter

Did you find this review helpful?
