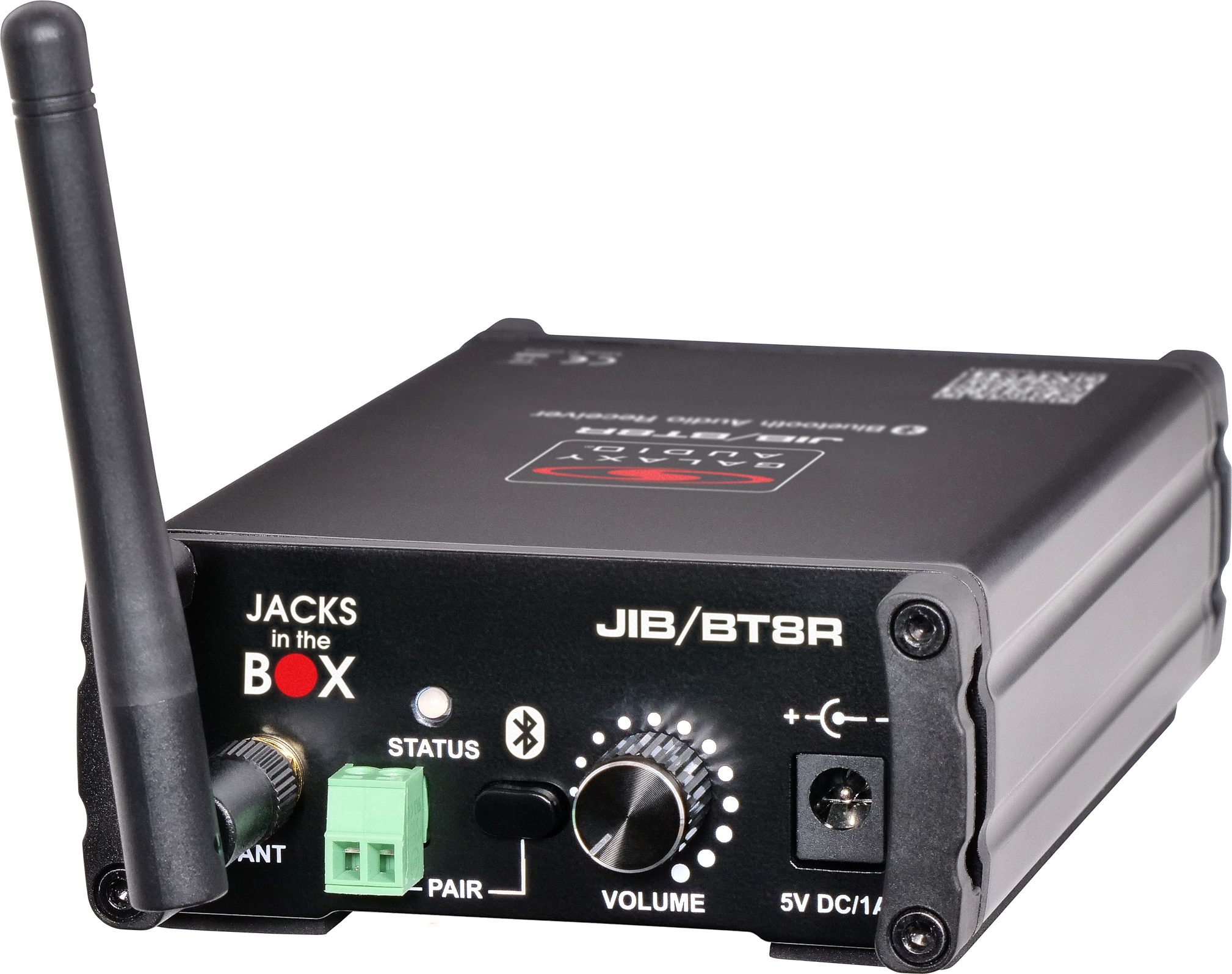

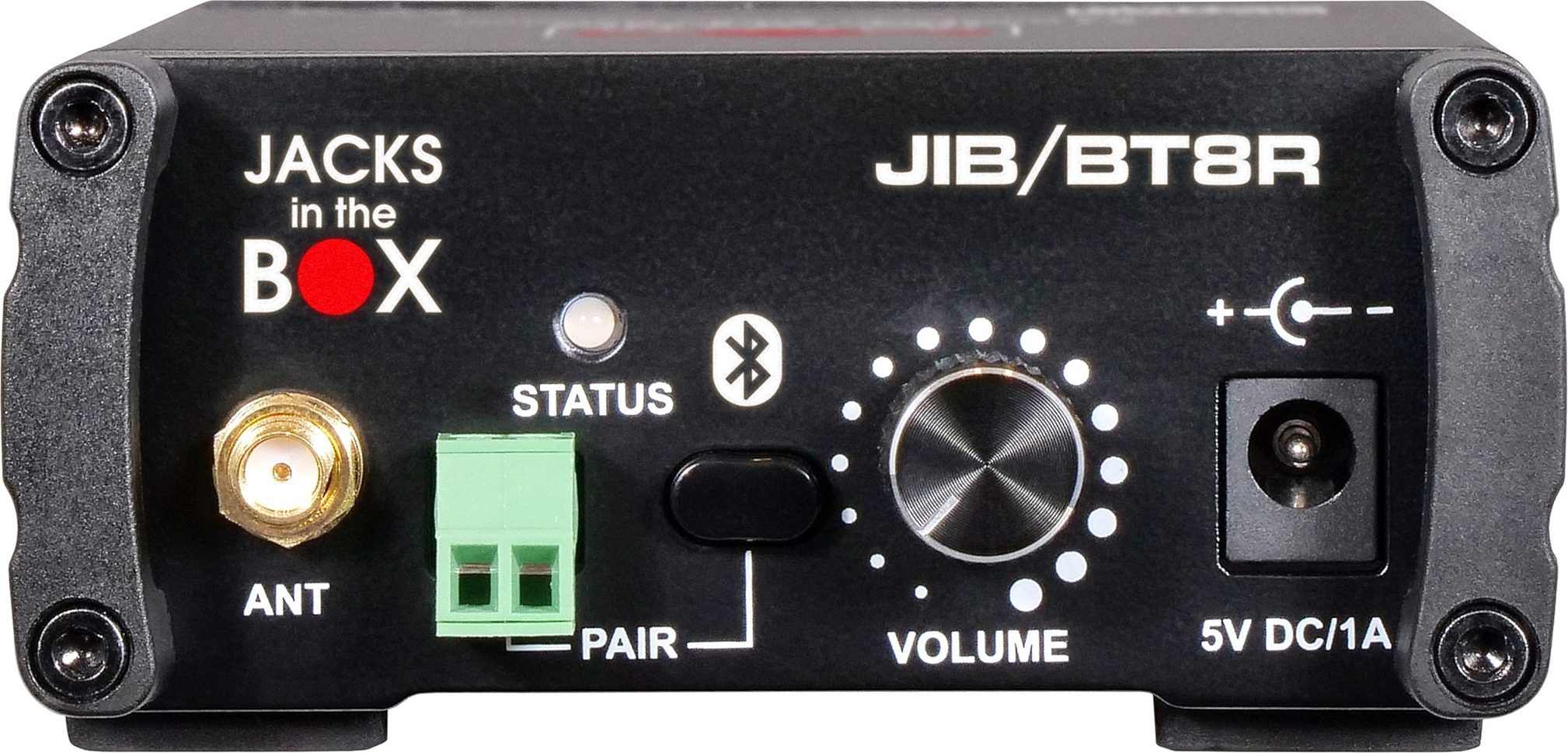

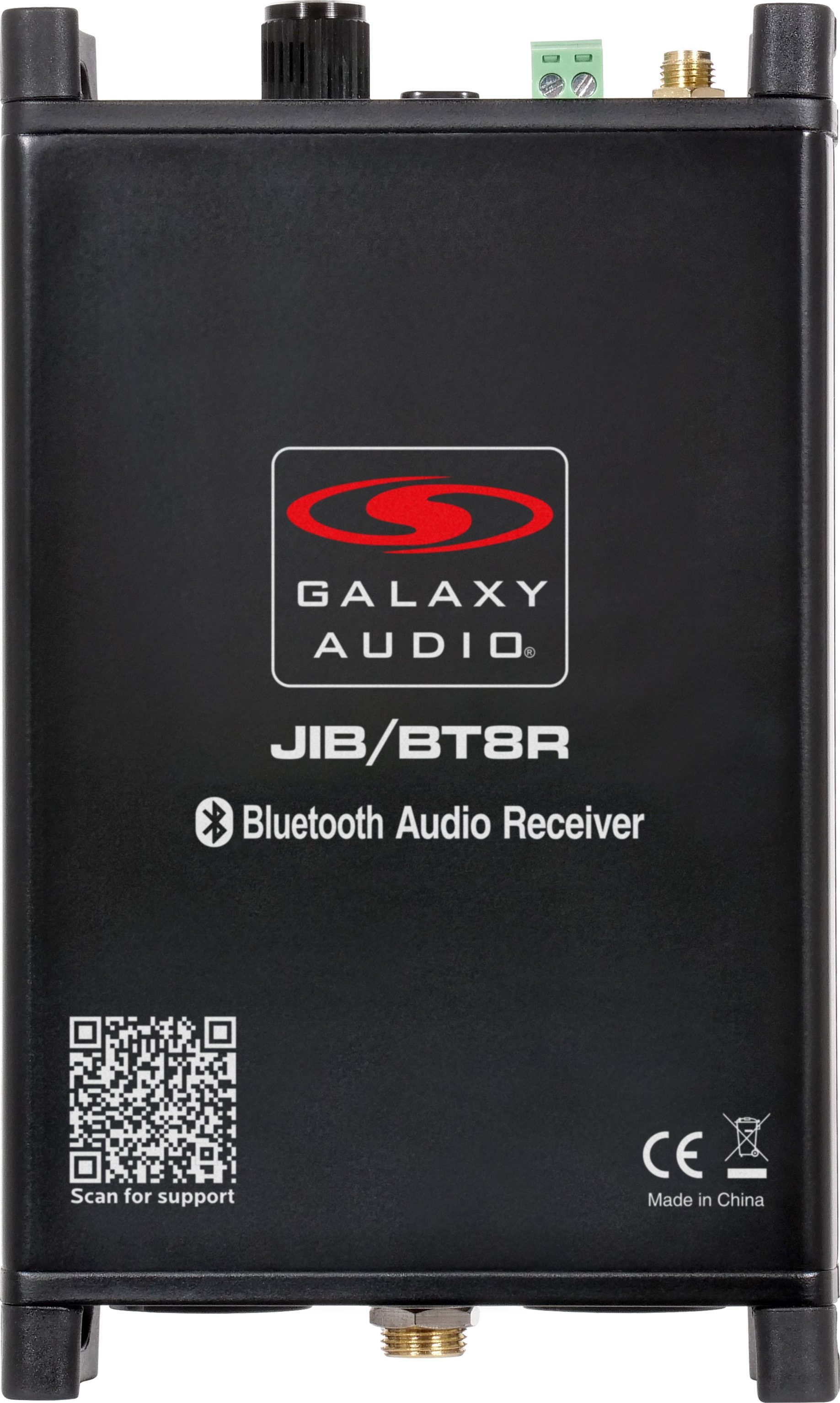

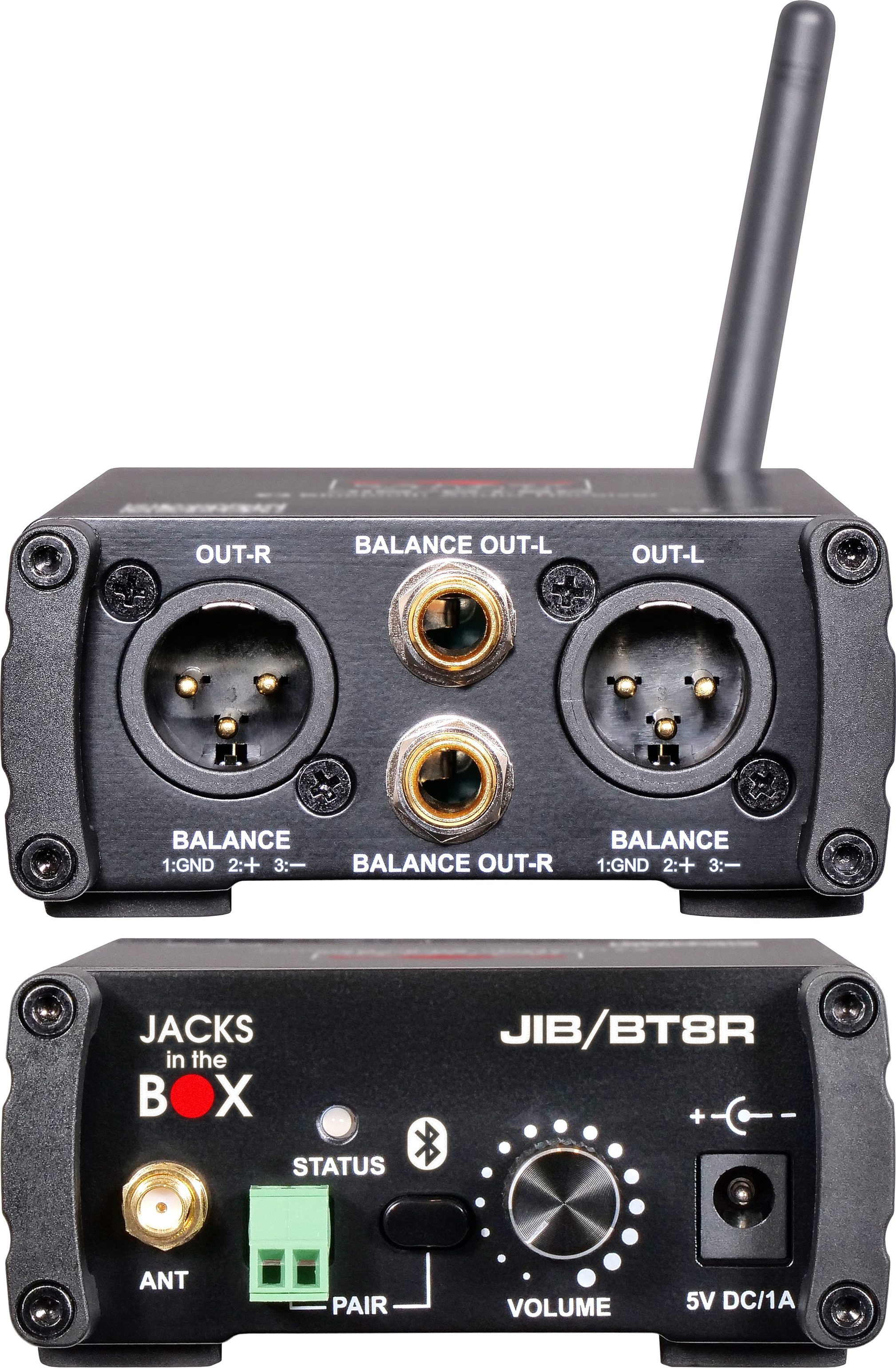

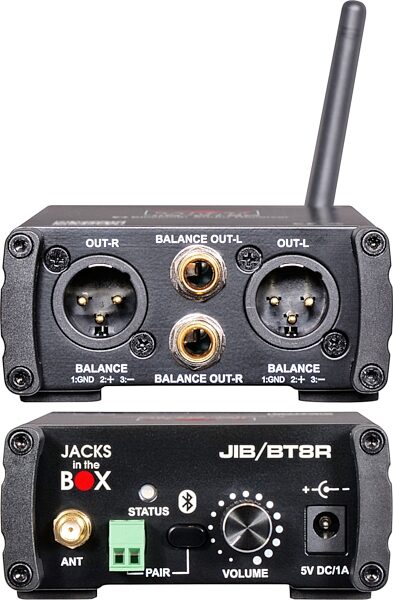

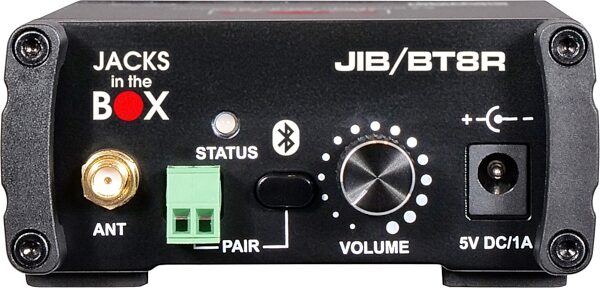

Galaxy Audio JIB/BT8R Stereo Bluetooth Receiver
No longer available at zZounds






zZounds Gear Experts Say...
The Galaxy Audio JIB/BT8R is a stereo Bluetooth receiver that adds streaming compatibility to any mixer or PA speaker with XLR or 1/4" inputs.
Overview
The Galaxy Audio JIB/BT8R is a lightweight, compact, portable Bluetooth receiver that interfaces high quality stereo Bluetooth audio wirelessly from a smart phone to an active speaker or mixing console. The receiver offers a practical, straightforward audio solution for venues that require a quick wireless set up.
Additionally, the receiver offers remote pairing capability by connecting to the included euro-block connector. The JIB/BT8R features balanced Left/Right XLR and 1/4" line outputs with a volume control. The receiver is powered on 5V DC and comes with a removable 2.4GHz antenna. The receiver can be placed on a flat surface such as a rack shelf or mounted to a mic stand. DJs accepting requested songs that may not have it in their track can allow a user to Bluetooth a song straight to their mixing console for live DJ mixing. Singers and musicians can stream audio wirelessly to the receiver. The JIB/BT8R can also be used for a number of other audio streaming applications including dance studios, aerobics, school and gym classes, house of worship, restaurants, nightclubs, event spaces, karaoke, weddings, and many more.
- Left/Right XLR and 1/4" Line Out for Stereo Playback
- Lightweight, Compact, Tough, Portable Design
- Volume Control
- Remote Pairing Capability
- Removable 2.4 GHz Antenna

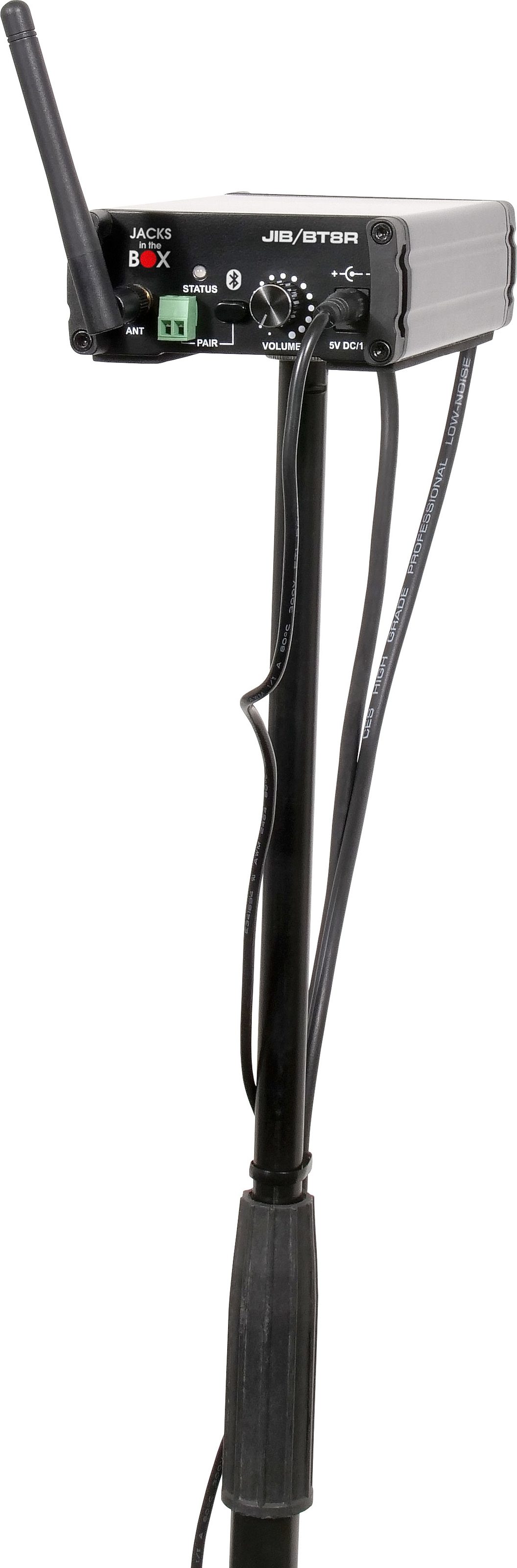

- Stand Mountable (3/8"-5/8" stand adapter included)
Additionally, the receiver offers remote pairing capability by connecting to the included euro-block connector. The JIB/BT8R features balanced Left/Right XLR and 1/4" line outputs with a volume control. The receiver is powered on 5V DC and comes with a removable 2.4GHz antenna. The receiver can be placed on a flat surface such as a rack shelf or mounted to a mic stand. DJs accepting requested songs that may not have it in their track can allow a user to Bluetooth a song straight to their mixing console for live DJ mixing. Singers and musicians can stream audio wirelessly to the receiver. The JIB/BT8R can also be used for a number of other audio streaming applications including dance studios, aerobics, school and gym classes, house of worship, restaurants, nightclubs, event spaces, karaoke, weddings, and many more.
Features
- Transmit Audio from Smart Phone to Active Speaker or Mixer- Left/Right XLR and 1/4" Line Out for Stereo Playback
- Lightweight, Compact, Tough, Portable Design
- Volume Control
- Remote Pairing Capability
- Removable 2.4 GHz Antenna
- Stand Mountable (3/8"-5/8" stand adapter included)
Specs
- Frequency Range: V4.1
- Frequency Range: 2.4GHz - 2.48GHz

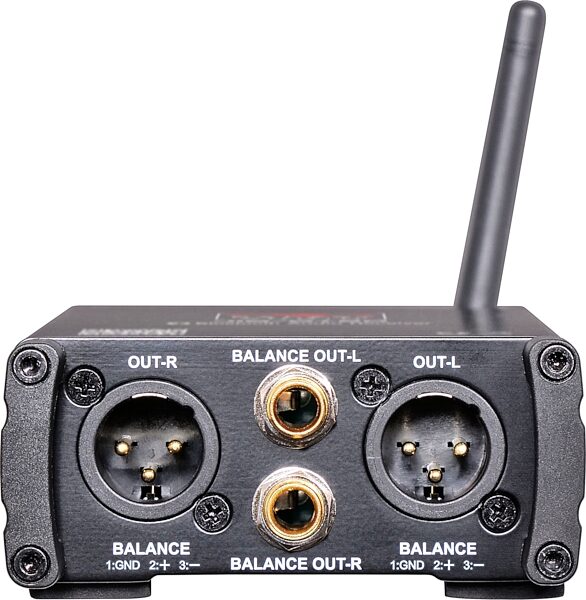

- Output Connector: Left/Right Balanced XLR/M, Left/Right Balanced 1/4" Line
- Controls: Volume, Wireless Bluetooth Pair, Remote Pairing Euro-block
- Connector Indicators: Status LED
- Sensitivity: -80dBm < +/-0.1% BER
- Signal to Noise: >75dB
- Total Harmonic Distortion: <0.1%
- Operating Range: Under Typical Conditions 32.8' (10 m)
- Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
- Operating Temperature Range: -40º F to 176º F (-40 Cº to +80 Cº)
- Note: battery characteristics may limit this range
- Mountable: Yes, 5/8" or 3/8" with included adapter
- Antenna: 2.4 GHz Removable
- Dimensions (HxWxD): 1.58" x 3.54" x 5.8" (40 x 90 x 147 mm)
- Weight: 12.17 oz (345 g)
- Power Requirements: 5V DC/1A Power Supply (included)
- Frequency Range: 2.4GHz - 2.48GHz
- Output Connector: Left/Right Balanced XLR/M, Left/Right Balanced 1/4" Line
- Controls: Volume, Wireless Bluetooth Pair, Remote Pairing Euro-block
- Connector Indicators: Status LED
- Sensitivity: -80dBm < +/-0.1% BER
- Signal to Noise: >75dB
- Total Harmonic Distortion: <0.1%
- Operating Range: Under Typical Conditions 32.8' (10 m)
- Note: actual range depends on RF signal absorption, reflection, interference, and battery characteristics
- Operating Temperature Range: -40º F to 176º F (-40 Cº to +80 Cº)
- Note: battery characteristics may limit this range
- Mountable: Yes, 5/8" or 3/8" with included adapter
- Antenna: 2.4 GHz Removable
- Dimensions (HxWxD): 1.58" x 3.54" x 5.8" (40 x 90 x 147 mm)
- Weight: 12.17 oz (345 g)
- Power Requirements: 5V DC/1A Power Supply (included)
