Galaxy Audio DHXR/77HS Wireless Headset Microphone System

The Galaxy Audio DHXR/77HS wireless headset microphone system comes equipped with professional-grade features -- ideal for vocals or public speaking.
Overview
The Galaxy Audio DHX (UHF) professional wireless microphone transmitter and receiver packs the tools for the pro.The DHX features Auto Scan that will search for an available frequency to use, as well as IR Sync for easy connectivity from receiver to transmitter. The large LCD display shows channel number, frequency, lock mode, and volume output. The DHX professional wireless system receiver has an easy to read RF and AF indicator. The UHF diversity antennas ensure quality operation. The receiver has also been upgraded to include Tone-key squelch for improved rejection of outside interference. The DHX is compatible with any 77 or 65 series handheld or body pack transmitters. Bundles are also available with any of our high quality Lav or Headset mics. Single/dual rack mount kit included.

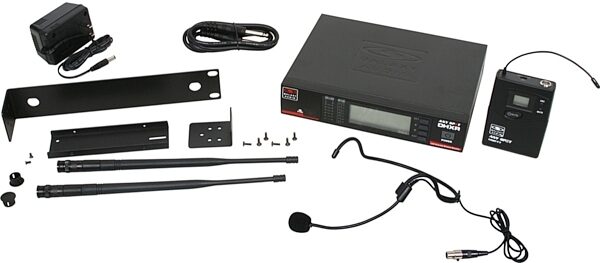

This system includes the DHXR Receiver, MBP77 Body Pack Transmitter, the HS-U3BK Headset Microphone, Antennas, 1/4" to 1/4" cable, Power Supply, Rack Ears, and Screws.
- Auto Scan
- 120 Selectable UHF Frequencies
- Diversity Antennas
- Single/Dual Rack Kit Included
This system includes the DHXR Receiver, MBP77 Body Pack Transmitter, the HS-U3BK Headset Microphone, Antennas, 1/4" to 1/4" cable, Power Supply, Rack Ears, and Screws.
Features
- 300' Range- Auto Scan
- 120 Selectable UHF Frequencies
- Diversity Antennas
- Single/Dual Rack Kit Included
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
Max Audio Input Level:
0 dBV maximum at mic gain position
+10 dBV maximum at 0 dB gain position.
+20 dBV maximum at -10 dB gain.
Gain Adjust: Mic / 0 dB / -10 dB
RF Output: 20 mW
Input Impedance: 470 k Ohms
Dimensions: 3.5" x 2.6" x 1" (89 x 54 x 24 mm) (HxWxD)
Weight: 3.0 oz (85 g) (without batteries)
Power Requirements: 2 "AA" size alkaline or rechargeable batteries
Battery Life: About 6 hours (alkaline)
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
0 dBV maximum at mic gain position
+10 dBV maximum at 0 dB gain position.
+20 dBV maximum at -10 dB gain.
Gain Adjust: Mic / 0 dB / -10 dB
RF Output: 20 mW
Input Impedance: 470 k Ohms
Dimensions: 3.5" x 2.6" x 1" (89 x 54 x 24 mm) (HxWxD)
Weight: 3.0 oz (85 g) (without batteries)
Power Requirements: 2 "AA" size alkaline or rechargeable batteries
Battery Life: About 6 hours (alkaline)
- Dimensions and Weight in Packaging
- Band D (584-607 MHz)
- Shipping Weight: 5.25 lbs
- Shipping Dimensions: 17 x 13 x 3 in
- Manufacturer Part Number (MPN): DHXR/77HSD
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophonesNOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
Band D (584-607 MHz)
