Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

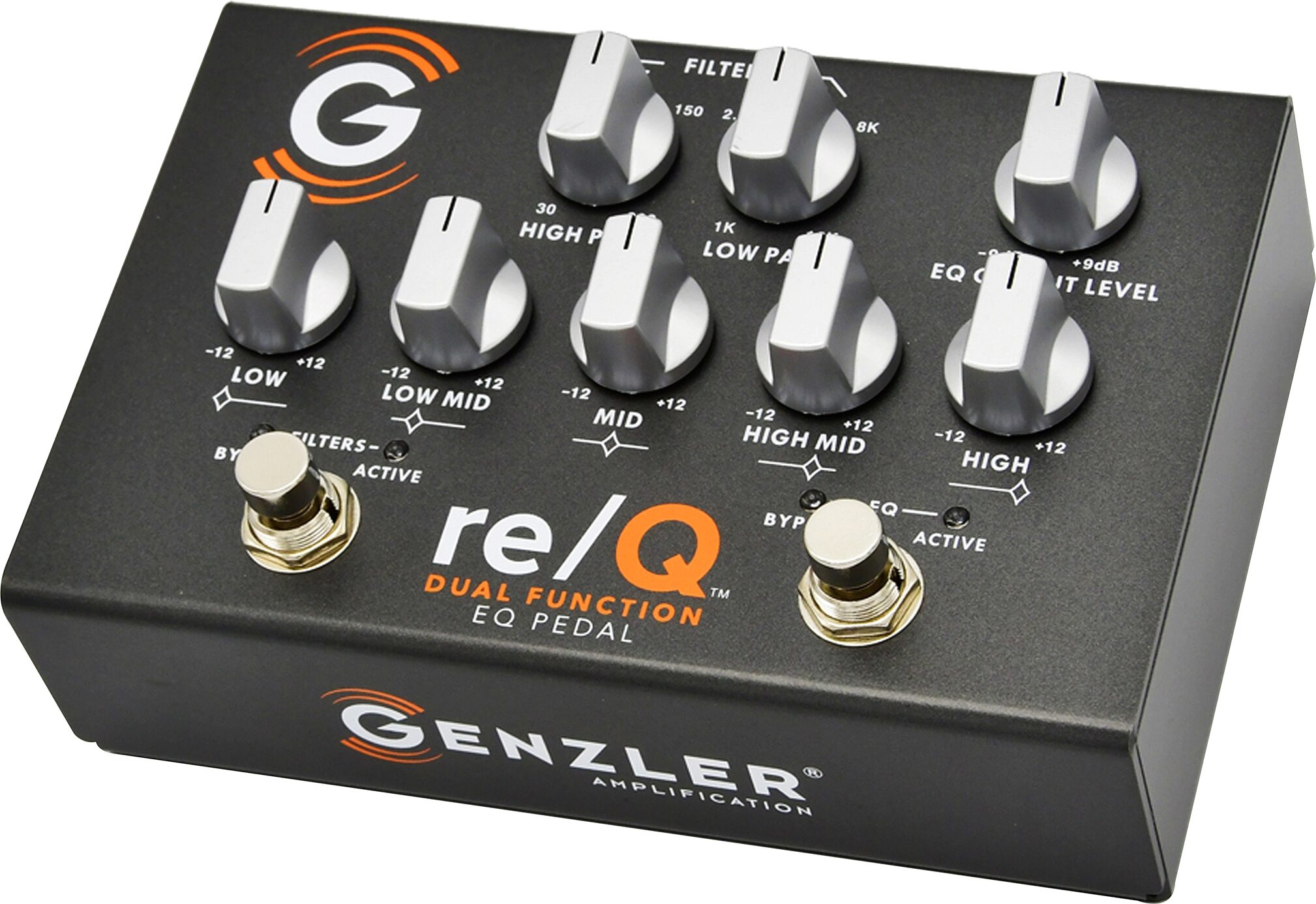

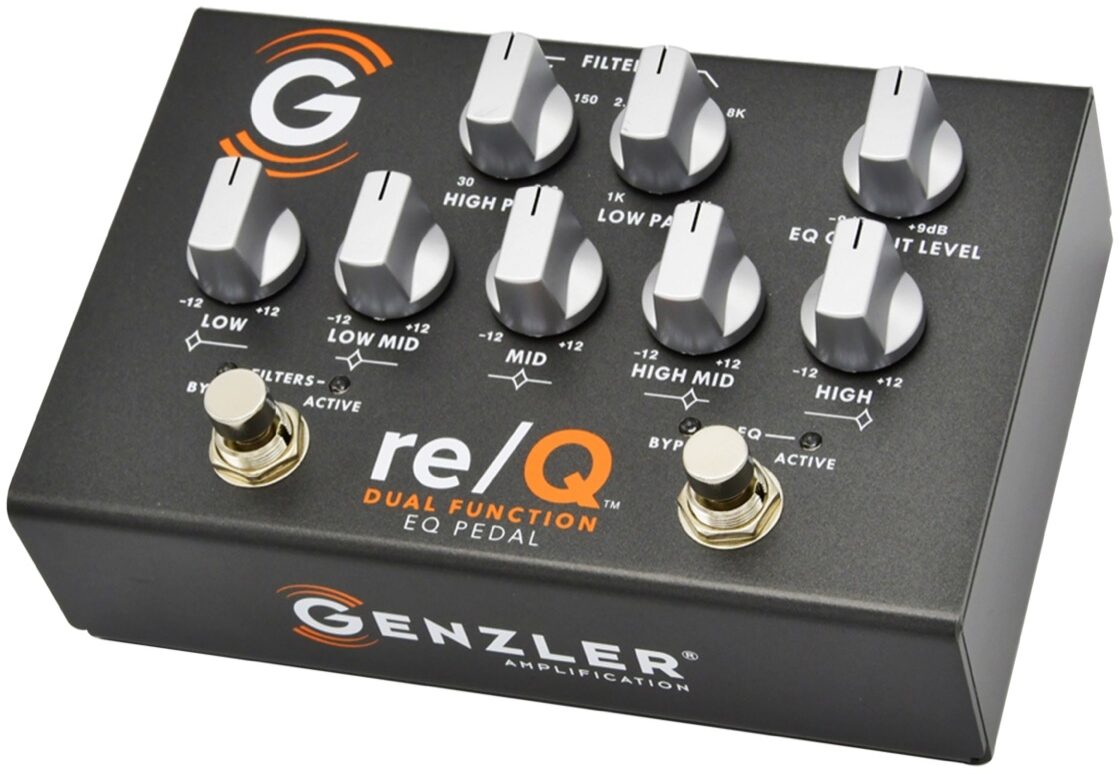

Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, main

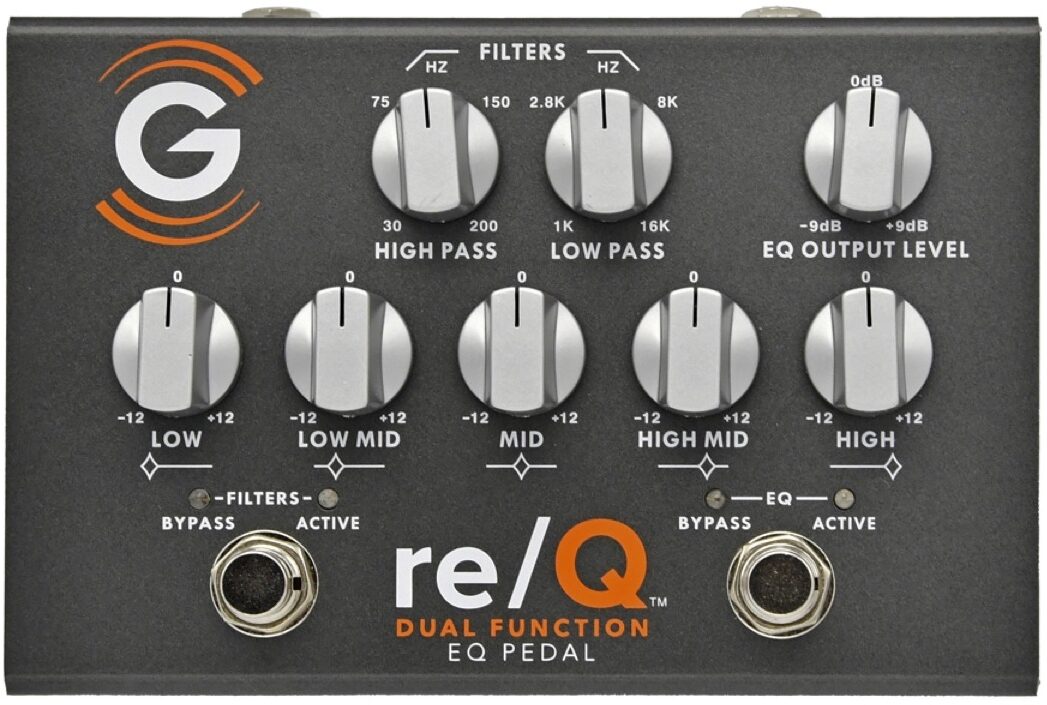

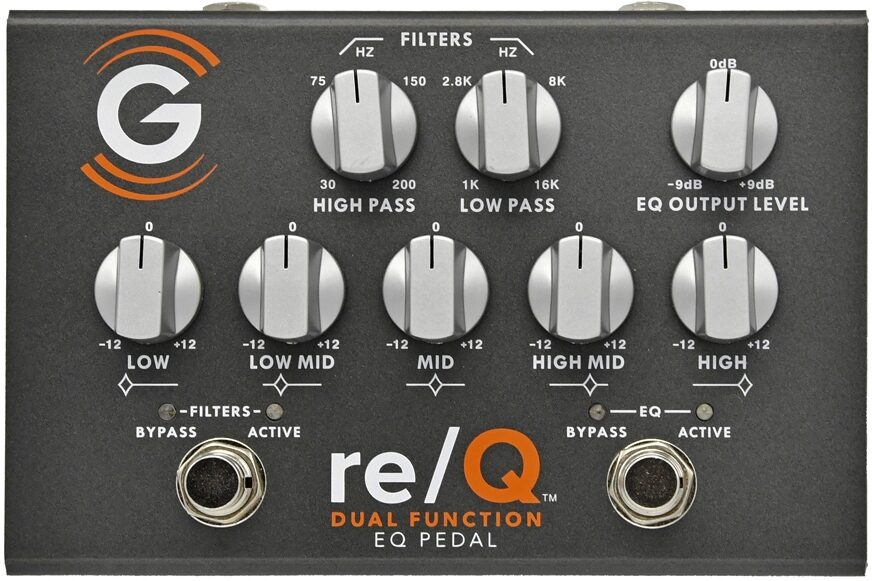

Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, view
Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, view
Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, view

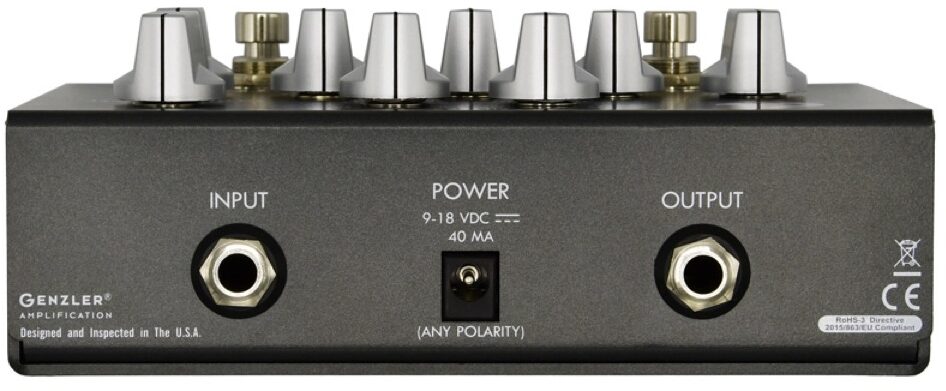

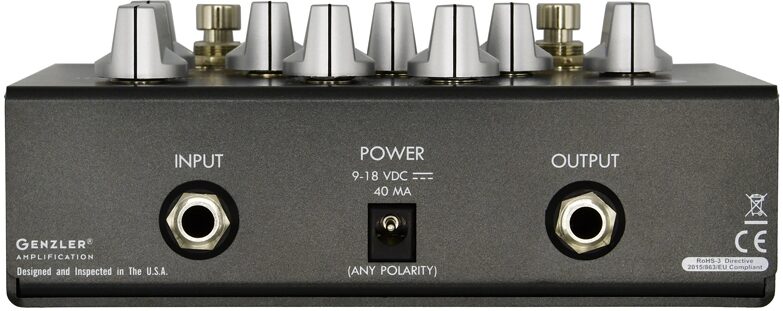

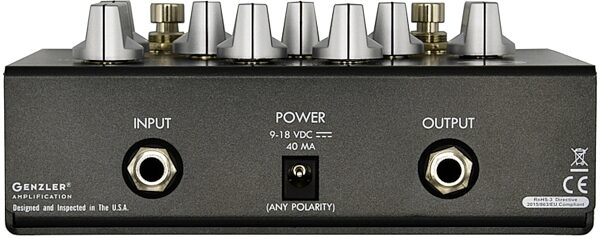

Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, Action Position Back
Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, Action Position Back
Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, Action Position Back
Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, Action Position Back
Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, main Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, view Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, view Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, view Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, Action Position Back Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, Action Position Back Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, Action Position Back Genzler Re/Q Bass Guitar Dual Function Equalizer Pedal, New, Action Position Back
zZounds Gear Experts Say...
Sculpt your ideal bass tone with Genzler! The Genzler Re/Q pedal is specifically designed to equalize bass guitar frequencies and/or provide a clean boost.

Genzler Amplification's Re/Q Dual Function Equalization pedal offers 2 specific and separate filter networks, HPF and LPF filters with on/off switching and a 5-band EQ network with its own on/off switching. And the EQ network provides an EQ Output level of +/- 9dB. This versatile design allows the pedal to be used as a clean boost, and is a great combination with the 4 on the floor, classic bass overdrive pedal. This pedal also offers another level of versatility as it accepts nearly any power supply; 9 18 Volts, either polarity.

Power supply not included.

The Genzler Amplification pedal line explores a variety of pedal concepts based on their decades of collaboration together, looking back into hundreds of pages of their old design ideas, and to explore interesting circuits that were started but never used, blending them with new innovations. A retrospective of sorts, this is a chance to dig into their collective pasts to develop what they feel players would use and appreciate, going forward.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Input Impedance: >1M ohm
- Output Impedance: 1k ohm
- HPF: 30Hz 200hz
- LPF: 1kHz 14kHz
- EQ Filter Points:
- Low: 90 Hz
- Low Mid: 250Hz
- Mid: 630Hz
- High Mid: 1.3kHz
- High: 2.6kHz
- EQ Band Control Range: +/- 12dB
- EQ Output Level Control Range: +/-9dB
- Input Sensitivity (nominal): -10dBu to -20dBu (instrument level)
- Input Level (maximum): 0dBu (9V supply), +5dBu (12V supply), +10dBu (18V supply)
- Output Level (nominal): -10dBu to -20dBu (instrument level)
- Output Level (maximum): +9dBu (9V supply) +14dBu (12V supply), +20dBu (18V supply)

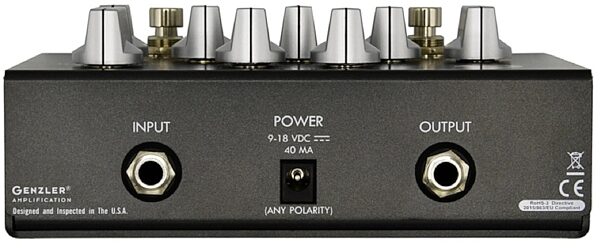

- Power Supply: 9VDC-18VDC (low noise type), either polarity (auto-detecting), 40mA max (Power supply not included)
- Dimensions: 6" (127mm) W x 4.1" (104mm )D x 2.3" (59mm)H
- Weight: 1.3 lb (0.6kg)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.21 lbs
Shipping Dimensions: 7 x 5 x 4 in
Manufacturer Part Number (MPN): RE-Q-PEDAL
