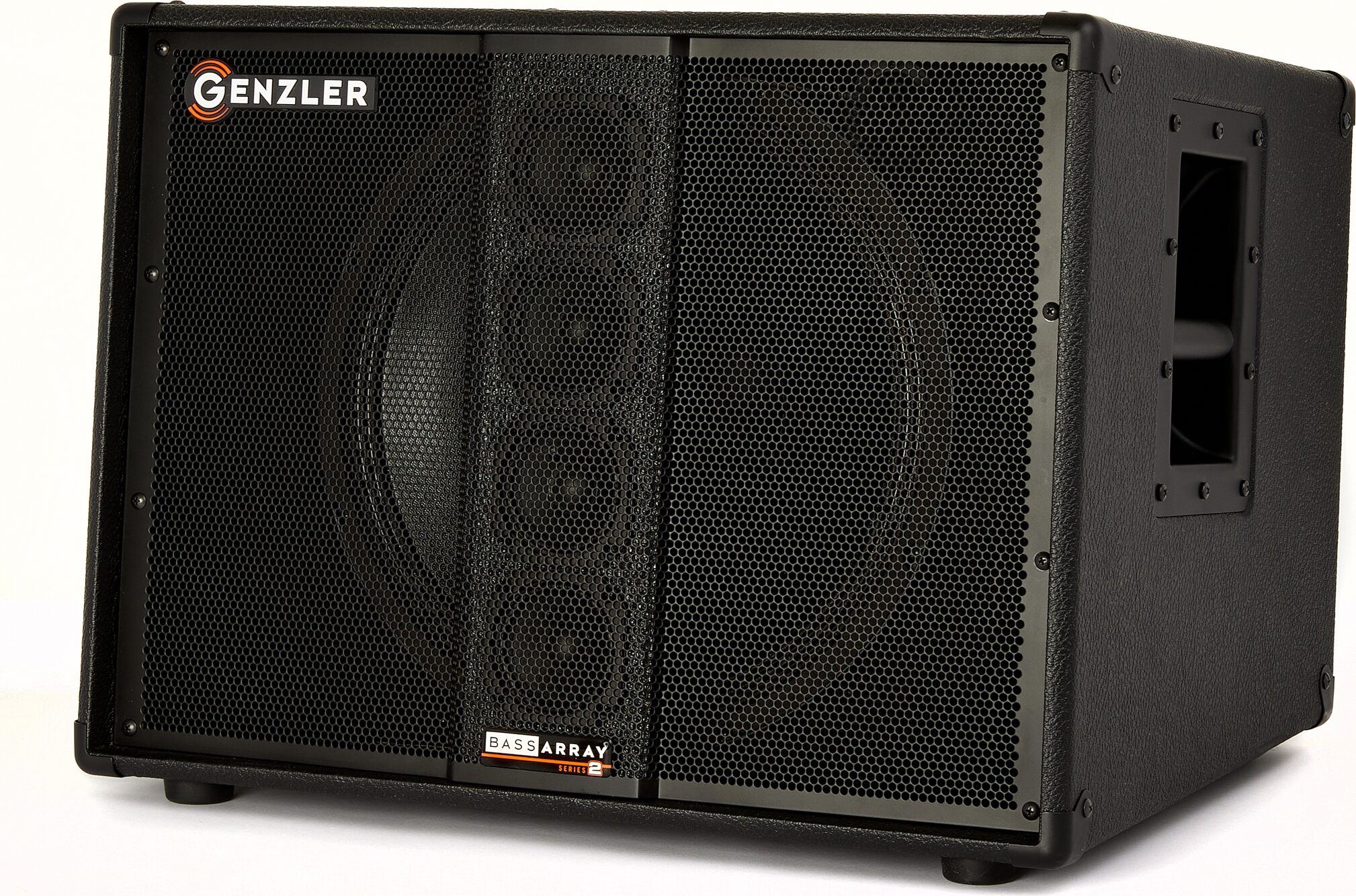

Genzler BA-153-SLT Bass Array Series 2 Cabinet (500 Watts, 8 Ohms)



zZounds Gear Experts Say...
An innovative bass cabinet with incredible versatility, Genzler's BA-153-SLT Bass Array Series cabinet a 15" woofer and four 3" line array neodymium drivers.
Overview
The innovative SERIES 2 Bass Array design blends the benefits of all Italian-designed speakers -- a 15" neodymium woofer in a vented bass reflex design with the performance and pattern control of a 4 x 3" neodymium cone-driver line array element. Additionally, the placement of the Line Array in front of the 15" woofer further provides a type of "single point source" projection---think of it as concentric speakers, one inside of the other, in the same linear plane. Also due to line array principles the all-important mid and high frequencies have a much wider horizontal dispersion with a more controlled vertical pattern.
The benefits of combining both loudspeaker elements in an extremely compact speaker system are exponential for the player:
- Full, deep, low frequency response from the high efficiency 15" ported woofer.
- Smooth, seamless, clear, and articulate mid-range to high frequency transition across the audio spectrum.
- Broad horizontal dispersion far exceeding conventional woofer/tweeter combinations.
What this means in the context of performance is the most focused, defined, musically smooth and seamless response possible throughout the cabinet's entire broad-range bandwidth.
An excellent choice when used as a single enclosure or in combination with additional BA straight or slant cabinets. This offers multiple options to the player to configure their BA2-115-3 SLT stack for the best coverage of the stage or performance venue.
- Ported Cabinet Design
- Cabinet Built w/Lite-ply & Baltic Birch Plywood

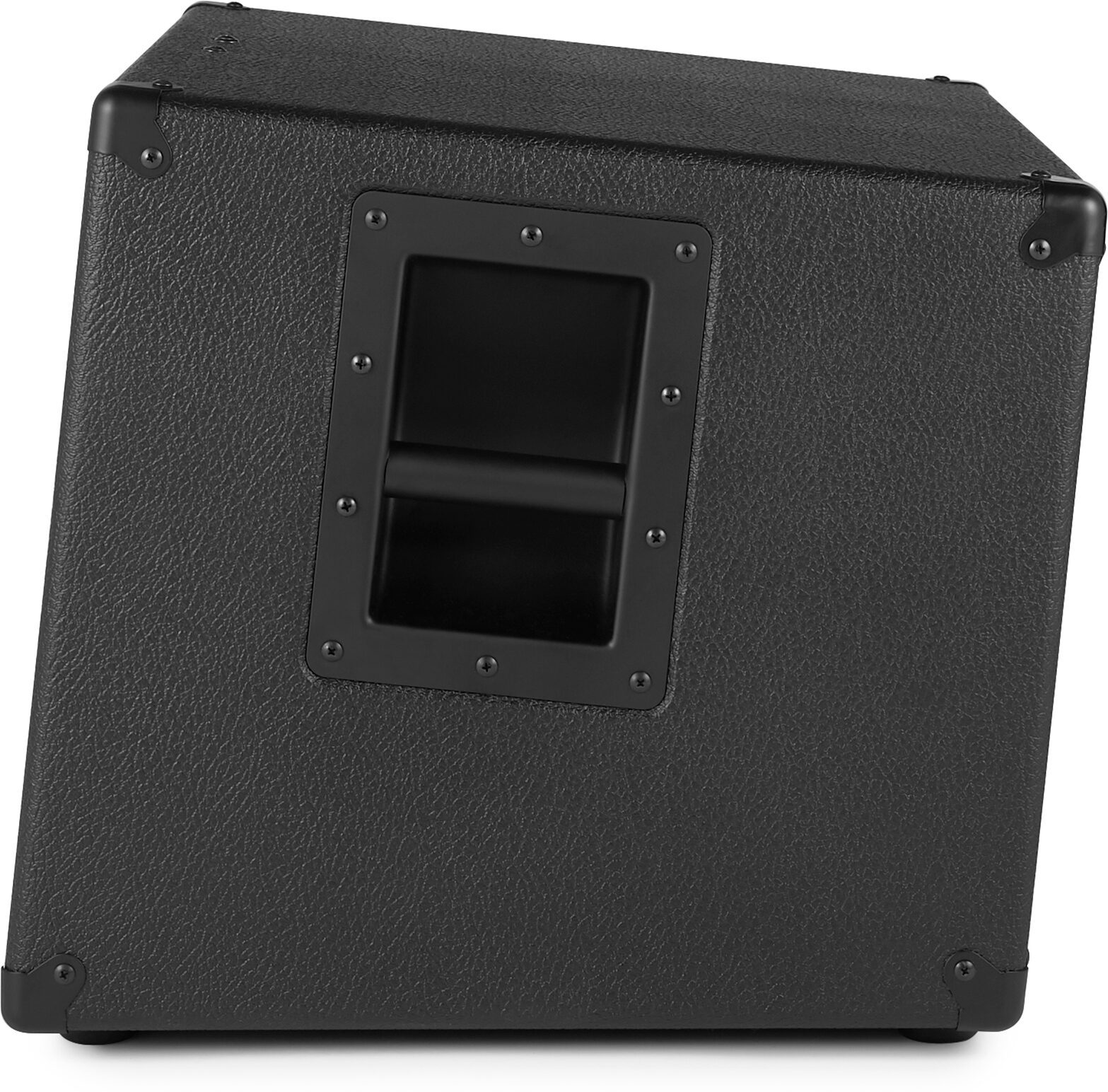

- Side Recessed Flush Handles
- Dual Speakon(R) and 1/4" Input Jacks
read less
The benefits of combining both loudspeaker elements in an extremely compact speaker system are exponential for the player:
- Full, deep, low frequency response from the high efficiency 15" ported woofer.
- Smooth, seamless, clear, and articulate mid-range to high frequency transition across the audio spectrum.
- Broad horizontal dispersion far exceeding conventional woofer/tweeter combinations.
What this means in the context of performance is the most focused, defined, musically smooth and seamless response possible throughout the cabinet's entire broad-range bandwidth.
An excellent choice when used as a single enclosure or in combination with additional BA straight or slant cabinets. This offers multiple options to the player to configure their BA2-115-3 SLT stack for the best coverage of the stage or performance venue.
Features:
- Neodymium 15"… read more Woofer w/4 x 3" Neodymium Line Array Drivers- Ported Cabinet Design
- Cabinet Built w/Lite-ply & Baltic Birch Plywood
- Side Recessed Flush Handles
- Dual Speakon(R) and 1/4" Input Jacks
Specs
-Power Handling: 500 Watts
-Frequency Response: 30-18K Hz
-Sensitivity 1W/1M: 99 dB
-Nominal Impedance: 8 ohm
-Crossover Frequency: 800 Hz
-Weight: 36 lbs
-Dimensions (HxWxD): 17.5" x 23" x 19 3/8"
-Shipping Data:
-Carton Dimensions: 27"H x 22"W x 22"D
-Shipping Weight: 43 Lbs
-Speaker Components:
- One -- Premium Neodymium 15" loudspeaker utilizing a fiberglass former voice coil with a unique dual-wound (inside/outside winding) design for increased power handling and thermal capacity.
- Four -- Premium Neodymium 3" full-range, mid/high cone drivers utilizing a fiberglass former voice coil, a unique dual-wound (inside/outside winding) design for increased power handling and thermal capacity. These drivers are loaded into a sealed line array stack.
-Input Panel/Crossover Network:
- Custom designed 6 dB/octave slopes in balance with the acoustical controls of each enclosure.

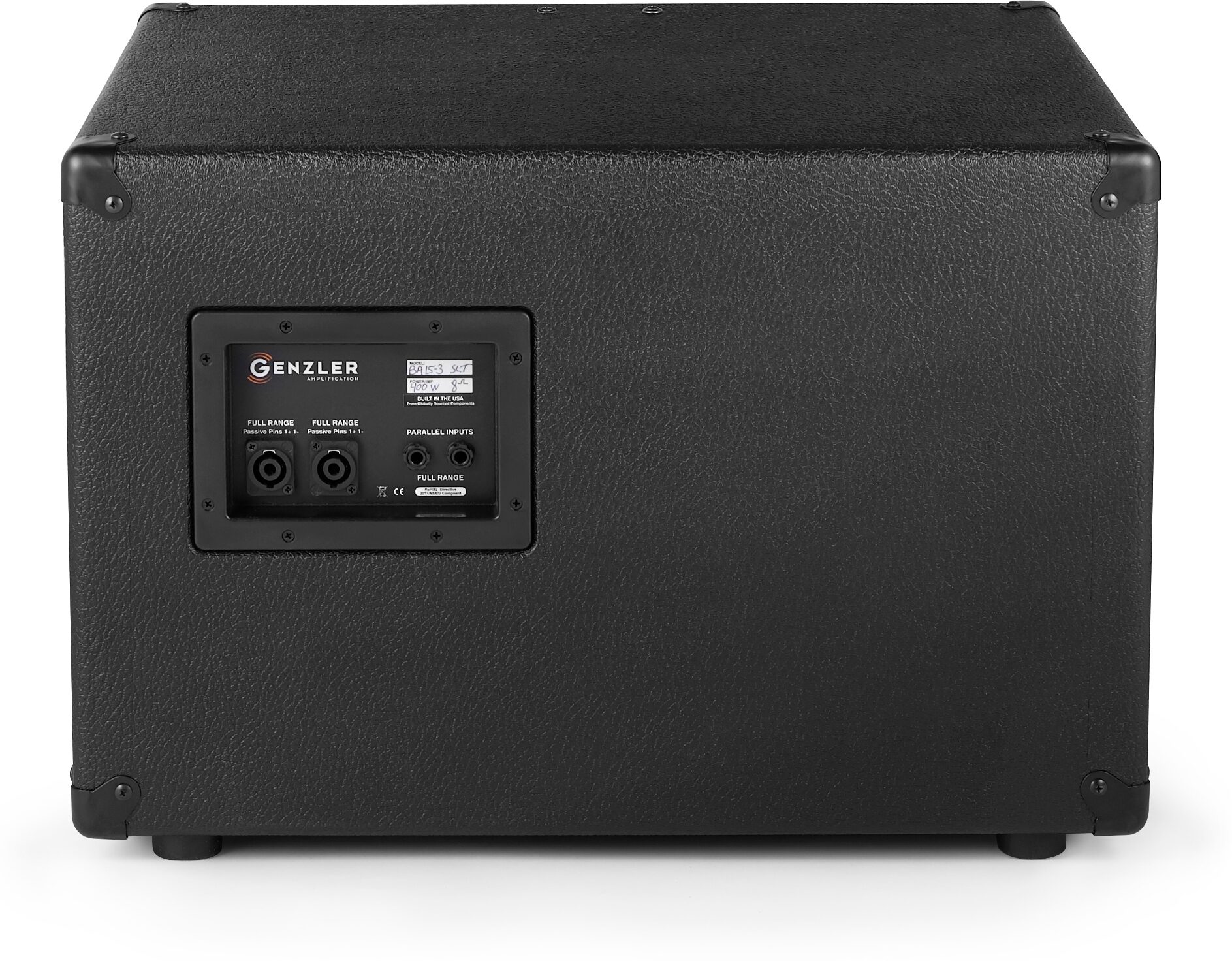

- Two -- Speakon(R) NL-2 connector and two - 1/4" sealed jacks; to reduce rear cabinet air loss and noise.
-Cabinet Finish:
- Heavy-duty textured black vinyl
- Black metal corners and side-mounted recessed handles
- Custom, curved grille with a unique center "pleat" to protect the array column
- Large rubber feet
-Frequency Response: 30-18K Hz
-Sensitivity 1W/1M: 99 dB
-Nominal Impedance: 8 ohm
-Crossover Frequency: 800 Hz
-Weight: 36 lbs
-Dimensions (HxWxD): 17.5" x 23" x 19 3/8"
-Shipping Data:
-Carton Dimensions: 27"H x 22"W x 22"D
-Shipping Weight: 43 Lbs
-Speaker Components:
- One -- Premium Neodymium 15" loudspeaker utilizing a fiberglass former voice coil with a unique dual-wound (inside/outside winding) design for increased power handling and thermal capacity.
- Four -- Premium Neodymium 3" full-range, mid/high cone drivers utilizing a fiberglass former voice coil, a unique dual-wound (inside/outside winding) design for increased power handling and thermal capacity. These drivers are loaded into a sealed line array stack.
-Input Panel/Crossover Network:
- Custom designed 6 dB/octave slopes in balance with the acoustical controls of each enclosure.
- Two -- Speakon(R) NL-2 connector and two - 1/4" sealed jacks; to reduce rear cabinet air loss and noise.
-Cabinet Finish:
- Heavy-duty textured black vinyl
- Black metal corners and side-mounted recessed handles
- Custom, curved grille with a unique center "pleat" to protect the array column
- Large rubber feet
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 44.6 lbs
- Shipping Dimensions: 27 x 22 x 22 in
- Manufacturer Part Number (MPN): BA2-115-3SLT
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Email: technicalsupport@genzleramps.com
Email: technicalsupport@genzleramps.com
