Galaxy Audio EDXR/HHBPSN EDX Wireless Microphone System

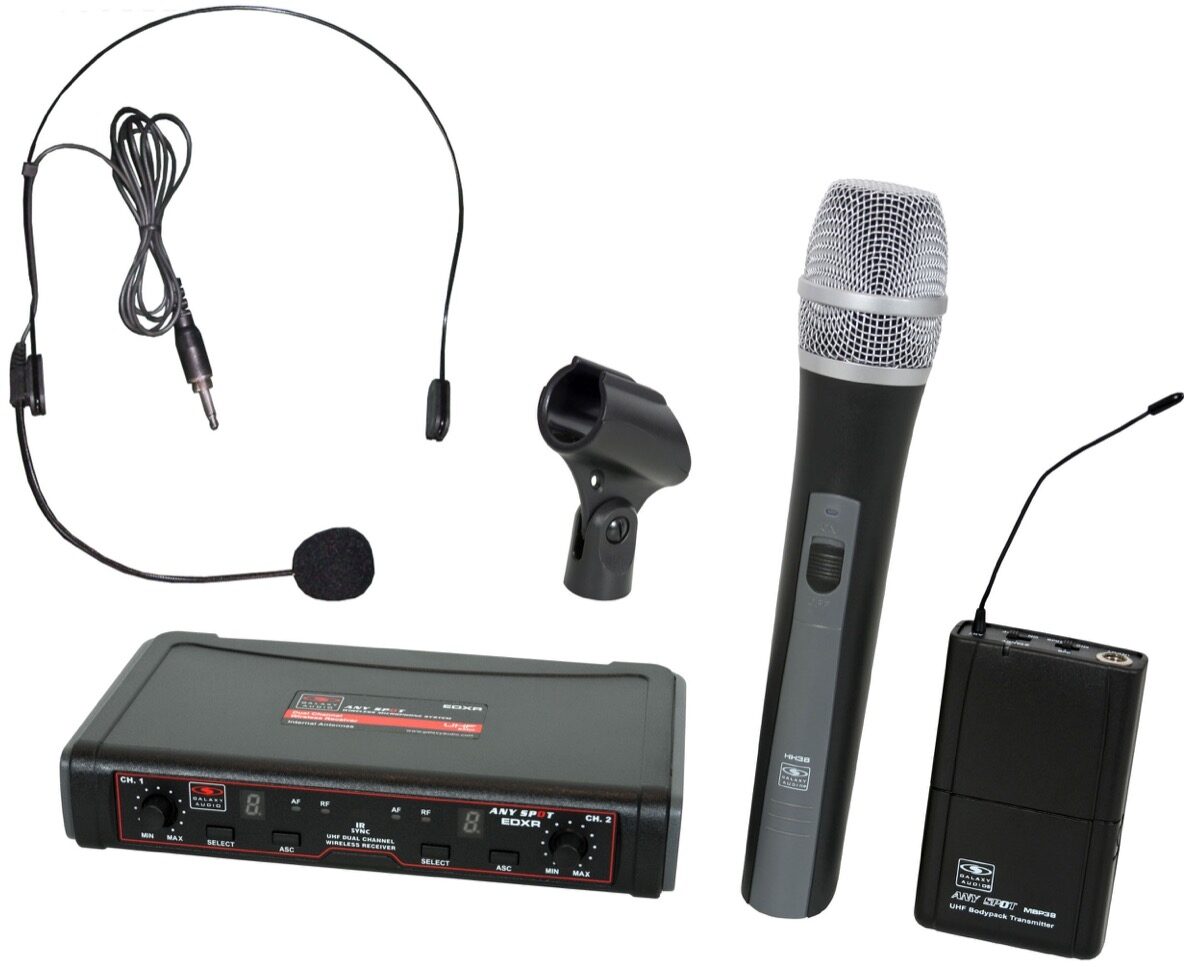

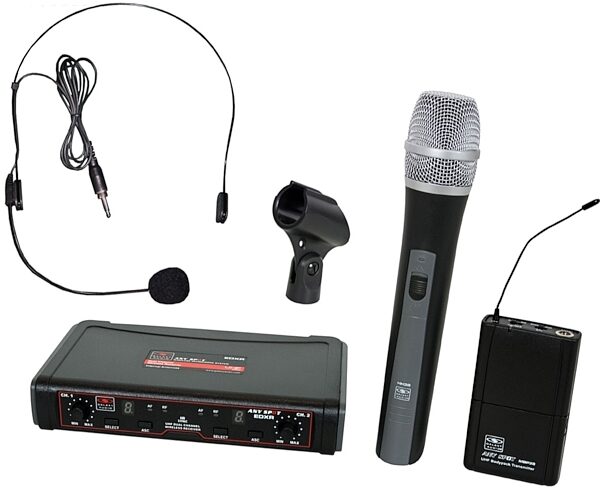

Get two channels of wireless vocals with the Galaxy Audio EDXR/HHBPSN EDX. Includes a handheld mic, a lavalier, a body pack transmitter, and a receiver.
Overview
The EDX Series is a professional dual channel UHF wireless microphone system. The EDX features 2 internal antennas (1 for each receiver), 16 selectable channels on each receiver, and IR Sync from receiver to transmitter. The EDX has 2 discreet male XLR outputs and 1 combined 1/4" output on the back of the unit. The output is controlled by a volume control for each receiver, located on the front of the unit.
The EDXR 2 channel wireless microphone system can be used and will sync with either the HH38 handheld or the MBP38 body pack transmitters. Systems with the MBP38 body pack are available with either a lavalier, or headset. Both transmitters feature an on/off switch and are powered by two "AA" batteries. The MBP38 body pack transmitter also features a Mic/0/-10 selector switch for various input level sources.
The EDXR 2 channel wireless microphone system can be used and will sync with either the HH38 handheld or the MBP38 body pack transmitters. Systems with the MBP38 body pack are available with either a lavalier, or headset. Both transmitters feature an on/off switch and are powered by two "AA" batteries. The MBP38 body pack transmitter also features a Mic/0/-10 selector switch for various input level sources.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
EDXR Receiver
Dual Channel Receiver
AF & RF Indicators
IR Sync Receiver to Transmitters
1 Mixed 1/4" Output, 2 Balanced Male XLR Outputs
2 Internal Antennas (Non-Diversity)
Rugged Plastic Casing
HH38 Transmitter
Dynamic Cardioid
On/Off Switch
IR Sync Transmitter to Receiver
Plastic Casing
Operates on 2 AA Batteries (up to 8 hours Alkaline)
Dimensions: 10.9" 1.85" (277 x 47 mm) (LxDia)
Weight: 6.9 oz (195 g)
MBP38 Transmitter
On/Off/Standby Switch
IR Sync Transmitter to Receiver
Mic / 0 dB / -10 dB pad
Durable Plastic Casing
Operates on 2 AA Batteries (up to 8 hours Alkaline)
Dimensions: 3.3" x 2.55" x 1" (83.8 x 64.8 x 25.4 mm) (HxWxD)
Weight: 2.8 oz (80 g)
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
Dual Channel Receiver
AF & RF Indicators
IR Sync Receiver to Transmitters
1 Mixed 1/4" Output, 2 Balanced Male XLR Outputs
2 Internal Antennas (Non-Diversity)
Rugged Plastic Casing
HH38 Transmitter
Dynamic Cardioid
On/Off Switch
IR Sync Transmitter to Receiver
Plastic Casing
Operates on 2 AA Batteries (up to 8 hours Alkaline)
Dimensions: 10.9" 1.85" (277 x 47 mm) (LxDia)
Weight: 6.9 oz (195 g)
MBP38 Transmitter
On/Off/Standby Switch
IR Sync Transmitter to Receiver
Mic / 0 dB / -10 dB pad
Durable Plastic Casing
Operates on 2 AA Batteries (up to 8 hours Alkaline)
Dimensions: 3.3" x 2.55" x 1" (83.8 x 64.8 x 25.4 mm) (HxWxD)
Weight: 2.8 oz (80 g)
- Dimensions and Weight in Packaging
- Band N 518-542 MHz
- Shipping Weight: 3.75 lbs
- Shipping Dimensions: 18 x 11 x 4 in
- Manufacturer Part Number (MPN): EDXR/HHBPSN
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophonesNOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
Phone: 800-369-7768 x101
Email: service@galaxyaudio.com
Band N 518-542 MHz
