Galaxy Audio DHXR/HH65SC Handheld Microphone Wireless System

No longer available at zZounds

zZounds Gear Experts Say...

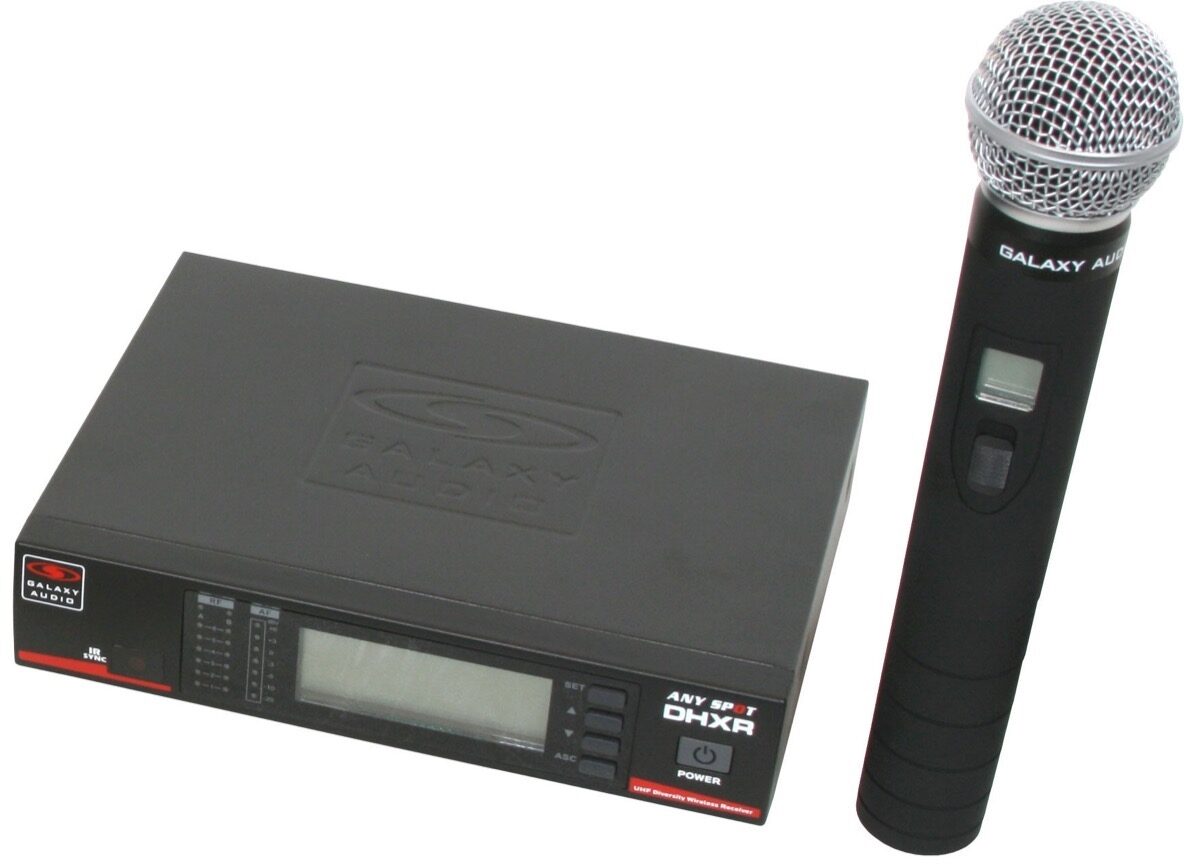

Get an affordable wireless vocal solution that you can rely on. The Galaxy Audio DHXR/HH65SC includes a handheld microphone/transmitter and a receiver.

Overview

The Galaxy Audio DHX (UHF) professional wireless microphone series packs the tools for the pro. The DHX Receiver features Auto Scan that will search for an available frequency to use, as well as IR Sync for easy connectivity from receiver to transmitter. The large LCD display shows channel number, frequency, lock mode, and volume output. The DHX professional wireless system receiver has an easy to read RF and AF indicator. The UHF diversity antennas ensure quality operation. The receiver has also been upgraded to include Tone-key squelch for improved rejection of outside interference. The DHX is compatible with any 77 or 65 series handheld or body pack transmitters. Single/dual rack mount kit included.

Features:

- 300' Range
- Auto Scan
- 120 Selectable UHF Frequencies
- Diversity Antennas
- Single/Dual Rack Kit Included
- LCD Display
- IR Sync Receiver to Transmitter
- Frequency with Channel and Group Selector
- AF/RF Indicators
- Tone-key Squelch
- Squelch Adjustment
- XLR/1/4" Output
- Detachable BNC Antennas
- Metal Chassis

Specs

Available Frequencies: 120
Frequency Ranges:
CODE D 584 - 607 MHz
CODE N 518 - 542 MHz
Transmitter Output Level: 20 mW
Band: UHF
Operating Range Under Typical Conditions: 300' (92 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response: (+/-3 dB) 60 Hz - 16 kHz
Total Harmonic Distortion: (+/-30 kHz deviation, 1 kHz tone): <1%
Dynamic Range: >90 dB A-weighted
Operating Temperature Range: 14 degrees F to 122 degrees F, battery characteristics may limit this range

DHX RECEIVER

Audio Output Level:(+/-30 kHz deviation, 1 kHz tone)
XLR Connector: (into 600 Ohms load) -12 dBV
1/4" Connector: (into 3 k Ohms load) -18 dBV
Output Connections:
1 Male XLR Balanced
1 1/4" Unbalanced
Output Impedance: XLR connector 200 Ohms
1/4" connector: 1 k Ohms
XLR Output: Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio +
Pin 3: No Audio -
Sensitivity: -93 dBm for 30 dB
Image Rejection: >90 dB
Casing: Metal Chassis EIA STANDARD 1/2 U
Dimensions: 1.7" x 8.3" x 6.3" (45 x 212 x 160 mm) (HxWxD)
Weight: 31.7 oz (900 g)
Power Requirements: 12-18 V DC at 500 mA, supplied by external power supply

HH65 & HH65SC HANDHELD TRANSMITTER

Max Audio Input Level: 0 dBV
Gain Adjust: Trim Pot
RF Output: 20 mW
Frequency Response: 60 Hz- 15 kHz
HH65SC: 9.6" x 2" (243 x 50 mm) (LxDia)
Weight: 10.6 oz (300 g)
Power Requirements: 2 "AA" size alkaline or rechargeable batteries
Battery Life: About 6 hours (alkaline)
