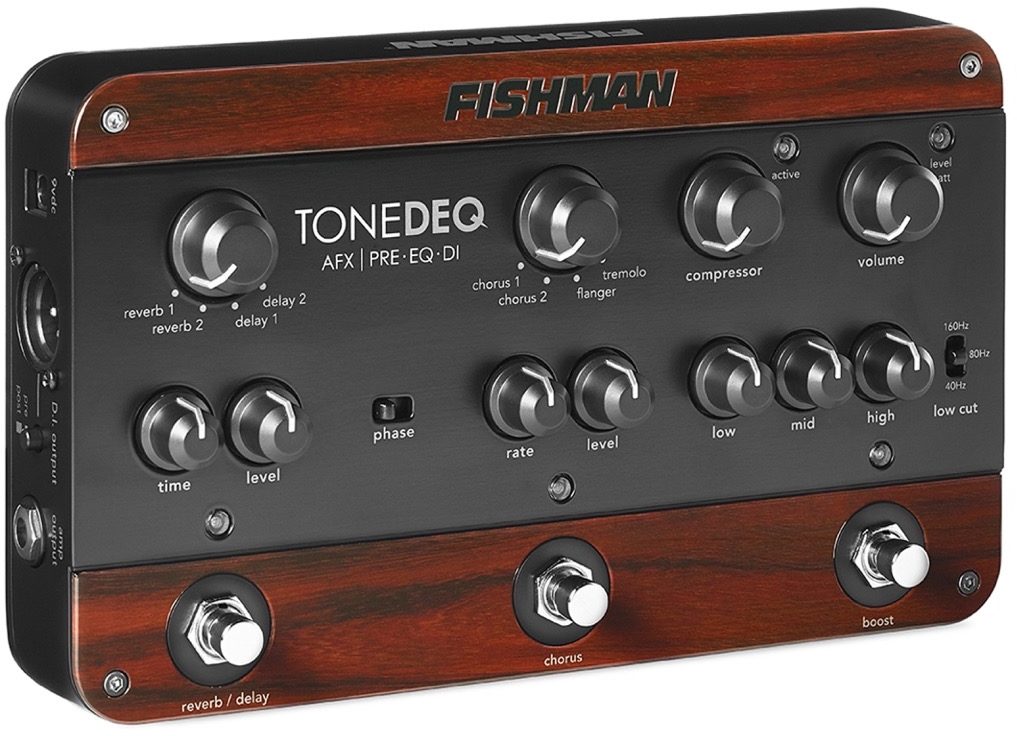

Fishman ToneDEQ AFX Preamp EQ and DI Box with Dual FX




zZounds Gear Experts Say...
The purely analog ToneDEQ AFX combines a high quality preamp, effects, compressor, level booster and balanced DI all into a single stompbox-style unit.
Overview
The Fishman ToneDEQ AFX preamp is the complete performance solution for acoustic musicians. With a high-quality preamp, dual effects section, tone controls, a compressor, level booster and a balanced DI -- it's got everything you need in one box.
Pure Analog Circuitry
Its analog signal path goes from end to end - from preamp to output - to give acoustic musicians a richer tonal quality. Even the digital effects are mixed in parallel so they don't affect the purity of the acoustic instrument.Fully Balanced Stage DI
Flexible outputs include a 1/4 inch amplifier output and XLR DI output for the lowest noise possible. Plus the DI features automatic ground-lifting and selectable pre/post EQ settings.Discrete Class A Preamp
With Fishman, you get quality discrete Class A signal conditioning created by the leader in instrument preamp design. The high-impedance input is a must for any passive instrument pickup.Advanced 4-Band EQ
Legendary 4-band equalizer design provides superior tone control for any acoustic instrument. The variable low cut filter controls sub-bass effects produced by some passive pickups
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
- Input: 10m Ohm, Discrete Class-A JFET design
- Audio: All-analog signal path with parallel digital effects
- Tone Control: 4-band EQ with Bass, Middle, Treble, and selectable Low Cut
- Dual Effects: Reverb (2) or Delay (2), Chorus (2), Flanger or Tremolo
- Dynamics: Soft-knee Compressor, Boost Footswitch (up to 9dB)
- Feedback Control: Selectable Phase Inver
- Audio I/O: 1/4" mono instrument input, 1/4" amplifier output, balanced XLR DI output with pre/post routing
- Power: Powered by 9-Volt battery (not included), or Fishman 910-R AC adapter (not included)
- Dimensions: (L x W x H) 5.36 x 9.5 x 2.2"
- Audio: All-analog signal path with parallel digital effects
- Tone Control: 4-band EQ with Bass, Middle, Treble, and selectable Low Cut
- Dual Effects: Reverb (2) or Delay (2), Chorus (2), Flanger or Tremolo
- Dynamics: Soft-knee Compressor, Boost Footswitch (up to 9dB)
- Feedback Control: Selectable Phase Inver
- Audio I/O: 1/4" mono instrument input, 1/4" amplifier output, balanced XLR DI output with pre/post routing
- Power: Powered by 9-Volt battery (not included), or Fishman 910-R AC adapter (not included)
- Dimensions: (L x W x H) 5.36 x 9.5 x 2.2"
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 2.13 lbs
- Shipping Dimensions: 11 x 6 x 3 in
- Manufacturer Part Number (MPN): PRO-DEQ-AFX
