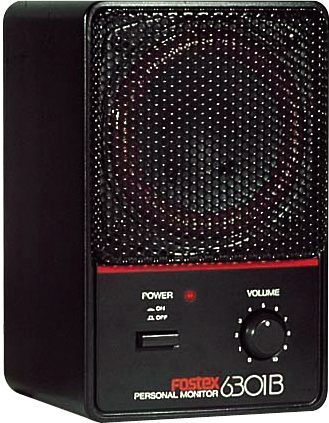

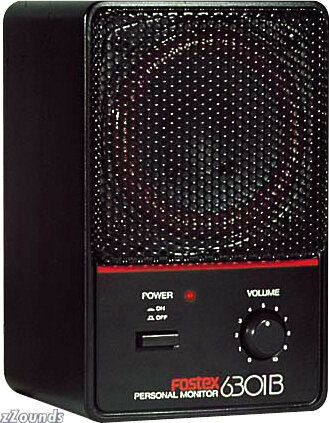

Fostex 6301BEAV Shielded Powered Monitor (10 Watts)

No longer available at zZounds

zZounds Gear Experts Say...

Small, portable, versatile monitors that deliver impressive sound.

Overview

The 6301 BEAV are small, portable, versatile monitors that deliver impressive sound. Use in pairs or alone. They're ideal for use with instruments in project studios, on stage, in remote recording vehicles, video productions & multimedia presentations. They provide a built-in 10-watt amplifier, perfectly matched to a 10cm full range driver delivers a big sound, full of clarity from this small, versatile monitor.

Best used in pairs, they accept any line level input, so they are ideal for use with instruments in project studios, on stage, in remote recording vehicles, video productions & multimedia presentations.

Manufactured from cast aluminium, these great little monitors have earned a high reputation among production, broadcast & presentation professionals for being rugged & road worthy.

Features

Magnetically shielded type 10cm full range speaker

1/4 inch inputs

Built in 10W RMS power amplifier

Power on/off switch

Rotary level control

EXT SP terminal

Automated protection circuit

Lightweight yet rugged enclosure

Compact size & high quality sound output

Optional 9610 Bracket (vertical / horizontal)

Specs

Specifications

Speaker Section

Speaker: Full range x1

Diameter: 100mm

Impedance: 4 ohms

Diaphragm: Cone, repulsion type

Frequency Response: 80Hz to 13kHz

Sound Pressure Level: 84dBW / 1m

Amplifier Section

Output: 10W (8 ohms weighted)

Frequency Response: 20Hz to 50kHz (0dB, -3dB)

Total Harmonic Distortion: 0.05% (@ 1kW)

Input Connector: 6mm diameter phone jack x1

Input impedance: More than 20k ohm

Input Sensitivity: -4dBu (0.5Vr.m.s.)

Input Impedance: More than 20k ohm

Input Sensitivity: -4dBu (0.5Vr.m.s.)

Residual Noise Level: -70dBV (0.3mV)

General

Dimensions: 120(W) x 188(H) x 118(D)mm

Weight: Approx. 3.0kg

Power Requirement: 120V

Power Consumption: 30W
