Focusrite OctoPre Multi-Format A/D Card
No longer available at zZounds

zZounds Gear Experts Say...
8 AES/EBU or S/PDIF outputs + 8 channels of ADAT lightpipe, all on one board. Will not work with OctoPre LE.
Overview -

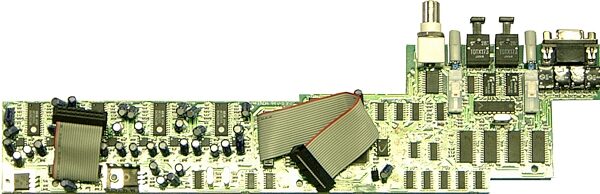

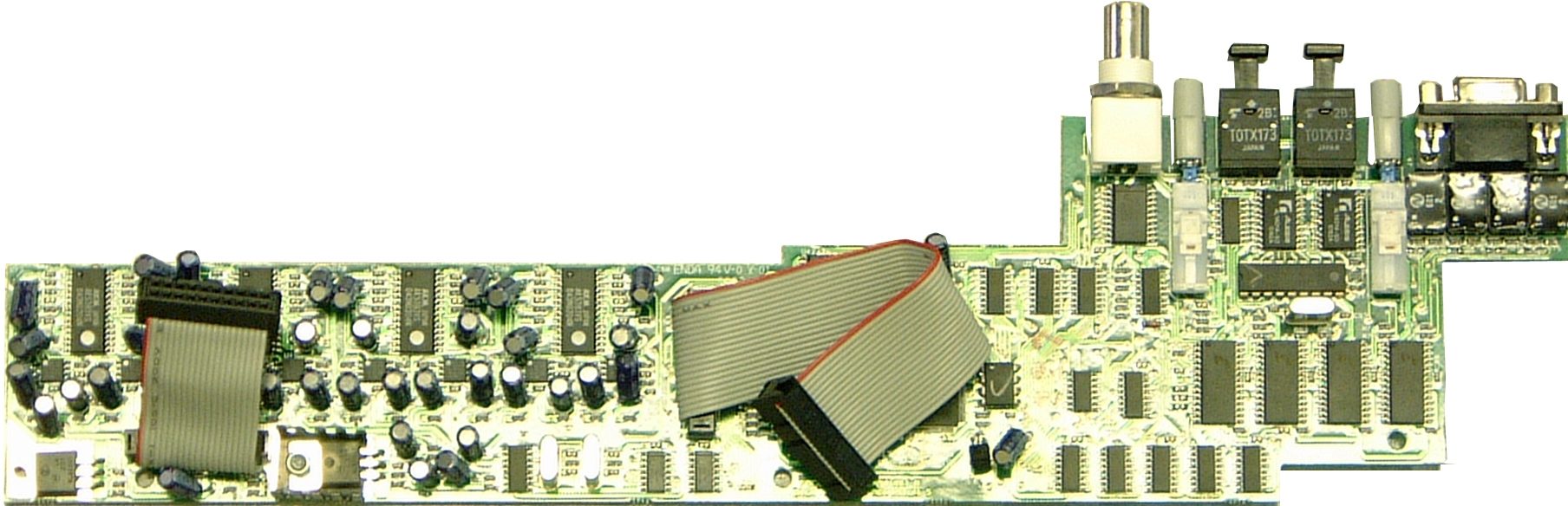

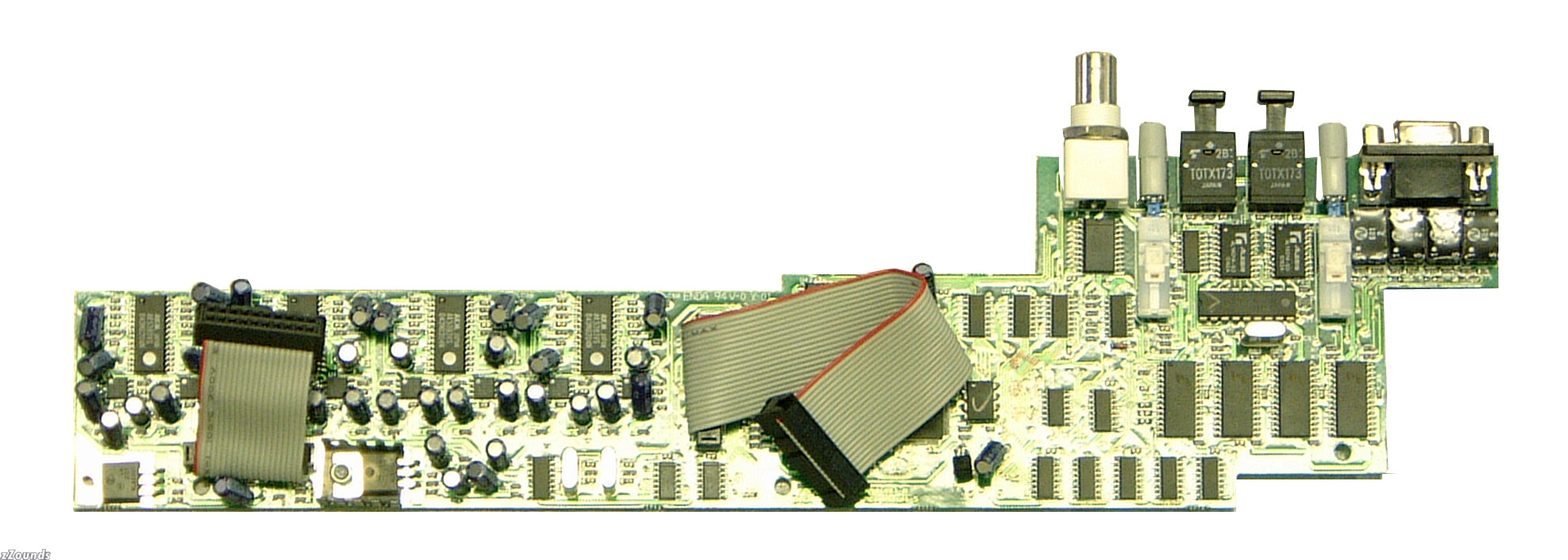

High quality A/D converter for the OctoPre. The converters are 24-bit and 128x over-sampled, handling sample rates of up to 96 kHz, but can dither down to 20 or 16 bit. All frequency settings and bit rates can be altered from the front fascia, with an ADC lock LED to show when word clock is synchronised.
Option 2: 8 AES/EBU or S/PDIF outputs + 8 channels of ADAT lightpipe, all on one board (all up to 96 kHz).
An external Wordclock input is also provided (BNC connector). The AES/EBU or S/PDIF format outputs can run simultaneously with the lightpipe outputs, giving up to 16 channels of digital output for all sample rates.
Option 2: 8 AES/EBU or S/PDIF outputs + 8 channels of ADAT lightpipe, all on one board (all up to 96 kHz).
An external Wordclock input is also provided (BNC connector). The AES/EBU or S/PDIF format outputs can run simultaneously with the lightpipe outputs, giving up to 16 channels of digital output for all sample rates.
Documents and Manuals +
For support or warranty questions, please contact the manufacturer:
Phone: 310-322-5500
Web: https://support.focusrite.com/
Phone: 310-322-5500
Web: https://support.focusrite.com/
No longer available at zZounds
In most cases, a product is unavailable because it has been discontinued by the manufacturer
