Fink CS2-FA Dual Channel Strip Tube Preamp Equalizer and Limiter

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

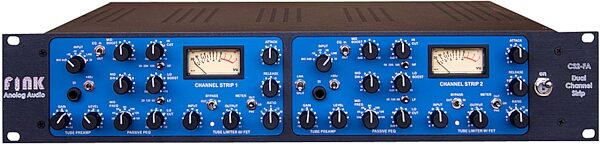

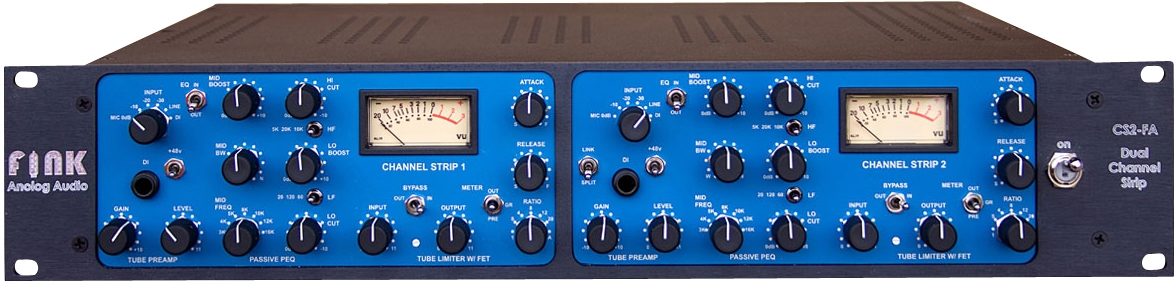

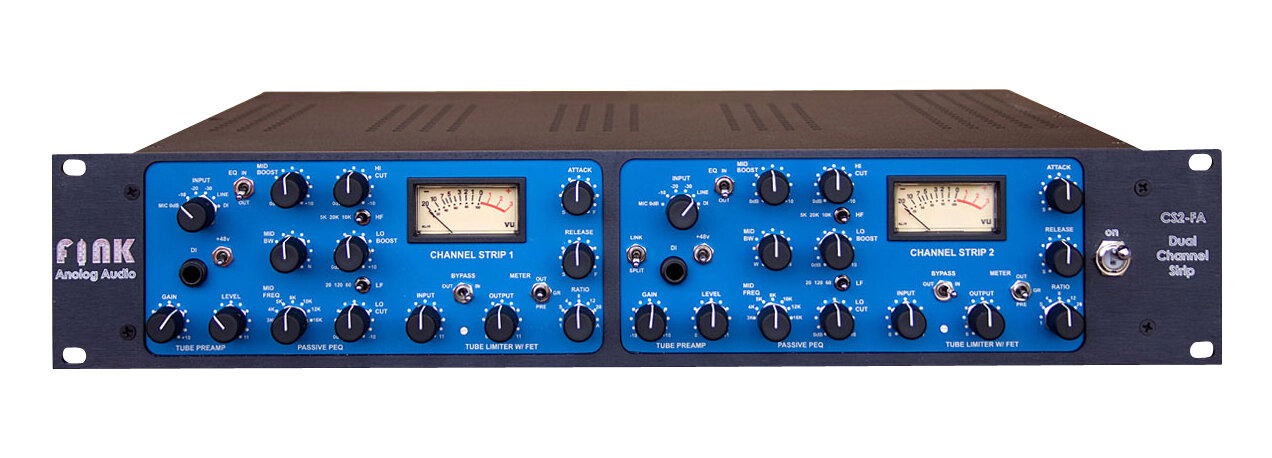

Fink CS2-FA Dual Channel Strip Tube Preamp Equalizer and Limiter, Main

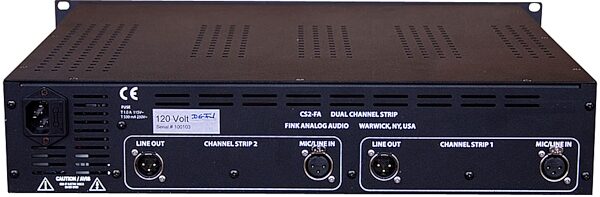

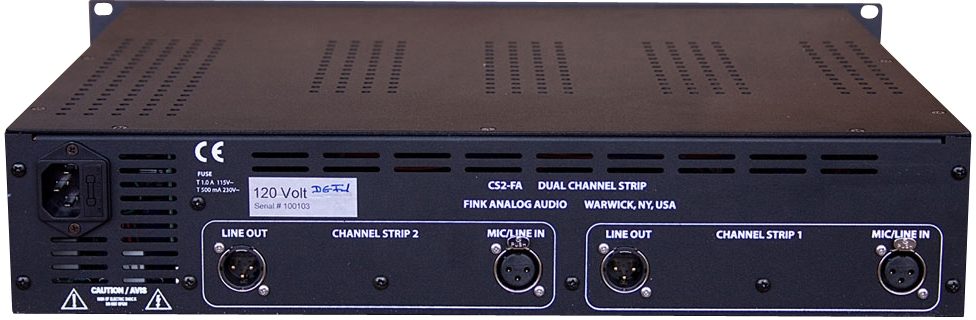

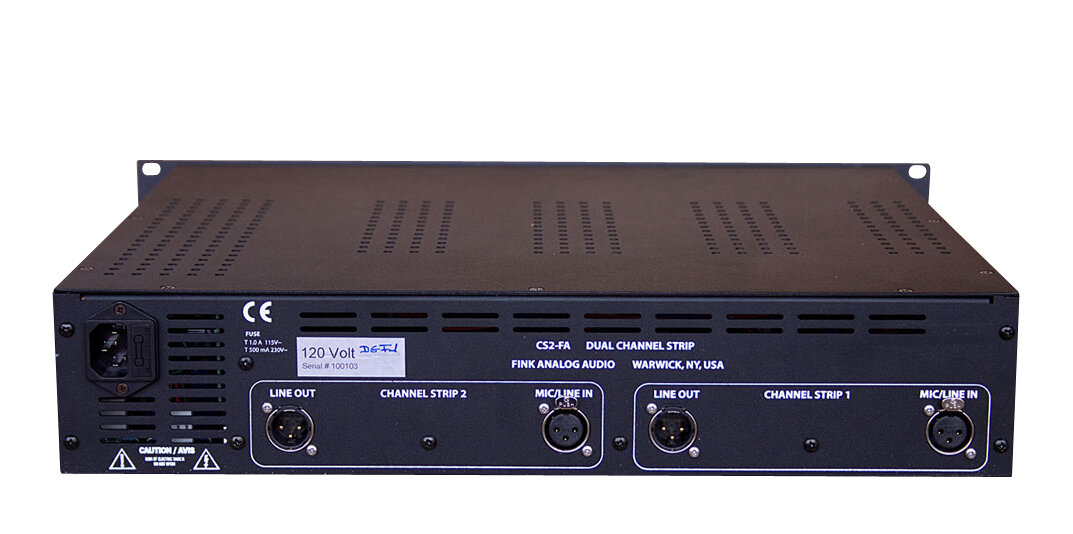

Fink CS2-FA Dual Channel Strip Tube Preamp Equalizer and Limiter, Rear
Fink CS2-FA Dual Channel Strip Tube Preamp Equalizer and Limiter, Main Fink CS2-FA Dual Channel Strip Tube Preamp Equalizer and Limiter, Rear
zZounds Gear Experts Say...
Perfect the tone of your vocals and instruments with the Fink CS2-FA. This 2-channel tube preamp is the perfect addition to any studio.

Use the Fink CS2-FA as two completely independent mono channels or use them together for a powerful stereo pre. The perfect solution for any studio, the CS2-FA preamp adds incredible tone to your vocals and instruments. Throw on a couple of stereo condensers for mic'ing overheads or a small choir live or in studio. Loop through it during mix down for that great real analog plug-in or link it in stereo as a Bus Processor for vocals, instruments, or percussion groups; or use it as an analog stereo Mastering Processor.

Features
- A three tube preamp in the vintage Putnam console style

- Passive parametric three-band EQ in the classic Pultec style

- Limiter with the unique two tube implementation of the UREI 1176 with Original FET attenuator character and controls

- Continuous Gain and Level controls

- All the familiar EQ frequencies and curves

Bandwidth: 10Hz to 50kHz, +/- 1dB

Maximum Output: +23dBu

Gain: 80dB

Equivalent Input Noise: -122dB

Preamp Section:
- Inputs: Mic, Line, DI
- Input Pad: 0, -10, -20, -30dB, Line
- Gain Control: +/- 10 dB continuous
- Level Control: 0 to 11

Passive EQ Section:
- Low boost: 0 to +10dB
- Low Cut: 0 to -10dB
- Low Freq: 0, 40Hz, 80Hz, 160Hz, 250Hz
- Mid Boost: 0 to +10dB
- Mid Q: 1 to 10
- Mid Freq: 2k, 3k, 5k, 7k, 10k, 15kHz
- High Cut: 0 to -10dB
- High Freq: 5k, 10k, 15kHz

Limiter Section:
- Makup Gain: -inf to +20dB
- Input Control: 0 to 11
- Output Control: 0 to 11
- Ratio: 1, SOFT, 4, 8, 12, 20, ALL
- Attack: 0.2 to 20 msec.
- Release: 100msec. to 2.2sec.
- Chassis: 2U x 15.25 in. deep
- Power: 20 Watts at 120/240 Vac

Be the first to rate and review this product.

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
