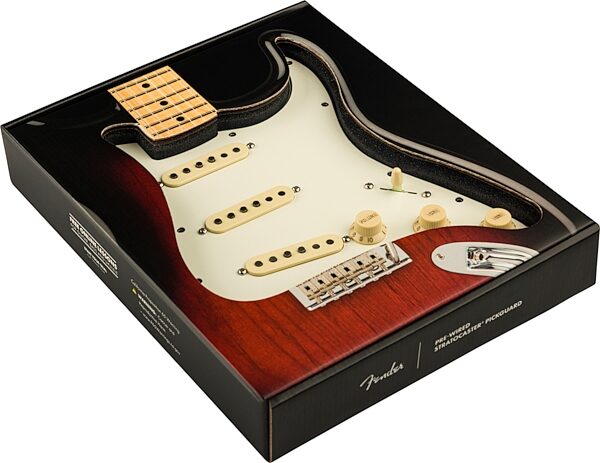

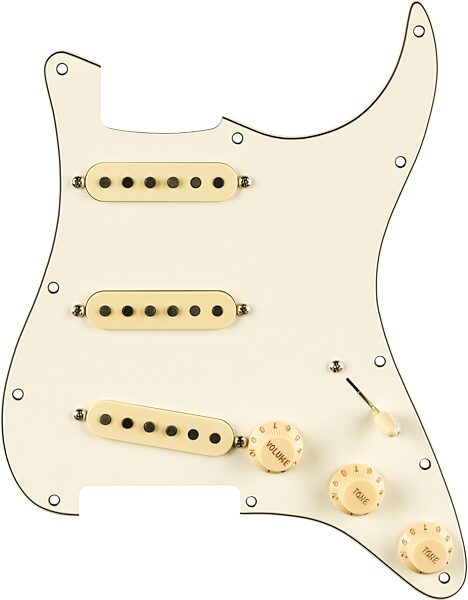

Fender Pre-Wired '65 Stratocaster Pickguard
zZounds Gear Experts Say...

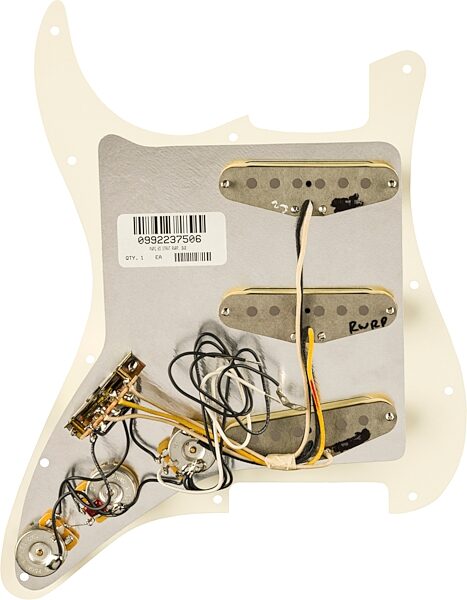

This pre-wired pickguard comes loaded with a set of Fender Pure Vintage '65 Stratocaster pickups, CTS potentiometers, and formvar-coated magnet wire.
Overview
Customize your tone with Fender Pre-Wired Stratocaster pickguards. Made with premium components in the same factory as the iconic guitars, this drop-in pickguard is easy to install. Simply remove your old guard, solder the output jack and ground wires, screw in the guard and you're ready to rock with pure Fender sound.
No other pickups give you the powerful, clean and clear surf rock tones of mid-'60s Stratocaster guitars like dutifully constructed, meaty-sounding Pure Vintage '65 Strat pickups. From vintage bobbin construction to genuine original-era cloth wiring, all Fender Pure Vintage pickups are wound to precise specifications for authentic, traditional Fender tone and performance. The addition of a reverse wound reverse polarity middle pickup eliminates 60-cycle hum in positions 2 and 4 and adds the classic Stratocaster quack to those positions.
- Alnico 5 magnets add more focus and enhanced dynamics
- Staggered pole pieces balance volume and output across every string
- Wax-potted
- Reverse-wound middle pickup to eliminate hum
No other pickups give you the powerful, clean and clear surf rock tones of mid-'60s Stratocaster guitars like dutifully constructed, meaty-sounding Pure Vintage '65 Strat pickups. From vintage bobbin construction to genuine original-era cloth wiring, all Fender Pure Vintage pickups are wound to precise specifications for authentic, traditional Fender tone and performance. The addition of a reverse wound reverse polarity middle pickup eliminates 60-cycle hum in positions 2 and 4 and adds the classic Stratocaster quack to those positions.
Features:
- Formvar-coated magnet wire improves overall brightness- Alnico 5 magnets add more focus and enhanced dynamics
- Staggered pole pieces balance volume and output across every string
- Wax-potted
- Reverse-wound middle pickup to eliminate hum
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
- Bobbin Material: Fiber
- Bridge Pickup: Pure Vintage ’65 Gray-Bottom Single-Coil Strat®
- Controls: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge/Middle Pickup)
- DC Resistance: 5.9K
- Inductance: 2.6 Henries
- Lead Wire: Cloth-covered
- Magnet Type: Alnico 5
- Magnet Wire: Formvar-coated
- Middle Pickup: Pure Vintage ’65 Gray-Bottom RWRP Single Coil Strat®
- Neck Pickup: Pure Vintage ’65 Gray-Bottom Single-Coil Strat®
- Output: Vintage
- Pickup Configuration: SSS
- Pole Pieces: Staggered
- Potentiometers: CTS 250K
- Power Requirements: Passive
- Shielded?: Yes
- Switching: 5-Position Blade Switch
- Bridge Pickup: Pure Vintage ’65 Gray-Bottom Single-Coil Strat®
- Controls: Master Volume, Tone 1. (Neck Pickup), Tone 2. (Bridge/Middle Pickup)
- DC Resistance: 5.9K
- Inductance: 2.6 Henries
- Lead Wire: Cloth-covered
- Magnet Type: Alnico 5
- Magnet Wire: Formvar-coated
- Middle Pickup: Pure Vintage ’65 Gray-Bottom RWRP Single Coil Strat®
- Neck Pickup: Pure Vintage ’65 Gray-Bottom Single-Coil Strat®
- Output: Vintage
- Pickup Configuration: SSS
- Pole Pieces: Staggered
- Potentiometers: CTS 250K
- Power Requirements: Passive
- Shielded?: Yes
- Switching: 5-Position Blade Switch
Dimensions and Weight in Packaging
Parchment, 11-Hole
- Shipping Weight: 1.5 lbs
- Shipping Dimensions: 14 x 11 x 2 in
- Manufacturer Part Number (MPN): 0992237509
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-488-1818
Web: https://my.fender.com/support
Phone: 800-488-1818
Web: https://my.fender.com/support
Parchment, 11-Hole
