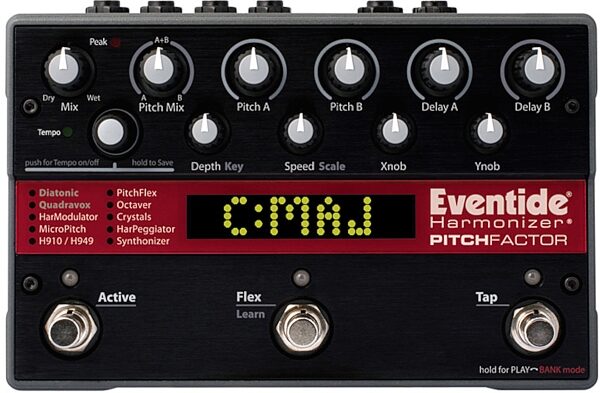

Eventide PitchFactor Harmonizer Delay Pedal

No longer available at zZounds
The Eventide PitchFactor puts a palette of pitch effects at your feet: octaves, harmonizers, choruses, arpeggios, modulations, and even synth-like effects.

The Eventide PitchFactor harmonizer/delay pedal offers you a multitude of stunning pitch-based effects from a single unit -- gathering Eventide's best pitch-changing effects from the past 4 decades, and adding 1.5 seconds of stereo delay for truly inspiring tonal creation. With this do-everything pedal, you get 4 voices of pitch shifting, expression pedal control of any combination of parameters, full MIDI control, instrument or line-level ins and outs, true bypass, and a built-in tuner.

Recreate classic guitar effects like choruses and harmonizers, trigger and manipulate complex arpeggios, simulate synth-like effects -- all from one fully expandable stompbox that's upgradeable via USB 2.0.

Control Complex Harmonies

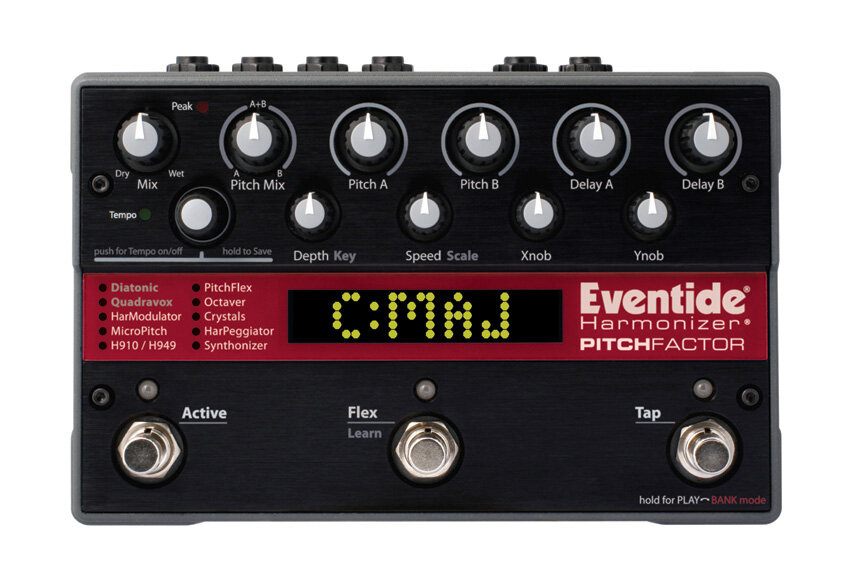

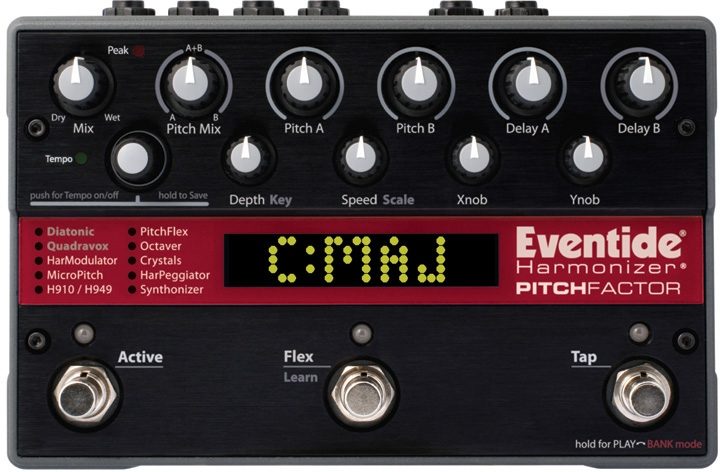

Eventide's PitchFactor offers ten pitch-shift types with the ability to control up to two types at once -- with independent pitch and delay controls for each -- with controls for adjusting the balance of both effects as well as the overall effect level. Basic modulation controls like depth and speed are provided, and of course you can set the key and the scale you would like to harmonize with. There's also two auxiliary knobs -- Xnob and Ynob -- which control different parameters depending on which effect is selected. You can also connect an external expression pedal, allowing for yet another level of user customizability.

Add New Algorithms and Patches Via USB

Eventide ushers stompboxes into the modern age with expandable algorithms and an app store read more from which you can download expansion packs and other upgrades for PitchFactor and other Eventide stompboxes. Just browse through Eventide's library from your computer, download your favorite patches, and upload to your PitchFactor via USB. It's like the gift that keeps on giving.

Features:

- Expandable stompbox with pitch-shift effects for guitar or bass
- Ten onboard effects including: Diatonic, PitchFlex, Quadravox, Octaver, HarModulator, Crystals, MicroPitch, HarPeggiator, H910/H949, and Synchronizer
- Up to four voices of diatonic pitch shifting and up to 1.5 seconds of stereo delay
- Includes memory for storing 100 user presets
- Fully upgradeable -- download new patches from Eventide and install them to your unit via USB
- Ten control knobs for dialing in effect parameters
- Tempo tap and MIDI sync functions
- Includes true analog bypass
- Equipped for mono or stereo operation
- Switchable guitar or line level inputs and outputs
- Two 1/4-inch instrument inputs (mono or stereo)
- Two 1/4-inch outputs (mono or stereo)
- Stereo 1/4-inch Aux input
- 1/4-inch jack for expression pedal
- USB Type B port
- 5-pin MIDI In and Out/Thru
- Built in tuner
- Studio quality internal audio processing
- Rugged metal footswitches
- Powered via included AC power supply
read less

Analog Input/Output
Input impedance: 500K ohms
Output Impedance: 470 ohms
Recommended Load Impedance: 10K ohms or greater

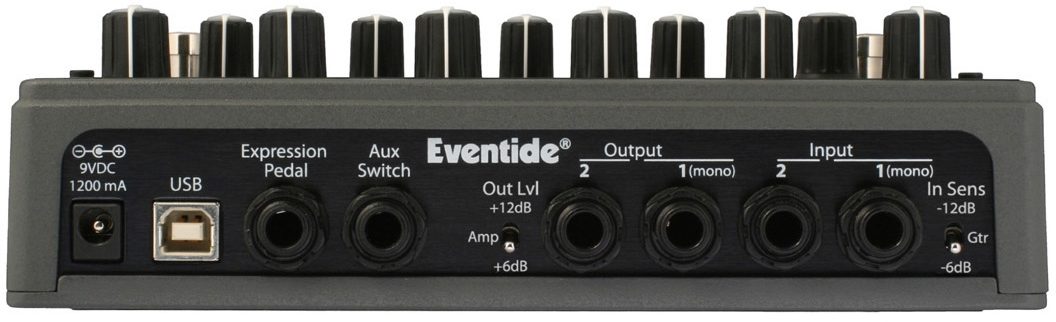

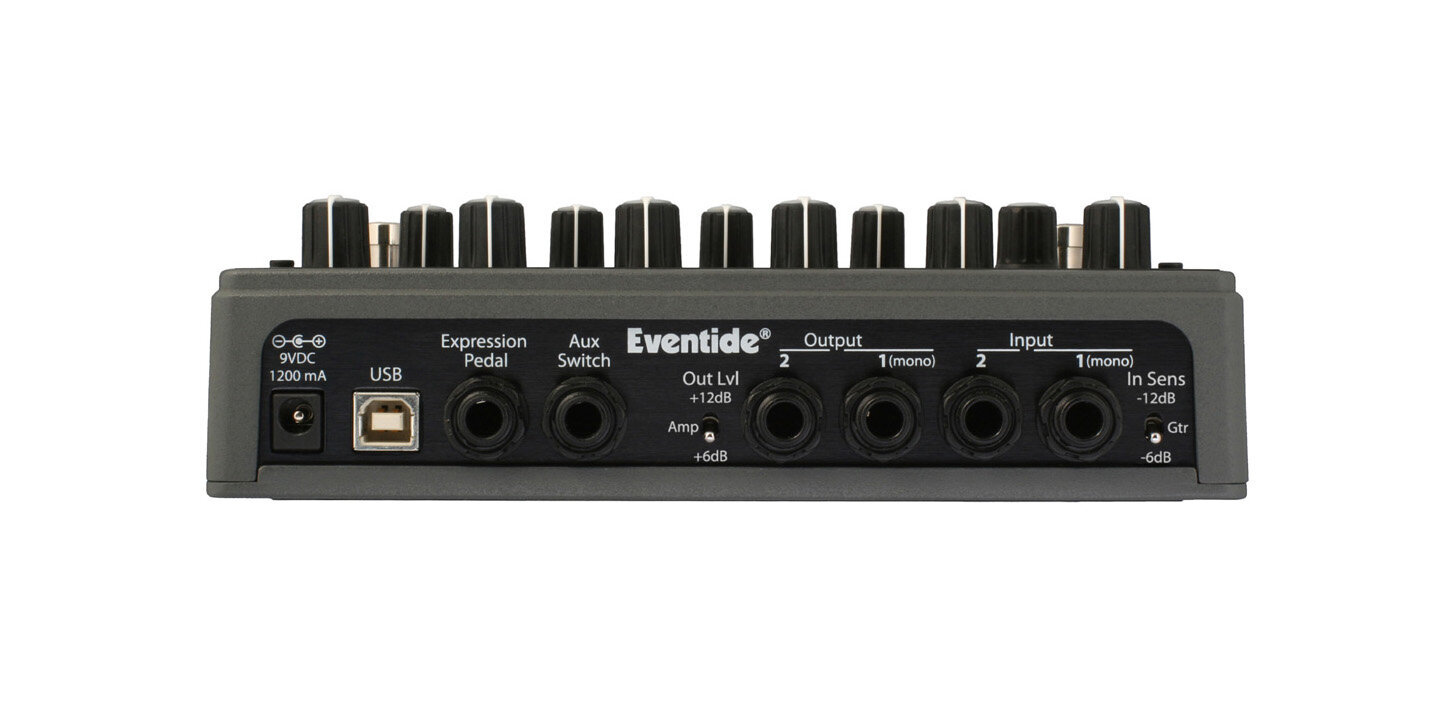

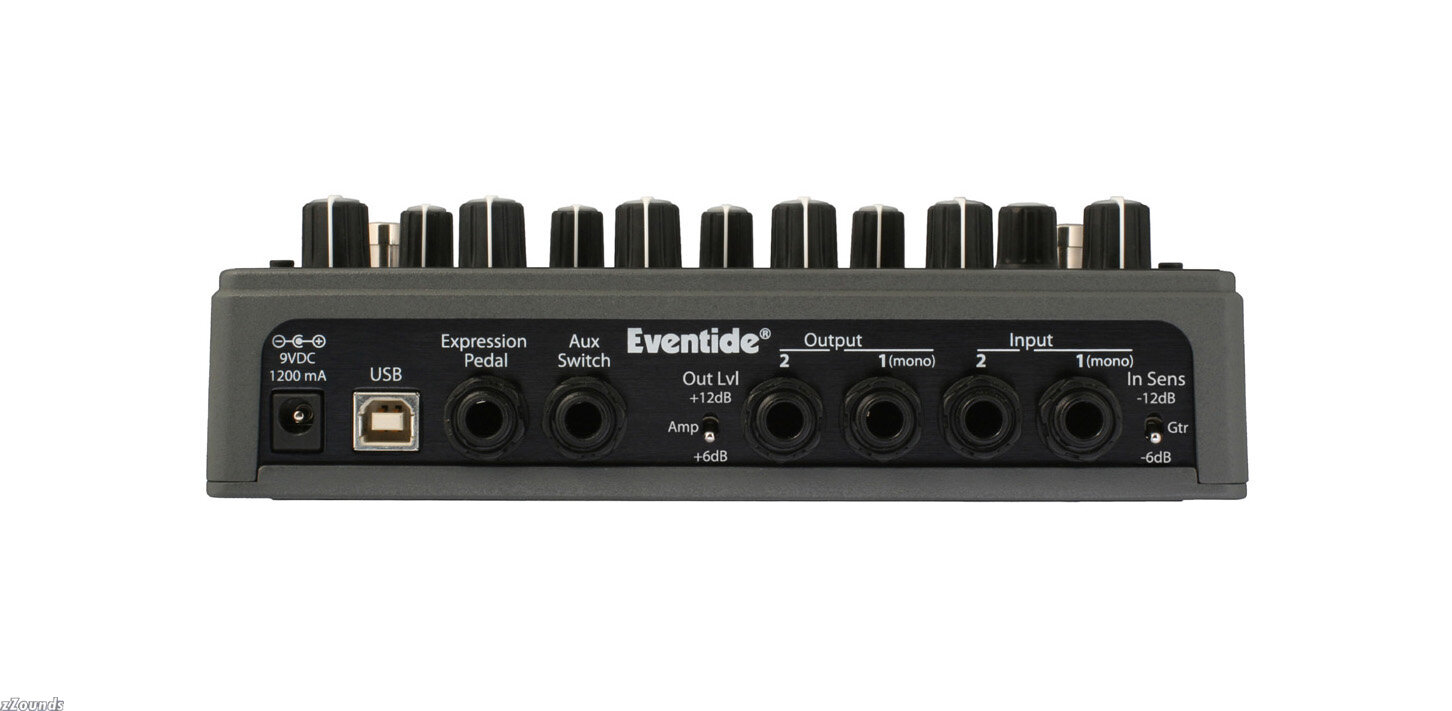

Connectors
Input 1 (mono): 1/4 inch mono phone jack
Input 2: 1/4 inch mono phone jack
Output 1 (mono): 1/4 inch mono phone jack
Output 2: 1/4 inch mono phone jack
Expression Pedal: 1/4 inch mono phone jack
Aux Switch: 1/4 inch stereo phone jack
USB: Type B Socket. Use 2.0 cables only.
MIDI In: Five pin DIN (Female)
MIDI Out/Thru: Five pin DIN (Female)
AC Adapter Jack: Power Supply included

Physical
Power: 9 VDC, 1200 mA, Tip hot (+)
Dimensions (HxWxD): English: 4.8 x 7.5 x 2.12 in.
Metric: 122 (H) x 190 (W) x 54 (D) mm
Weight 2.15 lbs, 1 kg

For support or warranty questions, please contact the manufacturer:
Phone: 201-641-1200

Eventide PitchFactor Harmonizer Delay

Top recording studios worldwide use Eventide effects on hit after hit. PitchFactor includes Eventide's best pitch-changing effects from the past 36 years without compromising quality or flexibility.

Flexible Parameters

The plug-and-play expression pedal gives you control of the wet/dry mix or any combination of parameters. Control program changes and vary parameters continuously via MIDI. The PitchFactor supports instrument or line level inputs and outputs. It plays well with others by adapting seamlessly with a wide variety of amps and other foot pedals. The PitchFactor also is easy to upgrade -- just download software from the Internet and install via USB!

Features

- Up to 4 voices of diatonic pitch shifting and up to 1.5 seconds of stereo delay
- Studio quality sound
- Guitar or bass compatible
- Built-in tuner
- Software upgradeable via USB 2.0
- MIDI control via USB or MIDI in, out/thru
- Instant program change
- Real-time control with 10 knobs, MIDI, or expression pedal
- Tap tempo and MIDI clock sync
- 100 factory presets, unlimited through MIDI
- True analog bypass
- Rugged cast metal construction
- Reliable metal footswitches for instant preset access
- Mono or stereo operation
- Guitar or line level inputs and outputs

10 of Eventide's signature stereo or mono pitch+delay effects:
- Diatonic
- PitchFlex
- Quadravox
- Octaver
- HarModulator
- Crystals
- MicroPitch
- HarPeggiator
- H910/H949
- Synthonizer

Reviewers gave this product an overall rating of 5 out of 5 stars. (6 ratings)
Submitted May 22, 2011 by a customer from yahoo.com

"OMMFG!! A total must have!! Get it NOW!!"

Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
I have a DigiTech GNX3 a TimeFactor and a PitchFactor...just short of the EvenTide H8000HW, this is alllll I need. It will take 2 life times to use all the features I have at my feet!

Sound
Outstanding sound. Outstanding quality. Oustanding versitility. The sounds/delays are infinitly adjustible! The description dose not do justice to the product. It reads as if you are buying a Z06 vet and getting an Lamboghini. By itself is a sweet sound, used in conjunction with other equipment is seamless and makes it even more versitile.

Features
A very well read booklet and some simple cheat sheets, if you will. Its an EvenTide, quality componets and materials. No frills, just stright forward controls. What the description dose not tell you is that the effects can be controled with a WHA-WHA pedal to sweep thru the already set up presets that are also adjustable and saveable. Very cool and very sweet. You can hook up 3 control switchs to control 6 parameters all thru one AUX port. And the MIDI controls are out of this world. If you have a computer sequencer/software....Im just speachless!!

Ease of Use
The presets in there own right are enough to satisfy anyone on there own. When you add in the several ( 10 knobs, a/b sides) and the adjustibility...well its just mind blowing! A turn of a knob and your are in a diffrent world, that easy.

Quality
Its EvenTide..need read more I say more?

Value
Worth every cent!!

Manufacturer Support
Connect a usb and download product updates, back up a single preset or all or the whole system. Top notch. There web site is cool.

The Wow Factor
Stright forward design, features and layout, simple easy, this switch dose this this knob dose that.

Musical Background:
20+ years Vai level

Musical Style:
Sweet melodic to OMG
read less
5 of 5 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
