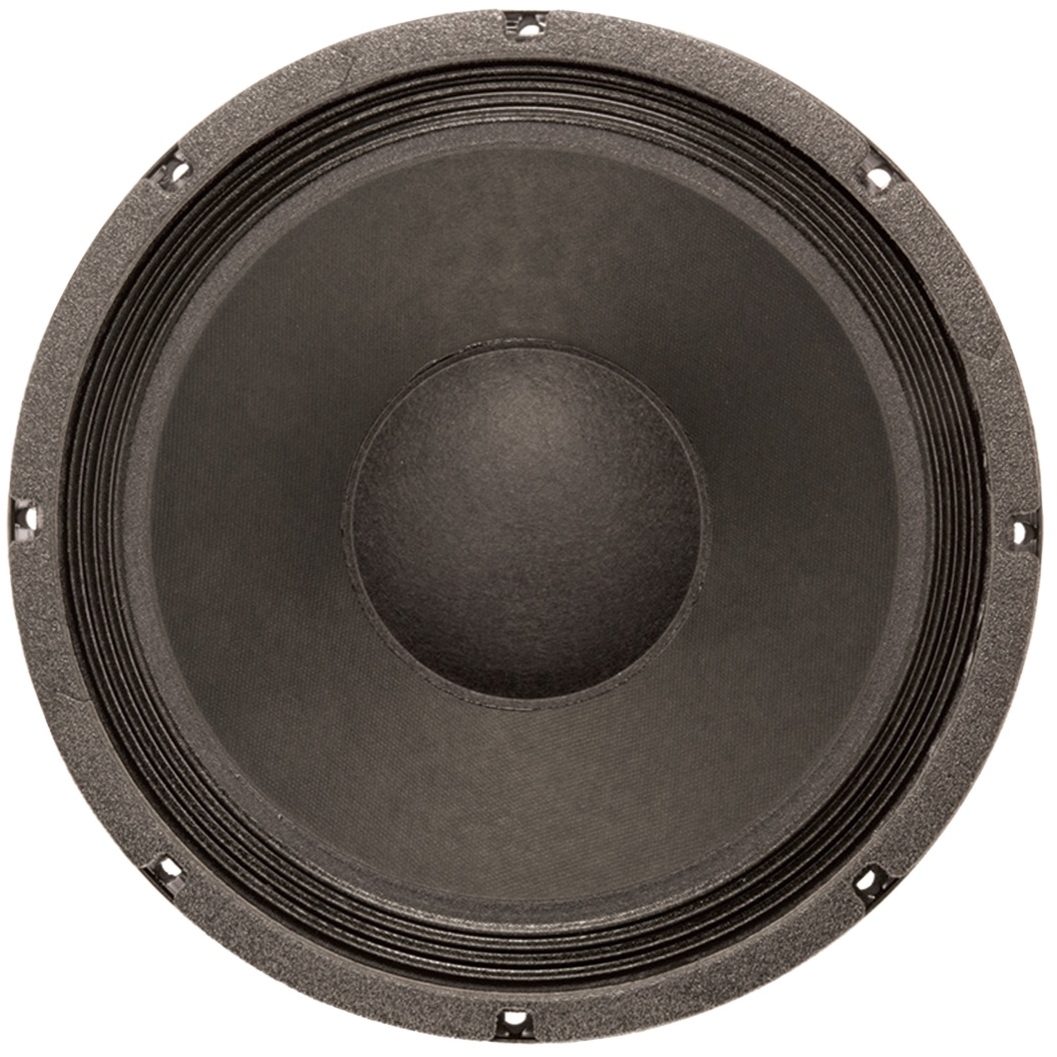

Eminence Legend BP122 Bass Speaker (250 Watts)

- Nominal Basket Diameter: 12" (305 mm)
- Nominal Impedance: 8 O
- Program Power: 500 W
- Watts: 250 W
- Resonance: 35 Hz
- Usable Frequency Range: 35 Hz - 2.3 kHz
- Sensitivity: 94.1 dB
- Magnet Weight: 38 oz.
- Gap Height: 0.31" (7.9 mm)
- Voice Coil Diameter: 2" (51 mm)
- Resonant Frequency (fs): 35 Hz
- DC Resistance (Re): 5.66 O
- Coil Inductance (Le): 0.84m H
- Mechanical Q (Qms): 9.26
- Electromagnetic Q (Qes): 0.57
- Total Q (Qts): 0.54
- Compliance Equivalent Volume (Vas): 5.56 cu.ft. (157.4 liters)
- Peak Diaphragm Displacement Volume (Vd): 330.1 cc
- Mechanical Compliance of Suspension (Cms): 0.4 mm/N
- BL Product (BL): 10.55 T-M
- Diaphragm Mass Inc. Airload (MMs): 50 grams
- Efficiency Bandwidth Product (EBP): 62
- Maximum Linear Excursion (Xmax): 6.2 mm
- Surface Area of Cone (Sd): 532.4 cm2
- Maximum Mechanical Limit (Xlim): 12.4 mm
- Driver Volume Displaced: 0.071 cu.ft. (2 liters)
- Overall Diameter: 12.26" (311.4 mm)
- Baffle Hole Diameter: 11.08" (281.4 mm)
- Mounting Holes Diameter: 0.25" (6.4mm)
- Mounting Holes B.C.D.: 11.71" (297.4mm)
- Depth: 5.33" (135.3 mm)
- Net Weight: 9 lbs (4.08 kg)
- Coil Construction: Copper voice Coil
- Coil Former: Polyimide former
- Magnet Composition: Ferrite magnet
- Core Details: Non-vented core
- Basket Materials: Pressed Steel basket
- Cone Composition: Paper cone
- Cone Edge Composition: Cloth cone edge
- Dust Cap Composition: Solid composition felt dust cap
Dimensions and Weight in Packaging
12", 8 Ohms
Shipping Weight: 9.5 lbs
Shipping Dimensions: 13 x 13 x 7 in
Manufacturer Part Number (MPN): LEGEND BP 122
