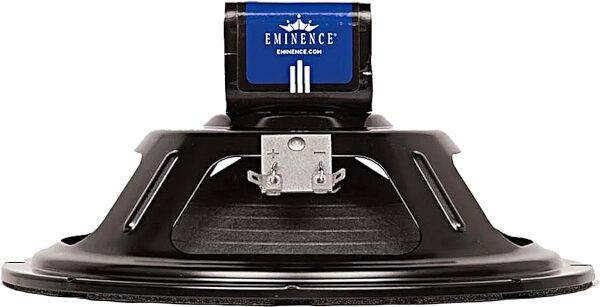

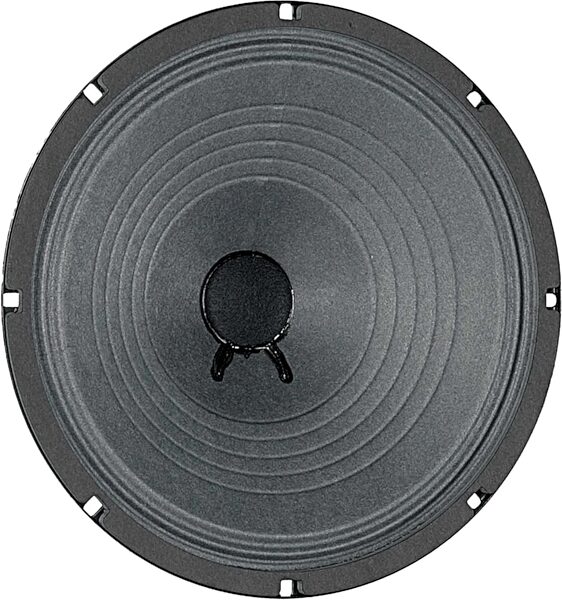

Eminence Alnico Legend Guitar Speaker (35 Watts, 10")

Sound like a legend! This Eminence Alnico Legend is the perfect pairing for any American-style amp with a deep low end and a sparkling high end.

The Eminence Legend 1028K guitar speaker is a classic stage fixture. Vintage American tone with moderate, but tight, percussive lows and extended highs. Hard-working under the bright lights.

From dialing a sound in, to rocking it out, Eminence professional audio and musical instrument loudspeakers have been the leading choice in audio applications worldwide since 1966. Eminence is dedicated to providing the best quality, value and service to meet your needs. Nowhere is that mission more evident than in their wide product selection, industry leading seven-year warranty, and unrivaled customer support. Designed and assembled by hand in the USA, Eminence is the most trusted name in the industry. Find out why the world's premier brands and countless audio enthusiasts and musicians rely on Eminence.


- 10" speaker
- Power Range Up to 35 watts
- 8 ohm Impedance
- Great for Country, Blues, Rock genres of music
- Highly compatible Instruments include Lead/Rhythm Guitar & Harmonica
- Overall Coloration is Vintage American tone with moderate, but tight, percussive lows and extended highs
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Series: Legends

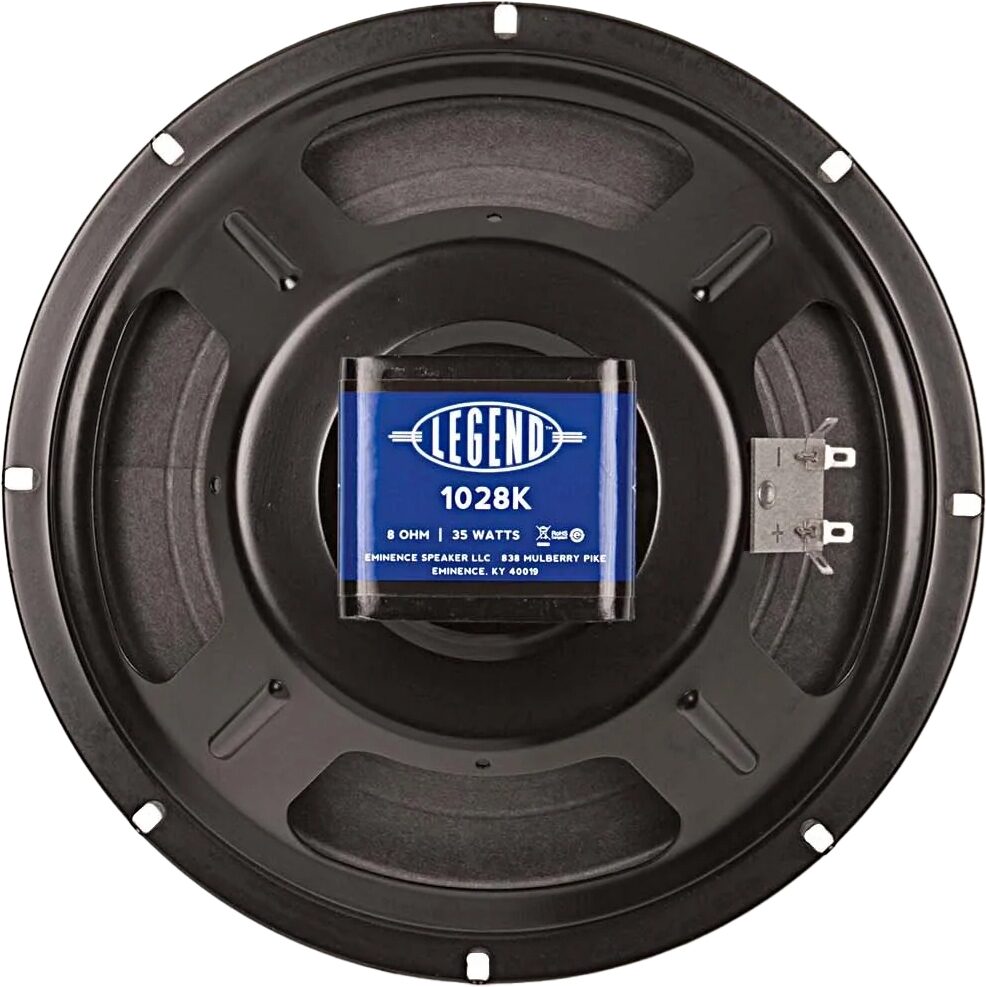

- Model: Legend 1028K
- Application: 10" Open or Closed Back
- Configuration: 1, 2, or 4 X 10"
- Low End Response: Subdued
- Low End Shape: Tight
- Mid-Range Response: Moderate
- Mid-Range Shape: Warm
- High-End Response: Aggressive
- Volume/Power: Loud
- Nominal Basket Diameter: 10", 254 mm
- Nominal Impedance: 8 Ohm
- Watts: 35 W
- Resonance : 95 Hz

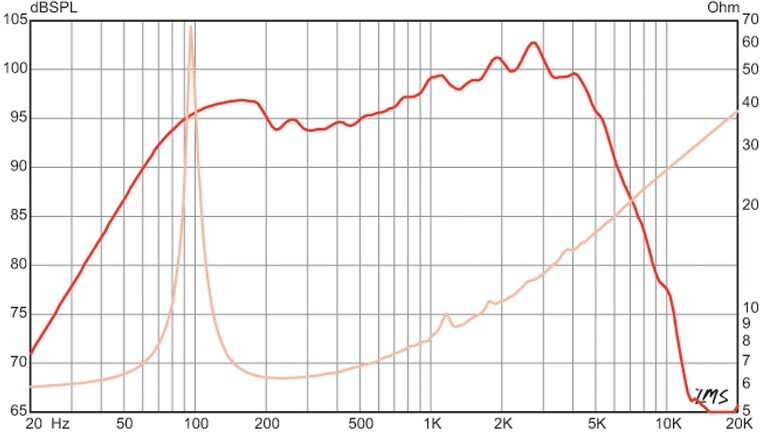

- Usable Frequency Range: 100 Hz - 5 kHz
- Sensitivity: 97.4 dB
- Magnet Weight: 6 oz.
- Gap Height: 0.25", 6.4 mm
- Voice Coil Diameter: 1", 25 mm
- Resonant Frequency (fs): 95 Hz
- DC Resistance (Re): 5.8 Ohm
- Coil Inductance (Le): 0.51m H
- Mechanical Q (Qms): 17.96
- Electromagnetic Q (Qes): 1.61
- Total Q (Qts): 1.47
- Compliance Equivalent Volume (Vas): 31.5 liters / 1.11 cu.ft.
- Peak Diaphragm Displacement Volume (Vd): 72.4 cc
- Mechanical Compliance of Suspension (Cms): 0.19 mm/N
- BL Product (BL): 5.7 T-M
- Diaphragm Mass Inc. Airload (MMs): 15 grams
- Efficiency Bandwidth Product (EBP): 59
- Maximum Linear Excursion (Xmax): 2.1 mm
- Surface Area of Cone (Sd): 344.9 cm2
Dimensions and Weight in Packaging
8 Ohms
Shipping Weight: 5.4 lbs
Shipping Dimensions: 12 x 12 x 12 in
Manufacturer Part Number (MPN): LEGEND 1028K
