Electro-Voice Evid Series SOS 3.2 Personal Monitor
No longer available at zZounds




















zZounds Gear Experts Say...
A new approach to personal monitors. Connects to microphone stand. Built-in volume control.
Overview

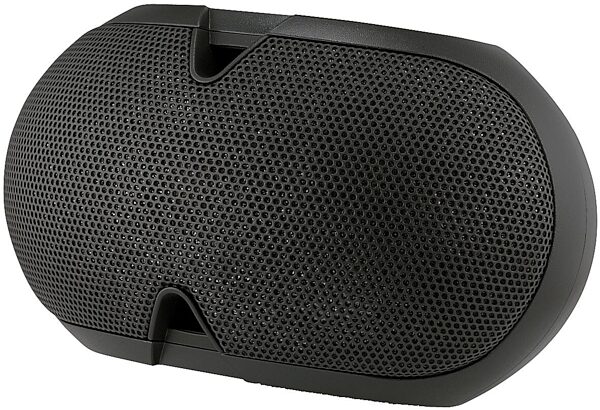

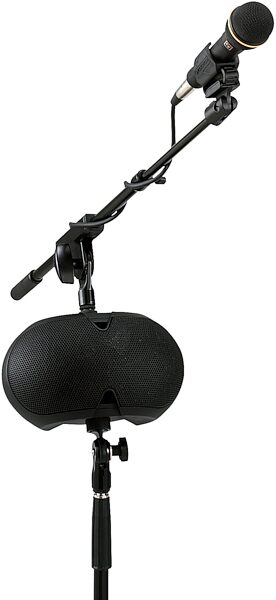

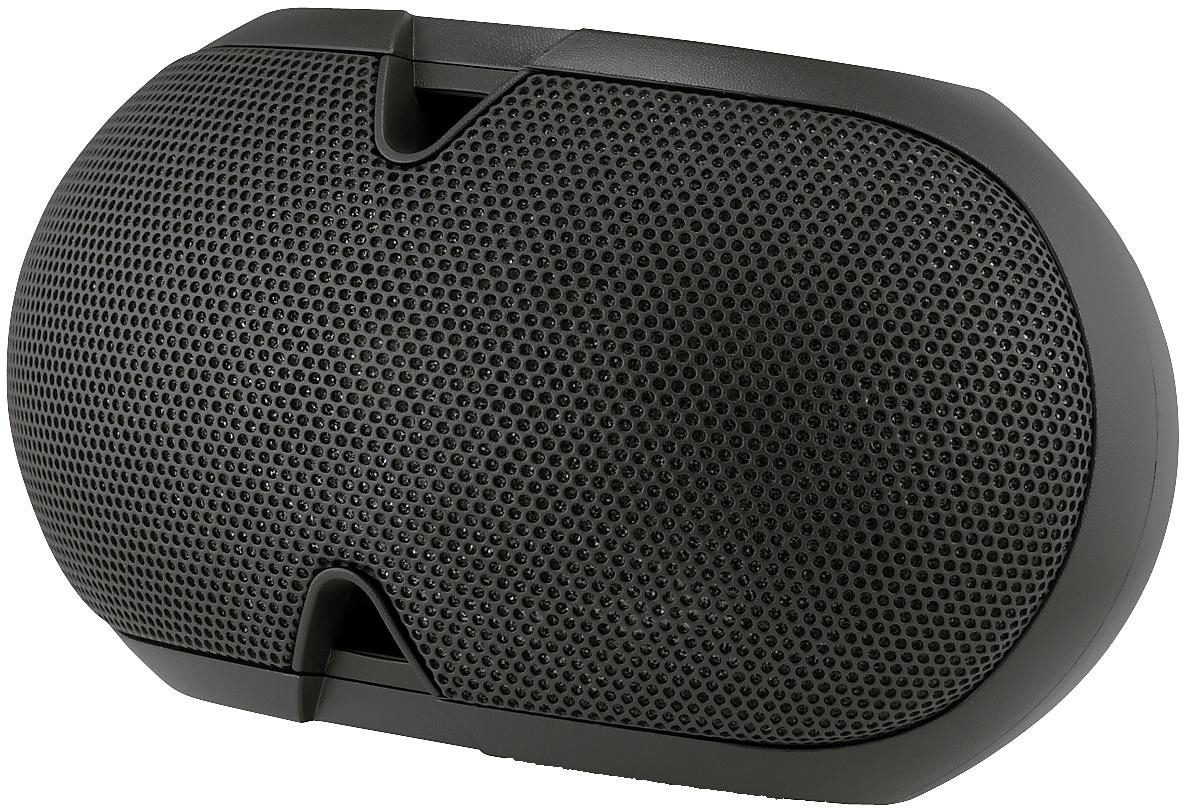

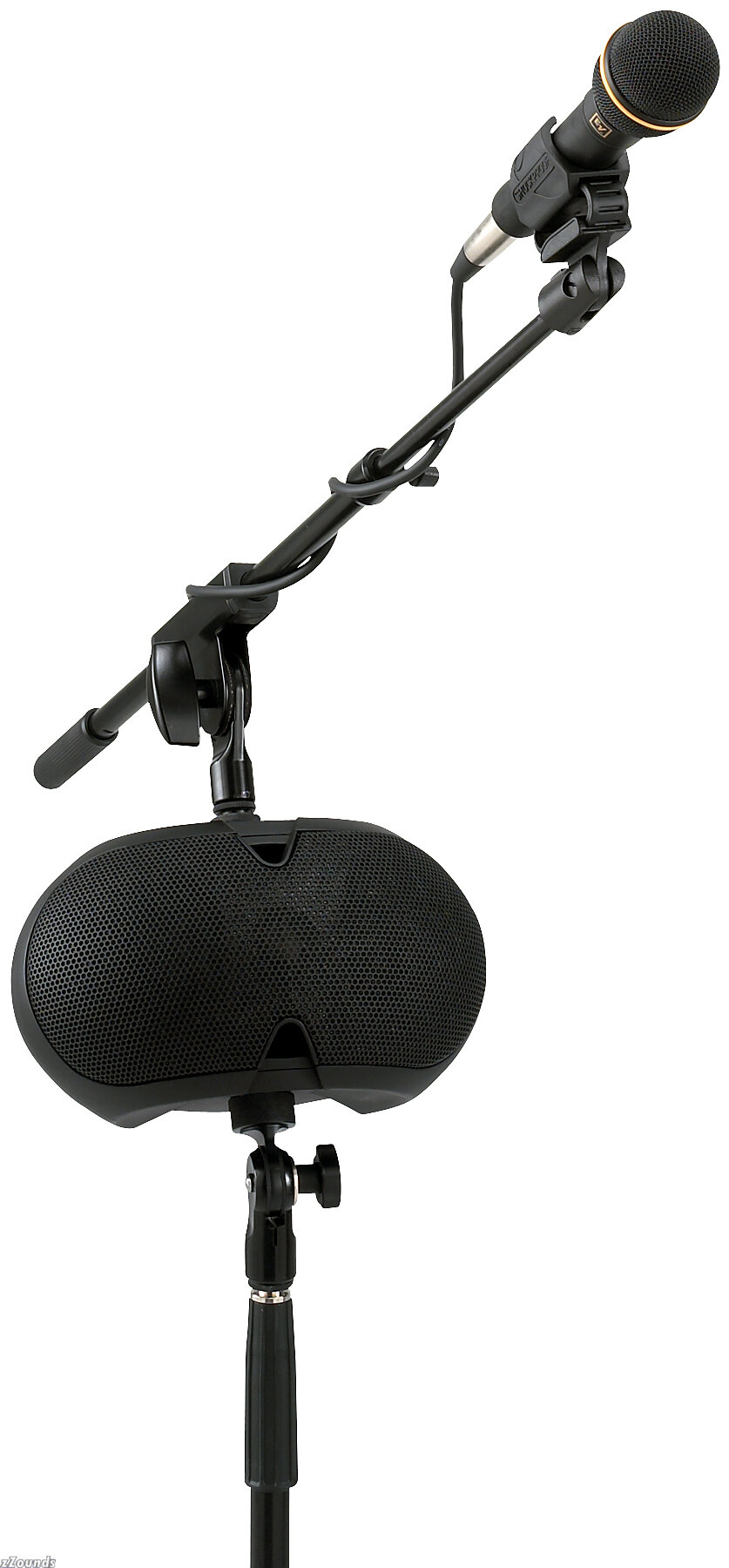

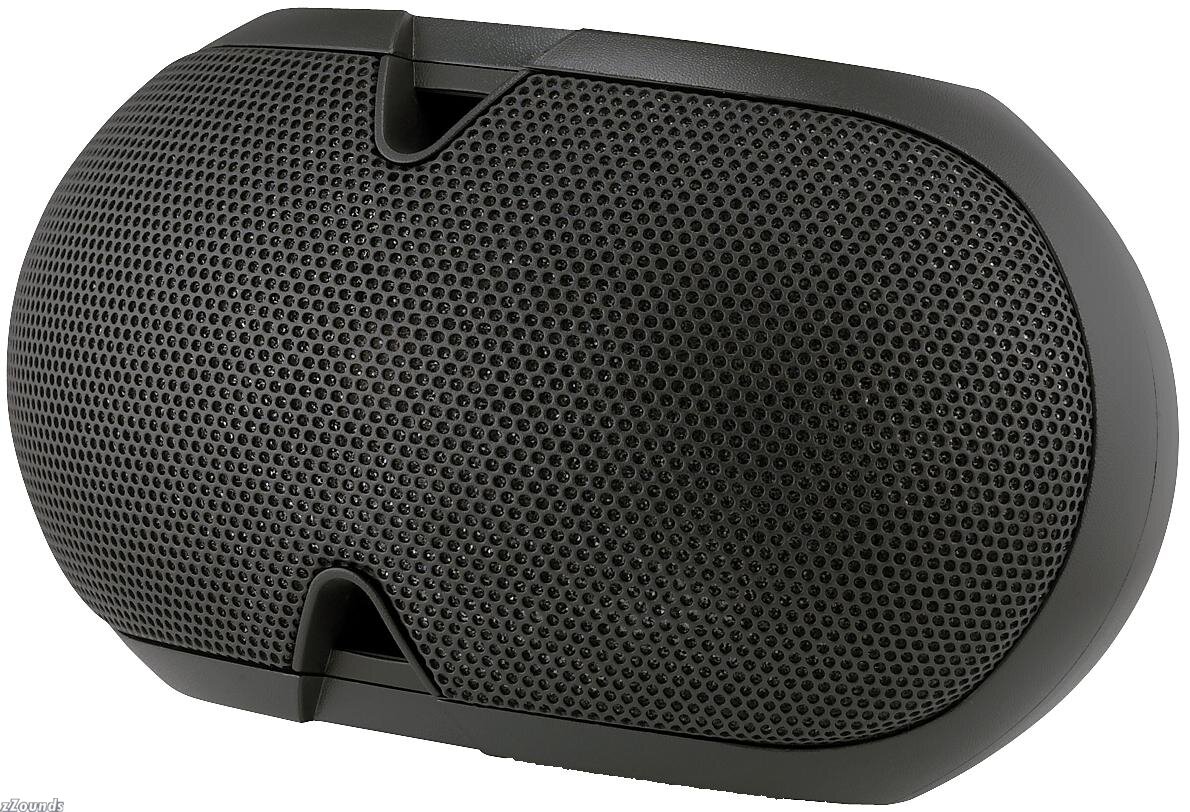

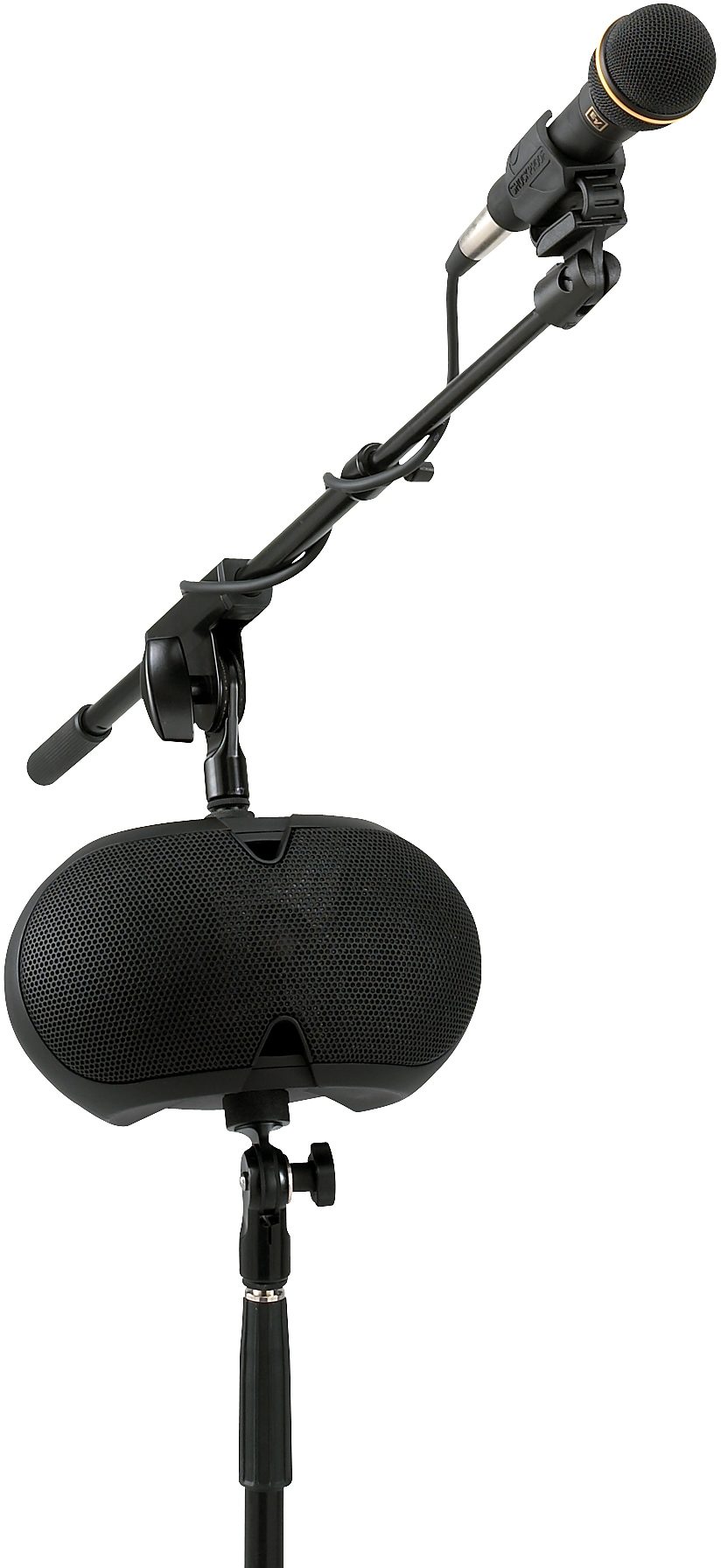

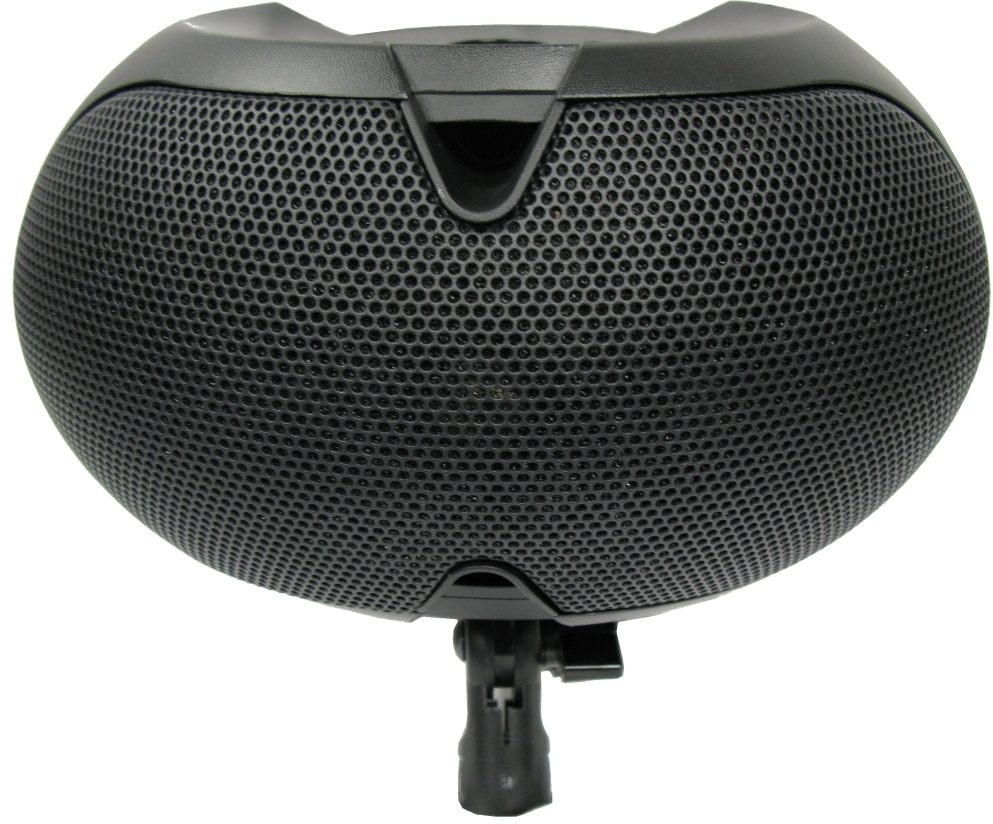

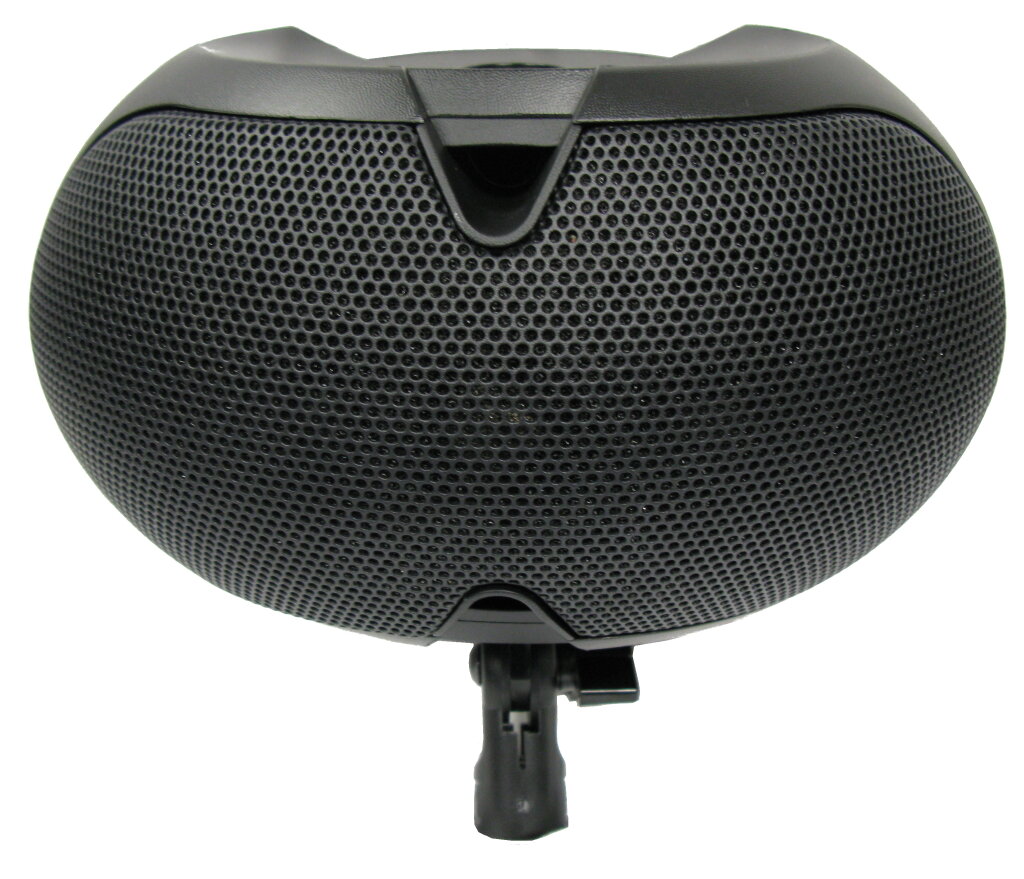

The Electro Voice EVID 3.2 represents a new approach to personal monitors. Its unique design enables the use of only one stand for your mic and monitor. It frees up stage space and puts the monitor closer to you for additional clarity.

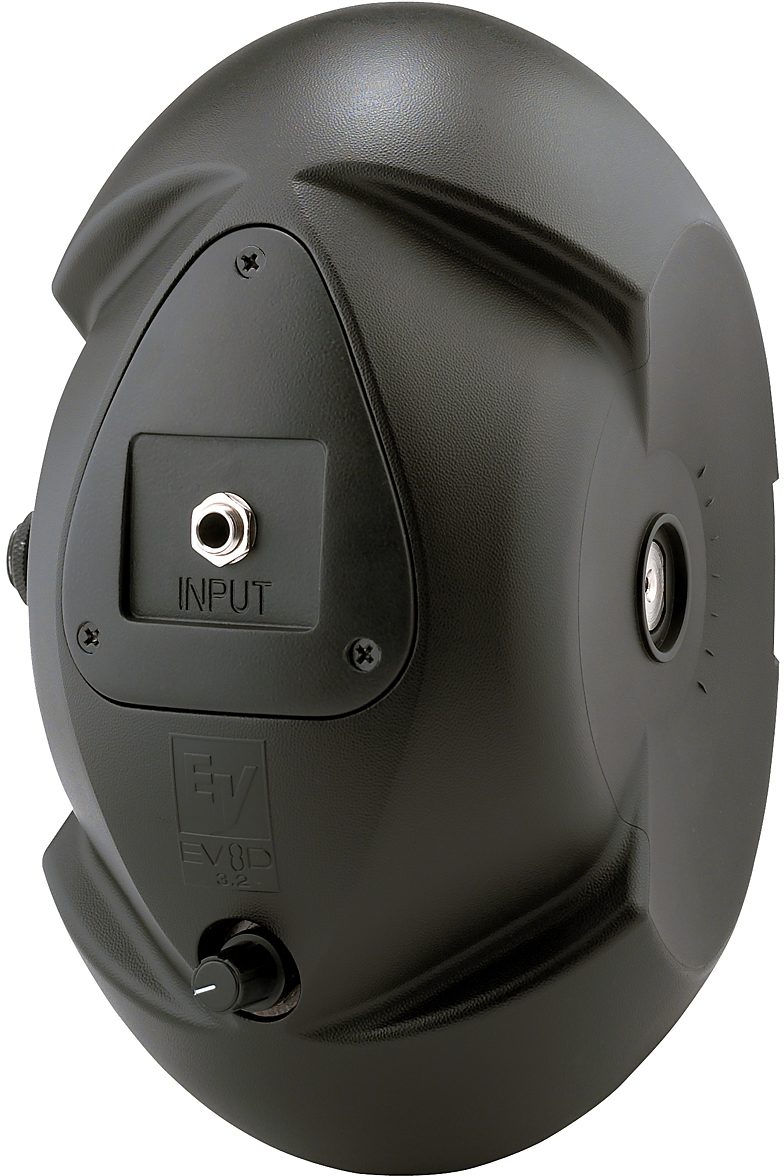

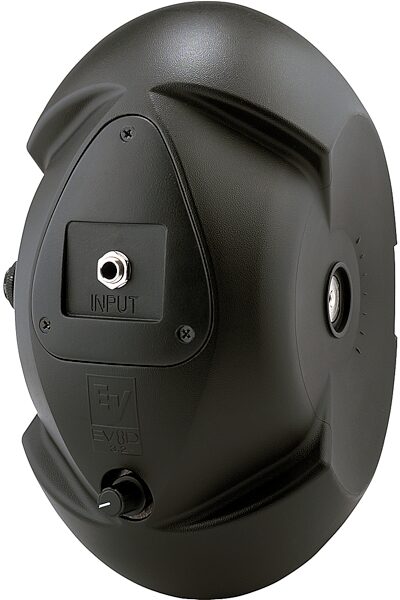

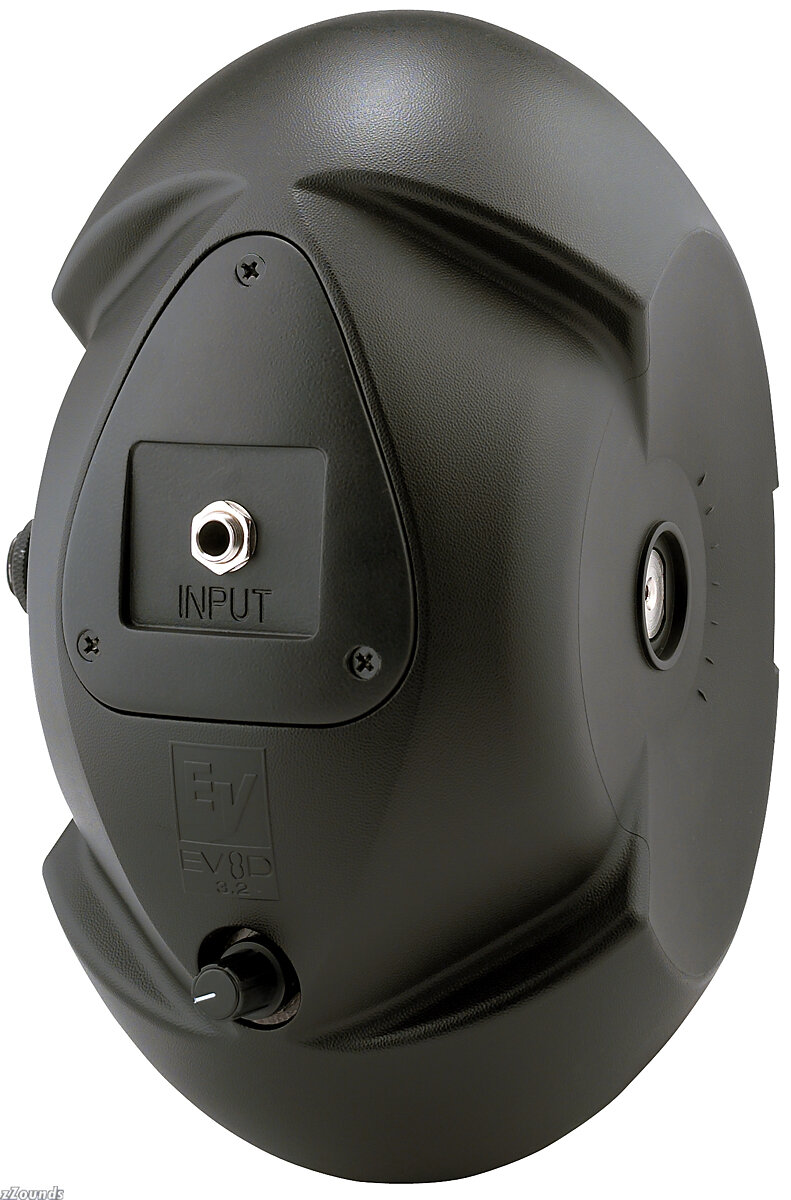

The EVID 3.2 is a 2-way full-range cabinet with dual 3.5 inch drivers and a .75 inch tweeter, which handles 150 watts and provides 85Hz - 20kHz freq. response. The EVID 3.2 features a 1/4 inch input connector for easy connection to an amplifier and a built-in volume control. Mounting hardware is included. Dimensions: 9.2 x 5.1 x 6.5 inches, 3.3 lbs.
Features
- Two-way full range
- Vented LF enclosure
- 0.75 inch voice coil (titanium diaphragm) with Neodymium magnetic structure
- Full-bandwidth overload protection for HF and LF
- Three-dimensional ellipse (for compact look)
- Magnetically shielded for video applications

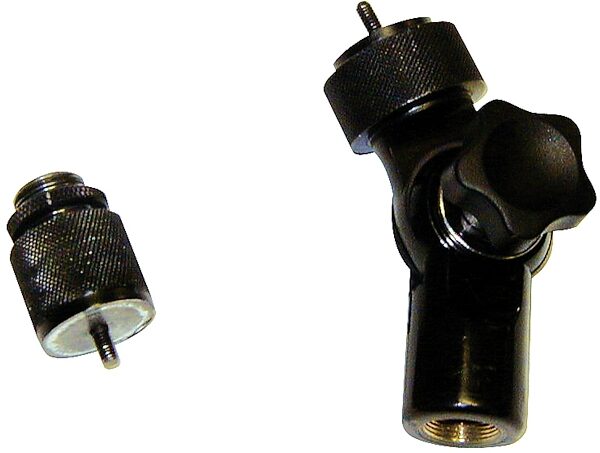

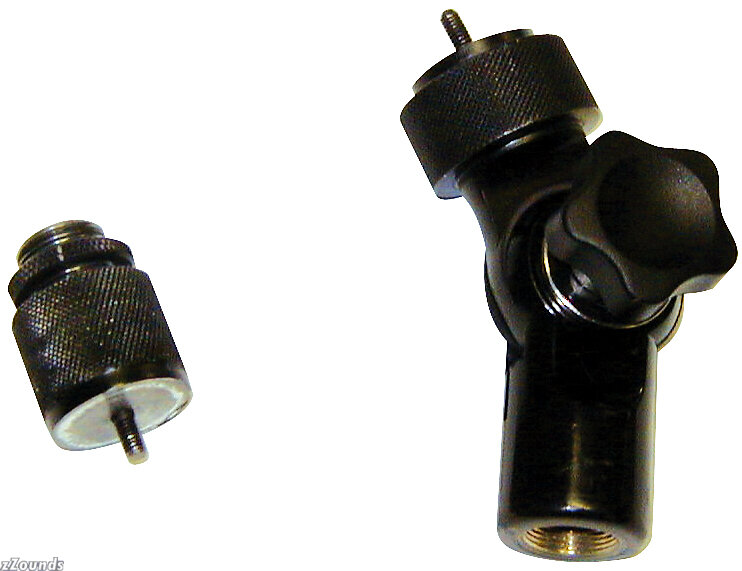

- Comes with Strong Arm Mount (SAM) and a hex key
- Suspension insert for SAM; safety point on rear side
EVID Features
- Dual Woofers for extended bass, greater power handling and output.
- Dual Low-Frequency Ports provide extended bass output.
- Treated Woofer Cones for added weather resistance and increased reliability.
- Durable Zinc-Plated Steel Grille.

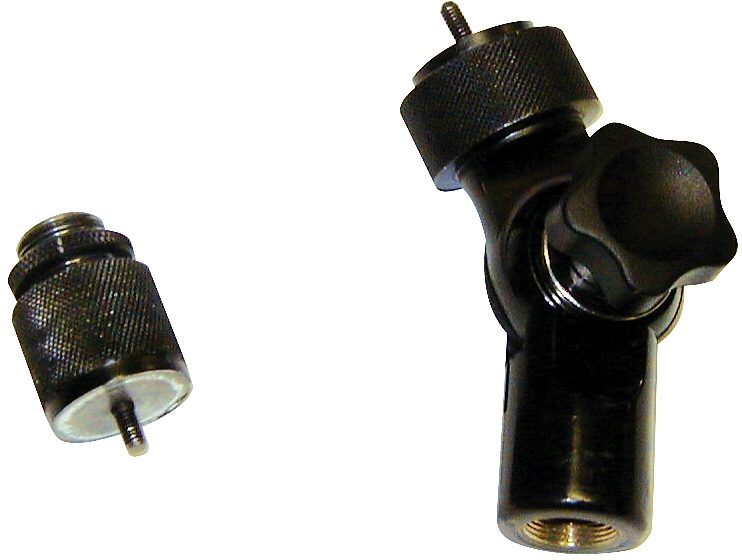

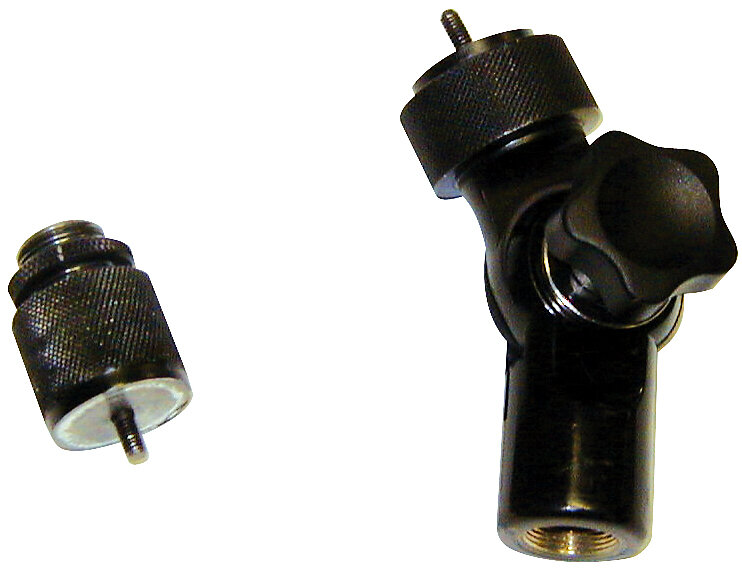

- Cast Aluminum Strong-Arm-Mount (SAM) system provides excellent strength and reliability.
- Over 100 degrees of swing and 90 degrees of rotation for incredible installation flexibility.
- Simple Keyed Hex Head Adjustments make installations quick and easy.
- Titanium… read more Dome Tweeters with Neodymium Magnet structures provide clean highs and added weather resistance.
- One-piece ABS Cabinet provides outstanding strength and acoustic rigidity.
- Smooth Lines and Innovative Cosmetic Design complement any decor or environment.
- Magnetically Shielded Transducers allow placement close to sensitive equipment.
Electro Voice didn't earn its reputation as a premier manufacturer of speakers all at once. 75 years ago Al Kahn set out to revolutionize a growing market by using new techniques in measurement and manufacture. Through the ensuing years, Electro Voice has been home to many exciting advances in speaker technology. Such breakthroughs as Compound Diffraction Projector technology, Constant Directivity Horns, Manifold Technology, and today's cutting-edge Ring-Mode Decoupling techniques have paved the way for today's exciting line of Electro Voice speakers.
From commercial applications to high-fidelity pro music and concert systems to houses of worship, Electro Voice has the right speakers for your application. read less
The EVID 3.2 is a 2-way full-range cabinet with dual 3.5 inch drivers and a .75 inch tweeter, which handles 150 watts and provides 85Hz - 20kHz freq. response. The EVID 3.2 features a 1/4 inch input connector for easy connection to an amplifier and a built-in volume control. Mounting hardware is included. Dimensions: 9.2 x 5.1 x 6.5 inches, 3.3 lbs.
Features
- Two-way full range
- Vented LF enclosure
- 0.75 inch voice coil (titanium diaphragm) with Neodymium magnetic structure
- Full-bandwidth overload protection for HF and LF
- Three-dimensional ellipse (for compact look)
- Magnetically shielded for video applications
- Comes with Strong Arm Mount (SAM) and a hex key
- Suspension insert for SAM; safety point on rear side
EVID Features
- Dual Woofers for extended bass, greater power handling and output.
- Dual Low-Frequency Ports provide extended bass output.
- Treated Woofer Cones for added weather resistance and increased reliability.
- Durable Zinc-Plated Steel Grille.
- Cast Aluminum Strong-Arm-Mount (SAM) system provides excellent strength and reliability.
- Over 100 degrees of swing and 90 degrees of rotation for incredible installation flexibility.
- Simple Keyed Hex Head Adjustments make installations quick and easy.
- Titanium… read more Dome Tweeters with Neodymium Magnet structures provide clean highs and added weather resistance.
- One-piece ABS Cabinet provides outstanding strength and acoustic rigidity.
- Smooth Lines and Innovative Cosmetic Design complement any decor or environment.
- Magnetically Shielded Transducers allow placement close to sensitive equipment.
Electro Voice didn't earn its reputation as a premier manufacturer of speakers all at once. 75 years ago Al Kahn set out to revolutionize a growing market by using new techniques in measurement and manufacture. Through the ensuing years, Electro Voice has been home to many exciting advances in speaker technology. Such breakthroughs as Compound Diffraction Projector technology, Constant Directivity Horns, Manifold Technology, and today's cutting-edge Ring-Mode Decoupling techniques have paved the way for today's exciting line of Electro Voice speakers.
From commercial applications to high-fidelity pro music and concert systems to houses of worship, Electro Voice has the right speakers for your application. read less
Specs
Specifications
Frequency Response (-10 dB): 85 Hz-20 kHz
Sensitivity (SPL 1 W/1 m): 87 dB
Maximum SPL/1m (calc.): 112 dB
Long-term Power Handling: 75 Watts
Short-term Power Handling: 300 Watts
Coverage (H* x V*): 140* x 100*
LF Driver: 2 x 3.5 inches
HF Driver: 0.75 inches
Nominal Impedance: 8 Ohms
Minimum Impedance: 6 Ohms
Input Connections: Spring terminal
Dimensions (H x W at front x D): 9.2 x 5.1 x 6.5 inches (234 x 127 x 165 mm)
Net Weight (including mounting bracket): 3.3 lbs (1.5 kg)
Frequency Response (-10 dB): 85 Hz-20 kHz
Sensitivity (SPL 1 W/1 m): 87 dB
Maximum SPL/1m (calc.): 112 dB
Long-term Power Handling: 75 Watts
Short-term Power Handling: 300 Watts
Coverage (H* x V*): 140* x 100*
LF Driver: 2 x 3.5 inches
HF Driver: 0.75 inches
Nominal Impedance: 8 Ohms
Minimum Impedance: 6 Ohms
Input Connections: Spring terminal
Dimensions (H x W at front x D): 9.2 x 5.1 x 6.5 inches (234 x 127 x 165 mm)
Net Weight (including mounting bracket): 3.3 lbs (1.5 kg)
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 800-289-0096
Email: technical.support@us.bosch.com
Web: https://electrovoice.com/contact-us/
Phone: 800-289-0096
Email: technical.support@us.bosch.com
Web: https://electrovoice.com/contact-us/
Reviews
Reviewers gave this product an overall rating of 4.5 out of 5 stars.
(47 ratings)
Submitted February 21, 2011 by a customer from netreach.net
"Personal Monitor Review"
Verified Purchaser
zZounds has verified that this reviewer purchased this specific product from us.
I would have like to have a small gain amp in it, but that would make it too expensive. It does have a volume control but I think you will use your PA's gain to adjust total volume.
Sound
he monitor sounds fine as a close field monitor. I was looking for something compact and easy to setup, This filled the bill.
Features
This came with everything you need to set up and go except a boom to hold your mic. That is OK the price is well worth it.
Ease of Use
Easy as anything to set up and use.
Quality
So far so good. It seems durable and able to withstand the rigors of stage use.
Value
I got it on sale, which made it extremely reasonable.
Manufacturer Support
No answer here. Did not need to contact support. But I must say shipping was exteremly quick (next day, normal shipping). Very happy with that.
The Wow Factor
This is a specific need item. Some people would not want to use this but those who do, it is vey desirable
Musical Background:
songwriter, recording artist
Musical Style:
Contemporary folk/country, rock & roll
Did you find this review helpful?
