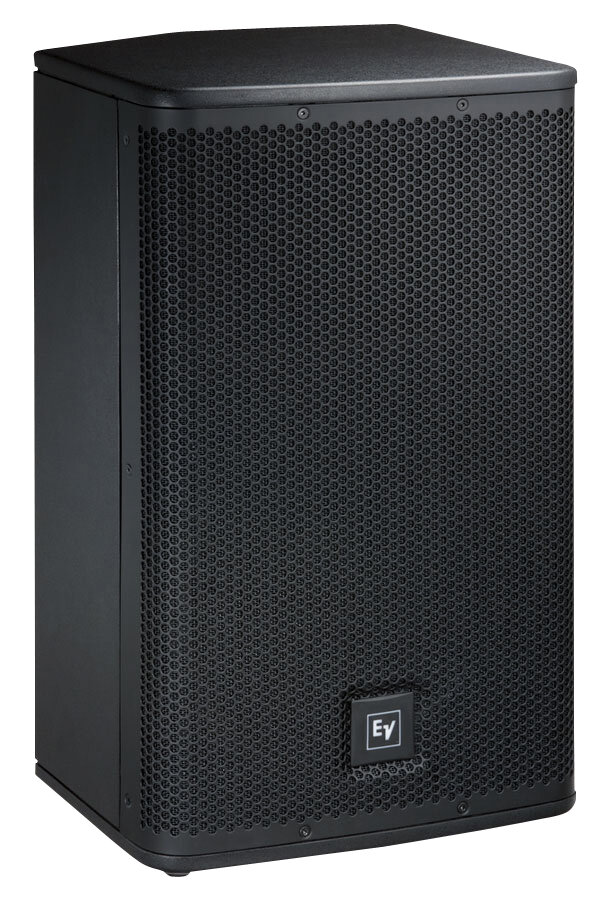

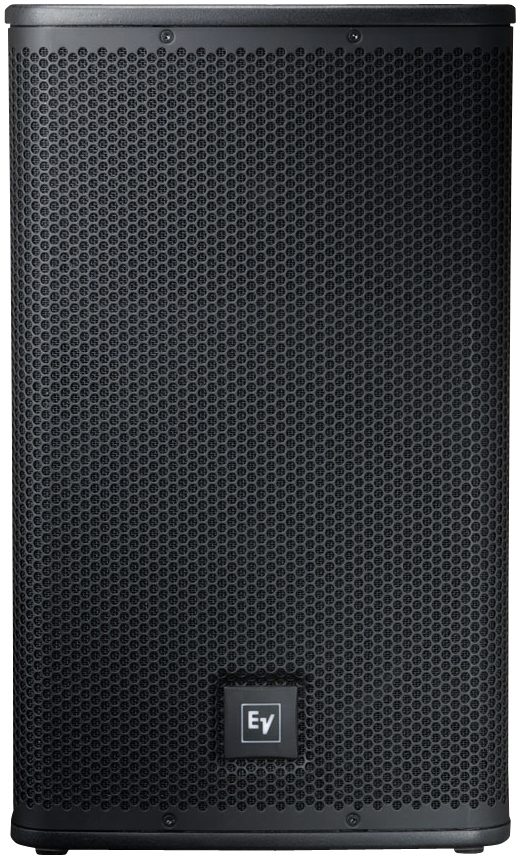

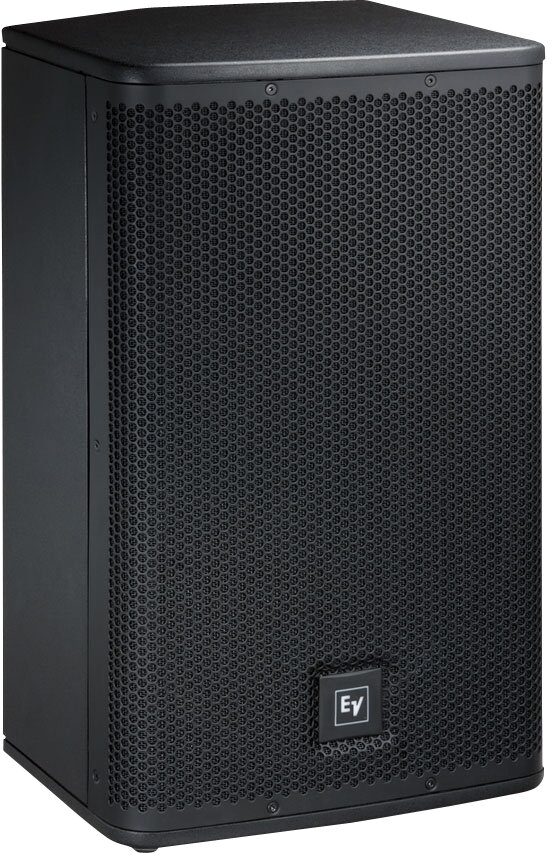

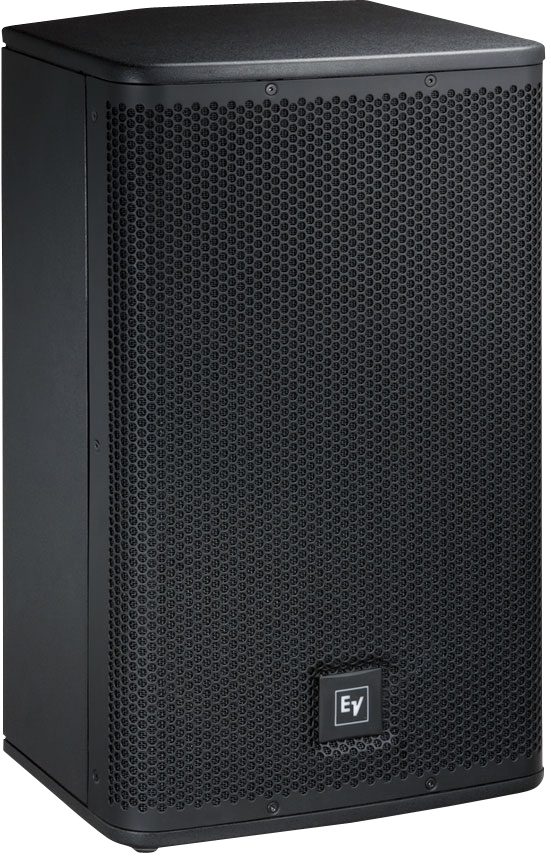

Electro-Voice ELX112 Live X 2-Way Passive, Unpowered Loudspeaker (1000 Watts, 1x12")

No longer available at zZounds
Both portable and powerful, this passive 2-way PA speaker from Electro-Voice can handle up to 1000 watts, while covering a frequency range of 55 Hz - 20 kHz. Unpowered. Requires separate power amplifier.

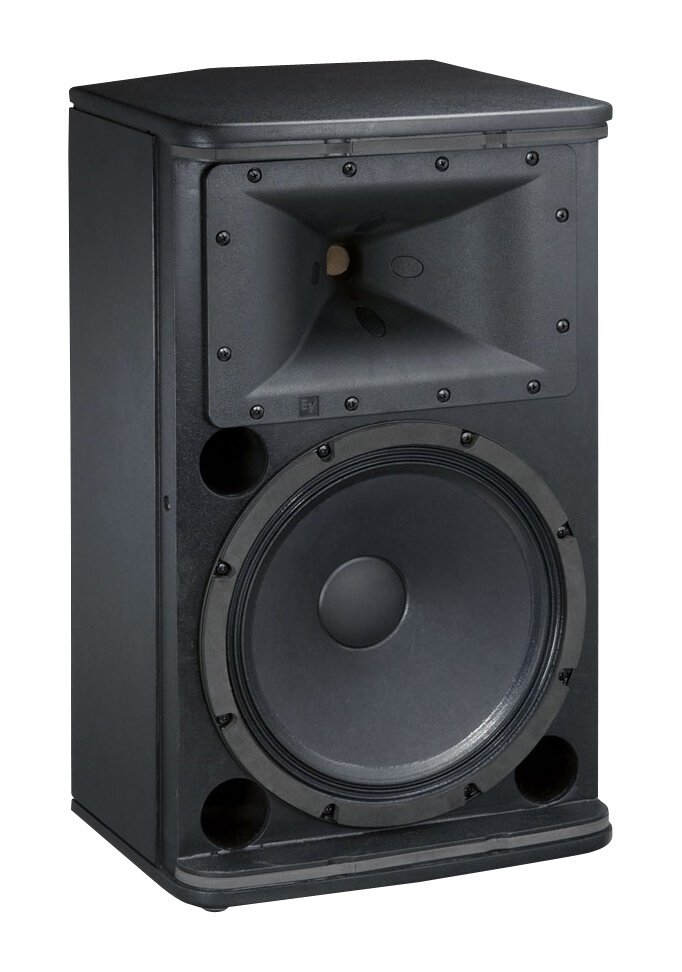

Are you looking to improve your portable PA system? The versatile ELX112 Live X loudspeaker is a great option. Portable and powerful, this passive loudspeaker features signature Electro-Voice low-frequency and matched titanium high frequency drivers.

The black plywood cabinet works both horizontally and vertically, so it can also function as a floor monitor. It also features input and output connectivity to simplify set-up. Plus, the ELX112's simple pole-mount or stacking options allow for versatile sound reinforcement.

With the ELX112, Electro-Voice has built a solid loudspeaker with crystal-clear sound at a reasonable price.

Features:

- Designed for pro music, church, and other applications

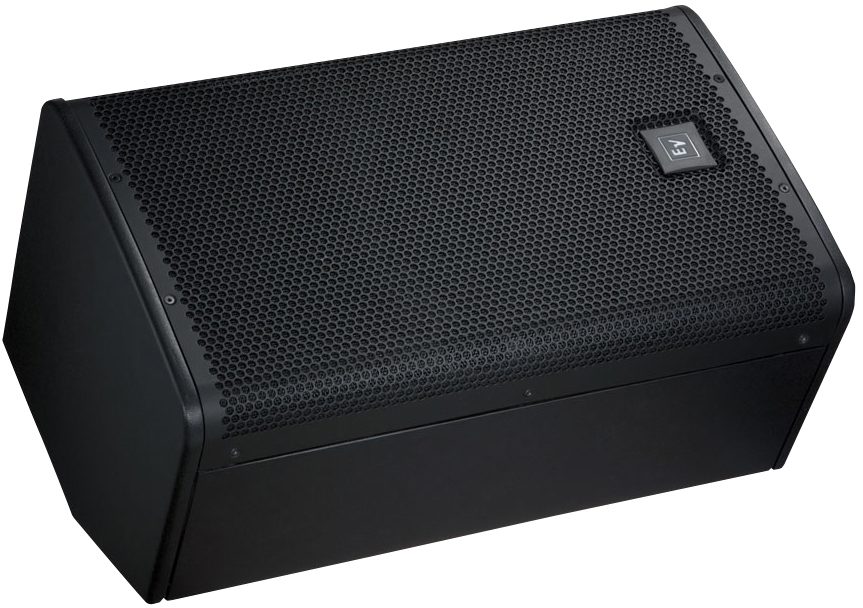

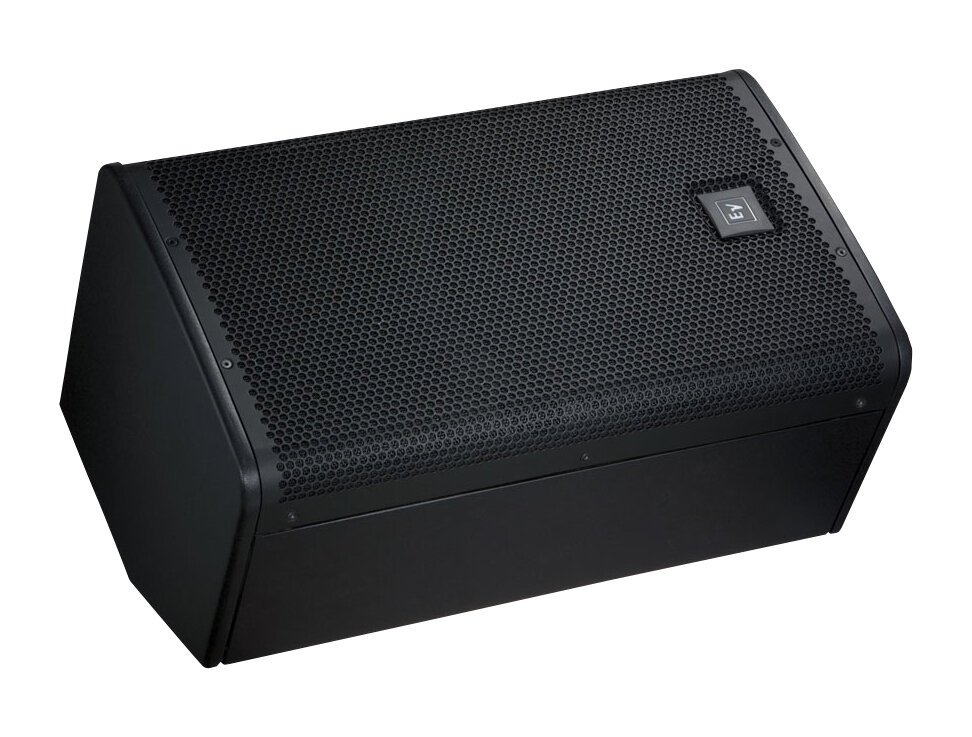

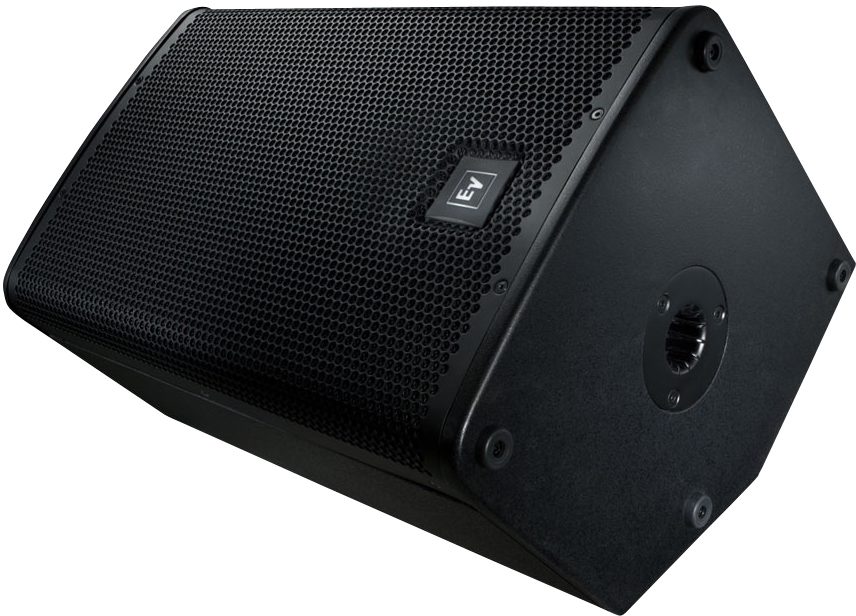

- Angled corner tilts speaker up for use as a horizontal floor monitor

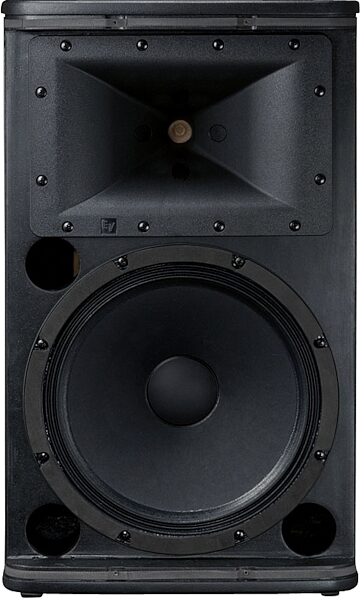

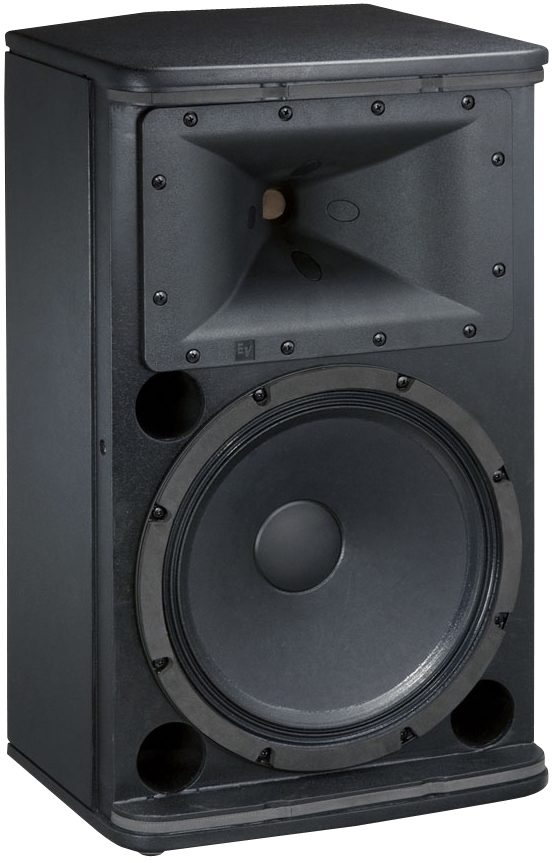

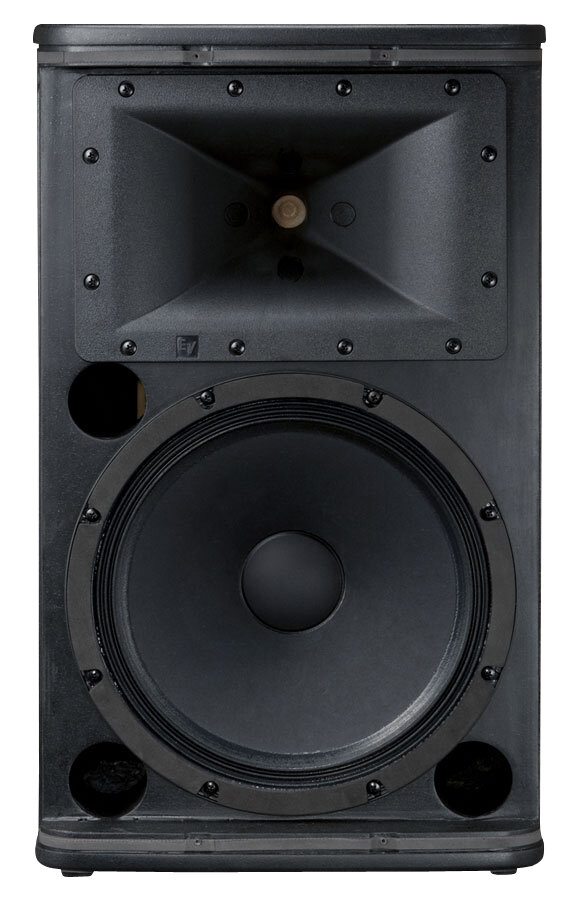

- 12-inch Electro-Voice-engineered woofer
- 1.5-inch high-frequency titanium diaphragm compression driver
- 55 Hz - 20 kHz frequency range
- 94 dB SPL sensitivity; 132 dB max SPL
- 250 watts continuous and 1000 watts peak power handling
- Rugged wood cabinet (internally braced)

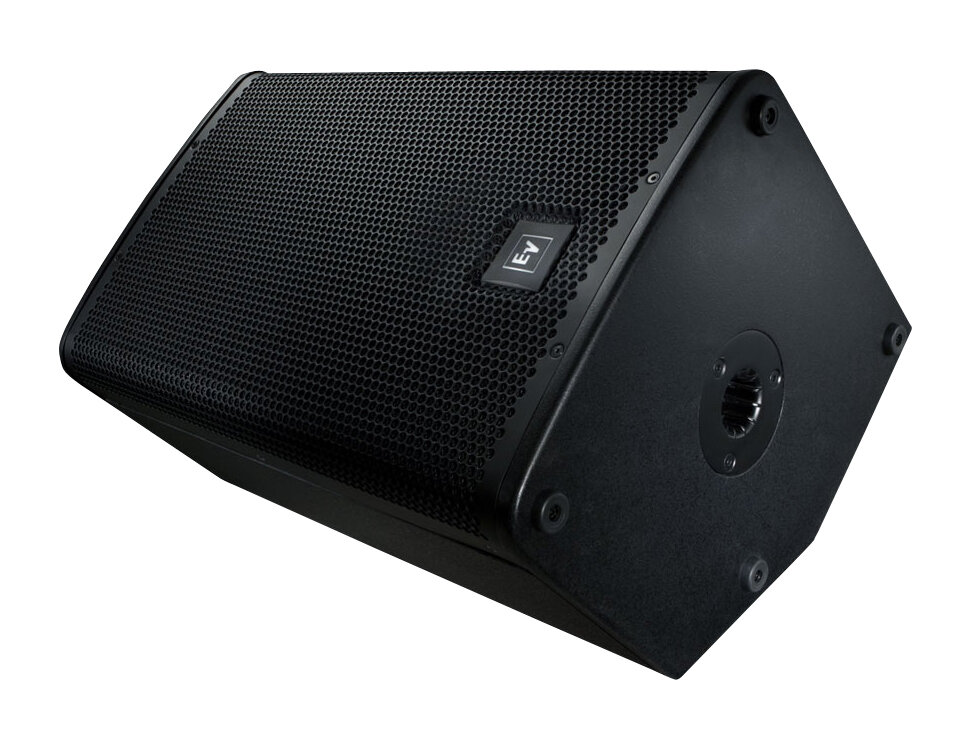

- Pole-mounts or stacks with Live X Subwoofers
- Lightweight materials

About the Live X Series

Clear, powerful Electro-Voice loudspeakers command the stage at high-profile venues and major events worldwide. Born stage-ready, the Live X series includes powered and passive models that all feature EV-engineered components in solid wood cabinets. Wherever performance matters, Live X is serious gear for serious sound.

Note: Unpowered speaker, read more requires separate power amplifier. read less

- Axial Sensitivity: 94 dB
- Case Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
- Frequency Response (-3 dB): 82 Hz - 18 k Hz
- Frequency Response (-10 dB): 55 Hz - 20 k Hz
- Recommended High-Pass Frequency: 45 Hz
- Max. SPL/1m (calc): 132 dB

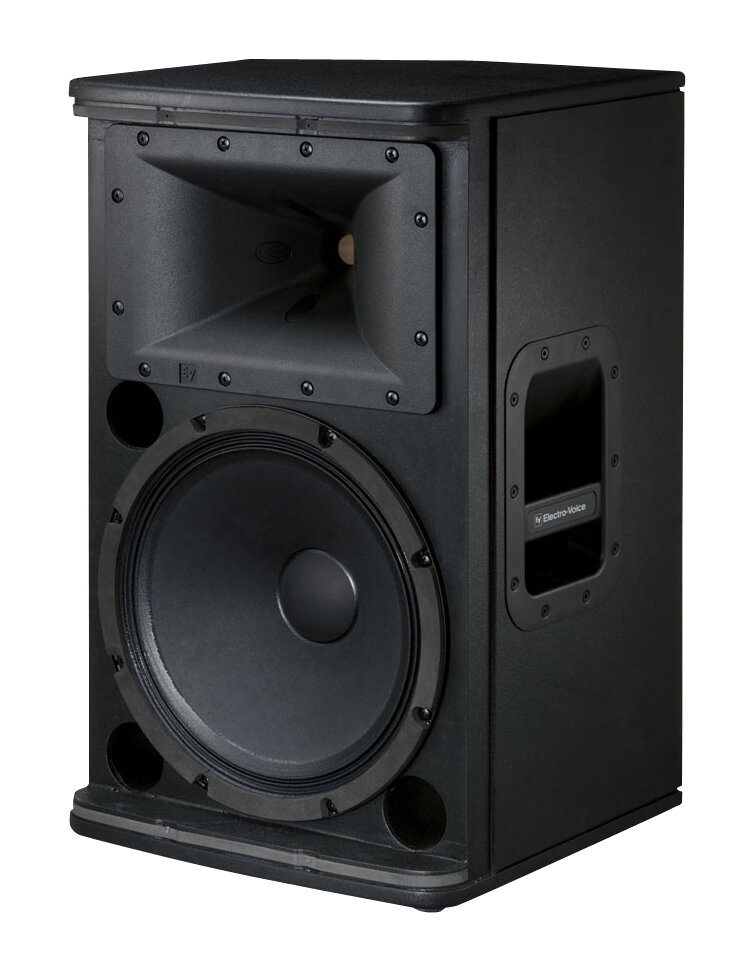

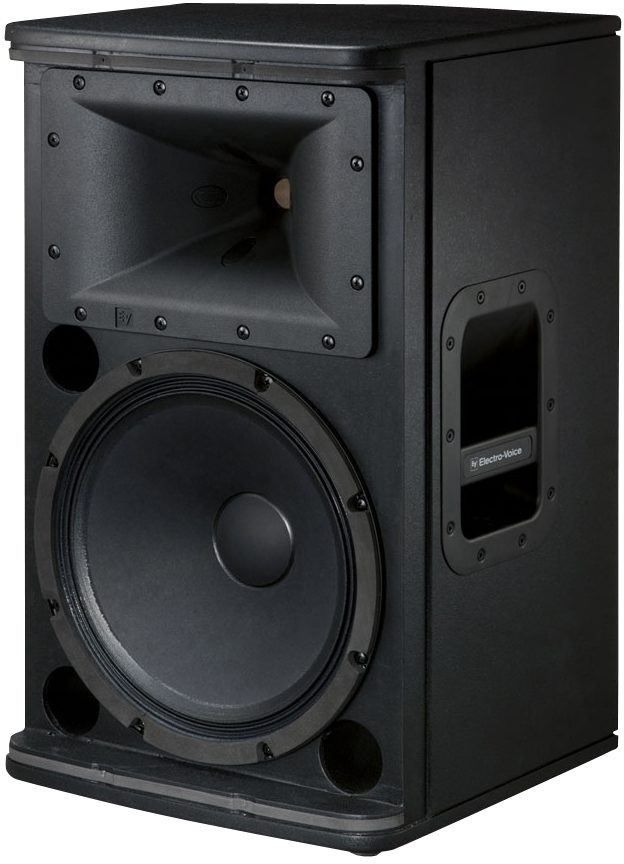

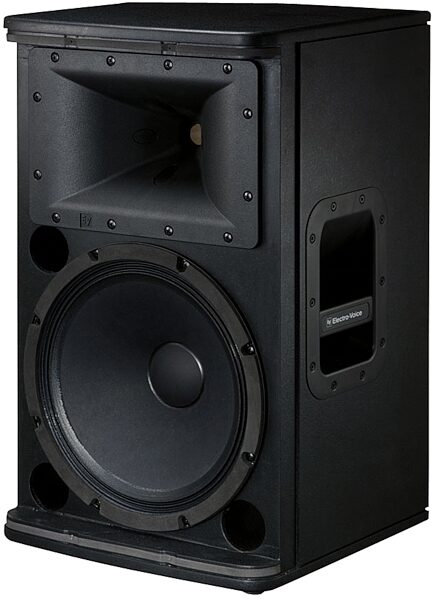

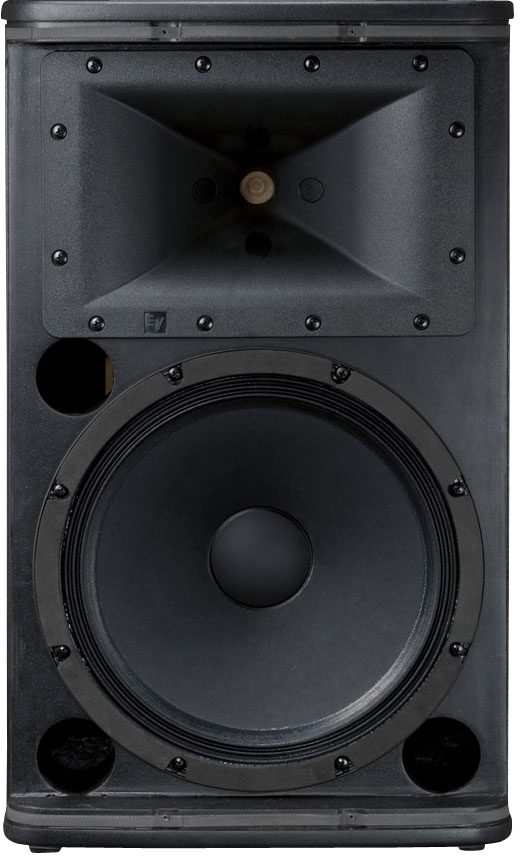

- Speaker: (1) EVS-12K, 12-inch Woofer
- High freq transducer: DH-1K, 1.5-inch Titanium Diaphragm Compression Driver
- Crossover Frequency: 2.1 k Hz
- Nominal Impedance: 8 ohms

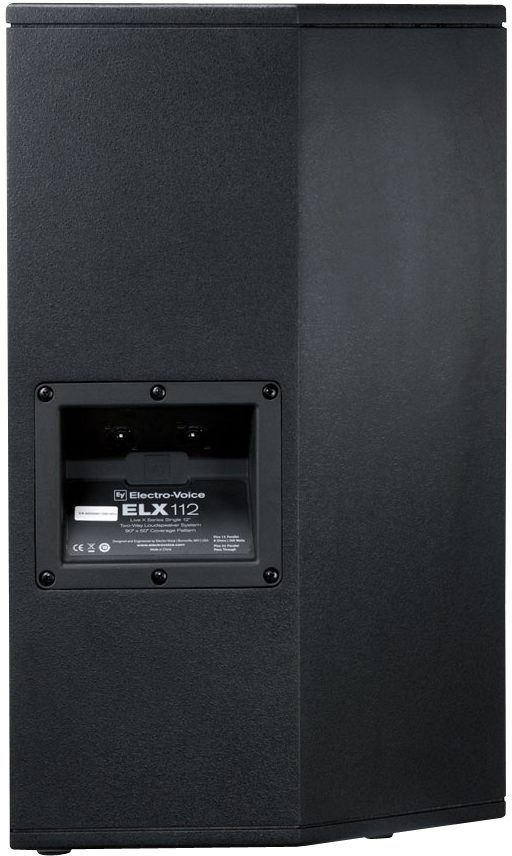

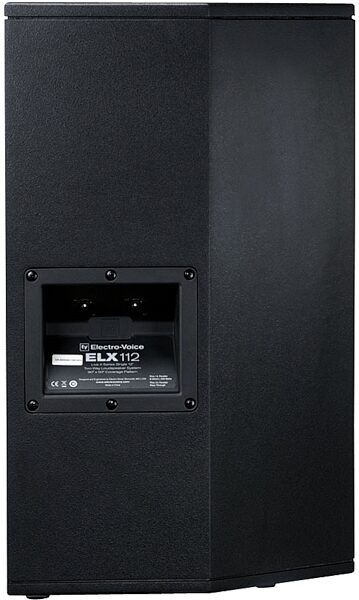

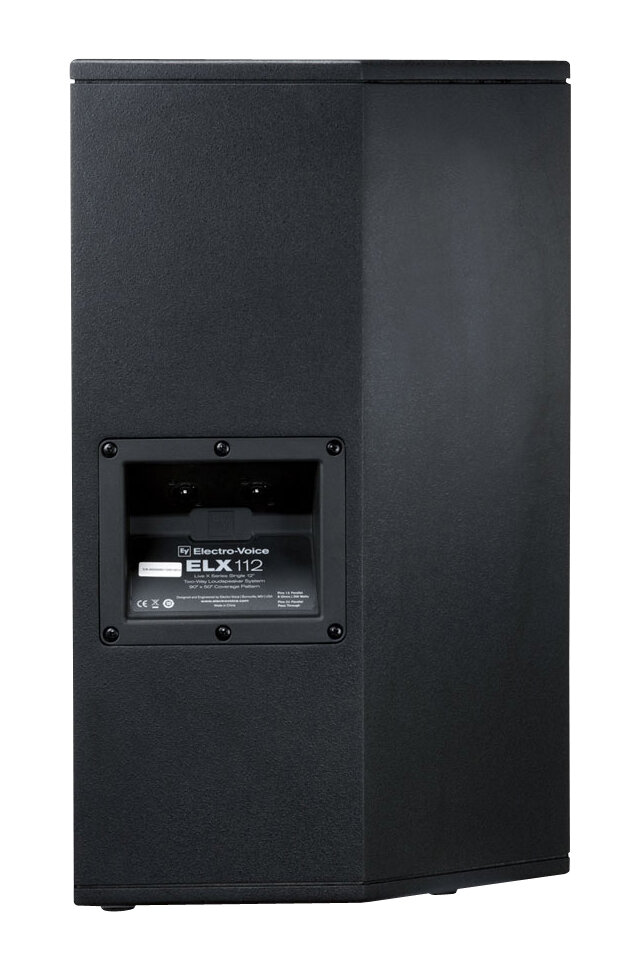

- Connector Type: Dual NL4 Speakon
- Mounting: pole-mounts or stacks with Live X Subwoofers

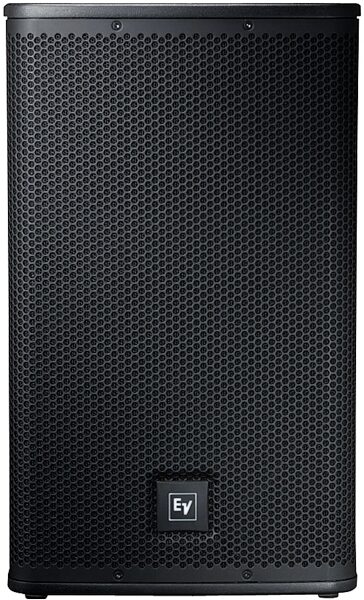

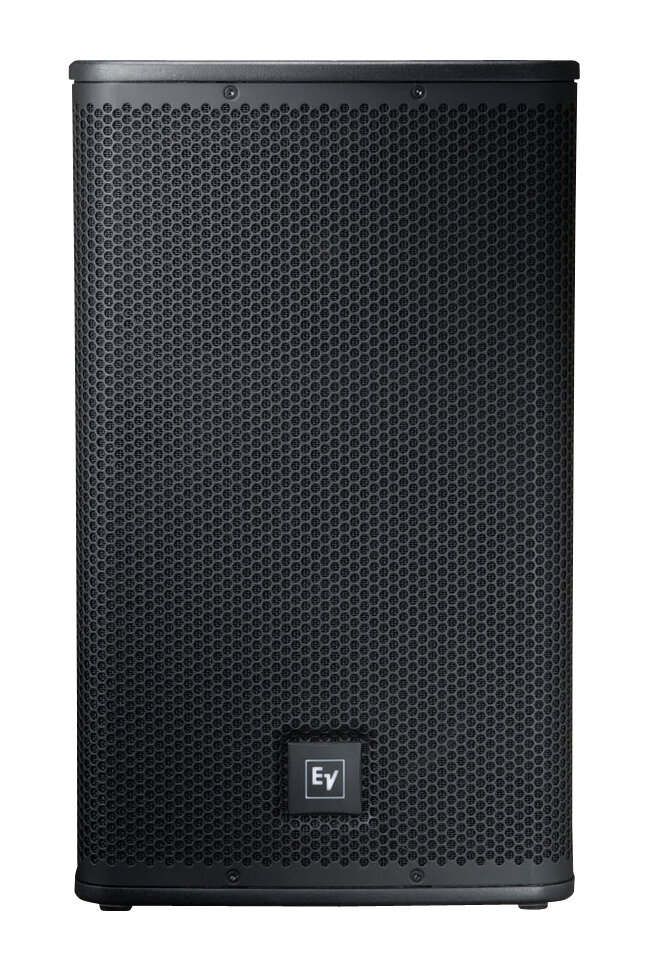

- Grill: 18GA Steel with Black Powdercoat
- Dimensions(HxWxD): 23.9 x 14.25 x 13.39 inch
- Weight: 34.83 lbs

For support or warranty questions, please contact the manufacturer:
Phone: 800-289-0096

Electro-Voice ELX112 2-Way Loudspeaker

The versatile Electro-Voice ELX112 Live X loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications. The ELX112 Live X is a passive loudspeaker that features signature EV low-frequency and matched titanium high frequency drivers. Black wood cabinets create real stage presence with input and output connectivity to simplify set-up. Simple pole-mount or stacking options allow for versatile sound reinforcement applications.

Features:

- Designed for House of Worship, Pro Music, and other applications
- Built in monitor angle for use as a floor wedge
- 12-inch woofer and 1.5-inch high-frequency titanium compression driver
- 55 Hz - 20 kHz frequency range 94 dB SPL sensitivity; 132 dB max SPL
- 250 watts continuous and 1000 watts peak power handling
- Rugged wood cabinet -- pole-mounts or stacks with Live X Subwoofers

Note: Unpowered speaker, requires separate power amplifier.

Reviewers gave this product an overall rating of 5 out of 5 stars. (8 ratings)
Submitted October 9, 2012 by kurt bishop in lima, OH
"Electro-Voice ELX112 2-Way Loudspeaker "
Overall: 5 out of 5 stars
Verified Customer zZounds has verified that this reviewer made a purchase from us.
This is truly the best speaker I've heard. I've been a dj kj for over 20 years. I have tried lots of speakers but these truly are the best i've ever bought.
Musical Background:
i've been in business of dj kj for over 20 years now.
Musical Style:
all styles
8 of 8 people (100%) people found this review helpful. Did you?
