Elektron Digitone Keys Digital Synthesizer

Elektron added 37 keys (plus pitch and mod wheels) to the Digitone! From chiming bells to wobbly '80s basses, this board puts FM synthesis in your hands.
The Elektron Digitone Keys is an eight-voice polyphonic synthesizer keyboard and a performance machine that can usher in soundscapes of distant dreams and worlds previously out of reach. The 37-key velocity and pressure sensitive keyboard gives you another level of expression and control over the Digitone's intuitive sound engine. Multimap lets you configure and assign individual sounds per region, triggering sounds or patterns with the tap of a key, while the ability to use portamento and arpeggio flourishes with the freedom of three octaves. Twist through the looking glass and back with the flick of a wrist.

Sculpt your sound

With the Digitone's powerful and easy-to-use FM engine you have Digitone dynamism in keyboard form. A variety of dedicated features put the power at your fingertips. Get maximum control out of the machine with eight new assignable knobs. Choose the function you want for each knob to tailor your Digitone Keys, and then let loose. The freedom to switch between tempestuous and serene soundscapes in an instant is laid out in front of you. In an Elektron first, the Digitone Keys helps you liberate your live show with a flexible mod and pitch wheel setup, allowing you to warp your sound to another world with multiple modulations.

Get connected

With separate outputs for each track, connecting to external effects mixers and pedals, audio interfaces, and modulation sources is easier than ever before. Pinpoint single Digitone Keys tracks to read more process independently from the rest of your sound.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less
Synth voice features
- 8 voice polyphony (4-part multitimbral)
- Multiple FM algorithms
- Multiple operator harmonics
- 1 x multimode filter per voice
- 1 x base-width filter per voice
- 1 x overdrive per voice
- 2 x assignable LFO per voice
- Unison
- Portamento
- 2048 patch storage capacity on the +Drive

Sequencer
- 4 x synth tracks
- 4 x MIDI tracks
- Arpeggiator per synth track
- Polyphonic sequencing
- Individual track lengths
- Parameter locks
- Micro timing
- Trig conditions
- Sound per step change
- 128 x projects on the +Drive
- 8 x Banks 16 x patterns per project

Send & master effects
- Panoramic Chorus send effect
- Saturator Delay send effect
- Supervoid Reverb send effect
- Overdrive master effect

Hardware
- 37-key semi-weighted, velocity sensitive keyboard with aftertouch
- Assignable pitch and modulation wheels
- 8 x user assignable rotary encoders

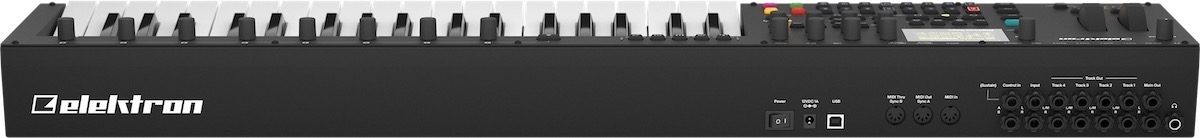

- 2 x 1/4" impedance balanced main out jacks
- 8 x 1/4" impedance balanced track out jacks
- 1 x 1/4" stereo headphone jack
- 2 x 1/4" audio in jacks
- 2 x 1/4" CV/Expression/Sustain jacks
- 128 x 64 pixel OLED screen
- 48 kHz, 24-bit D/A and A/D converters
- Hi-Speed USB 2.0 port
- MIDI In/Out/Thru with DIN Sync out

Physical specifications
- Sturdy steel casing
- Dimensions: W868 x D185 x H90 mm (including knobs, feet, and jacks)
- Weight: approximately 6 kg

Miscellaneous
- Dedicated MIDI controller mode
- Overbridge enabled
- 3 year Elektron warranty

Included in the box
- Power Supply PSU-3b
- Elektron USB cable
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 16.25 lbs
Shipping Dimensions: 40 x 11 x 8 in
Manufacturer Part Number (MPN): ELK DIGITONEKEYS
Scratch and Dent
Shipping Weight: 16 lbs
Shipping Dimensions: 34 x 8 x 4 in
Manufacturer Part Number (MPN): DSP ELKDIGITONEKEYS
