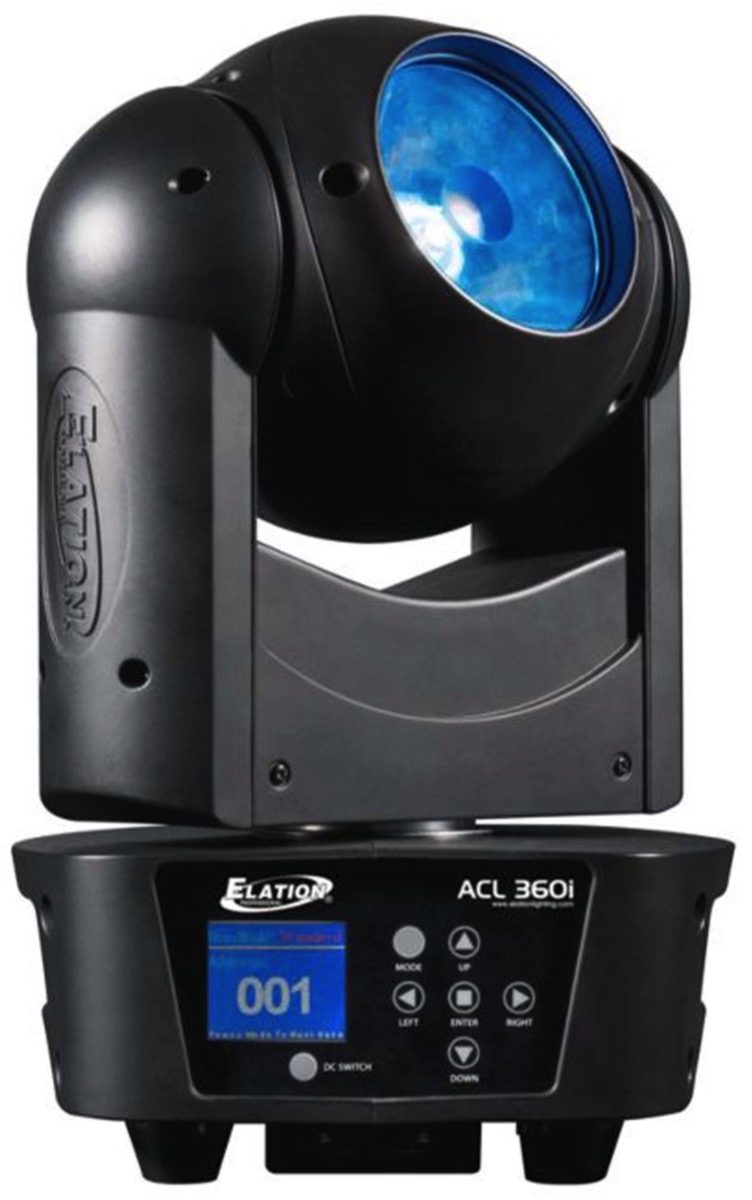

Elation ACL 360i Moving Beam Light, Main

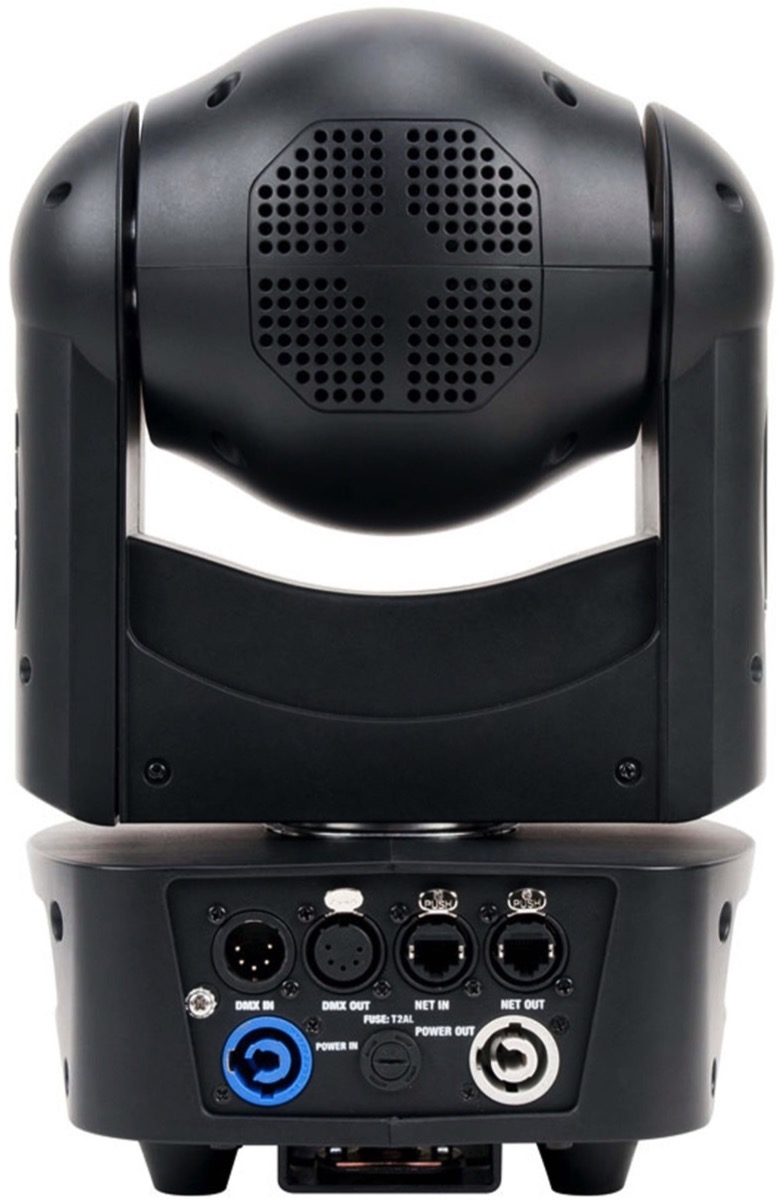

Elation ACL 360i Moving Beam Light, Back
Elation ACL 360i Moving Beam Light, Bottom
Elation ACL 360i Moving Beam Light, View2
Elation ACL 360i Moving Beam Light, Main Elation ACL 360i Moving Beam Light, Back Elation ACL 360i Moving Beam Light, Bottom Elation ACL 360i Moving Beam Light, View2
Need a fast and precise moving head light? The Elation ACL 360i beam light is a single beam moving effect luminaire rated at 60w with full RGBW LED lights.

The Elation ACL 360i is an amazing single beam moving effect luminaire featuring a single 60W RGBW 4-in-1 LED and an advanced collimator optic lens, which produces a laser-like homogenized 4° color-changing beam. Features 10 and 45 degree frost lens options (included), fast and precise, continuous 360° pan and tilt rotation, strobe, and selectable dimming curve effects, DMX, RDM (Remote Device Management), KlingNET and Art-NET support, 5pin XLR, powerCON, and RJ45 ethernet in/out connections, a 6-button, full color, 180°, reversible menu display, 110W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

Features:

- Amazing 4° Single Beam Moving Effect Luminaire
- Advanced Collimator Optic Lens
- 60W RGBW 4-in-1 LED
- Laser-Like Homogenized Color Changing Beam
- 10° and 45° Frost Lens Options Included
- Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
- Strobe and Selectable Dimming Curve Effects
- RDM, KlingNET and Art-NET (DMX Over Ethernet)
- Flicker Free Operation for Broadcast TV and FILM

- Source:
- 60W RGBW 4-in-1 LED
- 100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
- Photometric data:
- 30,601 LUX 2,843 FC @6.6' (2m)
- 12,955 LUX 1,204 FC @9.8' (3m)
- 7,687 LUX 714 FC @13.1' (4m)
- 5,112 LUX 475 FC @16.4' (5m)
- Effects:
- Strobe and Selectable Dimming Curves
- Color Macros
- Color:
- RGBW
- Control / connections:
- (3) DMX Channel Modes (16 / 18 / 20)
- RDM (Remote Device Management)
- 6 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- 8 / 16 Bit Resolution Adjustable Movement
- 5pin DMX In/Out
- RJ45 Ethernet In/Out (KlingNETâ„¢ / Art-NET)
- powerCON Power In/Out
- With Wired Digital Communication Network
- Size / weight:
- Length: 8.7" (222mm)
- Width: 7.3" (186mm)
- Vertical Height: 13.0" (330mm)
- Weight: 11.5 lbs. (5.2 kg)
- Electrical / thermal:
- AC 100-240V - 50/60Hz
- 110W Max Power Consumption
- 5F to 113°F (-15°C to 45°C)
- Approvals / ratings:
- CE | cETLus | IP30
- Included items:
- 10° Frost Lens
- 45° Frost Lens
- Omega Bracket
- powerCON Cable
