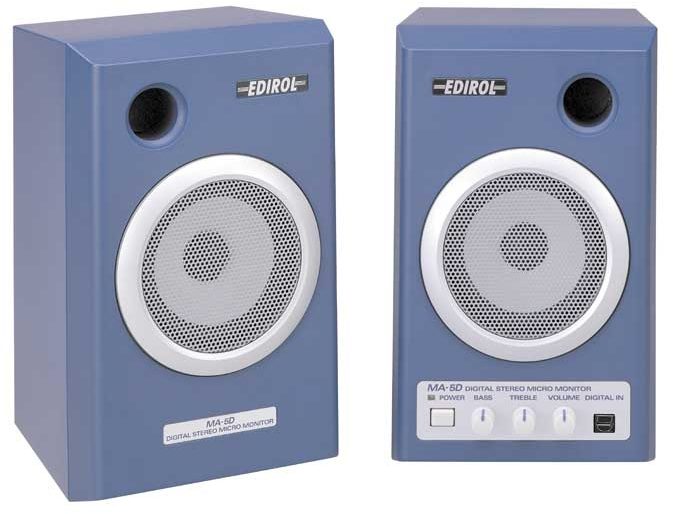

Edirol MA5D Digital Desktop Powered Monitors

No longer available at zZounds

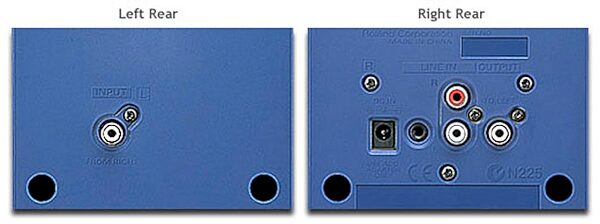

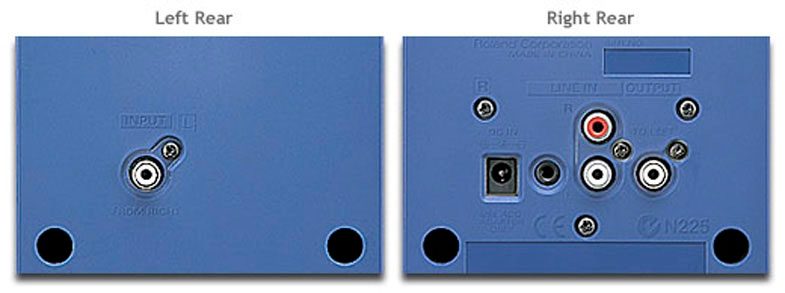

Edirol MA5D Digital Desktop Powered Monitors, Rear

zZounds Gear Experts Say...

Compact, stylish design. Suitable for your computer.

Overview

Digital Stereo Micro Monitors
Bass-reflex system powered speakers in a compact design that provides a wide range of dynamic sound. Same great sound as the MA-5A but with a digital input on the front.

Features:

5w x 5w, 70 mm full range speakers

Plug-in a wide variety of audio devices, such as CD/MD/DVD player and electronic musical instruments

Mix 2 analog input sources

Equipped with 2 Inputs (RCA/stereo mini)

Bass, Treble control knobs on front panel

Compact, stylish design; suitable for your computer

Specs

Rated Power Output: 10 W (5 W + 5 W)

Speaker Unit: Full-range 7 cm / 2-13/16 inches (Magnetically-Shielded)

Frequency Range: 70 Hz to 20 kHz

Nominal Input Level
Line: -10 dBu
Stereo: -10 dBu

Input Impedance: 18 k ohms

Controls (right speaker)
Bass Control Knob
Treble Control Knob
Volume Knob
Power Switch

Connectors (right speaker)
Front (MA-5D only): Digital Input Connector (optical)
Rear Input Jack (stereo miniature phone type)
Input Jacks L, R (RCA phono type)
L Channel Output Jack (RCA phono type)
AC Adaptor Jack

Connectors (left speaker)
Left Speaker Rear: L Channel Input Jack (RCA phono type)

Enclosure: Full-range Bass-reflex type

Power Supply: DC 18 V (AC Adaptor)

Current Draw: 500 mA

Dimensions:
120 (W) x 143 (D) x 194 (H) mm
4-3/4 (W) x 5-11/16 (D) x 7-11/16 (H) inches

Weight:
Right Speaker 1.03 kg / 2 lbs 5 oz
Left Speaker 0.72 kg / 1 lbs 10 oz

Included Accessories:
Owner's Manual
Conversion Cable (stereo miniature phone type <-> RCA phono type)
Speaker Cable (RCA phono type)
AC adaptor
