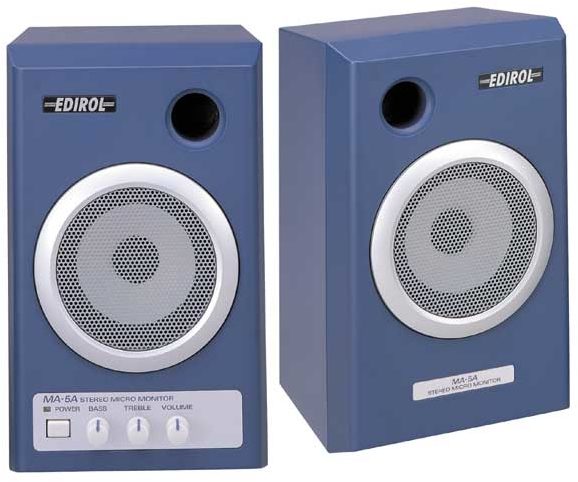

Edirol MA5A Analog Desktop Powered Monitors

No longer available at zZounds

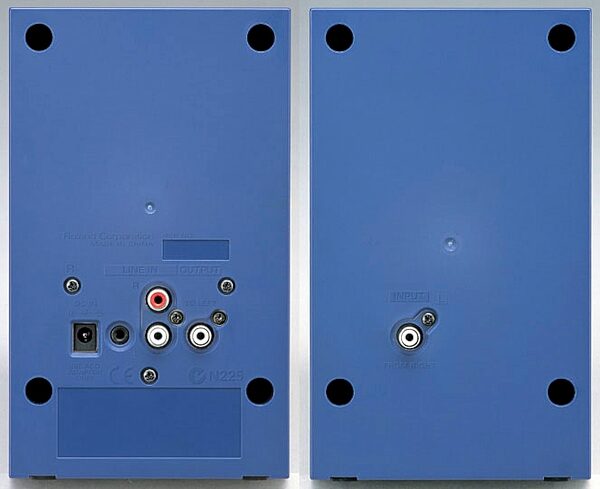

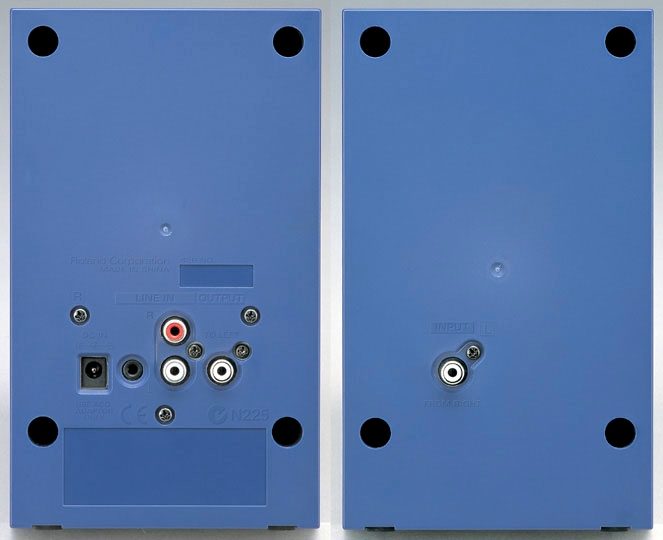

Edirol MA5A Analog Desktop Powered Monitors, Back Panel

zZounds Gear Experts Say...

5-Watt Powered Speakers. 70Hz to 20kHz frequency response.

Overview

Edirol MA5A Analog Desktop Powered Monitors
Edirol MA-5A Digital Stereo Micro Monitors consist of a bass-reflex powered speaker system in a compact design that provides a wide range of dynamic sound. They deliver the same great sound as Edirol's popular MA-5D but without the digital input on the front.

Features

5w x 5w, 70 mm full range speakers

Plug-in a wide variety of audio devices, such as CD/MD/DVD player and electronic musical instruments

Mix 2 analog input sources

Equipped with 2 Inputs (RCA/stereo mini)

BASS, TREBLE control knobs on front panel

Compact, stylish design; suitable for your computer

Specs

Specifications

Rated Power Output: 10 W (5 W + 5 W)

Speaker Unit: Full-range: 7 cm / 2-13/16 inches
(Magnetically-Shielded)

Frequency Range: 70 Hz to 20 kHz

Nominal Input Level:
Line: -10 dBu
Stereo: -10 dBu
Input Impedance: 18 k ohms

Controls (right speaker):
Bass Control Knob
Treble Control Knob
Volume Knob
Power Switch

Connectors (right speaker):
Rear Input Jack (stereo miniature phone type)
Input Jacks L, R (RCA phono type)
L Channel Output Jack (RCA phono type)
AC Adaptor Jack

Connectors (left speaker):
Left Speaker Rear:
L Channel Input Jack (RCA phono type)

Enclosure: Full-range Bass-reflex type

Power Supply: DC 18 V (AC Adaptor)

Current Draw: 500 mA

Dimensions: 4-3/4 (W) x 5-11/16 (D) x 7-11/16 (H) inches (120 x 143 x 194 mm)

Weight:
Right Speaker 1.03 kg / 2 lbs 5 oz
Left Speaker 0.72 kg / 1 lbs 10 oz

Included Accessories:
Owner's Manual
Conversion Cable (stereo miniature phone type to RCA phono type)
Speaker Cable (RCA phono type)
AC adaptor
