EBS PCF Deluxe Flat Patch Cable

zZounds Gear Experts Say...

Get your pedals up close and personal and conserve space on your board with EBS flat patch cables! Available in a range of lengths.

Overview

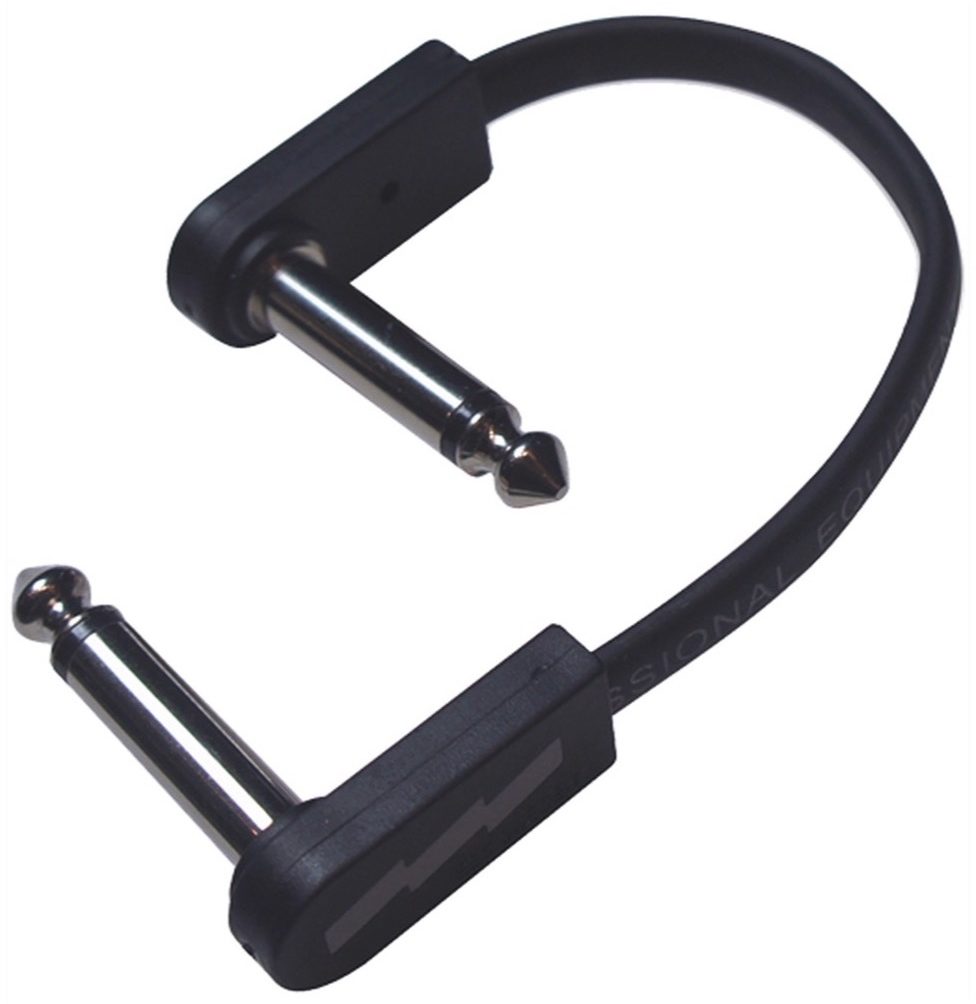

The EBS PCF Deluxe flat patch cable is an original design by EBS. Due to their clever space-saving design, EBS cables have become the patch cable-to-go for musicians all over the world. If you have ever struggled with limited space on your pedalboard, EBS shares your pain. To end the frustration, they've designed the truly unique, super compact and affordable EBS Flat patch cables -- cables that won't let you down on sound and flexibility, and at the same time reduce the space needed between pedals to a minimum.

Features

- Double shielded cables and very low resistance keep your signal path clean and strong all the way through the pedalboard.
- Very compact size and flexible cables ensure effective use of ALL space on your pedalboard.

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Conductor: Flexible copper conductor low voltage audio signal system
- Operating Temperature: -15ºC to +70°C
- Outer Insulation: PVC (Polyvinyl Chloride)
- Signal Copper Cores: 20 x 0,12mm
- Signal Insulation: PE (Polyethylene)
- Copper Twisted Shield: 38 x 0,12mm
- Capacitance Cond./Shield: < 10 pF/decimeters
- Conductor Resistance: < 10 mOhm/decimeters
- Dimensions:
- 6 x 3 mm (Rectangular Cable)
- 30 x 13 x 6 mm (Contact House)
- Connectors: ¼" 90 degrees angled audio plug

Dimensions and Weight in Packaging
10 centimeter: Shipping Weight: 0.04 lbs; Shipping Dimensions: 3 x 3 x 3 in; Manufacturer Part Number (MPN): EBS PCFDL10
18 centimeter: Shipping Weight: 0.04 lbs; Shipping Dimensions: 5 x 2 x 1 in; Manufacturer Part Number (MPN): EBS PCFDL18
28 centimeter: Shipping Weight: 0.05 lbs; Shipping Dimensions: 6 x 3 x 1 in; Manufacturer Part Number (MPN): EBS PCFDL28
58 centimeter: Shipping Weight: 0.06 lbs; Shipping Dimensions: 6 x 1 x 1 in; Manufacturer Part Number (MPN): EBS PCFDL58
10 centimeter, 10-Pack: Shipping Weight: 0.4 lbs
18 centimeter, 10-Pack: Shipping Weight: 0.4 lbs
28 centimeter, 10-Pack: Shipping Weight: 0.5 lbs
58 centimeter, 10-Pack: Shipping Weight: 0.6 lbs

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 212-253-8138

Reviews

(4 ratings)

Submitted July 16, 2019 by Jack J

"Better than cable kits"

Overall:

(see rating details)

Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.

They're cheap enough and come in enough different lengths that it's pointless to bother with cable kits. Lower profile and more flexible, too. Plus they just work, whereas with cable kits you sometimes need do-overs or a connection will go bad down the not-too-distant road.

5 of 5 people (100%) people found this review helpful. Did you?
