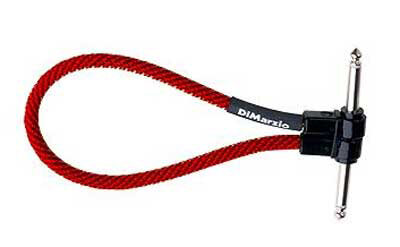

DiMarzio Jumper Cable

Designed with right angle plugs for ease of use, the DiMarzio Jumper Cable provides you with extreme durability and minimal high-frequency loss.

Recognizing the need for a short "jumper" version of DiMarzio's famous guitar cables, DiMarzio now offers professional-grade cables in 6 and 12-inch lengths. DiMarzio uses the same U.S.-made nylon overbraid cable as in DiMarzio's standard guitar cables, delivering maximum signal transmission and minimum high-frequency loss. Right-angle Switchcraft ends are encapsulated in a super-tough thermoplastic resin that permanently bonds the plug to the cable, making the jumpers so rugged and durable that they carry a lifetime warranty.

Wire gauge (AWG): 20 (0.519 mm2)

Diameter: 0.237 in. (6.02mm)

Insulation: polyethylene intter with PVC outer

Capacitance pF/ft.: 19 pF/ft. (62 pF/M) cond/cond 35 pF/ft (115 pF/M) cond/shield

Shield & material: copper braid + conductive PVC 98%

Jacket & material: PVC + nylon overbraid

Resistance ohms/1,000 ft.: 5.5 ohms/1,000 ft. (18 ohms/km)

Inductance uH: 0.07 uh/ft. (0.2 uh/M)

Termination method: silver solder
Dimensions and Weight in Packaging
Black, 6 inch
Shipping Weight: 0.25 lbs
Shipping Dimensions: 4 x 4 x 1 in
Manufacturer Part Number (MPN): EP17J06RRBK
Black, 12 inch
Shipping Weight: 0.25 lbs
Shipping Dimensions: 7 x 4 x 1 in
Manufacturer Part Number (MPN): EP17J12RRBK
