Mic Inputs
Connector: Eight balanced XLR jacks
Mic Phantom Power: 48V
Frequency Response: +0.0 / -0.25 dB, 20 Hz - 20 kHz
Dynamic Range: 103 dB / 106 dB A-weighted
THD + N: 0.0007% (-103 dB)
Input Sensitivity: +6.4 dBu
Gain Range: +18 - +65 dB
Gain Range (Pad engaged): -0 - +45 dB
Line Outputs (1-8)
Connector: Eight balanced XLR jacks
Connector: Eight impedance balanced 1/4 in. jacks
Frequency Response: +/- 0.5 dB, 20 Hz - 20 kHz
Dynamic Range: 110 dB / 113 dB A-weighted
THD + N: 0.0007% (-103 dB)
Output Sensitivity: +18 dBu
Line/DI Inputs
Connector: Eight balanced 1/4 in. jacks
Frequency Response: +/- 0.1 dB, 20 Hz - 20 kHz
Dynamic Range: 103 dB / 106 dB A-weighted
THD + N: 0.0010% (-100 dB)
Input Sensitivity: +21.64 dBu
Monitor Outputs (Main & Alt)
Connector: Two impedance balanced 1/4 in. jacks
Frequency Response: +/- 0.5 dB, 20 Hz - 20 kHz
Dynamic Range: 110 dB / 112 dB A-weighted
THD + N: 0.0008% (-102 dB)
Output Sensitivity: +18 dBu
Aux Inputs
Connector: Two balanced 1/4 in. jacks
Frequency Response: +/- 0.1 dB, 20 Hz - 20 kHz
Dynamic Range: 111 dB / 113 dB A-weighted
THD + N: 0.00055% (-105 dB)
Input Sensitivity: +17.16 dBu
Input Impedance: 10K Ohm
Headphone Outputs
Connector: Two unbalanced 1/4 in. jacks
Frequency Response: +/- 0.5 dB, 20 Hz - 20 kHz
THD + N: 0.0009% (-101 dB)
Dynamic Range: 110 dB / 112 dB A-weighted
Output Sensitivity: +23 dBu
Digital Specifications
Supported Sample Rates: 44.1, 48, 88.2, 96 kHz
Maximum Word Length: 24-bit
S/PDIF: 2-channel optical or RCA jack pair
Digital Optical: TOSLINK (ADAT, max 48 kHz sample rate)
Word Clock: Two BNC jacks
Host Connection: Two IEEE-1394a (FireWire) ports (6-pin-to-6-pin FireWire cable included)
MIDI: 5-pin MIDI DIN connectors - one input, one output
Size / Weight / Power
Height: 2U rack (3.5 inches / 8.89 cm)
Width: 19 inches / 48.26 cm
Depth: 13.5 inches / 34.29 cm (including all knobs / connectors)
Weight: 11.22 lbs / 5.09 kg
Power Requirements: 100 - 240V, 50 - 60 Hz A/C (power cable included)
System Requirements
Digidesign-qualified Windows Vista- (32-bit Business or Ultimate), Windows XP- or Mac OS X 10.5-based computer
Minimum 1 GB of RAM
DVD-ROM or equivalent optical drive for software installation
Available FireWire port for 003 Rack+ system
Available USB port for iLok USB Smart Key

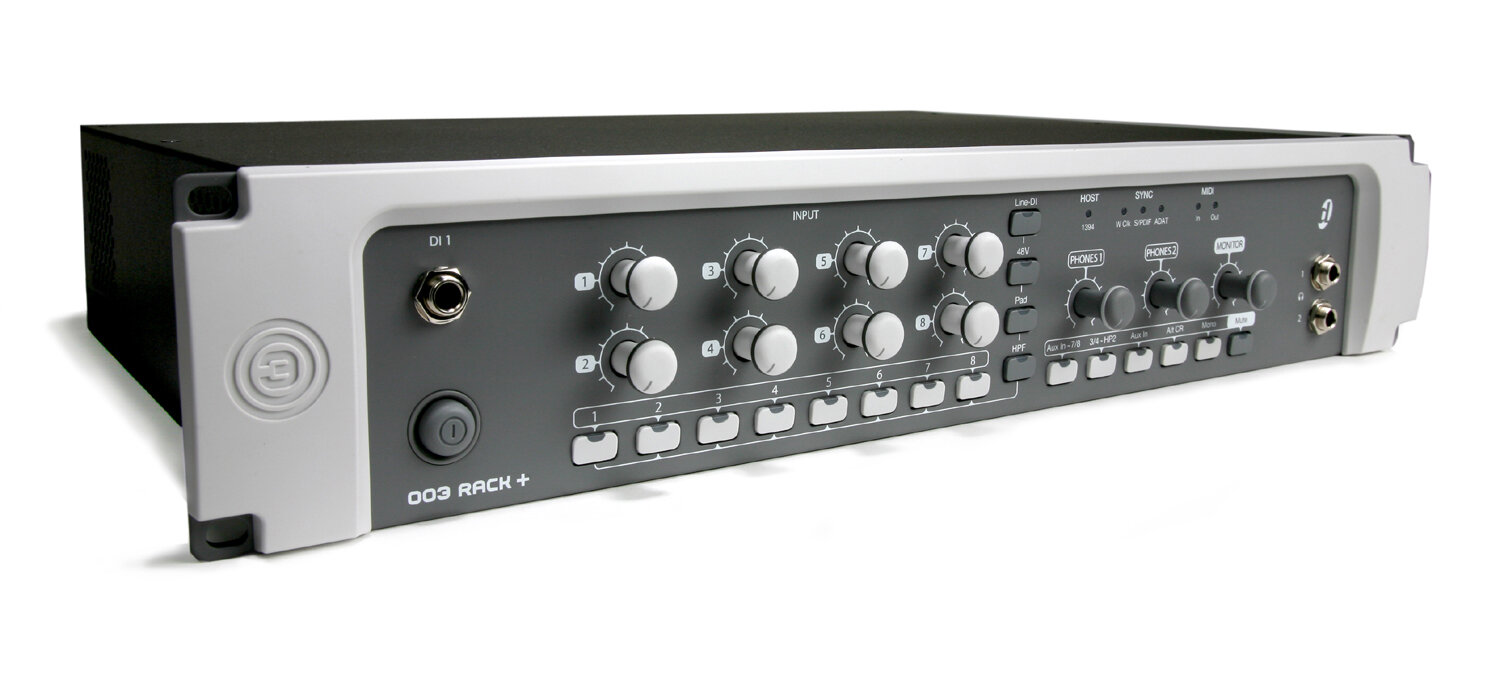

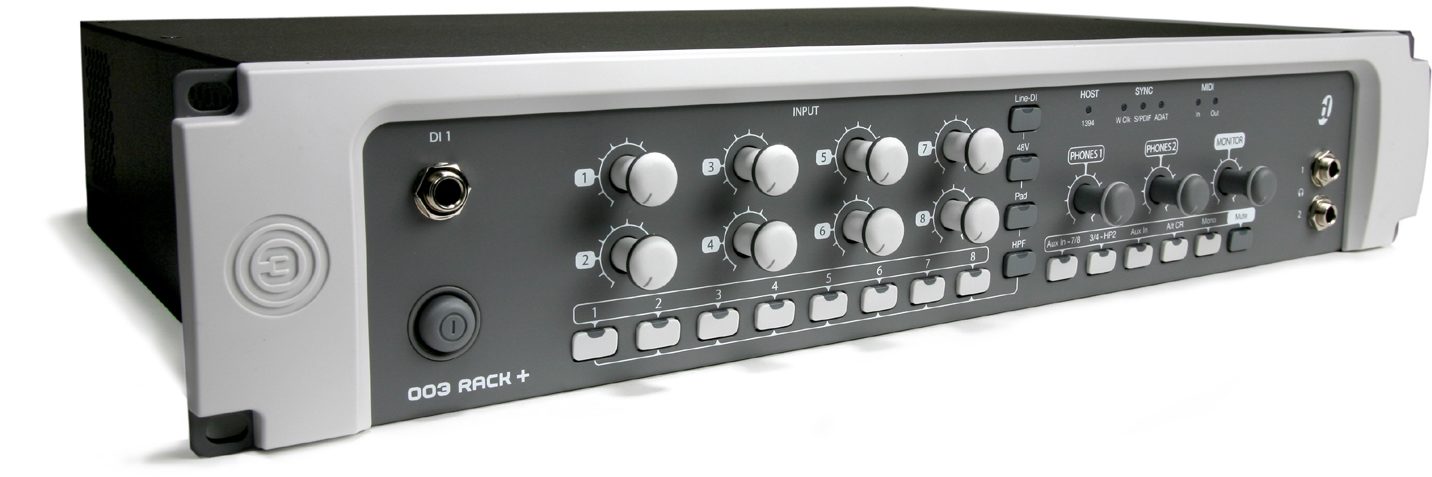

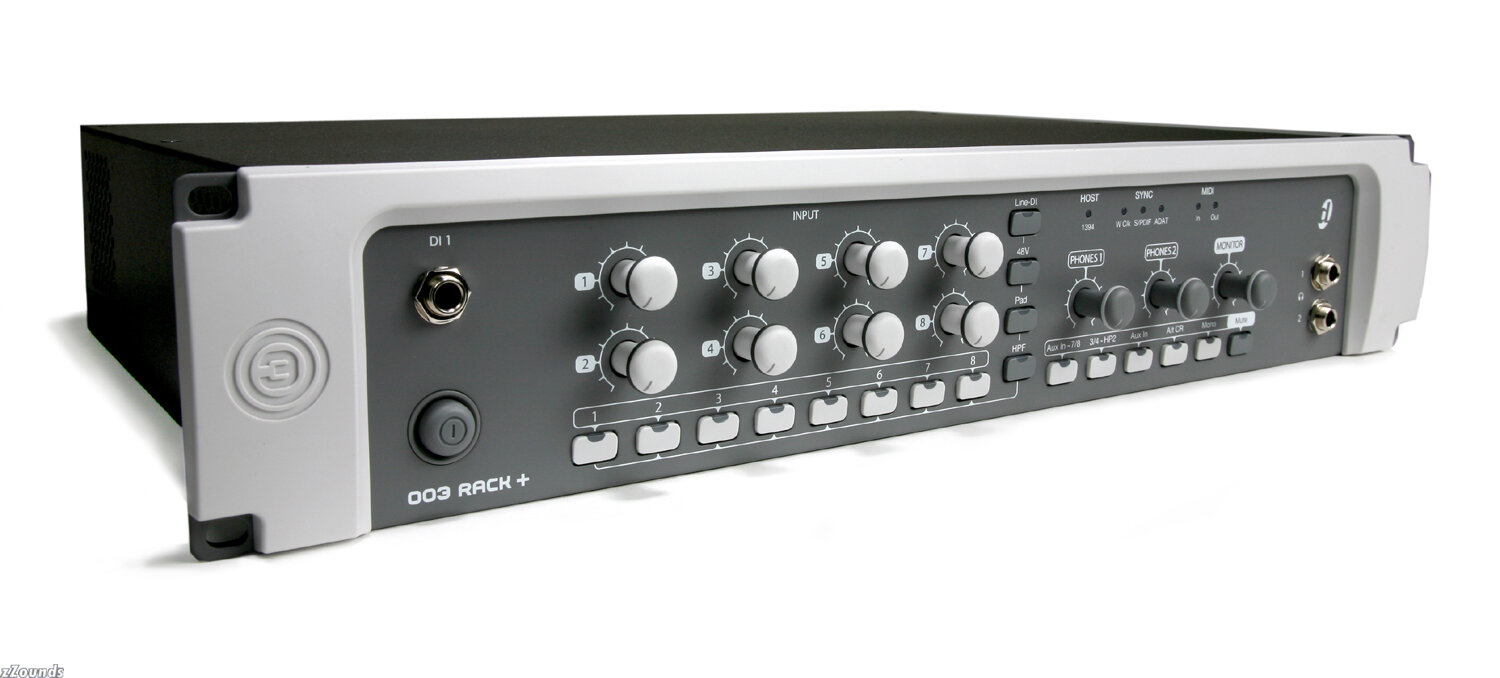

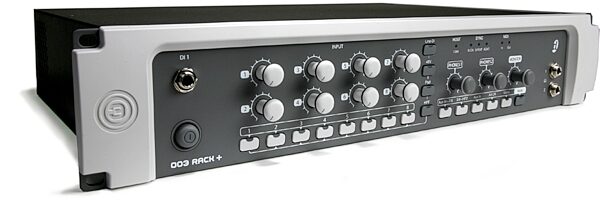

Digidesign Digi 003 Rack+ Interface
Record the entire band in your home/project studio, garage, or even live! Digidesign 003 Rack+ Factory is ideal for musicians, recording engineers, and producers looking for a professional Pro Tools music recording and production solution that's more affordable and portable. With best-in-class sound quality, eight premium mic preamps, and a wide variety of I/O to connect instruments, MIDI gear, and other analog and digital devices, 003 Rack+ Factory works with your computer, providing the power and capacity to record an entire band, vocal or instrument ensemble, or completely mic'd up drum kit--all at once.
003 Rack+ Factory comes with everything you need to compose, record, sequence, edit, mix, master, and promote your music. It includes award-winning Pro Tools software, the most popular and widely-used professional music production application in the world, along with a huge collection of studio-quality sound processing and effects plug-ins, virtual instruments, compatible applications, and sound libraries to get you started creating right away. Plus, the included Factory collection of professional plug-ins (worth over $3,000 USD just on its own) will help you enhance tracks and achieve impeccable, polished mixes quickly and easily.
003 Rack+ Factory also includes over $3,000 worth of additional professional plug-ins, plus an iLok USB Smart Key to handle your plug-in authorizations.
Hardware
003 Rack+ Factory is professionally engineered to deliver the stunning clarity of high-resolution audio, and durably built to withstand any knocks and bounces it encounters when your creative skills are needed on the road.
Great I/O Flexibility
* 18 simultaneous channels of audio I/O
* 24-bit/96 kHz resolution
* 8 professional mic preamps; 48V phantom power on all channels
* 8 analog DI/line inputs (including 1 on the front panel); 8 analog outputs
* 8 channels of ADAT optical I/O
* 2 channels of S/PDIF digital I/O
* 1 MIDI I/O (16 channels in/16 channels out)
* BNC Word Clock I/O
* Dedicated studio monitor output, plus alternate control room output
* Alternate Source input for external device monitoring
* Dual headphone outputs
* High-speed FireWire connectivity

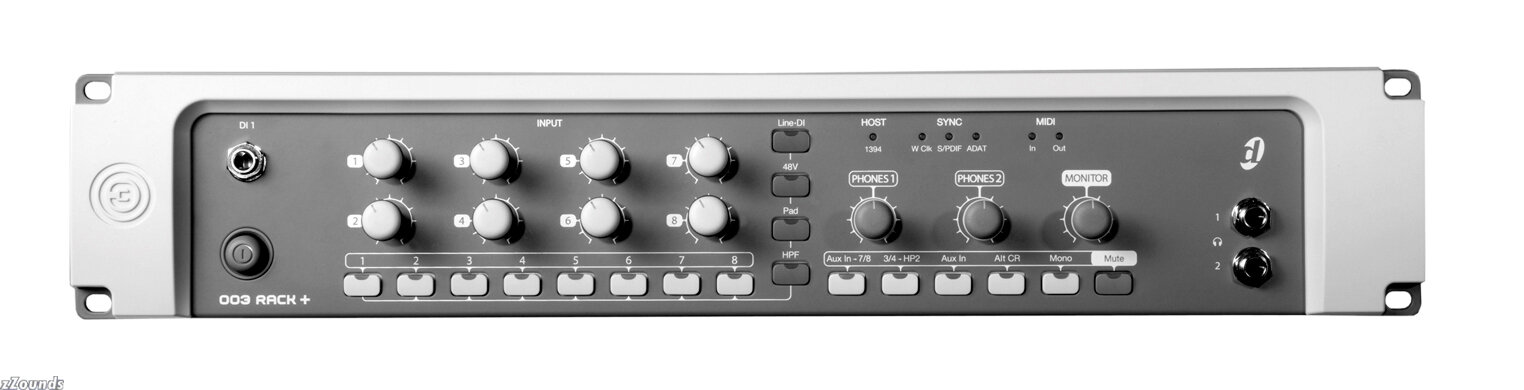

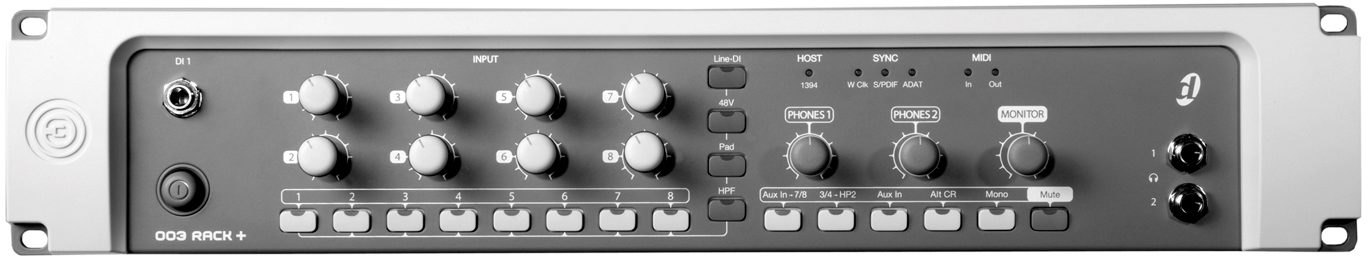

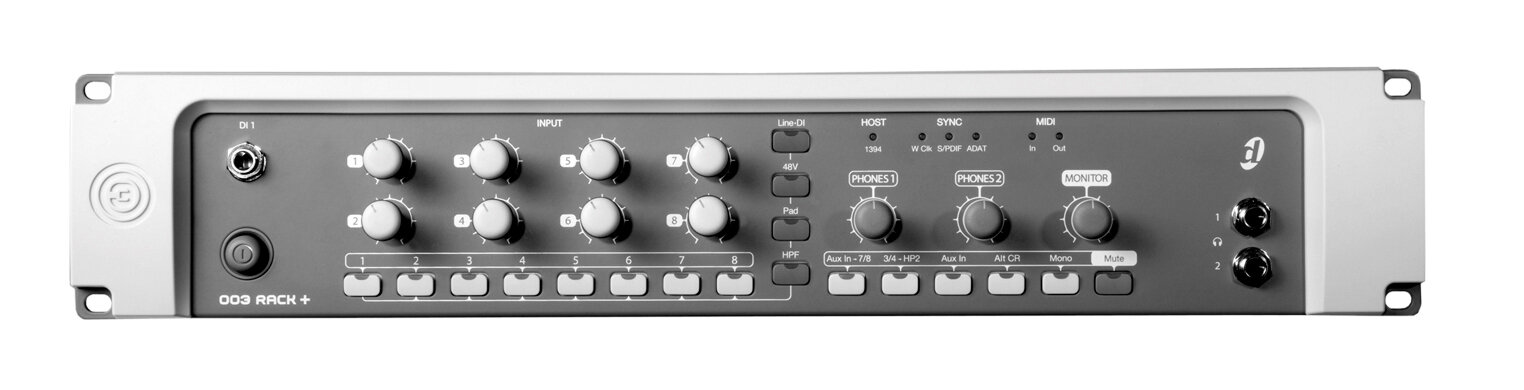

Streamlined Interface
* 2U rackmountable chassis
* 8 individual input gain controls
* 8 discrete high-pass filter switches
* Individual headphone source and level controls
* Mute switch
Software
Pro Tools software is used in countless professional studios around the world, and includes all the tools you need to easily compose, record, edit, mix, and master your projects with pro results--every time.
Features
* Award-winning Pro Tools recording, editing, and mixing
* 48 simultaneous stereo audio tracks (expandable with Toolkit options)
* Includes dozens of pro effects processing plug-ins and virtual instruments
* Professional MIDI sequencing with dedicated MIDI Editor window
* Integrated Score Editor based on award-winning Sibelius notation software
* Full Elastic Time and Elastic Pitch to easily adjust timing and pitch on your tracks
* Unique Beat Detective LE automatic groove analysis and correction tool
* ReWire support for streaming you favorite applications right into Pro Tools
* Support for the Digidesign C|24 and Command|8 control surfaces
* Huge selection of compatible third-party plug-ins and software options
* Works on Windows and Mac computers
Bundled Plug-ins
In addition to M-Audio Torq LE DJ software and an incredible 8 GB collection of pro-quality loops from industry sound heavyweights Big Fish Audio, Pro Tools software includes a comprehensive bundle of amazing virtual instruments, effects, and utility plug-ins.
003 Rack+ Factory (included)
003 Rack+ Factory also includes over $3,000 worth of additional professional plug-ins, plus an iLok USB Smart Key to handle your plug-in authorizations.
003 Rack+ Factory Plug-in Bundle;
* Bomb Factory BF-2A
* Bomb Factory BF-3A
* Fairchild 660 and 670
* Purple Audio MC77
* Cosmonaut Voice
* JOEMEEK SC2 Photo Optical Compressor
* JOEMEEK VC5 Meequalizer
* Moogerfooger 12-Stage Phaser
* Moogerfooger Analog Delay
* Moogerfooger Lowpass Filter
* Moogerfooger Ring Modulator
* SoundReplacer
* TL EveryPhase
* Tel-Ray Variable Delay
* Voce Chorus/Vibrato
* Voce Spin
