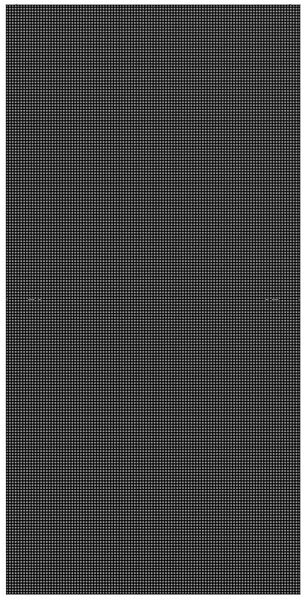

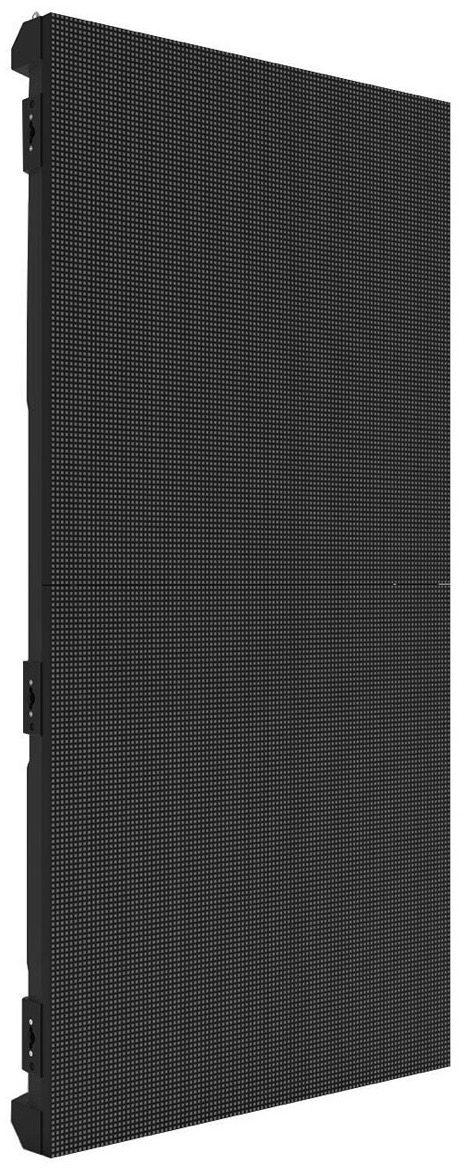

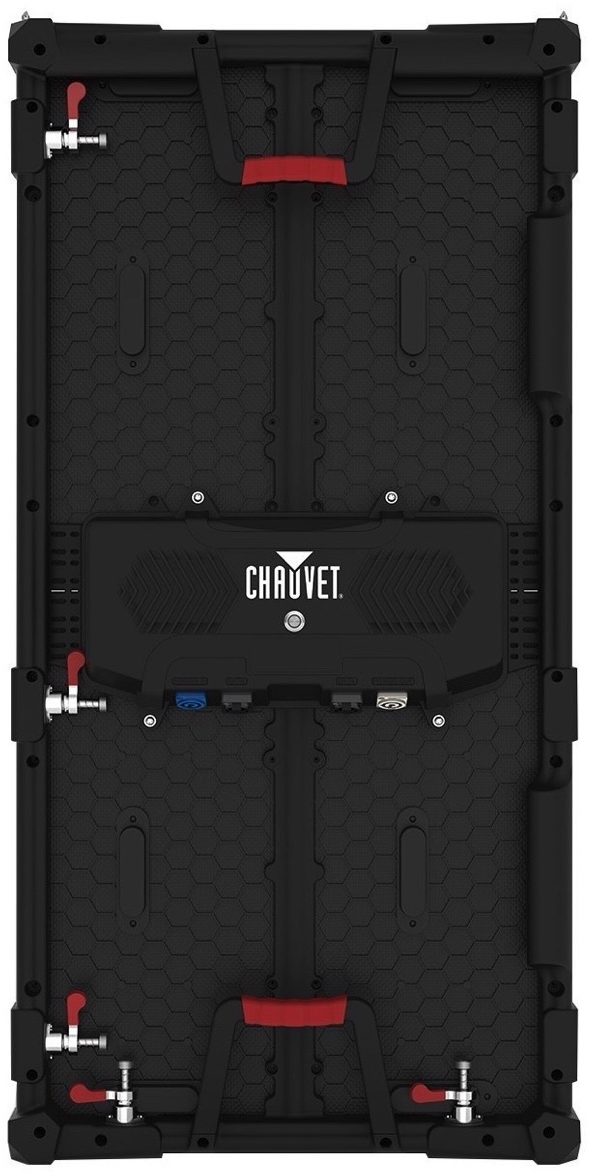

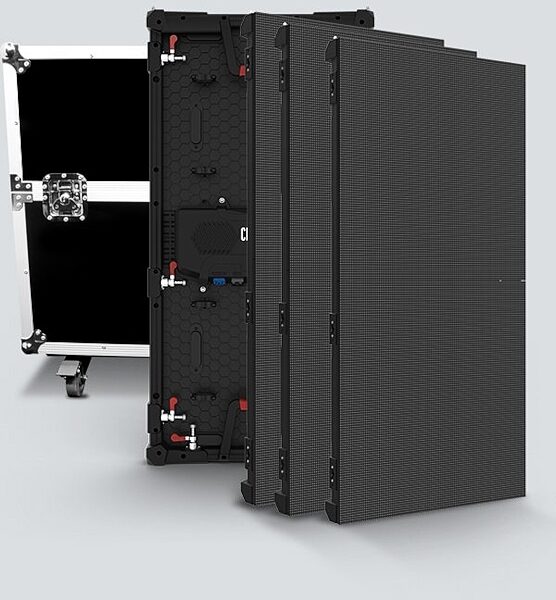

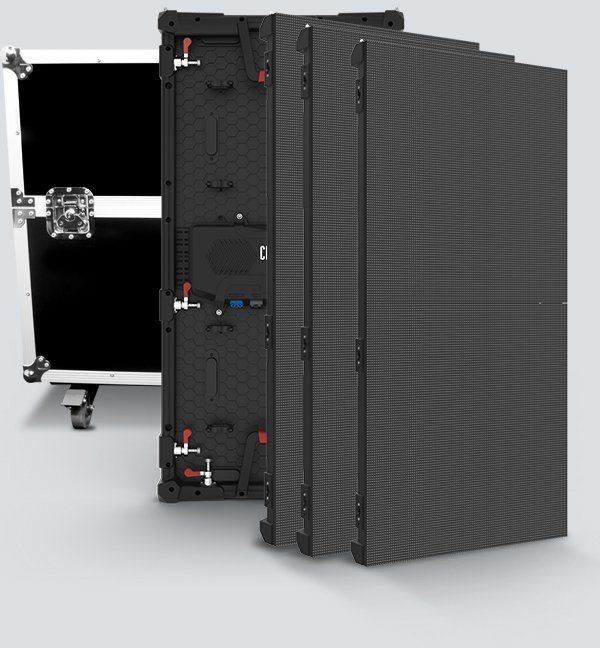

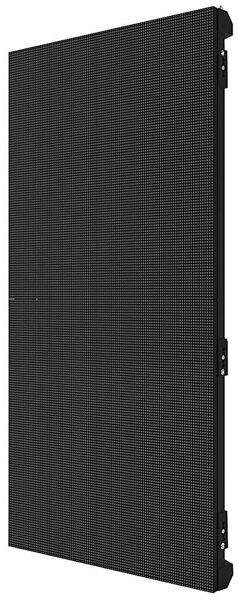

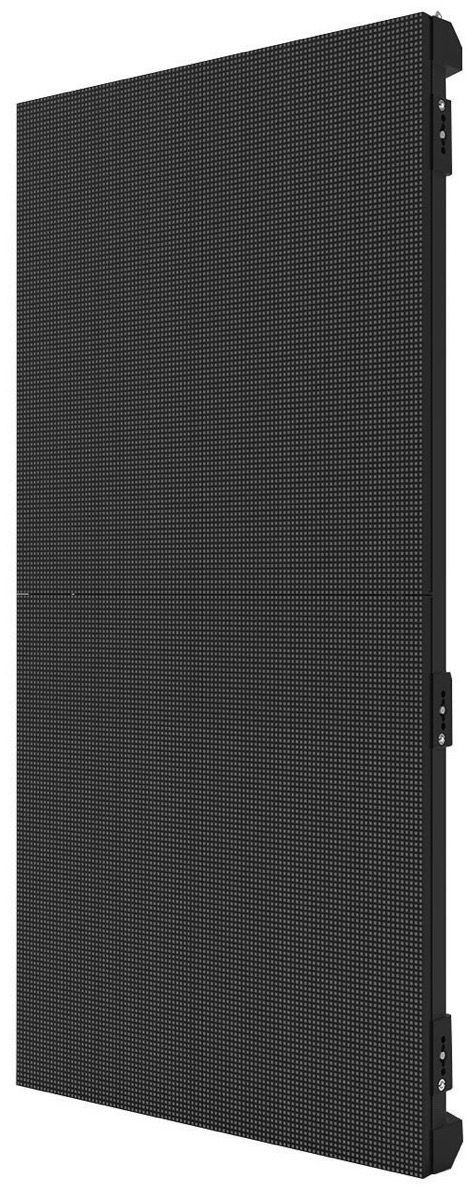

Chauvet Vivid 4x4 DJ Video Panels with Road Case

- Light Source: 21,632 SMD 2,828 LEDs (tri-color RGB) 0.3 W, (60 mA), 50,000 hours life expectancy
- Power Linking: 7 units @ 120 V; 13 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 280 W, 2.3 A @ 120 V, 60 Hz
- 280 W, 1.2 A @ 230 V, 50 Hz
- Weight: 27.6 lb (12.5 kg)
- Size: 19.7 x 1.9 x 39.4 in (500 x 65 x 1000 mm)
- Approvals: CE, MET
- Wavelength: 620 to 625 nm red, 516 to 530 nm green, 460 to 475 nm blue
- Viewing Angle: 120 degrees
- Maximum Illuminance: 1,200 NITS
- Calibrated Illuminance: 1,000 NITS
- Contrast Ratio: 4,300:1
- Refresh Rate: 1,920 Hz
- Pixel Density: 43,264 m2 (104 x 208)
- Pixel Pitch: 4.8 mm
- Minimum Viewing Distance: 12 ft (4 m)
- Maximum Vertical Hang: 23 panels
- Maximum Horizontal Hang: 17 panels
- Required Controllers: Vivid Drive 23N (Sold Separately)
- Optional Mounting Brackets: RB-F50CM, RB-F100CM (Sold Separately)
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 226 lbs
Shipping Dimensions: 43 x 29 x 26 in
Manufacturer Part Number (MPN): Vivid 4x4
If you have additional warranty questions, please contact the manufacturer at 800-762-1084
