Chauvet DJ Swarm 5 FX ILS Effect Light

Chauvet DJ Swarm 5 FX ILS Effect Light, New, main

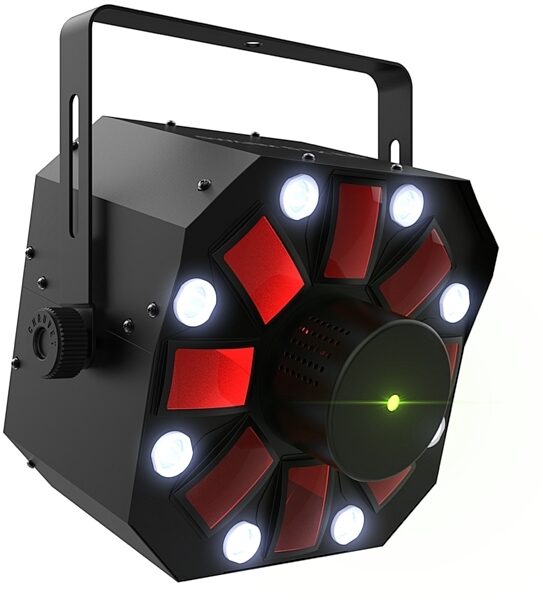

Chauvet DJ Swarm 5 FX ILS Effect Light, New, view

zZounds Gear Experts Say...

Versatility is the name of the game with this effect light -- with multiple effect options like a rotating derby and laser FX, plus ILS wireless sync!

Overview

Chauvet DJ Swarm 5 FX ILS Effect Light

Features:

- Compatible with ILS (Instant Light Shows) products for wireless control
- 3-in-1 LED light that includes an RGBAW rotating derby, red green laser, and white strobe effect
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Laser projects thousands of red and green laser beams
- Operation allows for separate color and program control
- Increase control options using automated and sound activated programs, or Master/Slave and DMX modes
- Save time running cables and extension cords by power linking multiple units
- Fits best inside the CHS-40 VIP gear bag

ILS means Instant Light Shows. Get a closer look in Chauvet DJ's one-minute video:

ILS = Instant Light Shows: Chauvet DJ's DMX-Free Lighting System

Easy to activate and always in sync, ILS guarantees next-level light shows with a faster setup time than ever before. Chauvet DJ's revolutionary auto-sync technology eliminates the need for DMX programming, without sacrificing the experience of a perfectly coordinated light show across various fixture types.

Unlike DMX, ILS creates Instant Light Shows in no time. Just connect your leader with your fixtures to trigger dynamic, coordinated light shows. DMX requires programming which takes time to learn and time to setup. And unlike sound activated lights, ILS technology instantly triggers light effects across a variety of fixture types that are perfectly synced.

To get started with ILS, choose a Leader… read more to auto-sync looks and build your ILS package. If you're looking for hands-off control, GigBAR Move ILS and GigBAR Move + ILS are the leader for you. If you're looking for hands-on control at the push of a button, choose ILS Command. The ILS Command console lets you choose the exact looks you'd like to trigger.

Next, build out your ILS lighting package. Whether you're looking for a moving head, wash, laser, or effect light, Chauvet DJ has an ILS option for you.

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- DMX Channels: 9
- DMX Connectors: 3-pin XLR
- Light Source (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy
- Light Source (strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
- Light Source (laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
- Strobe Rate: 0 to 20 Hz
- Beam Angle (strobe): 17
- Field Angle (strobe): 35
- Coverage Angle (laser): 100
- Coverage Angle (Swarm): 65
- Illuminance (strobe): 823 lux @ 2 m
- Power Linking: 15 units @ 120 V; 26 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 62 W, 0.5 A @ 120 V, 60 Hz
- Power and Current: 62 W, 0.3 A @ 230 V, 50 Hz
- Compliance: Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019
- Approvals: CE, FDA, RoHS, UKC

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 10.75 lbs; Shipping Dimensions: 14 x 14 x 13 in; Manufacturer Part Number (MPN): SWARM5FXILS
