Chauvet DJ GigBar Flex Stage Lighting System

Chauvet DJ GigBar Flex Stage Lighting System, New, Side

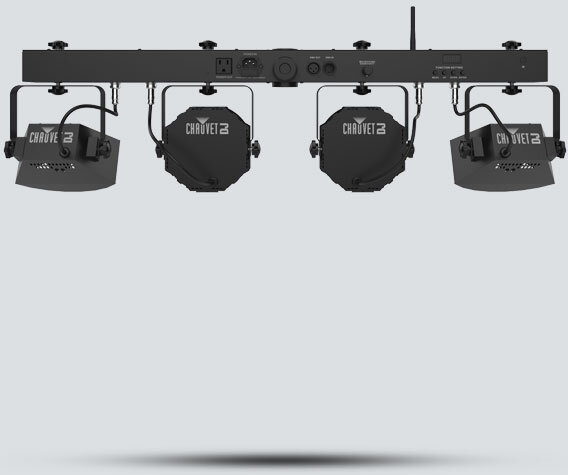

Chauvet DJ GigBar Flex Stage Lighting System, New, Rear

zZounds Gear Experts Say...

Putting together a mobile lighting rig? The Chauvet DJ GigBar Flex lighting system has four LED lights, cables and a case! Just add a standard speaker stand.

Overview

The Chauvet DJ GigBAR Flex is an ultra-convenient 3-in-1 Pack-n-Go lighting system with a pair of LED Derbys, LED Quad-color pars (RGB + UV for increased color mixing and effects) and strobes.

A pass-through mounting hole for flexible mounting options with various stage and speaker stands and adjustable leg brackets adds versatility.

Features:

- 3-in-1 fixture includes a pair of LED Derby, LED pars and strobe effect for ultimate convenience
- Pass-through mounting hole for flexible mounting options with various stage and speaker stands
- Built-in UV (blacklight) for increased color mixing and effects
- Four individually adjustable heads provide wide room coverage and lighting versatility
- Wireless footswitch for convenient hands-free control
- Built-in automated and sound-activated programs make dynamic light shows easy
- Master/slave multiple units under the control of a single IRC-6 or wireless foot switch
- Get in and get out quickly with the included wireless foot switch and FREE carry bag

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- DMX Channels: 3, 8 or 20
- DMX Connectors: 3-pin XLR
- Light Source (pars): 6 LEDs (quad-color RGB + UV) 3.5 W (1 A), 50,000 hours life expectancy
- Light Source (strobe): 4 LEDs (white & UV) 5 W (1.5 A), 50,000 hours life expectancy
- Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 5 W (1.6 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 18 Hz
- Beam Angle (pars): 13 degrees
- Beam Angle (strobe): 8 degrees
- Field Angle (pars): 24 degrees
- Field Angle (strobe): 18 degrees
- Coverage Angle (derby): 114 degrees
- Foot Switch Operating Frequency: 433 MHz
- Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
- Footswitch battery: 12 V A 23
- Illuminance (pars): 1,078 lux @ 2 m (per head)
- Illuminance (strobe): 86 lux @ 2 m (per zone)
- Power Linking: 12 units @ 120 V; 22 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 45 W, 0.7 A @ 120 V, 60 Hz
- Power and Current: 46 W, 0.4 A @ 230 V, 50 Hz
- Weight: 11 lb (5 kg)
- Size: 37 x 4 x 15 in ( 949 x 110 x 388 mm)
- Approvals: CE

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 22 lbs; Shipping Dimensions: 42 x 14 x 6 in; Manufacturer Part Number (MPN): Gig Bar flex

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 800-762-1084

Chauvet DJ GigBAR Flex User Manual

Chauvet DJ GigBAR Flex Quick Reference Guide
