Chauvet DJ CoDot ILS Mini LED Lights

Chauvet DJ CoDot ILS Mini LED Lights, 4-Pack, Detail

zZounds Gear Experts Say...

Need to get a pop of light in a small space? These Chauvet DJ CoDot lights can be linked via USB-C and feature magnetic bases for easy placement.

Overview

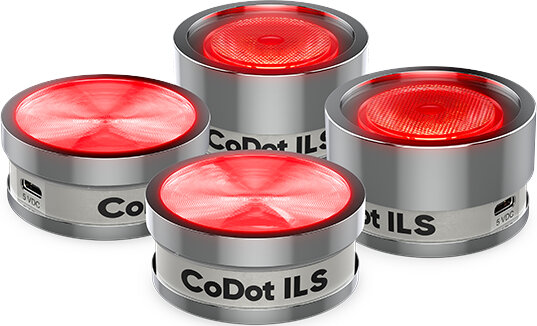

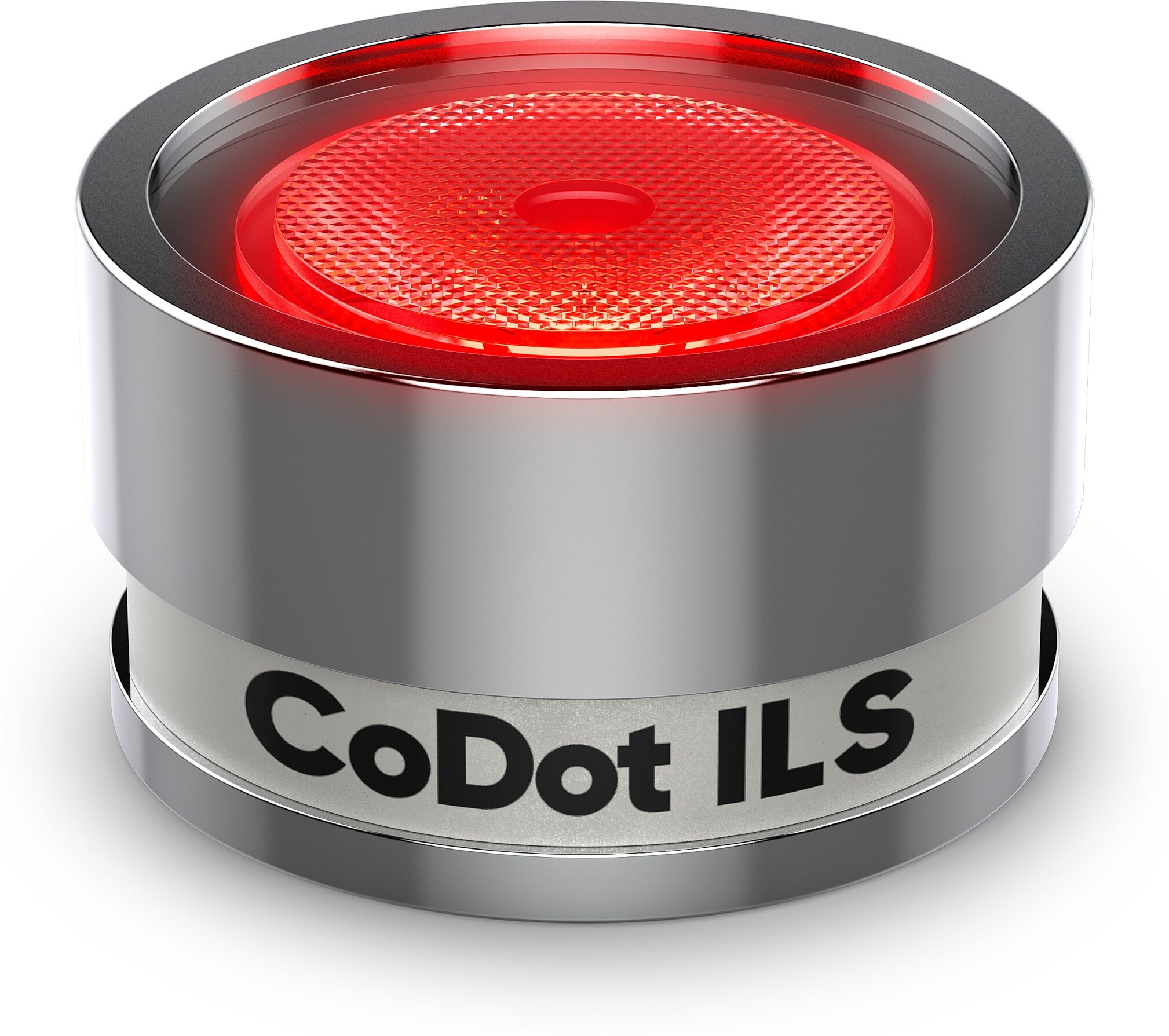

The Chauvet CoDot ILS are coin-sized LED illuminators that are designed for small applications where conventional fixtures won't fit. This 4-pack of coin-sized LED illuminators comes with over 15 accessories (1 carrying case, 8 lenses: 4 clear/4 external power supply). It features a magnetic base that easily mounts to metal surfaces with the ability to link multiple units through USB-C. The CoDot has a built-in DFI transceiver and communicates via DMX or ILS signals wirelessly and a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes.

Features:

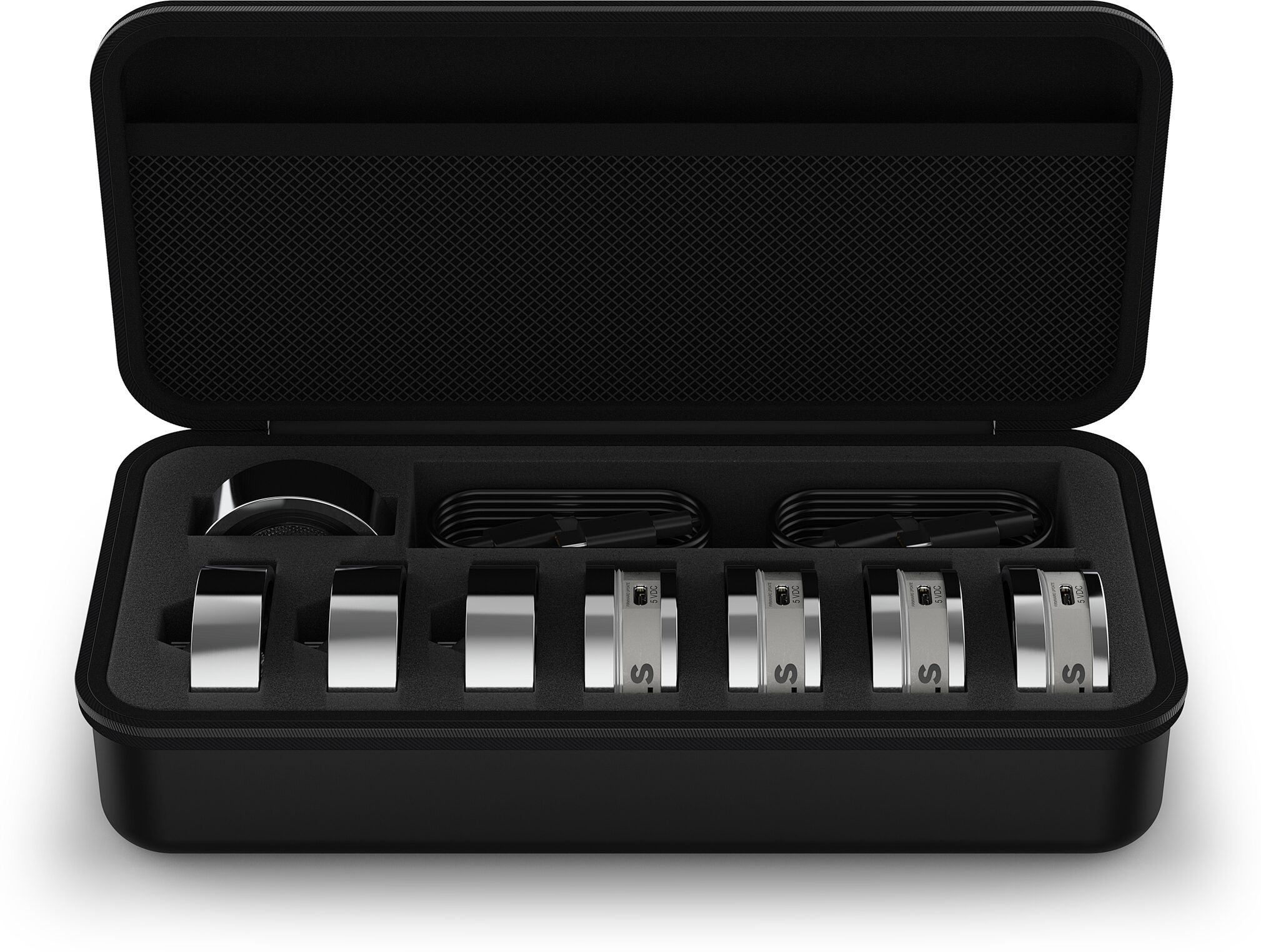

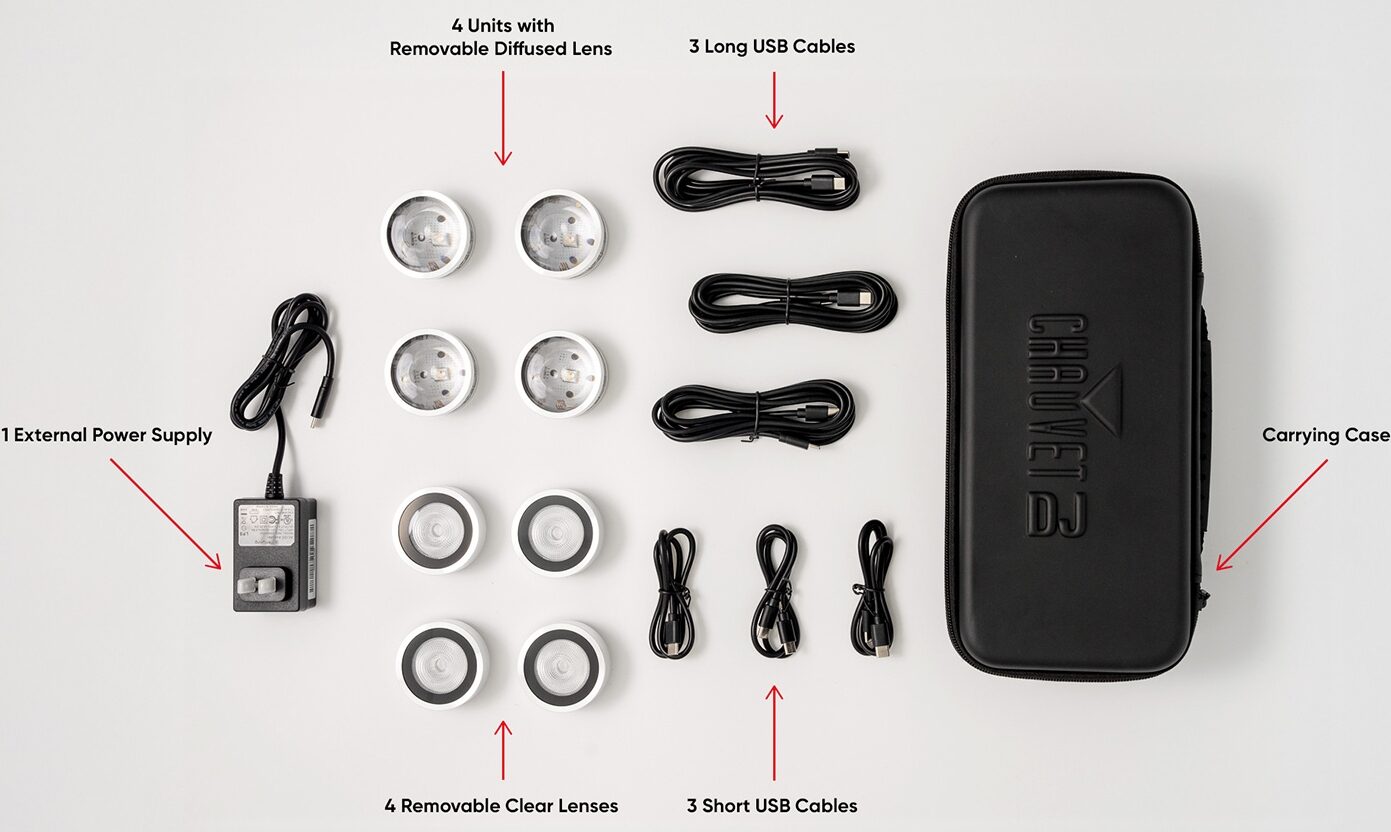

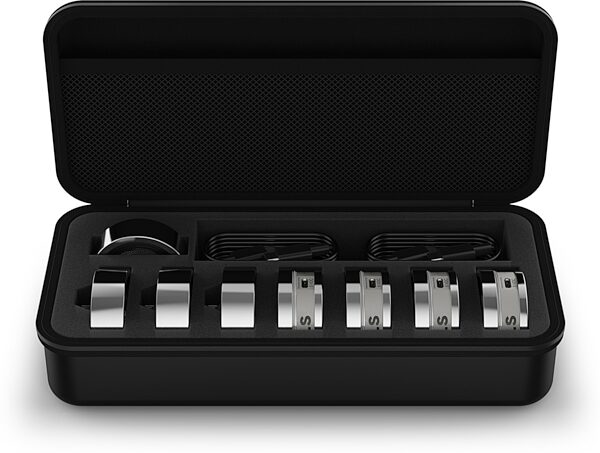

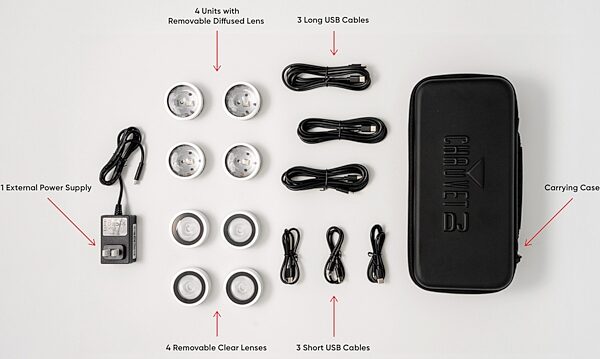

- 4-pack of coin-sized LED illuminators that comes with over 15 accessories (1 carrying case, 8 lenses: 4 clear/4 diffused, 3 short USB-C cables, 3 long USB-C cables, 1 external power supply)
- Coin-sized LED illuminator designed for small applications where conventional fixtures won't fit
- Includes two lens options to meet different application criteria
- Magnetic base easily mounts to metal surfaces
- Threaded insert is compatible with camera tripods and accessories
- ILS compatibility for use in the ILS ecosystem
- Built-in DFI transceiver communicates DMX or ILS signals wirelessly
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- Easy navigation and access all functions directly from the LED display
- Power linking multiple units from the USB type-C in and out

Specs

- DMX Channels: 4 or 6
- Light Source: 1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle (installed lens): 19*
- Beam Angle (included lens): 14*
- Illuminance (installed lens): 256 lux @ 2 m
- Illuminance (included Lens): 442 lux @ 2 m
- Max Unobstructed Distance: 600 ft (183 m)
- Operating Frequency: 2.4 GHz
- Power Linking: 4 units @ 120 V; 4 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 7 W, 0.1 A @ 120 V, 60 Hz
- Power and Current: 7 W, 0.1 A @ 230 V, 50 Hz
- Weight: 0.2 lb (0.1 kg)
- Size: 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)
- Optional Controllers: ILS Command, RFC, RFC-XL
- Approvals: CE, ROHS, UKCA, FCC

Dimensions and Weight in Packaging
4-Pack: Shipping Weight: 2.29 lbs; Shipping Dimensions: 12 x 6 x 3 in; Manufacturer Part Number (MPN): CODOTILS
