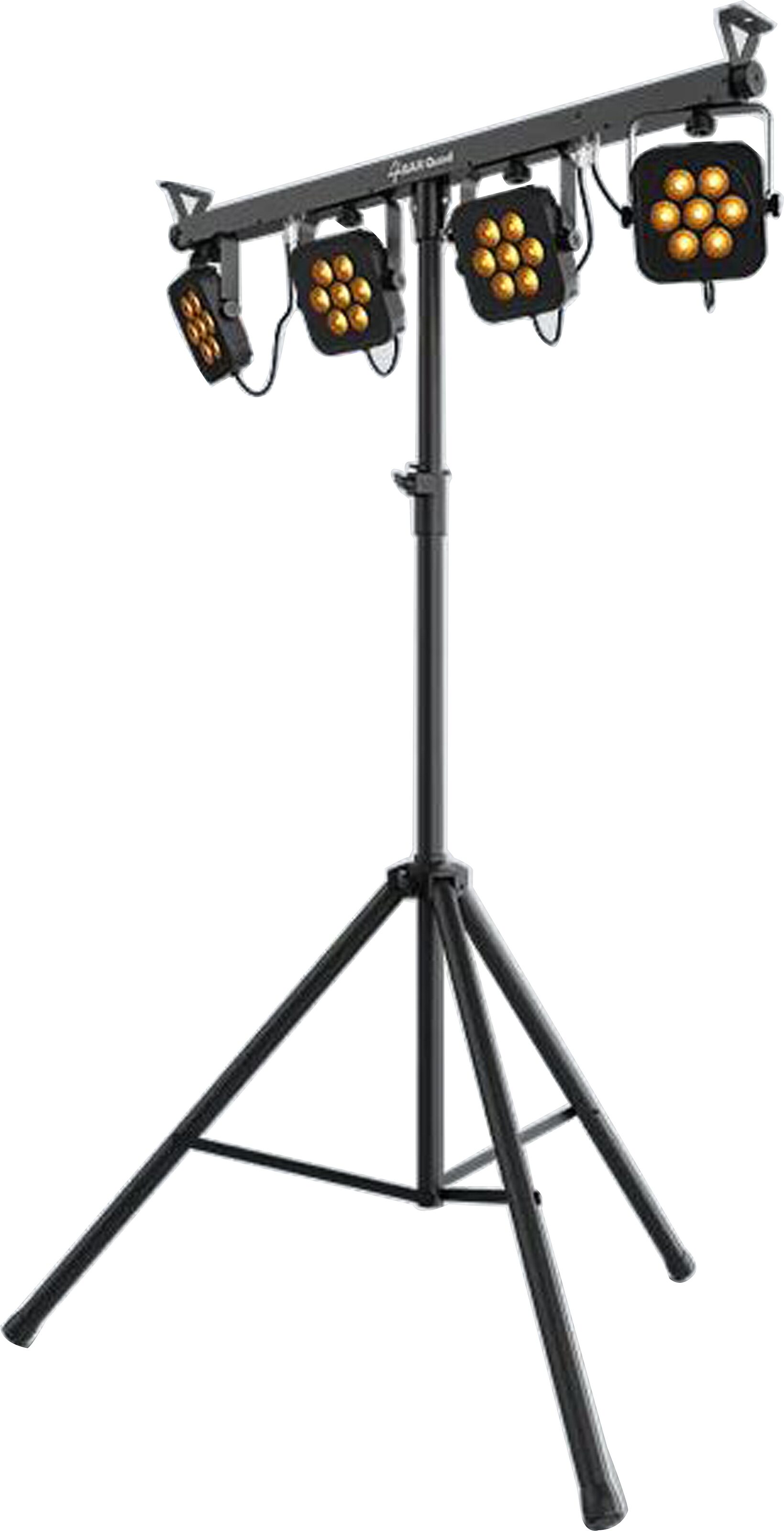

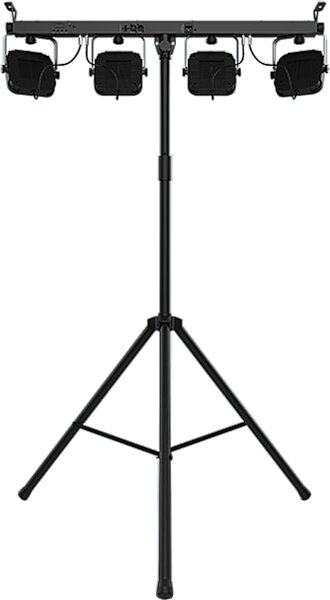

Chauvet DJ 4BAR Quad Lighting System

Powerful, lightweight, and easy to set up and tear down, the Chauvet DJ 4BAR Quad light system projects a broad spectrum of natural and futuristic colors.

4BAR Quad is a complete wash lighting solution fitted with high-intensity quad-color (RGBA) LEDs that can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller. Generate natural, warm color temperatures with punchy amber and achieve total area coverage by individually positioning the 4 adjustable pods.

4BAR Quad is compatible with D-Fi USB for wireless Master/Slave or DMX programming. A convenient tripod and carry bag are included for effortless setup and quick tear down. 4BAR Quad safely attaches to truss with built-in bolts, easily increasing mounting options.


- Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Out of the box wireless control with included footswitch or optional IRC-6 controller

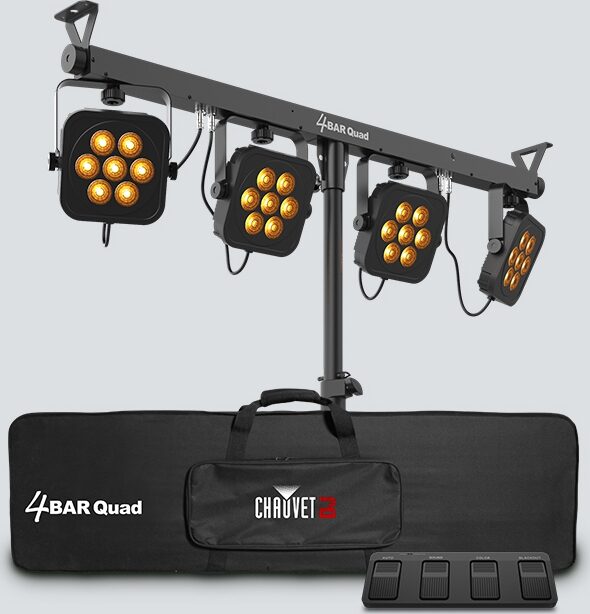

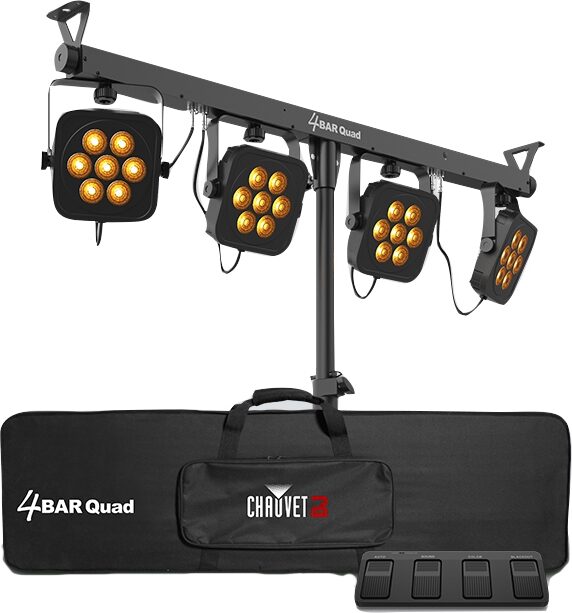

- Easily set up and tear down in minutes with the included tripod stand and carrying bags
- D-Fi USB compatibility for wireless Master/Slave or DMX control
- Achieve total room or stage coverage with 4 individually adjustable heads
- Increase mounting options by safely mounting to truss using built-in bolts

DMX Channels: 4, 6 or 19
DMX Connectors: 3-pin XLR
Max Unobstructed Distance: (foot switch): 100 ft (30.5 m)
Light Source: 28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 20 Hz
PWM Frequency: 1310 Hz
Beam Angle: 14 degrees
Field Angle: 23 degrees
Operating Frequency:
(D-Fi): 2.412 to 2.484 GHz
(foot switch): 433 MHz
Fits Tripod Size: 1.5 in (36.80 mm)
Illuminance: 2,353 lux @ 2 m (per pod)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 80 W, 1.2 A @ 120 V, 60 Hz, 78 W, 0.6 A @ 230 V, 50 Hz
Approvals: CE, FCC
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 33 lbs
Shipping Dimensions: 57 x 20 x 6 in
Manufacturer Part Number (MPN): 4BAR Quad
