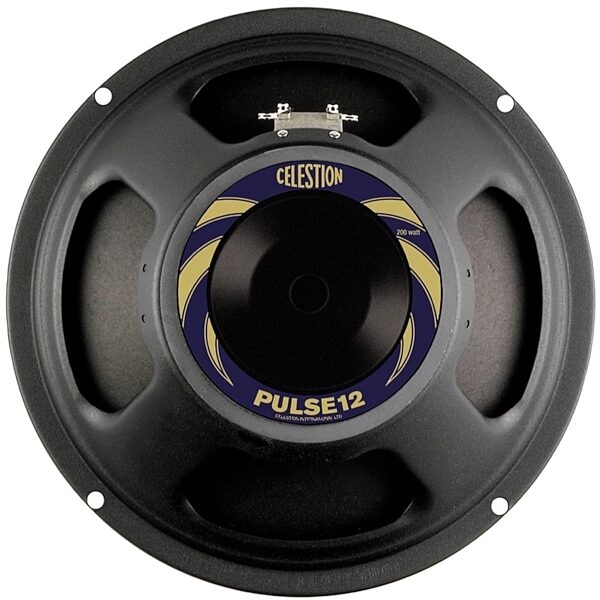

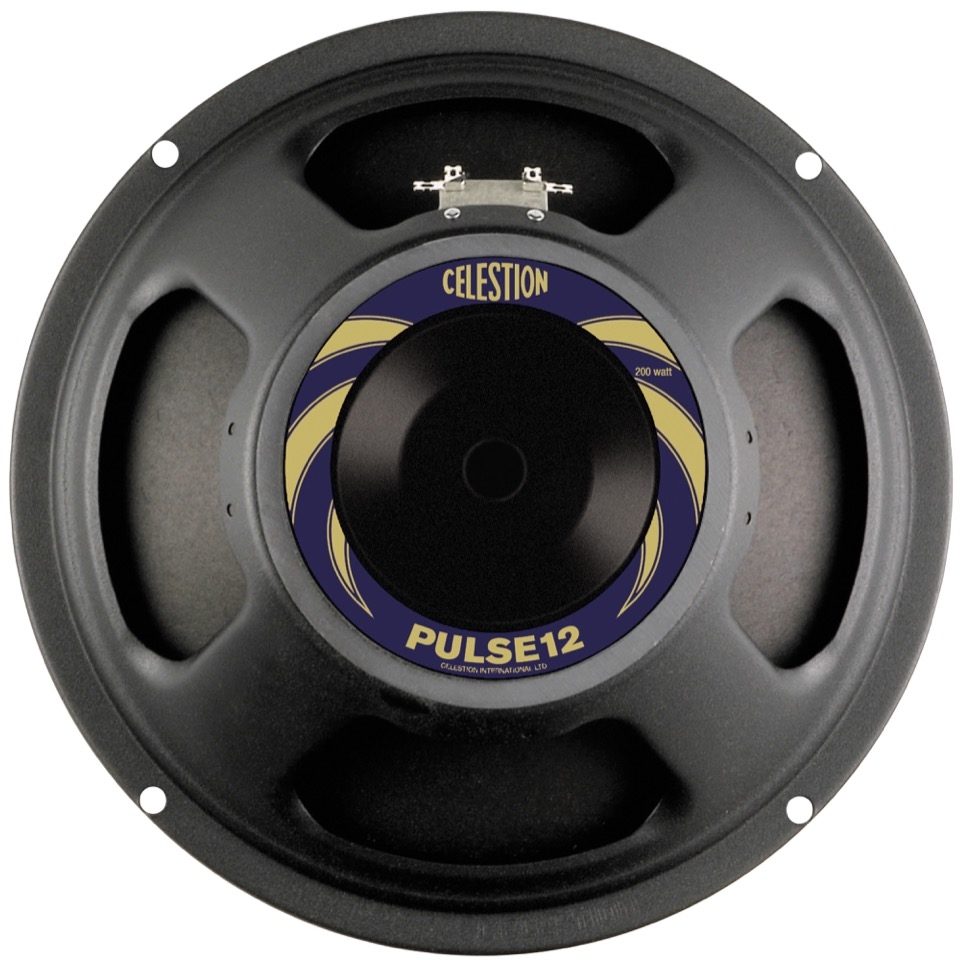

Celestion PULSE12 Bass Speaker (200 Watts, 12")

The Kevlar-loaded cone of the Celestion PULSE12 pumps out up to 200 watts of raw bass power, delivering a solid combination of responsiveness and low end.
For bass players demanding well-defined clarity and stunning articulation together with a rich, full tone, Celestion PULSE12 bass speakers deliver an ideal combination of responsiveness and rock solid low end. The Kevlar-loaded cone pulses with up to 200 watts of raw bass power. Expect each note to deliver a thick, percussive attack along with the mid-range necessary to break through in any performance situation.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
- Nominal diameter: 12", 304.8mm
- Power rating: 200W
- Nominal impedance: 8 ohm
- Sensitivity: 94dB
- Magnet type: Ferrite
- Voice coil diameter: 2", 50.8mm
- Coil material: Copper
- Cone material: Kevlar loaded paper
- Former material: Polyimide
- Surround material: Cloth-sealed
- Frequency range: 45-3500Hz
- Xmax: 0.15", 4mm
- Gap depth: 0.31", 8mm
- Voice coil winding width: 0.62", 16mm

Small Signal Parameters:
- D: 0.26m/10.2in
- Fs: 45Hz
- Mms: 47.6g/1.68oz
- Mmd: 40.7g/1.44oz
- Qms: 2.74
- Qes: 0.49
- Qts: 0.42
- Re: 5.88 Ù
- Vas: 104.6lt/3.7cu.ft.
- BI: 12.71Tm
- Cms: 0.26mm/N
- Rms: 4.92kg/s
- Le: (at 1kHz) 1.0mH

Mounting Information:
- Cut-out diameter: 11.1", 283mm
- Diameter: 12.2", 309mm
- Mounting slot dimensions: 0.31", 7.9mm Ø
- Mounting slot PCD: 11.7", 297mm
- Number of mounting slots: 4
- Overall depth: 5.1", 130mm
- Unit weight: 7lb, 3.2kg
Dimensions and Weight in Packaging
8 Ohms
Shipping Weight: 9 lbs
Shipping Dimensions: 14 x 13 x 7 in
Manufacturer Part Number (MPN): T5969
