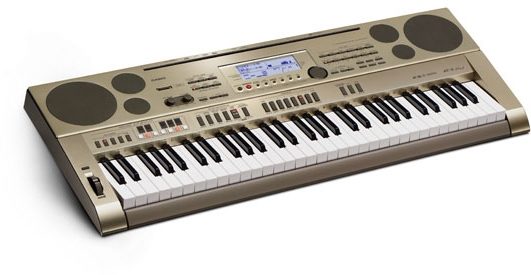

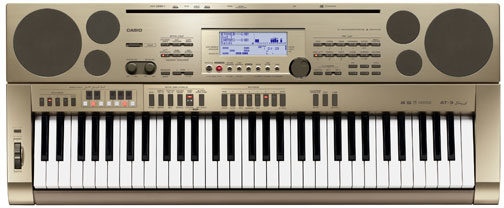

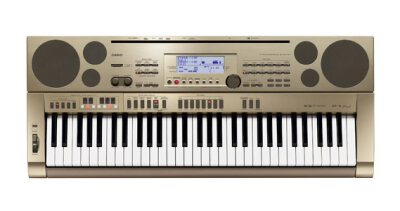

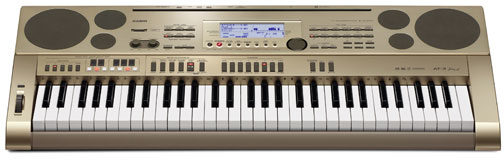

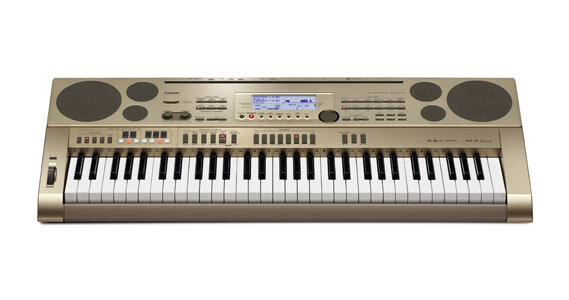

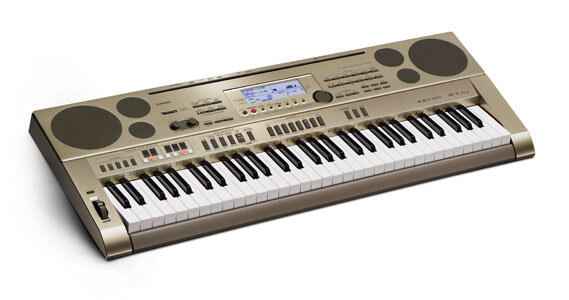

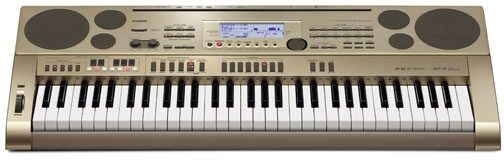

Casio AT-3 Oriental Electronic Keyboard (61-Key)

No longer available at zZounds
Tune the Casio AT-3 keyboard by quarter-tones to play authentic Oriental and Arabic music with 800 built-in sounds and 250 auto-accompaniment rhythms.

The Casio AT-3 Oriental Keyboard package includes numerous oriental rhythms, allowing the user to set up and store quarter tones on the keyboard using the memory function. Authenticity and the fullness of the sound were the main focus when developing the oriental sounds and styles package, so a huge sound range is guaranteed!

Oriental scale buttons give musicians the ability to select different scale templates, and to set up their own scales by fine-tuning the notes. Arabic scales, with tones that typically lie "between" the intervals of a piano octave, can therefore be played authentically. The gold-colored housing and Arabic script make the AT-3 the perfect instrument for a very special musical performance.

A versatile selection of Oriental tones and rhythms built in

54 built-in Oriental tones include the "oud", "qanun", "nay" and more. A total of 83 built-in Oriental accompaniment rhythms covers everything from traditional to modern music. High-quality sound supports both Oriental music performance and composing.

Quick configuration of Oriental music scales

The tuning of the built-in sound source can be easily changed by a quarter tone to recreate the scale required for Oriental music. The Oriental scale can be used for both composing and live performances. The final scale setting can also be applied to Auto Accompaniments as well.

Multi-track Recorder Capabilities

The Song Sequencer provides 16 tracks plus one system track that supports recording of up to read more five songs and a total of approximately 30,000 notes. Each individual musical instrument part can be recorded to a different track for real multi-track recording capabilities. In addition to real-time recording of keyboard and Auto Accompaniment play, the Song Sequencer also supports punch-in and punch-out spot recording of specific parts of a song, and event editing lets you edit recorded data note-by-note. A full selection of editing tools includes event insert, event delete, event copy, quantize, a locator feature for selecting the range of notes to be edited, and more. A step recording function also lets you input notes by specifying the length and pitch. Completed recordings can be converted to SMF (Standard MIDI File) format and stored to an SD memory card.

Create rich, realistic rhythm sections of your very own

Up to eight tracks (drum, percussion, bass, chord 1 through chord 5) can be edited to create original accompaniment patterns (Intro, Normal, Normal Fill-In, Variation, Variation Fill-In). In addition to recording over each individual accompaniment part of an existing rhythm, an event editing function gives you total control over each aspect of recorded data, an Easy Edit function lets you combine accompaniment from multiple built-in rhythms to create original rhythms, and mixer capabilities give you control over the tones, volume levels, reverb, and other parameters of each part. A full selection of editing tools includes event insert, event delete, event copy, quantize, and more. Memory is provided for storage of up to 100 different user rhythms, which can be recalled with the touch of a key.

Great for creating original demo recordings

Keyboard play, Auto Accompaniment, Song Sequencer play, and sound input via the Inst In and/or Mic In terminals can be recorded as digital audio data to an SD memory card inserted in the card slot for later playback. Of course, you can play along on the keyboard during playback from an SD memory card. Saved audio files can also be transferred to a computer connected via USB for long-term storage. Special Data Manager 6.0 application software, downloadable from the URL shown below, can be used to convert data to WAV format, which can be played back on a computer. All of this greatly simplifies the task of creating original demo recordings.

The volume, pan, reverb send and other settings can be adjusted to exactly the levels you want for each individual part. You can also adjust sounds input via the Mic In terminal and Inst In terminal.


- 61 piano-style keys
- 800 tones
- 250 rhythms
- LC display, data entry dial
- 100 DSP effects
- Oriental scale buttons
- Arpeggiator
- Timbre editor
- 16-track sequencer
- Pattern sequencer
- 32-channel mixer
- Direct audio recording onto SD card
- SD card slot, audio in, line out, USB

NOTE: Includes power supply.
read less

- Keyboard: 61 piano-type keys
- Touch Response: 2 sensitivity levels, Off
- Sound Source: AHL (Tri-element)
- Maximum Polyphony: 64
- Tones: 800 built-in tones including 54 oriental tones (100 user tones)
- Layer/Split: Layer, Split
- Digital Effects:
- - Reverb: 10types
- - Chorus: 5 types (simultaneous use with DSP not supported.)
- - DSP: 100 preset, 100 user (simultaneous use with Chorus not supported.)
- Rhythms/Patterns: 250 built-in rhythms including 83 oriental/Arabic rhythms (100 user rhythms)
- Auto Accompaniment:
- - Modes: CASIO Chord, Fingered 1, Fingered 2 (6th off), Fingered 3 (on bass), Full Range Chord:
- - Controllers: Start/Stop, Intro, Normal/Fill-in, Variation/Fill-in,Synchro/Ending
- Built-in Songs: 5 (demo tunes)
- Metronome:
- - Beats: 0, 2, 3, 4, 5, 6 (Tempo range = 30 to 255)
- Recorder:
- - Song sequencer: 16 multi tracks + 1 System Track, 5 songs, approximately 30,000 total notes (real-time recording, step recording, song edit, track edit,event edit, punch-in/out)
- Key Transpose: 25 steps (-12 to +12 semitones)
- Tuning Control: A4 = 415.5 - 440.0 - 465.9 Hz
- Display Screen: LCD with backlight
- SD Memory Card Slot:
- - Supported memory cards: From 2GB up to 32GB SD memory cards or SDHC memory cards
- - Functions: SMF playback (up to 320KB per file), file save/load/delete, card format
- - Save/load: Registrations, user rhythms, user tones, scale memory data, user DSPs, user music presets, song sequencer songs, audio recording files
- - GM Compatibility: Level1
- - Terminals: USB
- Speakers: 12cm x 2 + 3cm x 2, bass-reflex system, speaker on/off
- Amp Output: 7W + 7W
- Input/Output Terminals:
- - Mic in
- - Inst in
- - Audio in
- - Line output (L/MONO, R)
- - Headphones (standard stereo jack)
- - Sustain/assignable
- - USB: type B
- - External power (12V DC)
- * USB cable (A-B type) required to use USB terminal for computer connection.
- Power Requirements:
- - Batteries: D-sizex6/AC adaptor: AD-A12150LW
- Dimensions (W x D x H): 945 x 378 x 132 mm
- * Excluding music stand, and other projections
- Weight: 6.8 kg (Excluding batteries)
- Included Accessories: Music stand, AC adaptor
- EAN code: 4971850313830

For support or warranty questions, please contact the manufacturer:
Phone: 800-435-7732

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (1 ratings)
Submitted November 29, 2012 by Ranj Chener in Hanover, PA


Overall: 4.5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Casio AT3 is best for anyone who is a hard working busy individual. Love to play music once a week don't want to much investment? Then this is the keyboard, because you can still relive the moments you choose and get a decent sound quality. Don't expect the sounds to blow you away, but considering the price and the options and the idea of the sounds being 70% close to the real instruments. It's defiantly a steal. Thank you Casio for not being cheap building this keyboard. A+++++

Musical Background:

Kurdish Musician/ Vocalist

Musical Style:

Arabic, Kurdish, Turkish. . .
16 of 16 people (100%) people found this review helpful. Did you?
