CAD Audio Stage7 7-Microphone Drum Package

No longer available at zZounds
Get perfect sound out of your percussion set -- and great results with electric and acoustic instruments, too -- with CAD's 7-piece microphone package.

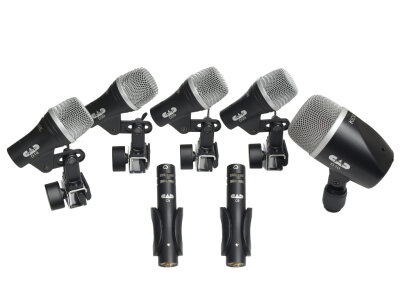

The CAD Stage7 is a 7-microphone drum package complete with microphone clips and fashioned to mic up even the largest 7-piece drum sets.

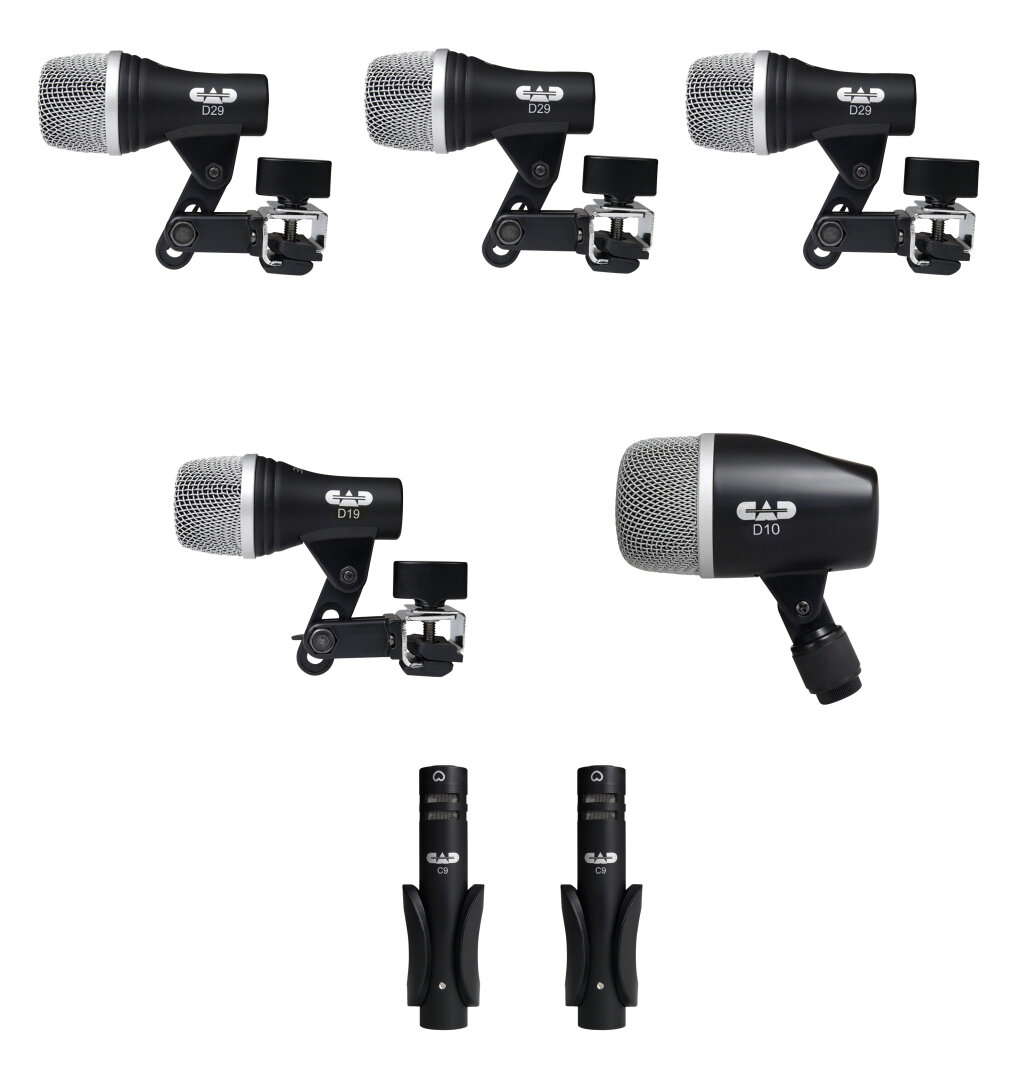

7 Piece Drum Mic Pack

- 3x D29 dynamic tom mics with integrated drum mounts
- 1 x D19 dynamic snare mic with integrated drum mount
- 1 x D10 dynamic large-diaphragm kick drum mic with integrated mic clip
- 2 x C9 instrument condenser mics for hi-hats/cymbals with mic clips
- Protective vinyl carrying case with strap included

D29 Cardioid Dynamic Percussion Microphone

The D29 is a cardioid, moving-coil dynamic microphone specifically designed for the capture and reinforcement of tom-tom drums and other acoustic percussive instruments. The cardioid polar pattern provides off-axis rejection crucial for on-stage clarity.

Although designed with percussion in mind, excellent results are also obtained when used on most electrical and acoustical instruments.

The integrated drum clip is designed to facilitate rapid, optimal placement.

Applications

- Rack toms
- Floor toms
- Guitar/bass cabinets
- Electrical and acoustic instruments

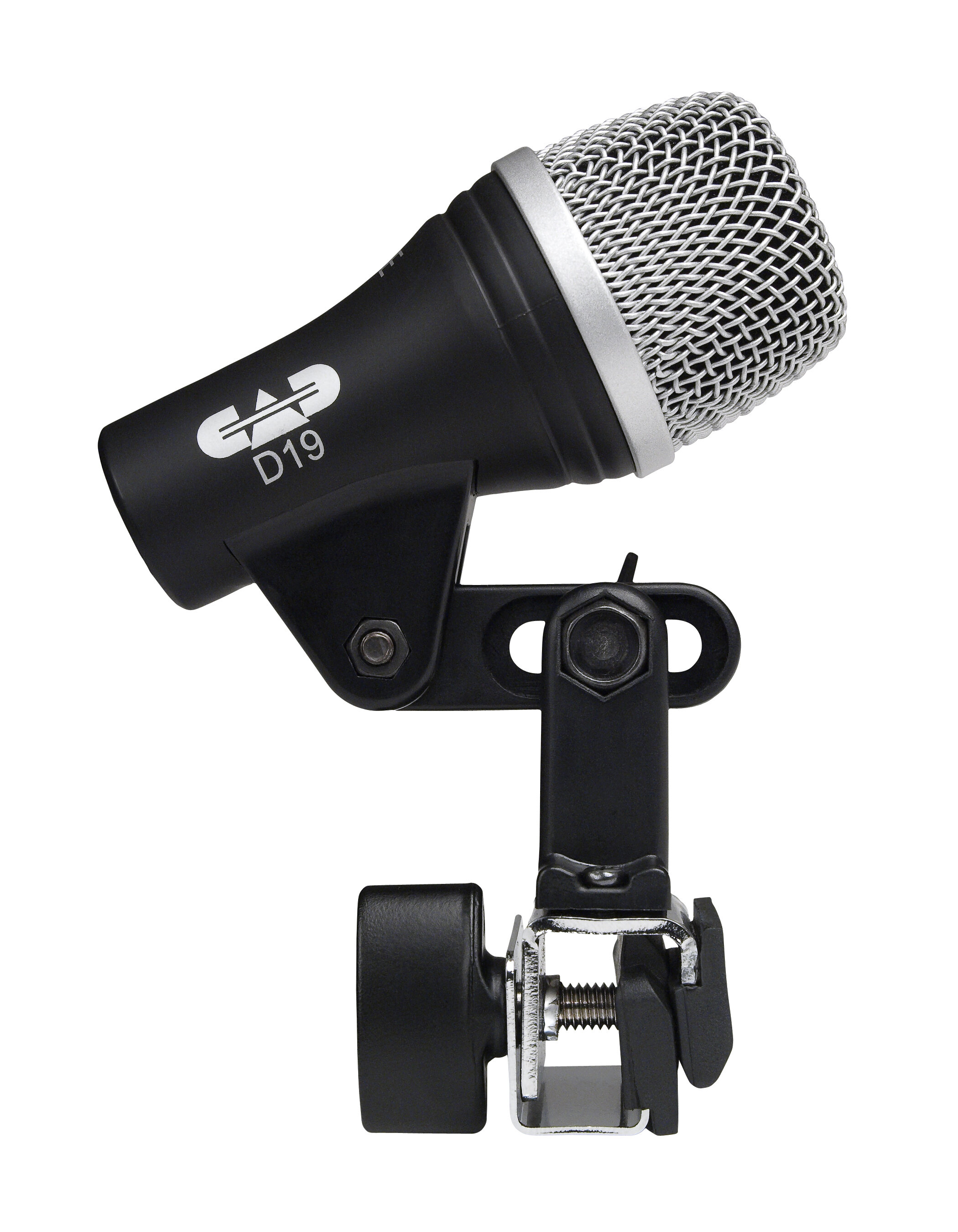

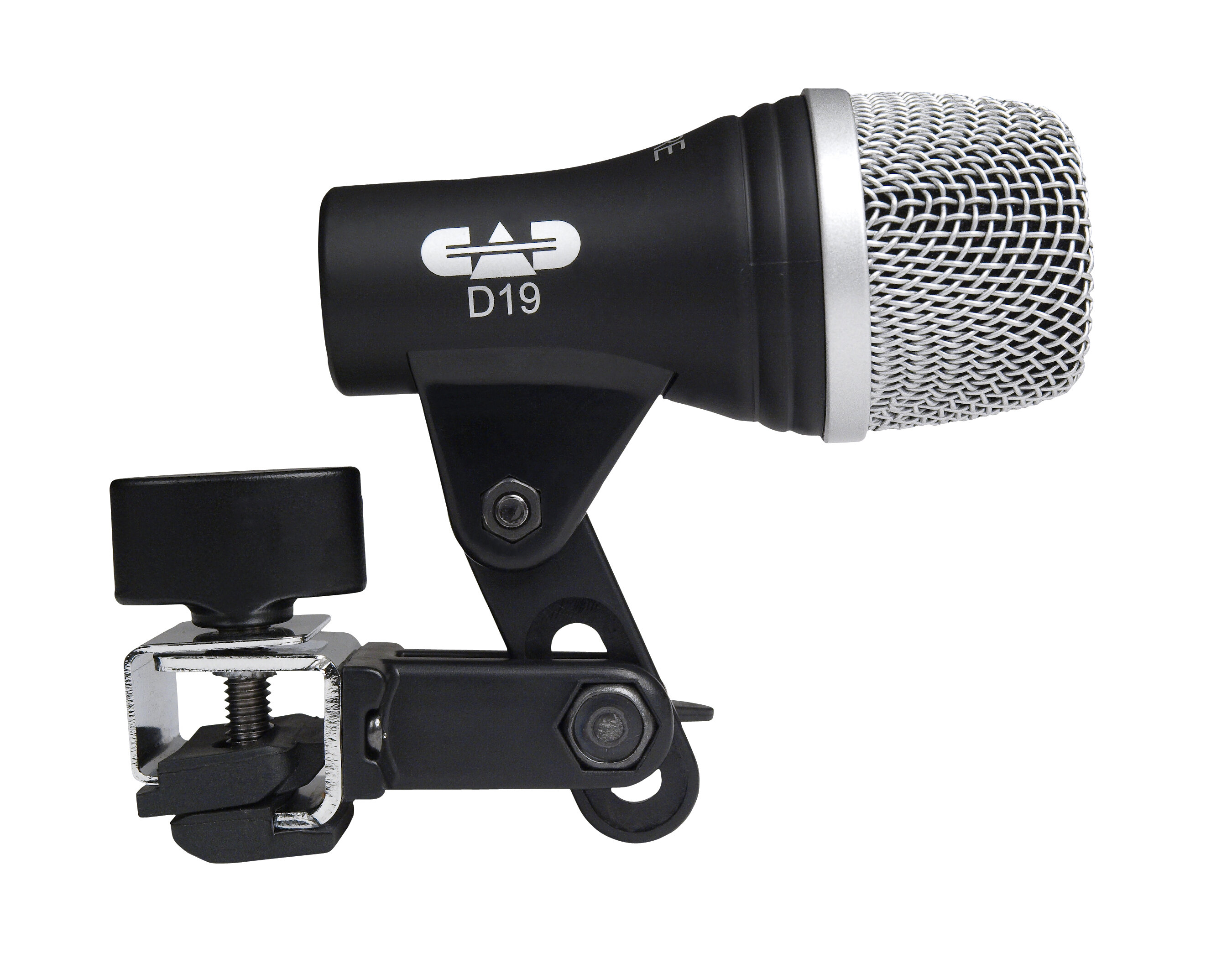

D19 Supercardioid Dynamic Percussion Microphone

D19 is a supercardioid, moving-coil dynamic microphone specifically designed for the capture and reinforcement of snare drum and other acoustic percussive instruments. The supercardioid polar pattern provides off-axis rejection crucial for on-stage clarity. Although designed with percussion in mind, excellent results are also obtained when read more used on most electrical and acoustical instruments. The integral drum clip is designed to facilitate rapid, optimal placement.

Applications

- Snare drum
- Guitar/bass cabinets
- Electrical and acoustical instruments

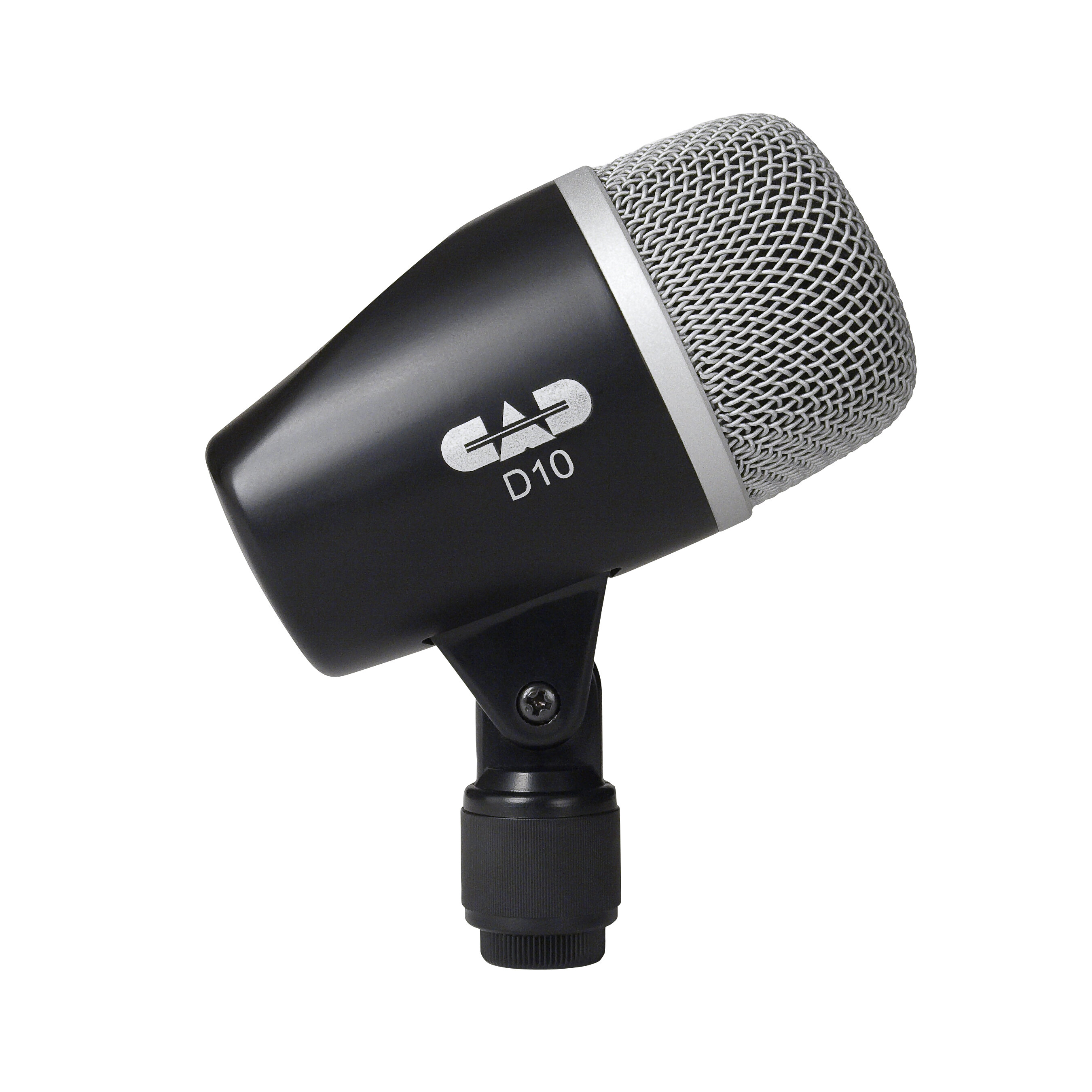

D10 Cardioid Dynamic Kick Drum Microphone

The D10 is a cardioid, moving-coil dynamic microphone specifically designed and carefully equalized for kick drum capture and reinforcement. Special attention has been given to enhancing "thump", "crack" and "click" while reducing "boxiness". Although designed for kick drum, excellent results are also obtained when used on floor toms, electric guitar and electric bass cabinets.

The die-cast metal body and hardened protective steel screen provide rugged durability. Integrated swivel mount is included.

Applications

- Kick drum
- Floor toms
- Guitar cabinets
- Bass cabinets

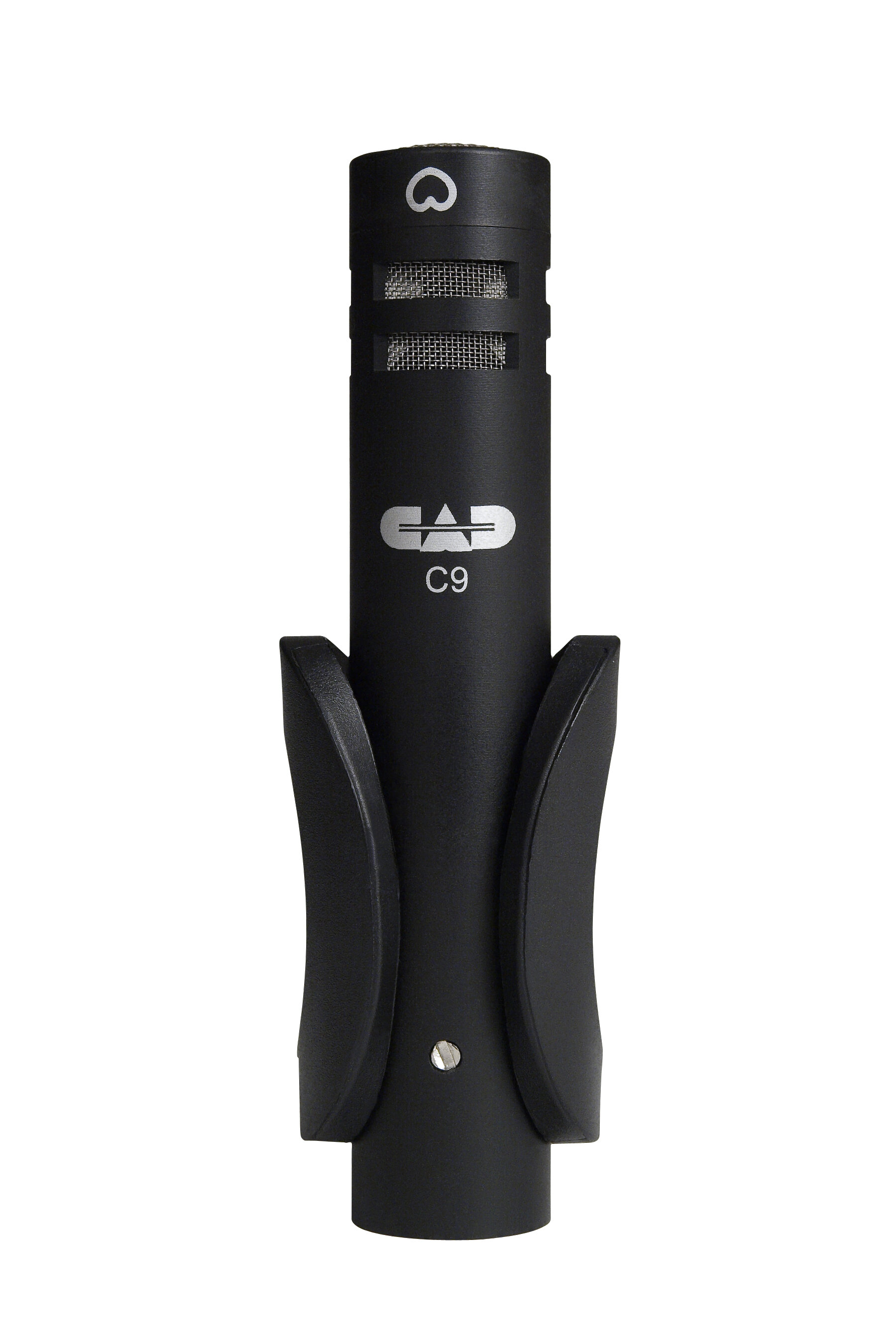

C9 Cardioid Condenser Instrument Microphone

Packaged in a small, rugged, all-metal body, the C9 cardioid condenser microphone is designed primarily for overhead drum miking. The cardioid polar pattern focuses sensitivity to the front of the microphone while minimizing sources arriving from the rear. Transformerless line-driver circuitry improves transient agility while maintaining phase alignment for clear detail. The integral polymer isolation mechanically decouples the capsule from the body minimizing acoustical conduction from the floor through the mic stand. Although designed for drum overheads, the C9 also excels when used on classical stringed instruments, acoustic guitars, and folk instruments.

Shock-isolating swivel mount is included. P12 (12V), P24 (24V), or P48 (48V) phantom power is required.

Applications

- Overheads
- Classical strings
- Acoustic guitar
- Folk instruments>
read less

D29 Specifications

- Operating Principle: Moving-coil dynamic
- Polar Pattern: Cardioid
- Frequency Response: 90Hz -13KHz
- Sensitivity: 53dBV (2.2mV) @ 1 Pa
- Impedance: 560 ohms
- Weight: 6.5oz [0.19Kg]
- RF Immunity: Meets or exceeds EN55103-2, E1-E4
- RoHS: Compliant

D19 Specifications

- Operating Principle: Moving coil dynamic
- Polar Pattern: Supercardioid
- Frequency Response: 90Hz -14KHz, -6dB
- Sensitivity: 56dBV (1.6mV) @ 1 Pa
- Impedance: 300 ohms
- Weight: 6.5oz [0.19Kg]
- RF Immunity: Meets or exceeds EN55103-2, E1-E4
- RoHS: Compliant

D10 Specifications

- Operating Principle: Moving-coil dynamic
- Polar Pattern: Cardioid
- Frequency Response: 50Hz -16KHz
- Sensitivity: 67dBV (0.45mV) @ 1 Pa
- Impedance: 60 ohms
- Weight: 12.75oz [0.36Kg]
- RF Immunity: Meets or exceeds EN55103-2, E1-E4
- RoHS: Compliant

C9 Specifications

- Operating Principle: Condenser
- Polar Pattern: Cardioid
- Frequency Response: 40Hz -13KHz
- Sensitivity: 41dBV (2.2mV) @ 1 Pa
- Impedance: 150 ohms
- Max SPL: 140dB
- Self Noise: 27dBA
- Power Requirements: P12, P24, P48, 2.2mA
- Weight: 1.12oz [32g]
- RF Immunity: Meets or exceeds EN55103-2, E1-E4
- RoHS: Compliant
