CAD PDMK7 Pro 7-Piece Drum Microphone Package

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

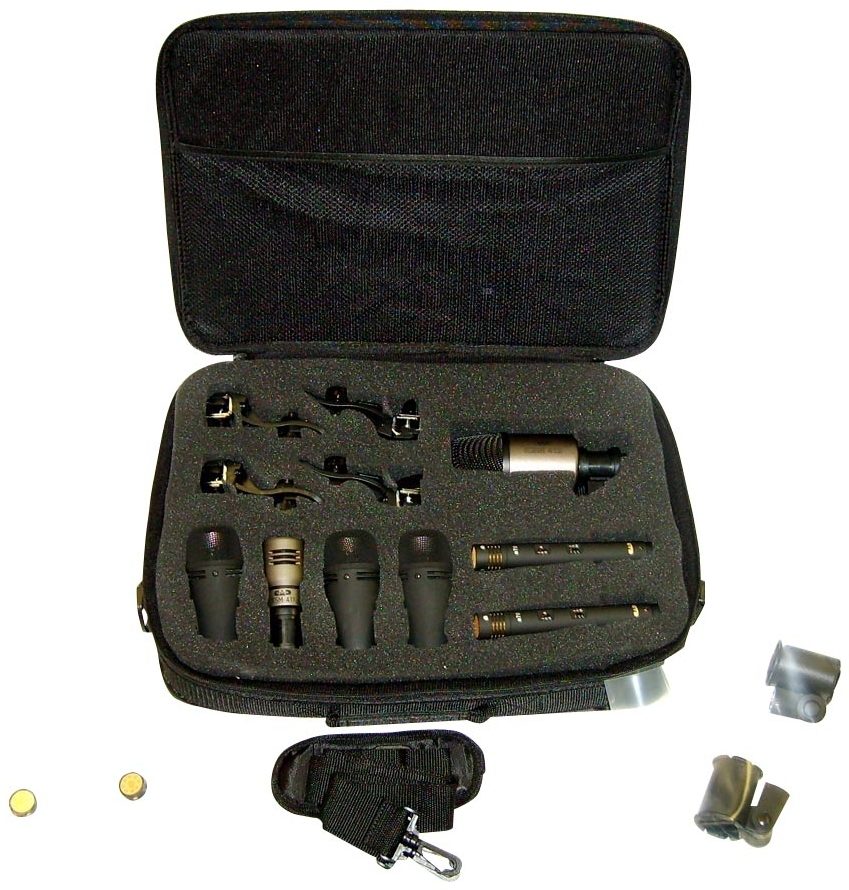

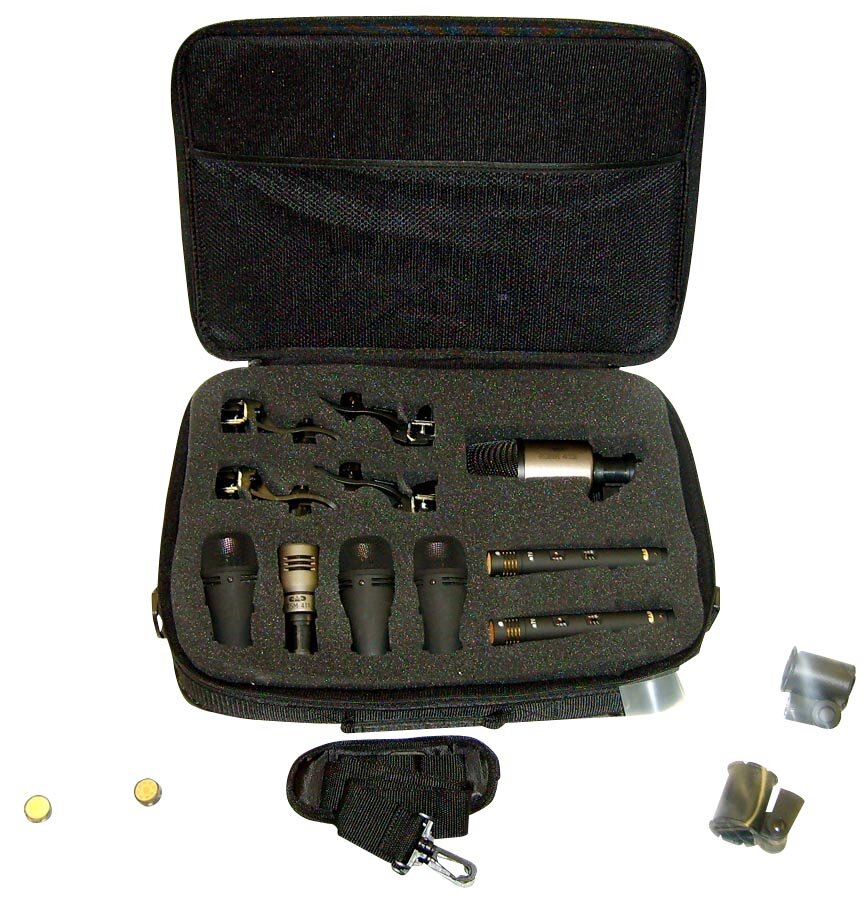

CAD PDMK7 Pro 7-Piece Drum Microphone Package, Main

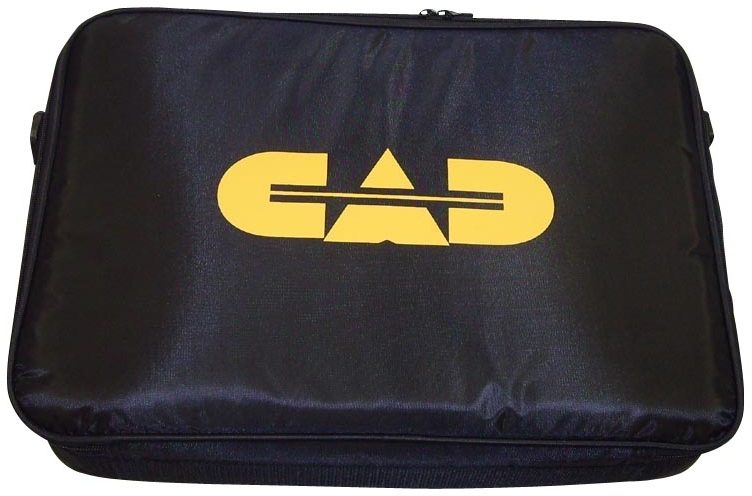

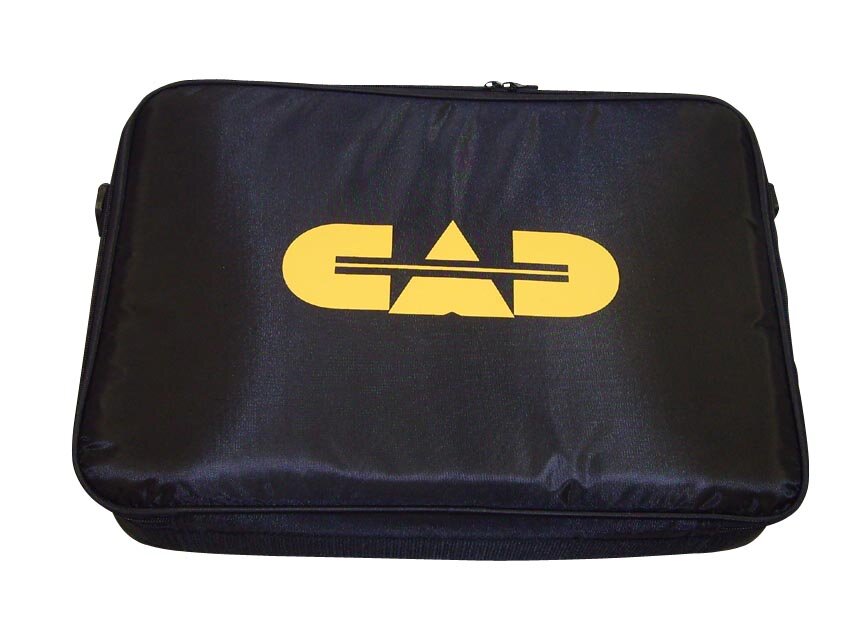

CAD PDMK7 Pro 7-Piece Drum Microphone Package, Case

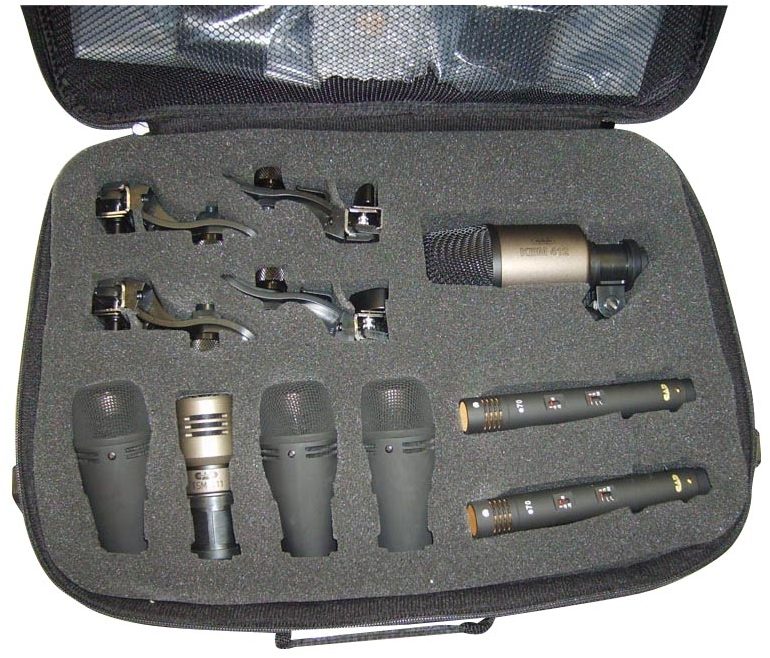

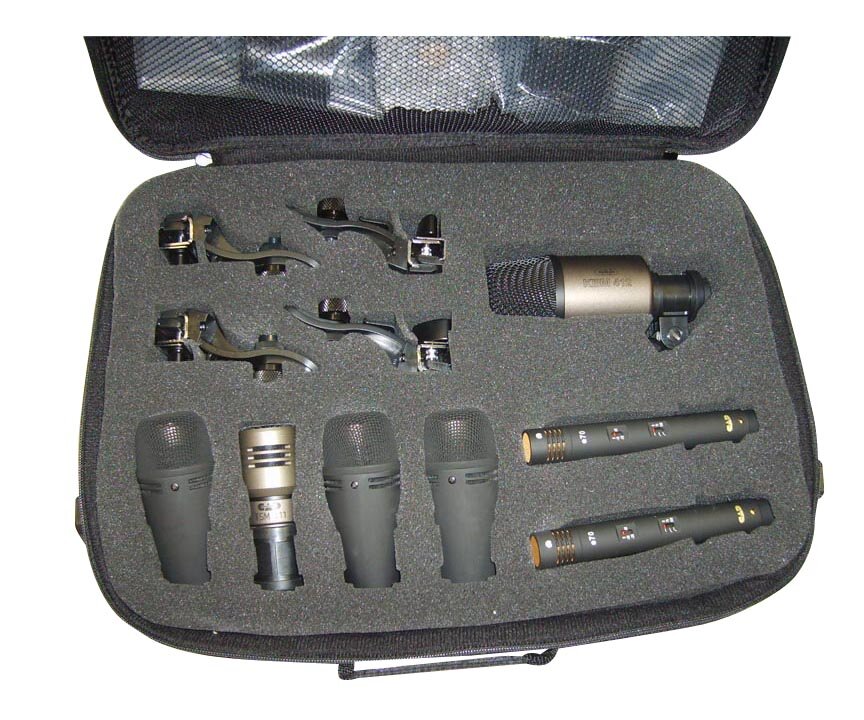

CAD PDMK7 Pro 7-Piece Drum Microphone Package, Closeup

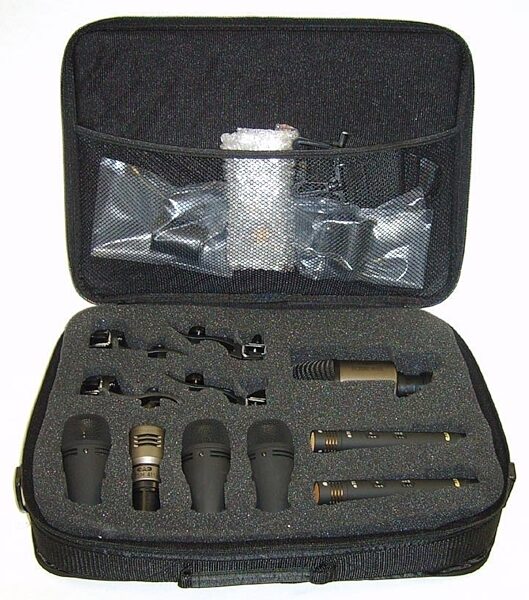

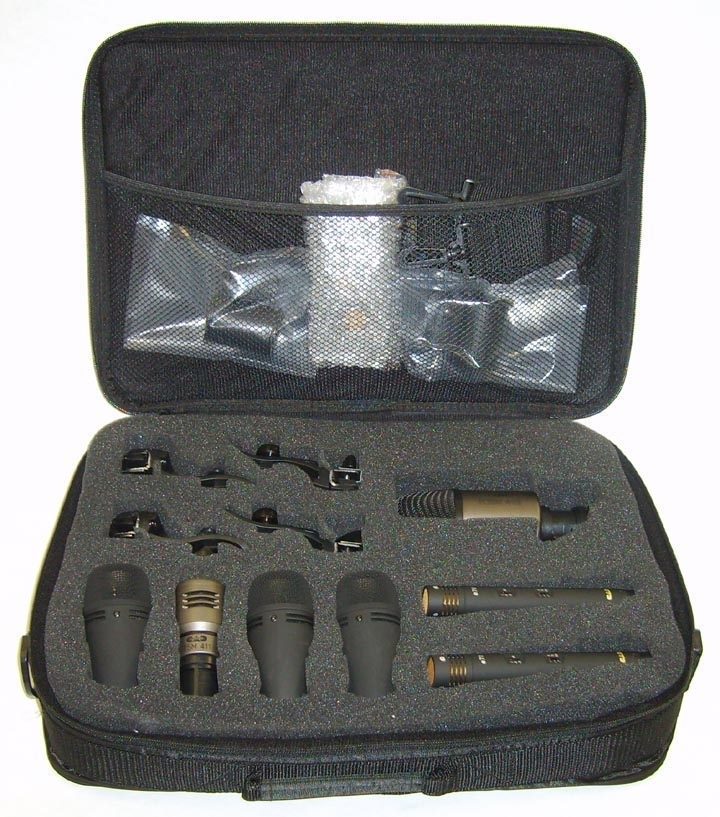

CAD PDMK7 Pro 7-Piece Drum Microphone Package, Open
CAD PDMK7 Pro 7-Piece Drum Microphone Package, Main CAD PDMK7 Pro 7-Piece Drum Microphone Package, Case CAD PDMK7 Pro 7-Piece Drum Microphone Package, Closeup CAD PDMK7 Pro 7-Piece Drum Microphone Package, Open
zZounds Gear Experts Say...
Get definition, clarity and low end drive from your drum set while also reducing unwanted drum vibration with the CAD PRMK7 Pro 7-Piece Drum Mic Package.

The CAD PDMK7 package is your all-in-one solution for mikng your complete drum set. With the PDMK7, your sound will have definition and clarity in the mix. Your bass will have that great low end to drive the music with the toms and snare covered too. Plus there are overhead microphones for that mixture of the drums that really defines your playing style. The included clips are the perfect solution for close-miking providing low visibility and reducing drum vibration.

Includes
- 3 x E60 Tom/Snare Microphones (Applications: acoustic instrument, guitar cabinets, bass cabinets, strings, piano, cymbals/overheads, kick drum, snare drum, Hi-hat)

- 2 x E70 Overhead Microphones (Applications: choir, orchestra, acoustic instrument, guitar cabinets, strings, piano, cymbals/overheads, Hi-Hat.

- 1 x TSM411 Microphone (Applications: brass, guitar cabinets, bass cabinets, snare drum, rack/floor toms)

- 1 x KBM412 Bass Microphone (Applications: bass cabinet, kick drum, rack/floor toms)

- 4 x DSM1 drum shock mount

- 1 x Vinyl carrying case

CAD e60
Type: Front address, externally biased condenser

Frequency Response: 30Hz - 20kHz (with low end boost)

Polar Pattern: Cardioid

Impedence: Low (300 ohms nominal)

Open Circuit Voltage: -54dB (0dB = 1 volt per microbar)

Dynamic Range: 125dB

Equivalent Noise Level: 13dB Equivalent SPL, A weighted

Maximum SPL: 138dB SPL (with pad on)

Total Harmonic Distortion: Less than 0.15%

Powering: 24 - 52 Volts Phantom Power

Connector: Gold plated 3-pin XLR type

Finish: Durable Black leather feal uerethane housing with black grille screen

Net Weight: 9.5oz. (270 grams)

CAD e70
Operating Principle: Condenser

Polar Pattern: Cardioid and omnidirectional

Frequency Response: 20Hz to 20KHz

Sensitivity: -39dBV (11mV) @ 1 Pa

Impedance: 85 ohms

Max SPL: 145dB, 1% THD, attenuator engaged

Self Noise: 23dBA

Hi-pass Filter: 75Hz and 150Hz, 6dB/oct

Attenuator: 10dB and 20dB

Power Requirements: P48, 2mA

Includes: elastic shock mount, stand clamp and windscreen.

CAD TSM411
Operating Principle: Moving coil dynamic

Polar Pattern: Supercardioid

Frequency Response: 100Hz to 15KHz

Sensitivity: -56dBV (1.6mV) @ 1 Pa

Impedance: 310 ohms

CAD KBM412
Operating Principle: Moving coil dynamic

Polar Pattern: Cardioid

Frequency Response: 30Hz to 12KHz

Sensitivity: -66dBV (0.5mV) @ 1 Pa

Impedance: 60 ohms

For support or warranty questions, please contact the manufacturer:
Phone: 800-762-9266
