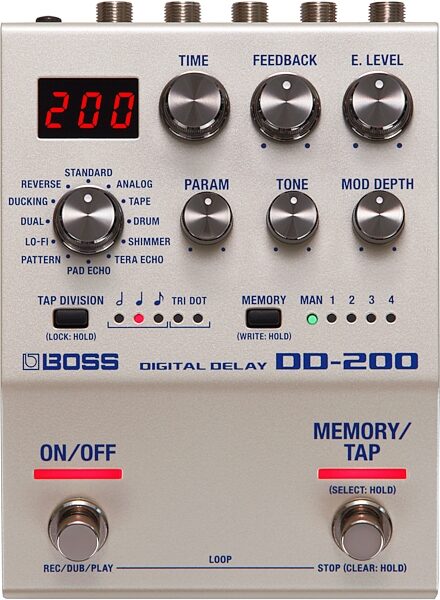

Boss DD-200 Digital Delay Pedal

zZounds Gear Experts Say...
The DD-200 packs 12 distinct delay modes into a single box to give you a variety of time-based effects. Use the tap tempo to make sure you're always on beat.

The DD-200 Digital Delay brings together sounds inherited from the flagship DD-500 into an even smaller package. Twelve modes offer delay colors from modern digital to classic analog, providing everything from basic echoes to rich ambient pads and everything in-between. There's also an independent looper that's always ready to use, plus a selectable carryover function for seamless transitions between memories.

Twelve Modes, Unlimited Sounds

With 12 different modes to choose from, the DD-200 provides nearly any flavor of delay in an amazingly compact size. At your command are super-clean digital delays, gritty analog echoes, and spot-on retro sounds from the Roland RE-201 Space Echo and Binson Echorec 2. There's also a variety of options for creating reverse effects, lo-fi tones, and pulsing rhythmic sounds with layered delays. And with the Tera Echo, Shimmer, and Pad Echo modes, immersive ambient colors are just a knob twist away.

Dial in Sounds Fast

The DD-200 features a no-nonsense interface, making it easy to craft inspiring sounds in the heat of the moment. Essential delay parameters are provided on dedicated controls for direct, hands-on access. And in each mode, the function of the PARAM knob changes to parameters tailored for the selected type, delivering extended control with no need to menu dive.

Save and Recall Your Favorite Setups

The DD-200 offers four onboard memories for saving your favorite setups and recalling them while performing. There's read more also a Manual setting that reflects the current panel status, essentially giving you a fifth setup to choose from. You can scroll through memories with a DD-200 footswitch, and it's possible to limit the scrolling range or assign memories directly for even faster access. And by enabling the carryover function, the active delay repeats will keep sounding as you change memories for smooth, free-flowing transitions.

Ready-to-Go Looper

Any time you're ready, pressing the DD-200's two footswitches together puts you into looper mode. Up to 60 seconds of mono recording time is available, and operation is simple and direct with the onboard switches. And since the looper engine functions independently, you're able to develop expressive loops with any of the DD-200's rich delay sounds.

DD-200 Delay Modes

- Standard - Clear digital delay. PARAM adjusts the delay attack.
- Analog - Emulates classic analog "BBD" delays like the BOSS DM series. PARAM controls character and distortion amount.
- Tape - Emulates the warm tape-based sound of the legendary Roland RE-201 Space Echo. PARAM selects different combinations of three playback heads, and also adjusts the amount of distortion in the delay sound.
- Drum - Models the drum-based Binson Echorec 2. PARAM selects different combinations of four playback heads, and also adjusts the amount of distortion in the delay sound.
- Shimmer - Pitch-shifted delay for lush, heavenly textures. PARAM adjusts the delay brightness.
- Tera Echo - Spacious, animated ambience effect derived from the BOSS TE-2 pedal. PARAM adjusts the sound character.
- Pad Echo - Newly developed delay sound for creating drifting ambient textures. PARAM adjusts the delay attack.
- Pattern - Rhythmic sounds with 16 delay lines layered together. PARAM selects different pattern variations.
- Lo-Fi - Delay sound with fat, distorted character. PARAM adjusts the distortion effect.
- Dual - Two different delay lines connected in series. PARAM adjusts the time of the second delay.
- Reverse - Backwards delay for cool psychedelic effects and other unique tones. PARAM adjusts the delay attack.
- Ducking - Delay with a built-in ducking effect. PARAM adjusts the input sensitivity.

Features:

- Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
- Twelve versatile modes provide a wide range of delay types
- Fast, easy operation with hands-on controls
- Real-time panel setting and four memories for storing favorite sounds
- Phrase looper with up to 60 seconds of recording time
- Panel Lock function disables controls to prevent unwanted changes
- Customizable multi-function footswitches for bypass, tap tempo, memory selection, looper control, and more
- Support for expanded control via external footswitches, an expression pedal, or MIDI
- Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
- Micro USB jack for firmware updates
- Analog dry through and buffered bypass
- Runs on PSA-series AC adaptor or three AA-size batteries
read less

- Sampling Frequency: 96 kHz
- AD/DA Conversion: 32 bits
- Processing: 32-bit floating point
- Modes: 12 modes (Standard, Analog, Tape, Drum, Shimmer, Tera Echo, Pad Echo, Pattern, Lo-Fi, Dual, Ducking, Reverse)
- Memory: 4 + Manual
- Nominal Input Level: INPUT A/MONO, B: -10 dBu
- Maximum Input Level: INPUT A/MONO, B: +7 dBu
- Input Impedance: INPUT A/MONO, B: 2 M ohm
- Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
- Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
- Output Impedance: OUTPUT A/MONO, B: 1 k ohms
- Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
- Bypass: Buffered bypass
- Controls:
ON/OFF switch, MEMORY/TAP switch
MODE knob, TIME knob, FEEDBACK knob, E. LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH knob
TAP DIVISION button, MEMORY button
- Display: 7 segments, 3 characters (LED)
- Indicator: TAP DIVISION indicator, MEMORY (MAN, 1--4) indicators
- Connectors:
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)
- Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
- Current Draw: 225 mA (Expected Battery Life Under Continuous Use)
- Alkaline: Approx. 4 Hours (These figures will vary depending on the actual conditions of use.)
- Dimensions:
101 (W) x 138 (D) x 63 (H) mm / 4 (W) x 5-7/16 (D) x 2-1/2 (H) inches
101 (W) x 138 (D) x 65 (H) mm / 4 (W) x 5-7/16 (D) x 2-9/16 (H) inches (including rubber foot)
- Weight:
610 g / 1 lb 6 oz
680 g / 1 lb 8 oz (including batteries)
- Accessories:
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4

- Options (sold separately):
- AC adaptor: PSA-S series
- Footswitch: FS-5U
- Dual footswitch: FS-6, FS-7
- Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- MIDI/TRS connecting cable: BMIDI-5-35
* 0 dBu = 0.775 Vrms
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 2.25 lbs
Shipping Dimensions: 8 x 7 x 5 in
Manufacturer Part Number (MPN): DD-200

For support or warranty questions, please contact the manufacturer:
Phone: 323-890-3700

Reviewers gave this product an overall rating of 5 out of 5 stars. (1 ratings)
Submitted October 18, 2021 by a customer from gmail.com

"Boss DD-200 digital delay pedal"

Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
Well, I was looking for a pedal that I could use dual delay on like my Brian May Red Special Pedal. I’ve tried quite a few, and this one actually does 2 repeats very nicely. I won’t have to take my Digitech, which is from 2006, out when I play.There are tons of possibilities with the Boss DD-200. I especially like the tape delay setting as well as the dual delay setting. You can store 4 patches in the memory and bump through them with the foot switch. You can also set long delay times with this pedal. Which can be important if you are trying to harmonize lead breaks.
