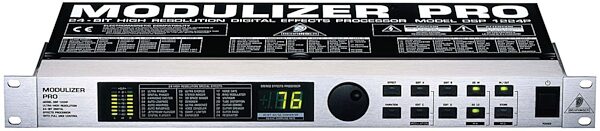

Behringer DSP1224P Modulizer Pro 24-Bit Multi-Effect Processor
No longer available at zZounds
zZounds Gear Experts Say...
Effects include 8-voice chorus, spatial flanger, ring modulator, resonator, and more.
Overview
The Modulizer Pro puts tons of trendy stuff at your fingertips, like 8-voice chorus, spatial flanger, ring modulator and resonator. There are also LFO- and MIDI-controllable modulatable filters with resonance, developed using physical modeling with analog filters as an archetype, as well as amp and speaker simulations, a 3D processor and much more.
Features
Cutting edge effects such as 3D Processor, Stereo Imager, Lo-Fi, Super Bass, Ring Modulator, Voice Canceler etc.
24 breathtaking effects such as Ultra Phaser, Harmonic Exciter, Auto Filter, Jetstream Flanger, Ultra Compressor, Guitar Combo, Speaker Emulation Resonator and more
Hundreds of effect variations plus two individual parameters and separate low and high EQ section
True stereo processing performance allows separation of left and right channels in the stereo field for open-sounding enhancement of the sound sources
Free Modulizer design software allows for total remote control via PC (download at Behringer's site)
24-bit A/D and D/A converters with 64/128 times oversampling for ultra-high headroom and resolution
Internal 24-bit processing with professional 46 kHz sampling rate
Servo-balanced inputs and outputs on gold-plated XLR and TRS connectors for high signal integrity
100 user preset memories to store programs for instant recall
Accurate eight-segment LED level meters simplify level setting for optimum performance
"Future-proof" software-upgradeable architecture
Full MIDI capability allows… read more real-time parameter control and program selection
High-quality components and exceptionally rugged construction ensures long life and durability
Internal power supply design for professional application
Manufactured under the ISO9000 certified management system read less
Features
Cutting edge effects such as 3D Processor, Stereo Imager, Lo-Fi, Super Bass, Ring Modulator, Voice Canceler etc.
24 breathtaking effects such as Ultra Phaser, Harmonic Exciter, Auto Filter, Jetstream Flanger, Ultra Compressor, Guitar Combo, Speaker Emulation Resonator and more
Hundreds of effect variations plus two individual parameters and separate low and high EQ section
True stereo processing performance allows separation of left and right channels in the stereo field for open-sounding enhancement of the sound sources
Free Modulizer design software allows for total remote control via PC (download at Behringer's site)
24-bit A/D and D/A converters with 64/128 times oversampling for ultra-high headroom and resolution
Internal 24-bit processing with professional 46 kHz sampling rate
Servo-balanced inputs and outputs on gold-plated XLR and TRS connectors for high signal integrity
100 user preset memories to store programs for instant recall
Accurate eight-segment LED level meters simplify level setting for optimum performance
"Future-proof" software-upgradeable architecture
Full MIDI capability allows… read more real-time parameter control and program selection
High-quality components and exceptionally rugged construction ensures long life and durability
Internal power supply design for professional application
Manufactured under the ISO9000 certified management system read less
Specs
Analog Inputs
Connectors: XLR and 1/4 in. TRS connector
Type: RF filtered, servo balanced input
Impedance: 60 kOhms balanced, 30 kOhms unbalanced
Nominal operating level: -10 dBV to +4 dBu
Max. input level: +16 dBu at +4 dB nominal level, +2 dBV at -10 dBV nominal level
Analog Outputs
Connectors: XLR and 1/4 in. TRS connector
Type: electronically servo-balanced output stage
Impedance: 60 ohms balanced, 30 ohms unbalanced
Max. output level: +16 dBu at +4 dB nominal level, +2 dBV at -10 dBV nominal level
System Specifications
Bandwidth: 20 Hz to 20 kHz, +0/-3 dB
Noise: >94 dBu, unweighted, 20 Hz to 20 kHz
THD: 0.0075 % typ. @ +4 dBu, 1 kHz, gain 1
Crosstalk: < -76 dBu
MIDI Interface
Type: 5-pin-DIN-socket IN / OUT / THRU
Digital Processing
Converters: 24-bit Sigma-Delta, 64/128-times oversampling
Sampling rate: 46,875 kHz
Display
Type: 2 1/2-digit numeric LED-display
Power Supply
Mains voltages: USA/Canada 120 V ~, 60 Hz
Fuse: 100 - 120 V ~: T 125 mA H
Power consumption: max. 15 watts
Mains connection: standard IEC receptacle
Physical
Dimensions (H * W * D): 1 3/4 in. (44.5 mm) * 19 in. (482.6 mm) * 7 1/2 in. (190.5 mm)
Net weight: +/- 2 kg
Shipping weight: +/- 3 kg
Connectors: XLR and 1/4 in. TRS connector
Type: RF filtered, servo balanced input
Impedance: 60 kOhms balanced, 30 kOhms unbalanced
Nominal operating level: -10 dBV to +4 dBu
Max. input level: +16 dBu at +4 dB nominal level, +2 dBV at -10 dBV nominal level
Analog Outputs
Connectors: XLR and 1/4 in. TRS connector
Type: electronically servo-balanced output stage
Impedance: 60 ohms balanced, 30 ohms unbalanced
Max. output level: +16 dBu at +4 dB nominal level, +2 dBV at -10 dBV nominal level
System Specifications
Bandwidth: 20 Hz to 20 kHz, +0/-3 dB
Noise: >94 dBu, unweighted, 20 Hz to 20 kHz
THD: 0.0075 % typ. @ +4 dBu, 1 kHz, gain 1
Crosstalk: < -76 dBu
MIDI Interface
Type: 5-pin-DIN-socket IN / OUT / THRU
Digital Processing
Converters: 24-bit Sigma-Delta, 64/128-times oversampling
Sampling rate: 46,875 kHz
Display
Type: 2 1/2-digit numeric LED-display
Power Supply
Mains voltages: USA/Canada 120 V ~, 60 Hz
Fuse: 100 - 120 V ~: T 125 mA H
Power consumption: max. 15 watts
Mains connection: standard IEC receptacle
Physical
Dimensions (H * W * D): 1 3/4 in. (44.5 mm) * 19 in. (482.6 mm) * 7 1/2 in. (190.5 mm)
Net weight: +/- 2 kg
Shipping weight: +/- 3 kg
