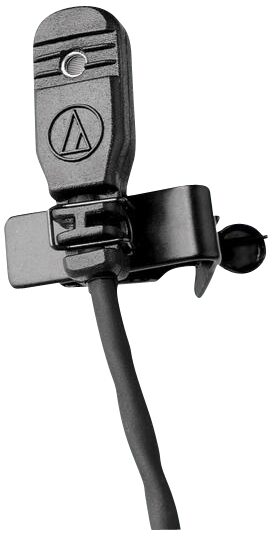

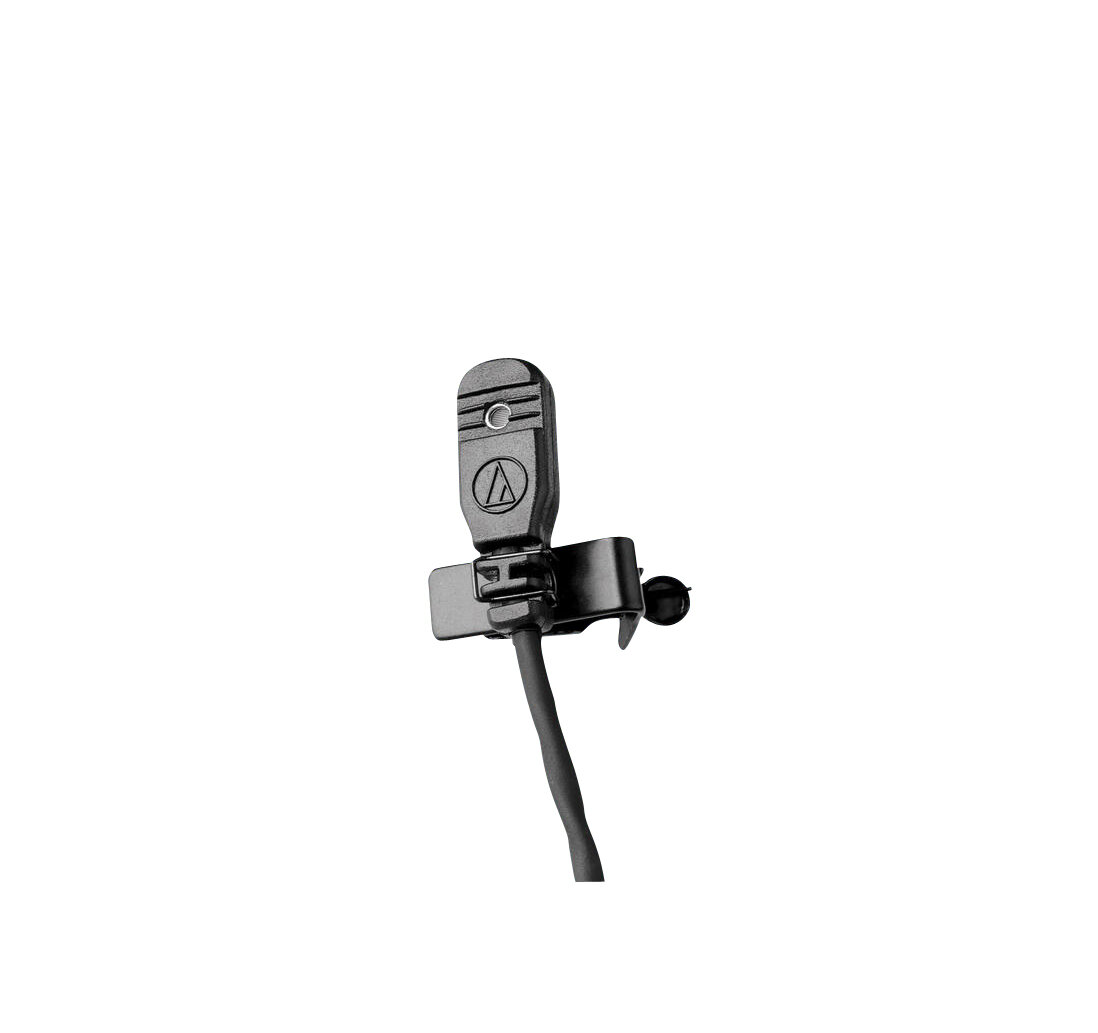

Audio-Technica MT830R Wired Omnidirectional Lavalier Microphone with AT8538 Power Module

Element: Fixed-Charge Back Plate, Permanently Polarized Condenser

Polar Pattern: Omnidirectional

Frequency Response: 30-20,000 Hz

Low Frequency Roll-Off: 80 Hz, 18 Db/Octave

Open Circuit Sensitivity: -37 Db (14.1 Mv) Re 1v At 1 Pa

Impedance: 200 Ohms

Maximum Input Sound Level: 135 Db Spl, 1 Khz At 1% T.H.D.

Dynamic Range (Typical): 108 Db, 1 Khz At Max Spl

Signal-To-Noise Ratio: 67 Db, 1 Khz At 1 Pa

Phantom Power Requirements: 11-52v Dc, 2 Ma Typical

Switch: Flat, Roll-Off

Weight (Microphone): 1.3 G (0.05 Oz)

Weight (Power Module): 81 G (2.9 Oz)

Dimensions (Microphone): 15.8 Mm (0.62") Long, 8.3 Mm (0.33") Wide, 5.0 Mm (0.19") Thick

Dimensions (Power Module): 92.9 Mm (3.66") Long, 18.9 Mm (0.74") Diameter

Output Connector: Integral 3-Pin Xlrm-Type

Cable: 7.6 M (25') Long (Permanently Attached To Microphone), 2.5 Mm (0.10") Diameter, 2-Conductor, Shielded Cable With Ta3f-Type Output Connector

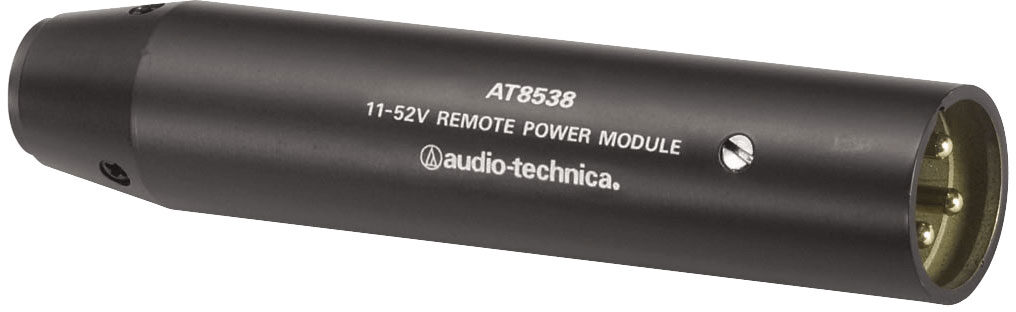

Accessories Furnished: At8538 Power Module; Clothing Clip; Windscreens

Audio-Technica Case Style: M7
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.5 lbs
Shipping Dimensions: 11 x 6 x 3 in
Manufacturer Part Number (MPN): MT830R
Warehouse Resealed
Shipping Weight: 0.5 lbs
Shipping Dimensions: 10 x 5 x 3 in
Manufacturer Part Number (MPN): MT830R
If you have additional warranty questions, please contact the manufacturer at 330-686-2600
