Audio-Technica AT-XP3/H Headshell Combo Kit
Get precise sound and great channel separation from your turntable with the AT-XP3/H pre-mounted headshell and cartridge combo kit from Audio-Technica.
Overview

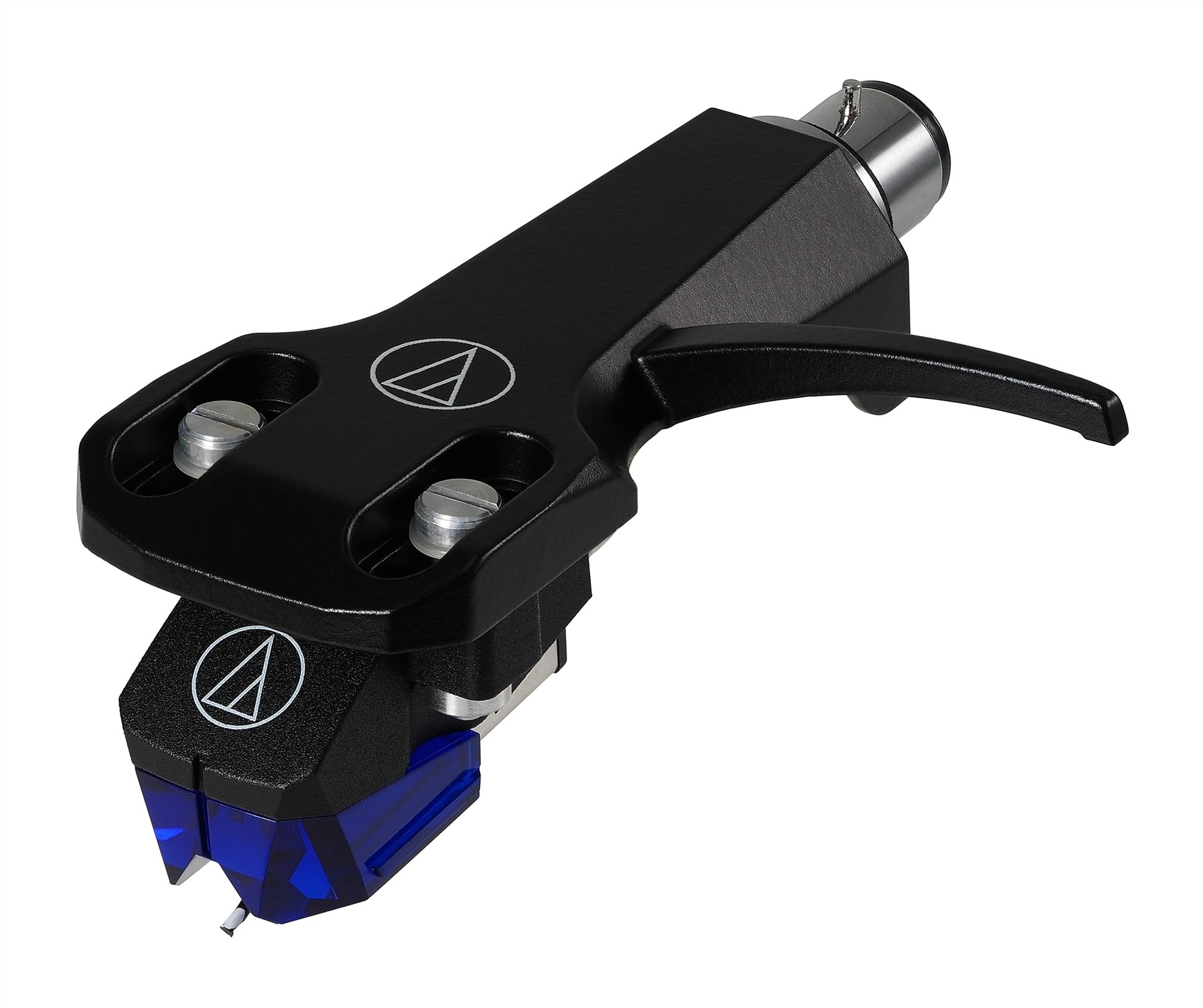

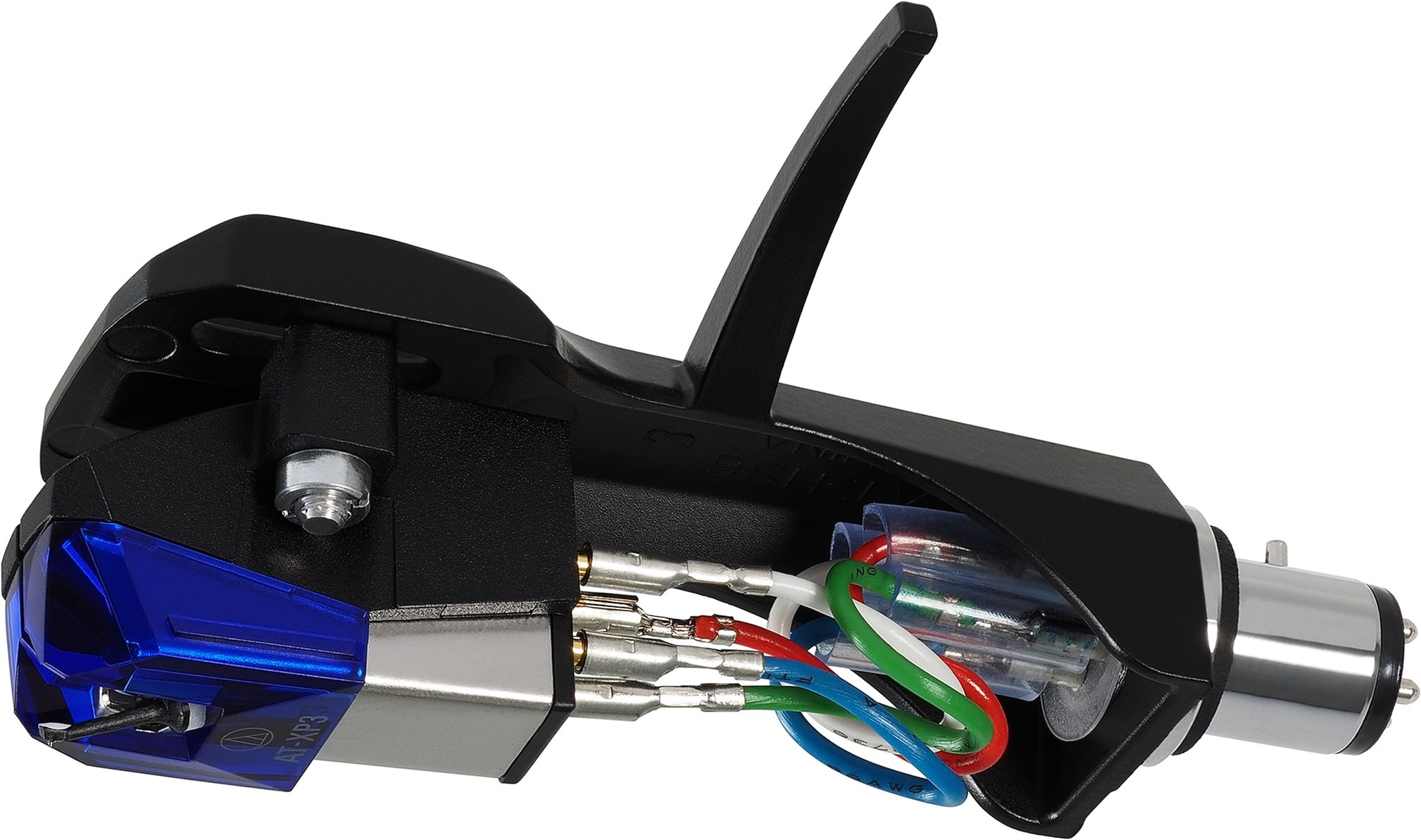

The Audio-Technica AT-XP3/H combo kit includes the AT-XP3 DJ cartridge premounted on the AT-HS6BK headshell.
- Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
- 5.5 mV high-level output
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
- AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Universal 1/2" mount headshell for 4-pin turntable cartridges
Features
- 0.6 mil conical bonded stylus tip- Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
- 5.5 mV high-level output
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
- AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Universal 1/2" mount headshell for 4-pin turntable cartridges
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
- Frequency Response: 20-18,000 Hz
- Channel Separation: 20 (dB at 1 kHz)
- Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Output: 5.5 mV (1 kHz, 5 cm/sec.)
- Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: 0.6 mil conical
- Cantilever: Carbon fiber-reinforced ABS
- Mount: Half-inch
- Replacement Stylus: ATN-XP3
- Coil Impedance: 6.7 k ohms (1 kHz)
- Recommended Load Capacitance: 100 to 200 pF
- Vertical Tracking Angle: 20 degrees
- Dimensions: 17.2 mm (0.68") H x 17.8 mm (0.67") W x 28.3 mm (1.20") D
- Weight (Cartridge): 6.2 g (0.22 oz)
- Dimensions (Cartridge and Headshell): 21.2 mm (0.83") H x 21.4 mm (0.84") W x 62.4 mm (2.46") D
- Weight (Cartridge and Headshell): 15.6 g (0.55 oz)
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
- Channel Separation: 20 (dB at 1 kHz)
- Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Output: 5.5 mV (1 kHz, 5 cm/sec.)
- Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: 0.6 mil conical
- Cantilever: Carbon fiber-reinforced ABS
- Mount: Half-inch
- Replacement Stylus: ATN-XP3
- Coil Impedance: 6.7 k ohms (1 kHz)
- Recommended Load Capacitance: 100 to 200 pF
- Vertical Tracking Angle: 20 degrees
- Dimensions: 17.2 mm (0.68") H x 17.8 mm (0.67") W x 28.3 mm (1.20") D
- Weight (Cartridge): 6.2 g (0.22 oz)
- Dimensions (Cartridge and Headshell): 21.2 mm (0.83") H x 21.4 mm (0.84") W x 62.4 mm (2.46") D
- Weight (Cartridge and Headshell): 15.6 g (0.55 oz)
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 0.25 lbs
- Shipping Dimensions: 4 x 3 x 2 in
- Manufacturer Part Number (MPN): AT-XP3/H
