Audio-Technica ATW-A410P UHF Powered Wideband Antenna

Easily mount this antenna in a variety of installation environments to capture UHF radio signals. The BNC cable out can be configured in multiple positions.

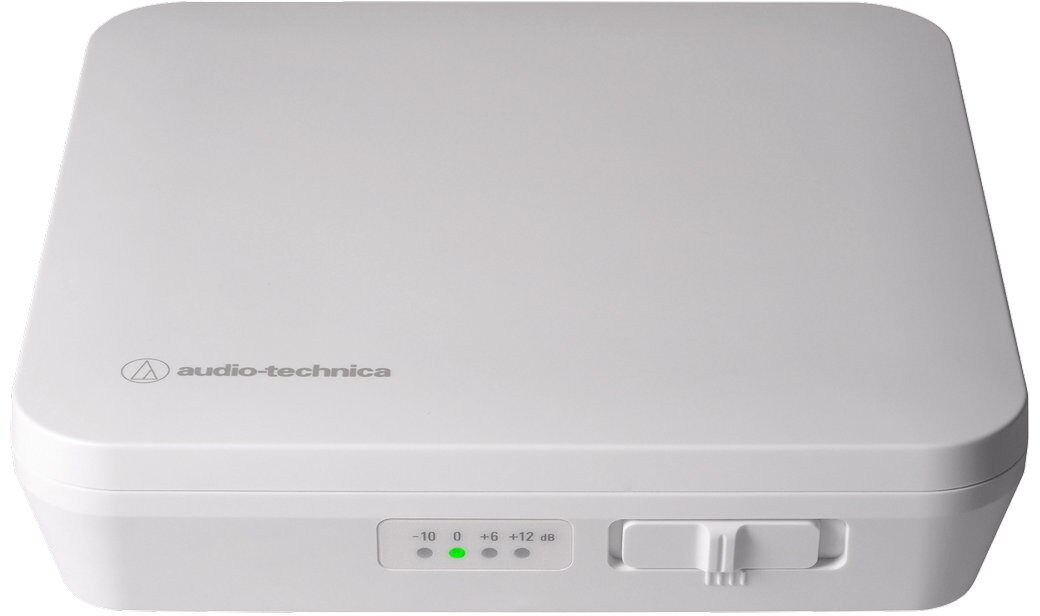

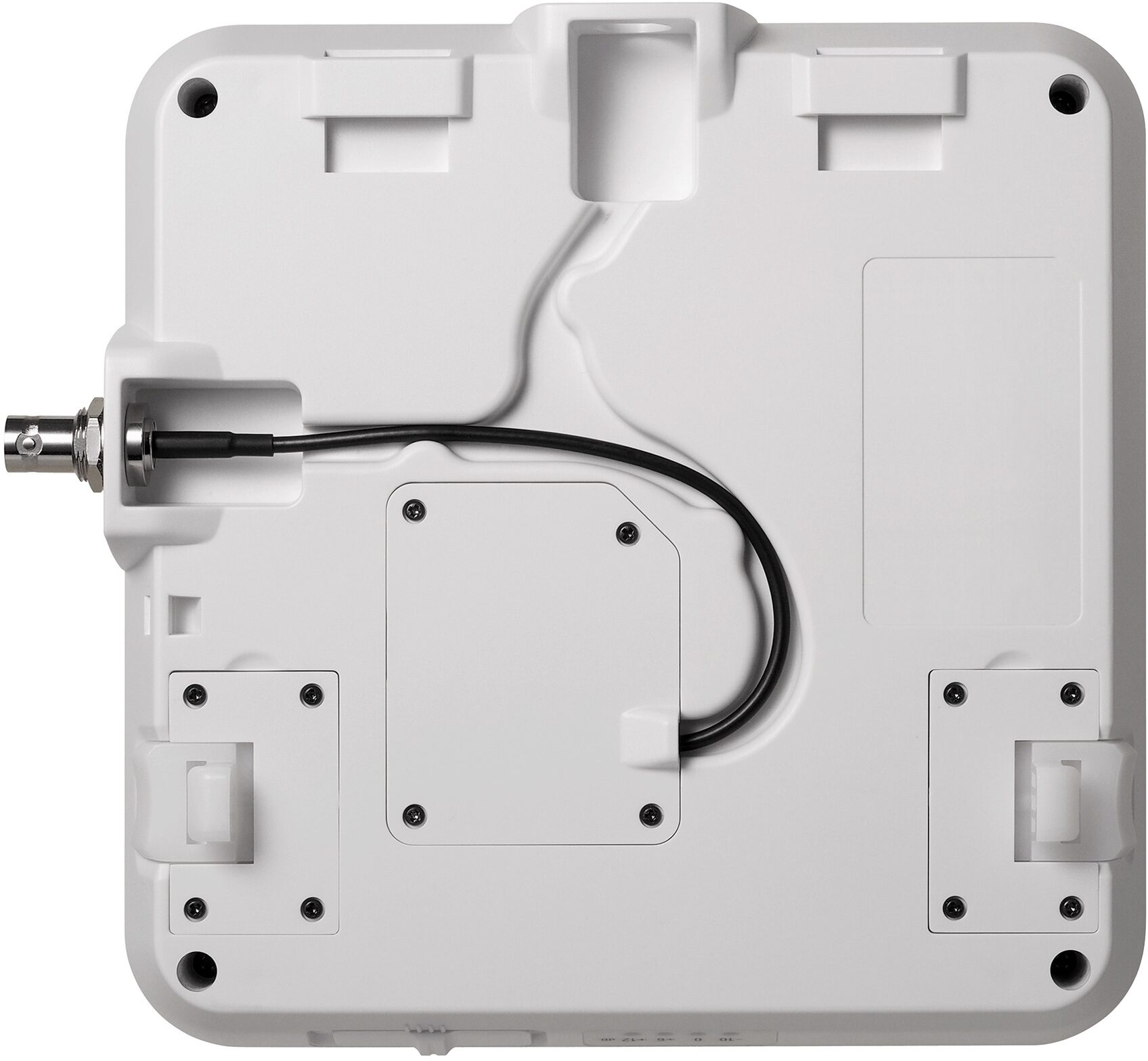

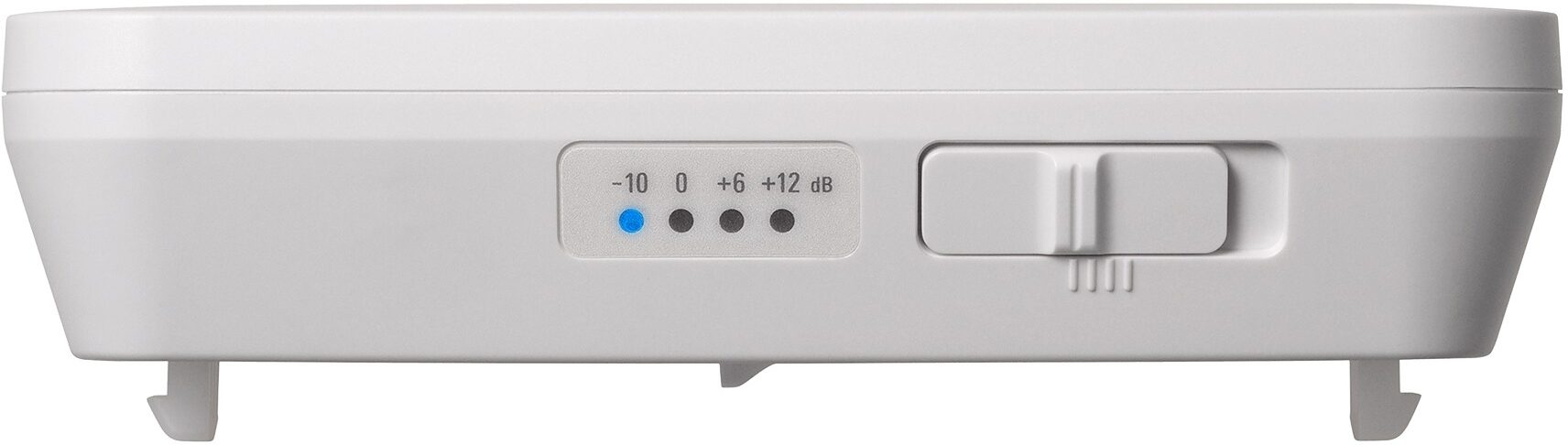

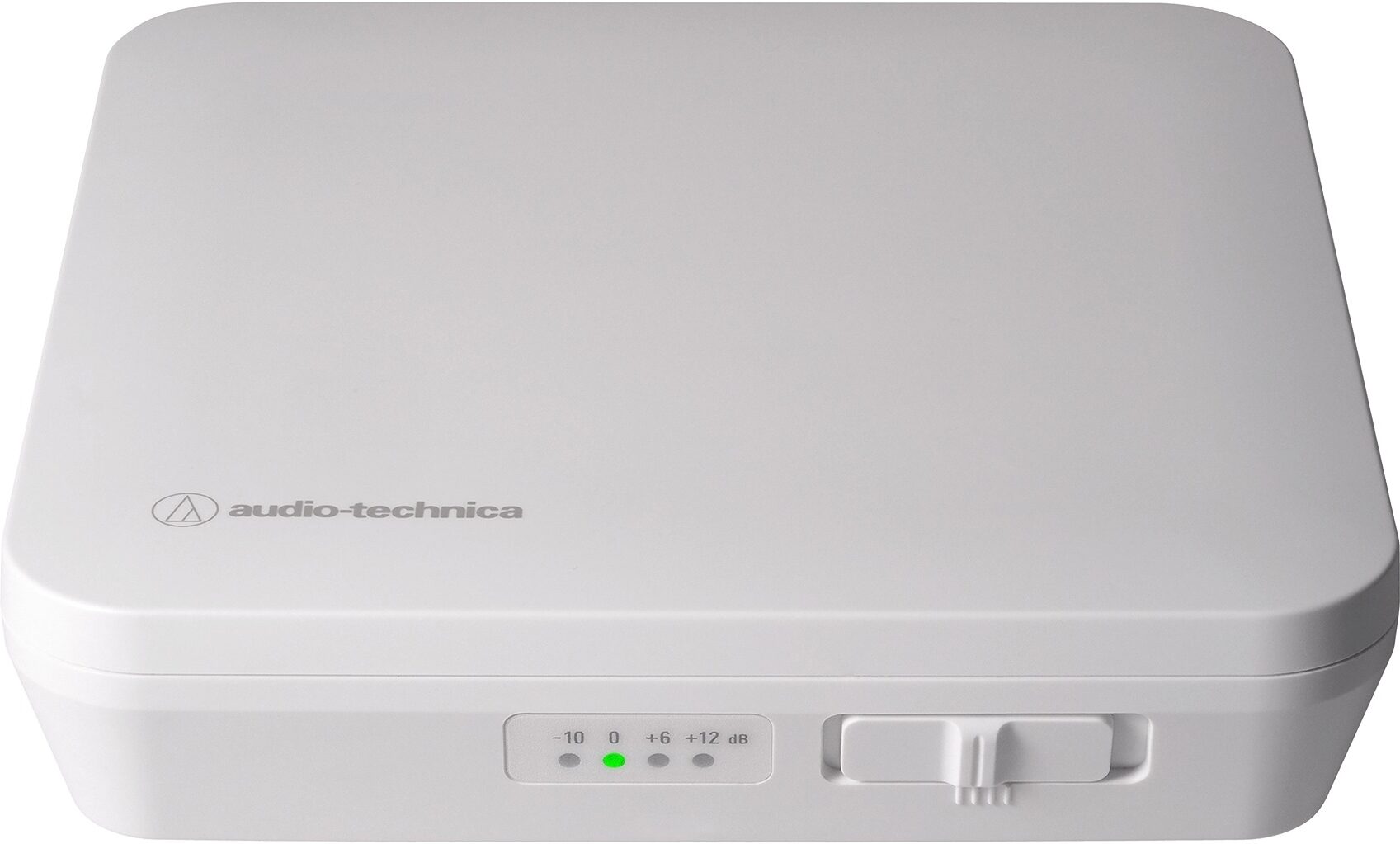

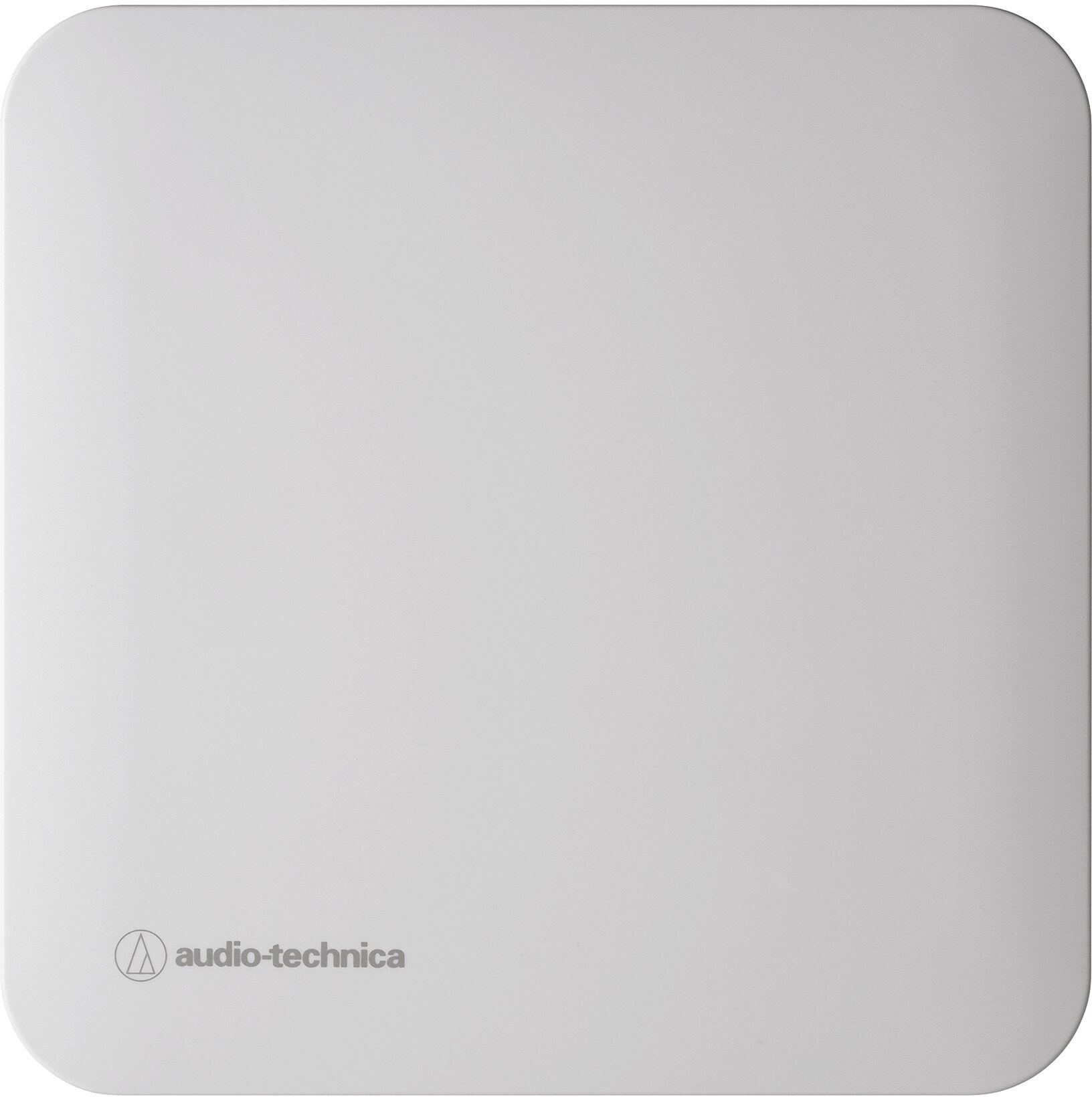

The ATW-A410P is a low-profile UHF (470-990 MHz) antenna that mounts to a wall or ceiling. It features a 4-position switchable amplifier (-10 dB/0 dB/+6 dB/+12 dB) to compensate for cable loss, along with an LED indicator to display the current gain setting. To accommodate various installation environments, the antenna's BNC cable can be configured to exit from the top, side or rear of the antenna. Includes mounting bracket and screws.
WARNING: Cancer and Reproductive Harm -

Frequency range: 470 to 990 MHz
Connector: BNC-J
Impedance: 50 ohms
Power requirement: +12V DC, 60 mA or less
OIP3: >30 dBm typical (within specified bandwidth)
Gain: -10 dB/0 dB/+6 dB/+12 dB
Operating temperature range: -10 degrees C to 50 degrees C (14 degrees F to 122 degrees F)
Dimensions: 175 mm (6.9") W x 175 mm (6.9") D x 50 mm (2.0") H (without bracket)
Weight: 390 g (13.8 oz) (without bracket)
Accessories: Mounting bracket, screws
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 1.75 lbs
Shipping Dimensions: 11 x 8 x 3 in
Manufacturer Part Number (MPN): ATW-A410P

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

For support or warranty questions, please contact the manufacturer:
Phone: 330-686-2600 x5000
