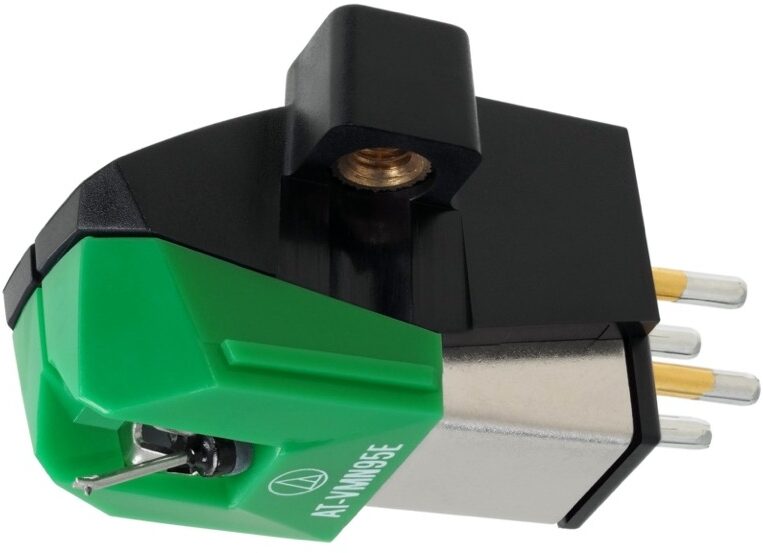

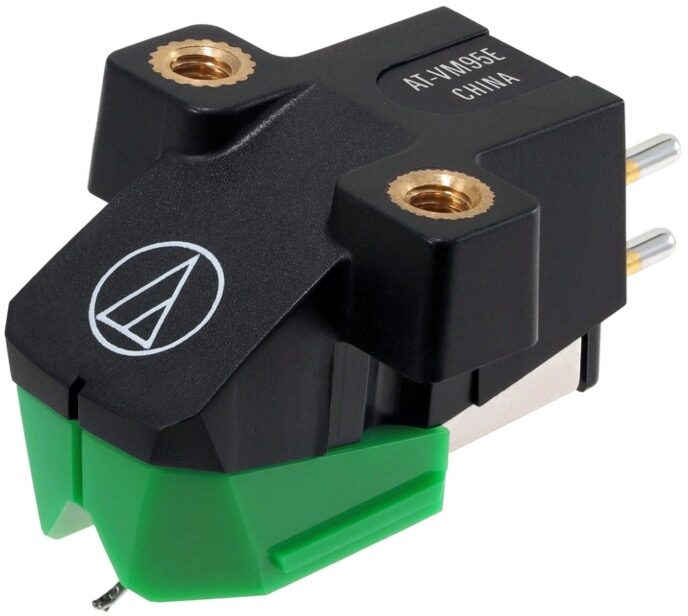

Audio-Technica ATVM95E Dual Moving Magnet Cartridge

Audio-Technica's ATVM95E dual moving magnet cartridge has a 0.3 x 0.7 mil elliptical stylus for excellent channel separation, high output and low distortion.

This Audio-Technica ATVM95E Dual Moving Magnet Cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge's special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws - no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Features:

- VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
- Aluminum cantilever
- Specially wound coils increase output voltage
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws - no nuts required
- Compatible with any AT-VMN95 replacement stylus
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Frequency Response: 20-22,000 Hz
- Channel Separation: 20 (dB at 1 kHz)
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Output: 4.0 mV (1 kHz, 5 cm/sec.)
- Channel Balance: 2.0 dB (1 kHz)

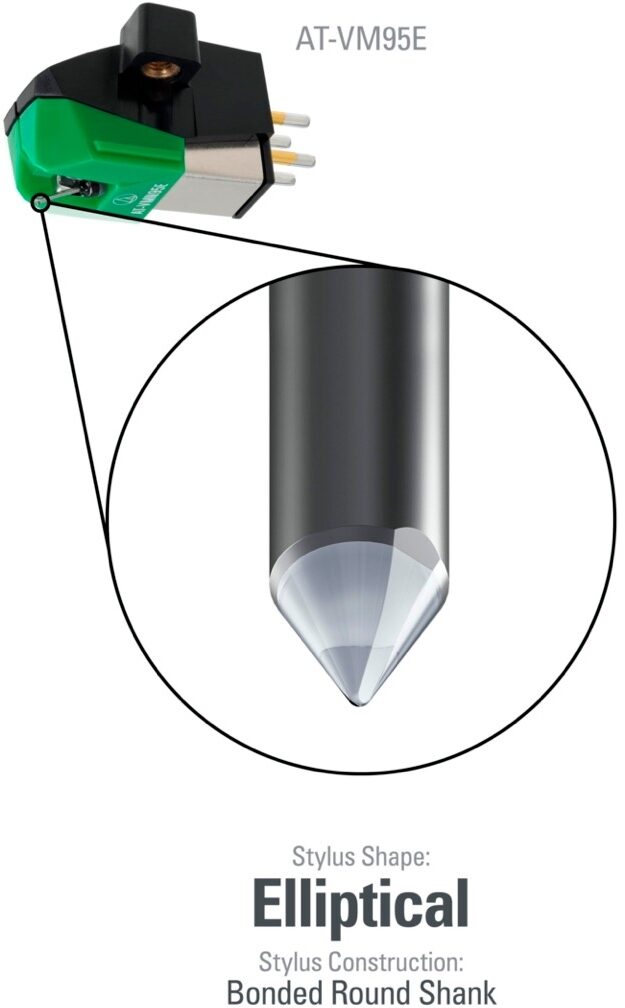

- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Aluminum pipe
- Mount: Half-inch
- Replacement Stylus: AT-VMN95E
- Coil Impedance: 3.3 k ohms (1 kHz)
- DC Resistance: 485 ohms
- Load Capacitance: 100 to 200 pF
- Coil Inductance: 550 mH (1 kHz)
- Vertical Tracking Angle: 23°
- Dimensions: 17.2 mm (0.68") H x 18.9 mm (0.74") W x 28.3 mm (1.20") D
- Weight: 6.1 g (0.22 oz)

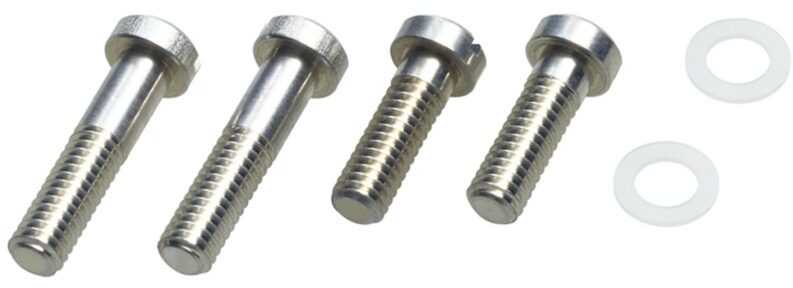

- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 0.25 lbs
Shipping Dimensions: 4 x 3 x 1 in
Manufacturer Part Number (MPN): AT-VM95E
Blemished, USED
Shipping Weight: 0.09 lbs
Shipping Dimensions: 4 x 3 x 1 in
Manufacturer Part Number (MPN): AT-VM95E
Warehouse Resealed, USED
Shipping Weight: 0.25 lbs
Shipping Dimensions: 4 x 3 x 1 in
Manufacturer Part Number (MPN): AT-VM95E

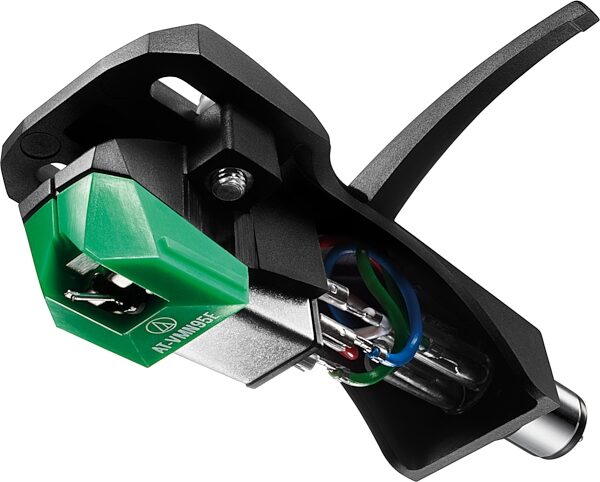

and Headshell Kit
Shipping Weight: 0.25 lbs
Shipping Dimensions: 5 x 3 x 2 in
Manufacturer Part Number (MPN): AT-VM95E/H
Warehouse Resealed, USED
Shipping Weight: 0.25 lbs
Shipping Dimensions: 5 x 3 x 2 in
Manufacturer Part Number (MPN): AT-VM95E/H
