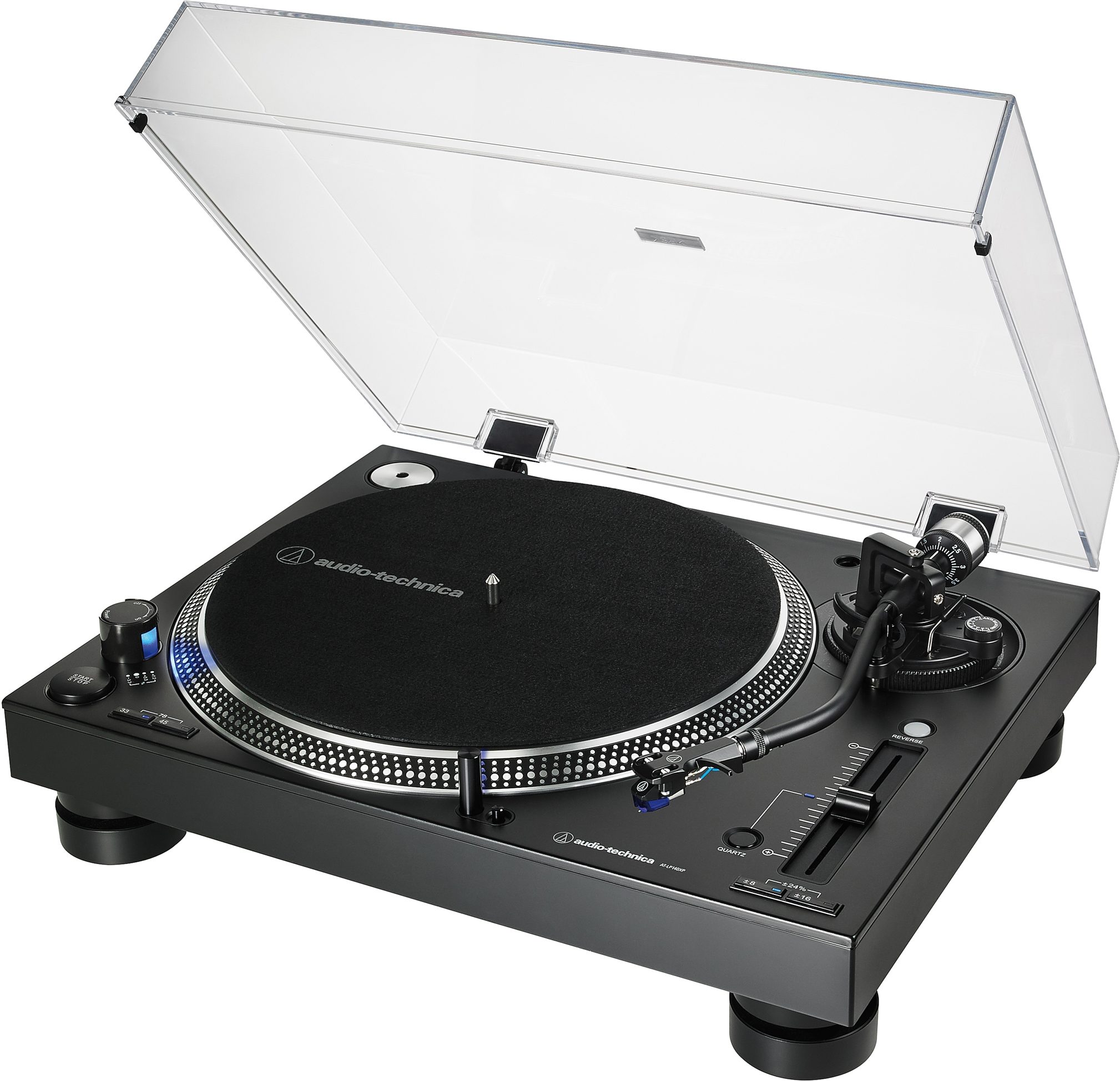

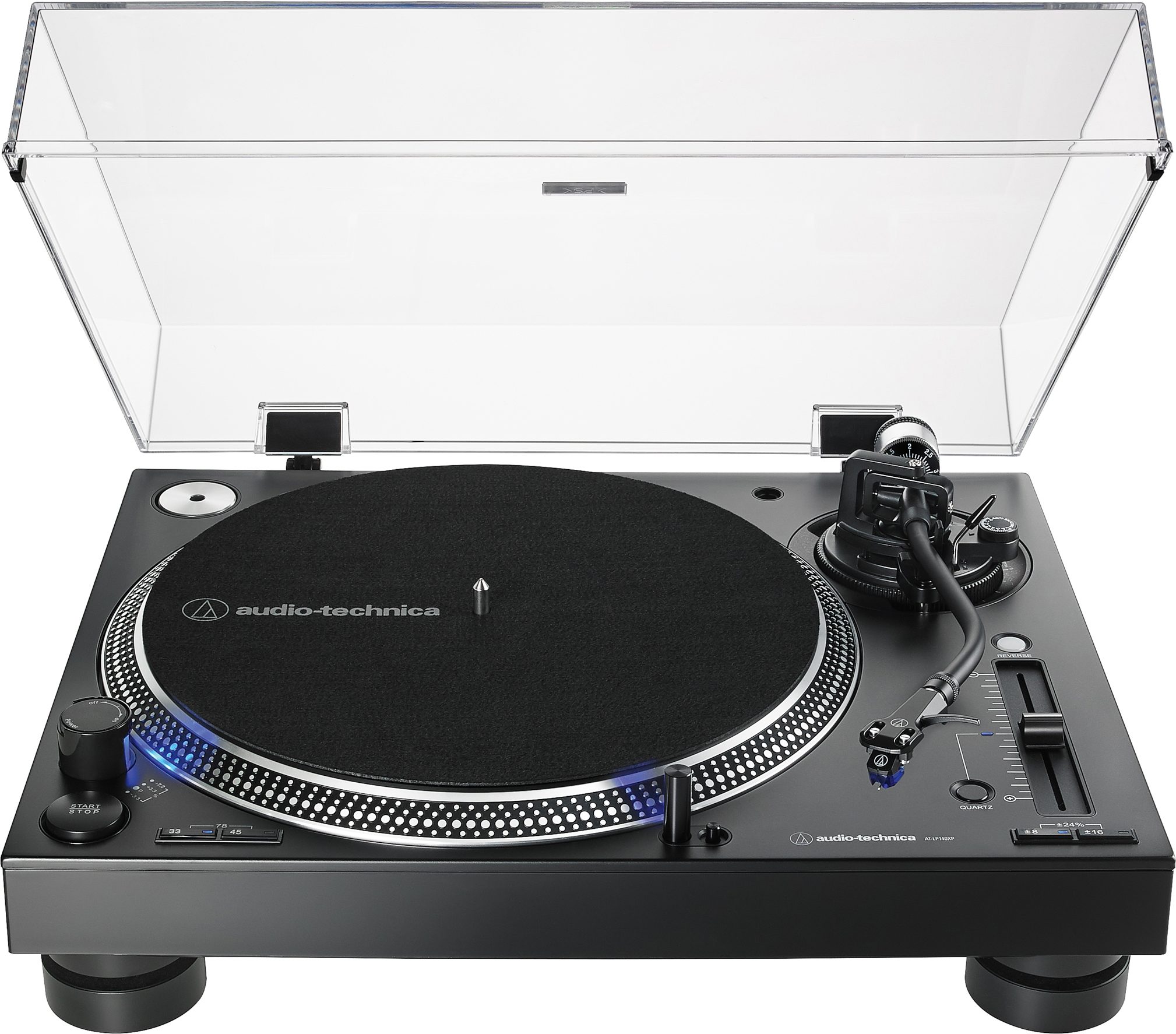

Audio-Technica AT-LP140XP Direct-Drive Turntable

Audio-Technica AT-LP140XP Direct-Drive Turntable, Black, Open Box (Like New), Action Position Back

zZounds Gear Experts Say...

Great for both hi-fi listening and DJing, the Audio-Technica AT-LP140XP turntable uses a high-torque, direct-drive motor for precise, reliable performance.

Overview

The Audio-Technica AT-LP140XP fully manual professional DJ turntable features a high-torque direct-drive motor and an anti-resonant, mass-damped, die-cast aluminum platter to ensure stable, on-axis rotation at 33-1/3, 45, and 78 RPM. It is equipped with an S-shaped tonearm with height adjustment, adjustable tracking force (counterweight) and adjustable dynamic anti-skate control.

Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the durable, high-output AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus included with the turntable. It comes pre-mounted to an AT-HS6 universal 1/2"-mount headshell.

Designed to connect to components with a dedicated phono input, the turntable comes with a detachable dual RCA output cable and is equipped with a phono pre-amplifier that supplies a strong 5.5 mV output.

Additional professional features include a start/stop button; forward and reverse play; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-8%, +/-16%, and +/-24% adjustment ranges; a stroboscopic platter with speed indicator; a retractable plug-type stylus target light; and a removable hinged dust cover.

Specs

- Experience high-fidelity audio and professional DJ performance
- Direct-drive, high-torque servo motor with speed stabilization
- Fully manual operation
- Adjustable dynamic anti-skate control
- Selectable 33/45/78 RPM speeds
- Professional anti-resonance, mass-damped, die-cast aluminum platter with felt mat
- AT-HS6 universal 1/2"-mount headshell and AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus
- Balanced S-shaped tonearm with hydraulically damped lift control, height adjustment, and lockable rest
- Dedicated phono-level output (5.5 mV)
- Stroboscopic platter with speed indicator
- Forward/reverse operation and variable pitch control with quartz speed lock
- Retractable plug-type target light for easier cueing in low light
- Damped base construction for reduced low-frequency feedback coloration
- Includes: detachable RCA output cable (dual RCA male to dual RCA male), power cable, 45 RPM adapter, counterweight, felt mat, and removable hinged dust cover

Specifications

- Type: 3-speed, fully manual operation
- Motor: High-torque DC motor
- Drive Method: Direct drive
- Speeds: 33-1/3 RPM, 45 RPM, 78 RPM
- Turntable Platter: Die-cast aluminum
- Starting Torque: >2.2 kgf.cm
- Wow and Flutter: 50 dB
- Output Level: Preamp "PHONO": 5.5 mV nominal at 1 kHz, 5 cm/sec
- Power Supply Requirements: 115/230V AC, 60/50 Hz
- Power Consumption: 11W
- Dimensions: 452.0 mm (17.80") W x 352.0 mm (13.86") D x 158.6 mm (6.24") H
- Weight: 10.0 kg (22 lbs.), without dust cover
- Accessories Included: AT-XP3 phono cartridge; AT-HS6 headshell; dual RCA (male) to dual RCA (male) cable with ground wire; counterweight; felt mat; dust cover; 45 RPM adapter; plug-type stylus target light
- Tonearm type: Balanced S-shaped tonearm with detachable headshell
- Effective arm length: 230.5 mm
- Overhang: 16 mm
- Tracking error angle: Less than 3 degrees
- Applicable cartridge weight: 3.5-8.5 g
- Anti-skating range: 0-4 g
- Replacement Stylus: ATN-XP3

Dimensions and Weight in Packaging

Black

Shipping Weight: 25.95 lbs
Shipping Dimensions: 22 x 19 x 10 in
Manufacturer Part Number (MPN): AT-LP140XP-BK

Open Box (Like New), Black

Shipping Weight: 25.95 lbs
Shipping Dimensions: 22 x 19 x 10 in
Manufacturer Part Number (MPN): AT-LP140XP-BK

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 330-686-2600 x5000
Email: audio-solutions@atus.com

Reviews

(2 ratings)

Submitted June 4, 2020 by Ed P in Allen Park, MI

"Amazing quality and value"

Overall:

(see rating details)

Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.

So I've owned a lot of turntables. The most expensive being a $2500 VPI Prime Scout. All "high end" turntables sound boring to me. Just flat. I bought this for a second system and was amazed by the sound. I moved it into my main system and wow, no S#!t... This thing has life, 3D imaging and actual bass! I put my $350 grado cartridge on it and it's now it's a permanent piece in my main system. Sold the VPI and got a better amplifier. I'm loving it!
