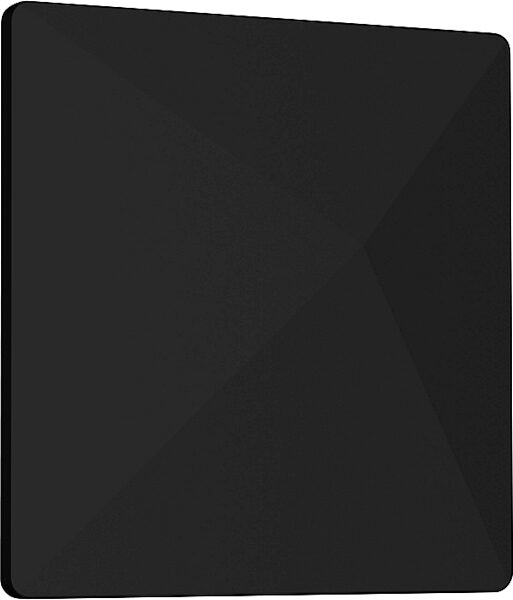

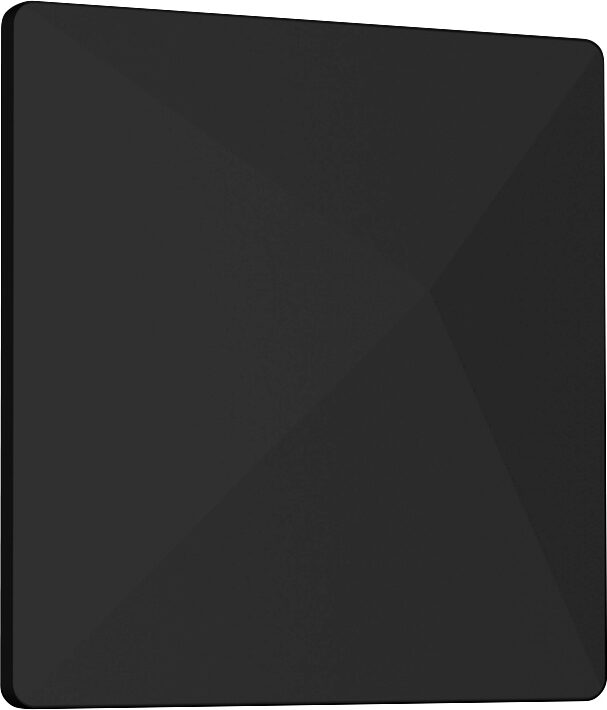

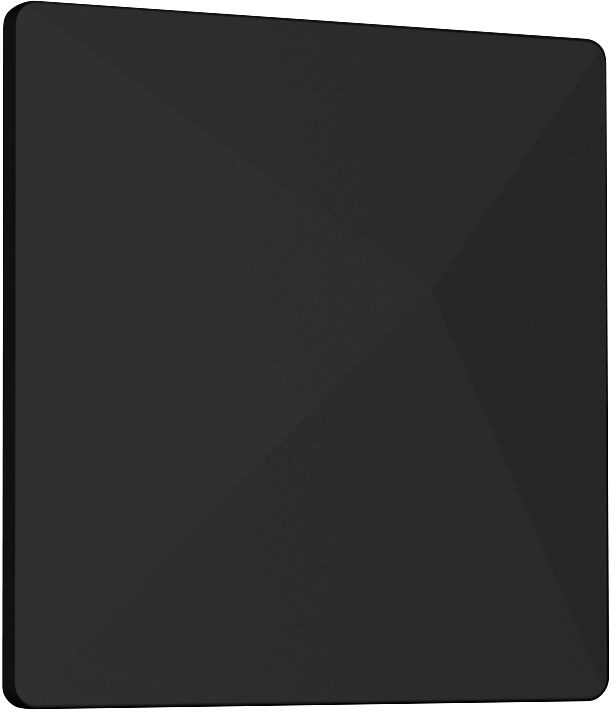

RF Venue D-ARC Diversity Architectural Antenna for Wireless Microphones

Ideal for formal spaces, this low-profile antenna mounts to walls or ceilings to pick up signals from wireless mics. It's even paintable to match your decor.

The Diversity Architectural Antenna by RF Venue is a high performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior. Using a unique patent-pending dual-feed antenna design, both A and B diversity connections are provided, so there's no need to install two separately spaced antennas -- resulting in a more professional look that room designers and architects appreciate.

The Diversity Architectural antenna installs in minutes, with a wall or ceiling-mounted rear plate that is pre-drilled with multiple mounting hole options. The rear plate then simply connects to the front plate, secured with the included mounting screws. Simply connect the two rear-mounted BNC terminated coaxial cables to your in-wall or in-ceiling coaxial cable run and the Diversity Architectural is ready for use.

The Diversity Architectural antenna builds on the highly acclaimed Diversity Fin, eliminating the most common signal dropouts caused by changes in angle and orientation of the RF signal. Ideally suited for conference rooms, multi-purpose meeting spaces, training rooms, and houses of worship, the Diversity Architectural fits into any interior design and delivers professional RF performance in a sleek industrially designed enclosure.
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

-Operating Frequencies: 470-616 MHz
-Bandwidth: 146 MHz
-Impedance: 50 ohms
-Average Return Loss: -6.4 dB
-Pattern Type: Diversity Flood
-Gain: 3 dBd
-F/B Ratio: N/A
-F/S Ratio: N/A
-Polarization: Linear
-Dimensions: 280x280x50mm / 11"x11"x2"
-Weight: 0.9 kg / 2 lbs
-Mount Location: Wall or Ceiling
-Operating Temperature: -10-40°C / 14-104 °F
-Color: White
-Connector(s): BNC Female
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 2.5 lbs
Shipping Dimensions: 12 x 12 x 4 in
Manufacturer Part Number (MPN): D-ARC

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
