Audio-Technica ATW-3212/C510 Fourth-Generation 3000 Series Wireless Vocal Microphone System

With an operating range of 300 feet, a 60 MHz tuning range and internal mic shock mounting for reduced noise, the ATW-3212/C510 is a powerful wireless combo.

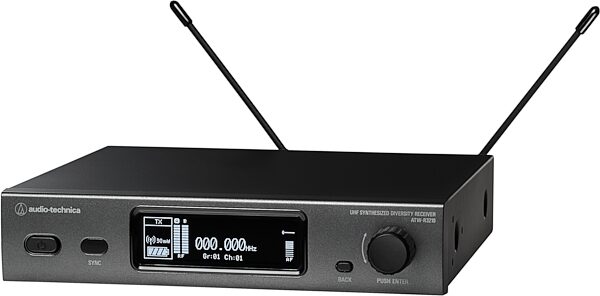

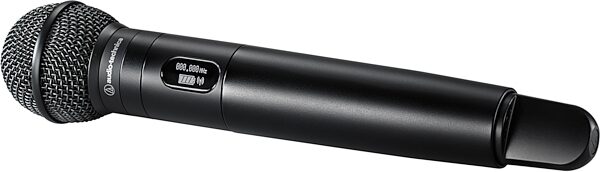

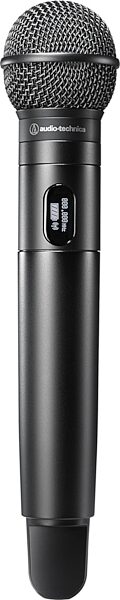

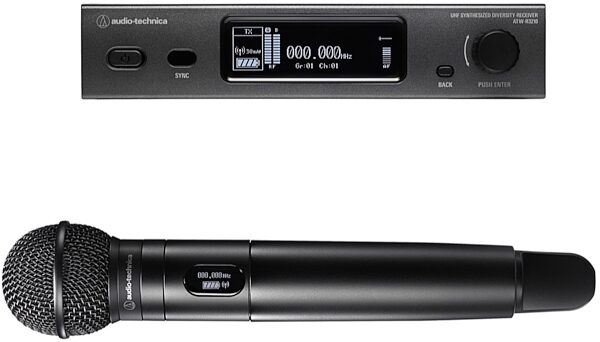

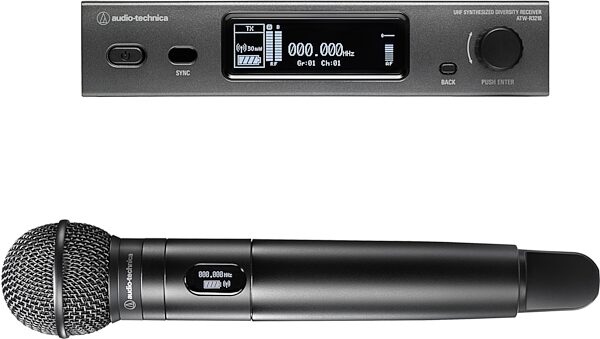

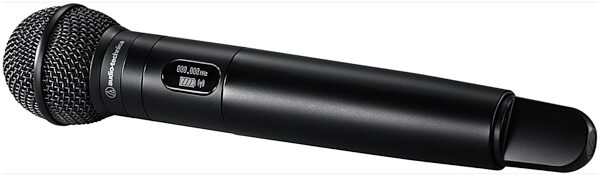

The Audio-Technica ATW-3212/C510 Fourth-Generation 3000 Series Wireless Vocal Microphone System includes a ATW-R3210 receiver and ATW-T3202 handheld transmitter with ATW-C510 cardioid dynamic microphone capsule.

The C510 Mic is equipped with newly designed internal shock mounting for reduced handling and stage noise, this cardioid dynamic workhorse is designed for smooth, natural vocal reproduction. The microphone features super-durable construction for long-lasting performance, a rare-earth magnet for high output, and a multi-stage grille design for excellent protection against plosives. Its cardioid polar pattern reduces pickup of sounds from the sides and rear, maximizing isolation from other sound sources and minimizing feedback.

Audio-Technica 3000 Series (Fourth Generation) Series

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands -- DE2 (470-530 MHz) and EE1 (530-590 MHz) -- that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the read more transmitter's multifunction button in the event of unexpected interference.

Features:

- Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470-530 MHz) and EE1 (530-590 MHz)
- Unique multifunction button on the handheld transmitter can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
- True Diversity operation reduces dropouts
- Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
- Frequency scan and IR sync functionality for ease of setup
- Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
- Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
- Antenna power available for powered antennas and other in-line RF devices
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks
- Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries (sold separately)
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
read less
Overall System Specs
- Operating Frequencies
-- Band DE2: 470125 to 529975 MHz (2395 frequencies)
-- Band EE1: 530000 to 589975 MHz (2400 frequencies)
- Minimum Frequency Step: 25 kHz
- Modulation Mode: FM
- Maximum Deviation: ATW-T3201: +/- 38 kHz (THD:10%), TW-T3202: +/- 36 kHz (THD:10%)"
- Dynamic Range:
-- ATW-T3201 Mic input: > 115 dB (A-weighted), typical
-- ATW-T3201 Inst input: > 112dB (A-weighted), typical
-- ATW-T3202: > 115 dB (A-weighted), typical"
- Total Harmonic Distortion: <10% (at 1 kHz, +/- 175 kHz deviation)
- Operating Range: 100 m (328') Open range environment with no interfering signals
- Operating Temperature Range: -5C to +45C (23F to 113F)
- Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz, ATW-T3202: 25 Hz to 16,700 Hz
-- Frequency response depends on attached microphone element
- Maximum Simultaneous Use (Recommended): 40 Channels per band

Receiver Specs
- Receiving System: True Diversity
- Image Rejection: 60 dB nominal
- RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
- Antenna Power: 12 V DC, 160 mA (combined)
- Maximum Output Level: XLR, balanced: +14 dBV, 63 mm (1/4"), unbalanced: +8 dBV
- Antenna Input: BNC-type, 50 ohms
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
- Dimensions: (W x D x H) -- 827" x 752" x 171" (W x D x H)
- Net Weight: 1100 g (388 oz), without accessories
- Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters

Handheld Pack Specs
- RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
- Spurious Emissions: Following Federal and National Regulations
- Microphone Capsule: Interchangable industry standard thread
- Batteries: Two 15V AA, not included
- Battery Life: High: 80 hours (alkaline), Low: 90 hours (alkaline), High: 90 hours (Ni-MH 1900mAh), Low: 95 hours (Ni-MH 1900mAh), Depending on battery type, usage, and environmental conditions
- Dimensions
-- ATW-T3202 (without capsule): 193 mm (760") long, 37 mm (146") maximum diameter
-- ATW-T3202/C510: 265 mm (1043") long, 54 mm (213") maximum diameter
- Net Weight
-- ATW-T3202 (without capsule): 200 g (71 oz), without batteries
-- ATW-T3202/C510: 330 g (116 oz), without batteries

Dimensions and Weight in Packaging
Band DE2 (470.125 - 529.975 MHz)
Shipping Weight: 5.75 lbs
Shipping Dimensions: 15 x 13 x 3 in
Manufacturer Part Number (MPN): AUD ATW3212C510DE2
Band EE1 (530 - 589.975 MHz)
Shipping Weight: 5.75 lbs
Shipping Dimensions: 15 x 14 x 3 in
Manufacturer Part Number (MPN): ATW-3212/C510EE1
If you have additional warranty questions, please contact the manufacturer at 330-686-2600
