zZounds Gear Experts Say...
Soup up your half-inch mount turntable with this superb cartridge, capable of 4.0 mV of output level, low distortion, and threaded inserts for easy setup.

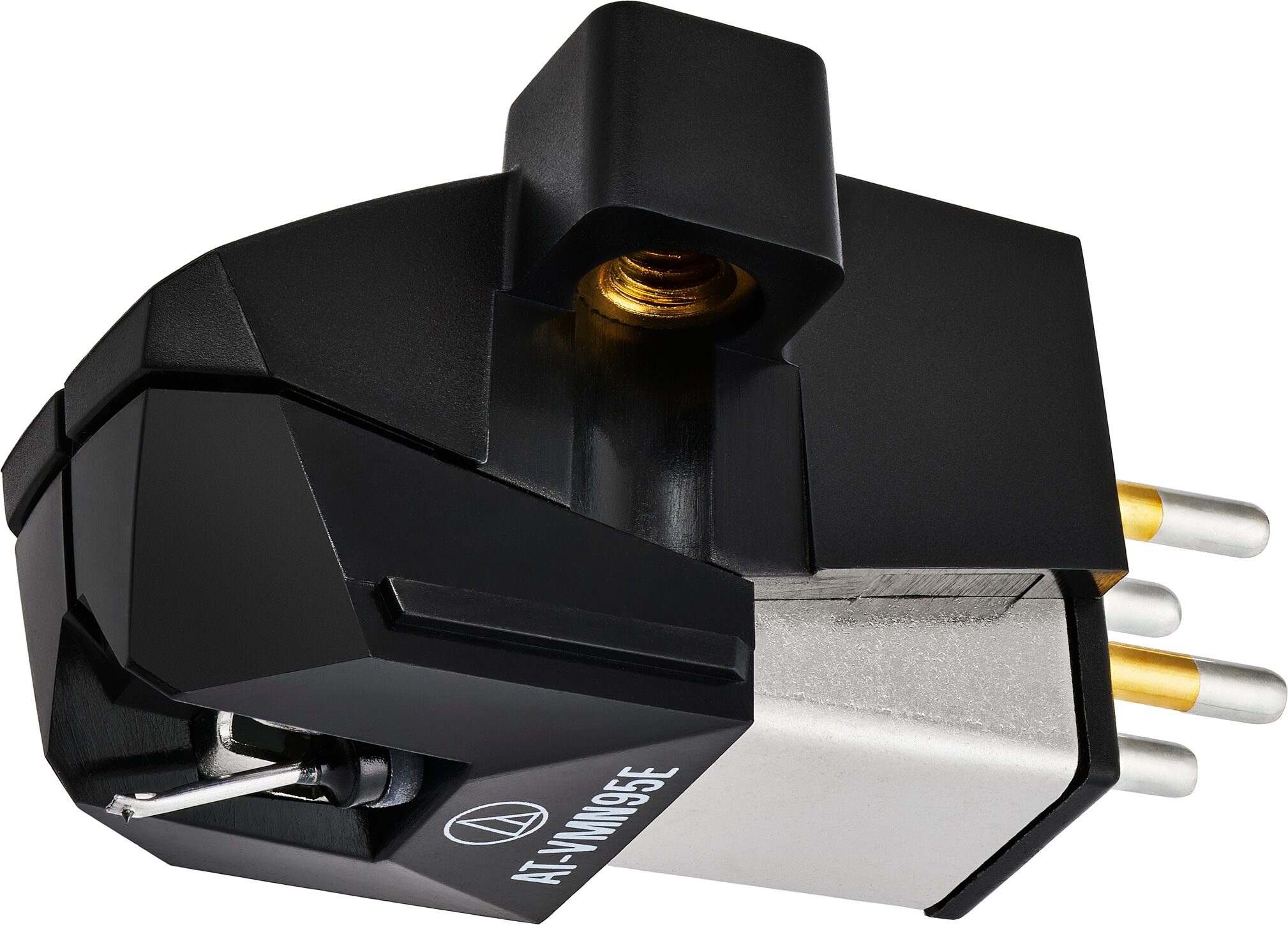

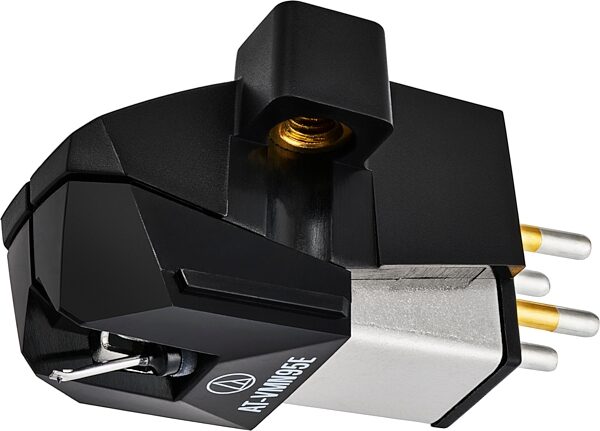

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical stylus fits half-inch mount turntables. The cartridge's special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws - no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Features:

- VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus
- Aluminum cantilever
- Specially wound coils increase output voltage
- Durable low-resonance polymer housing

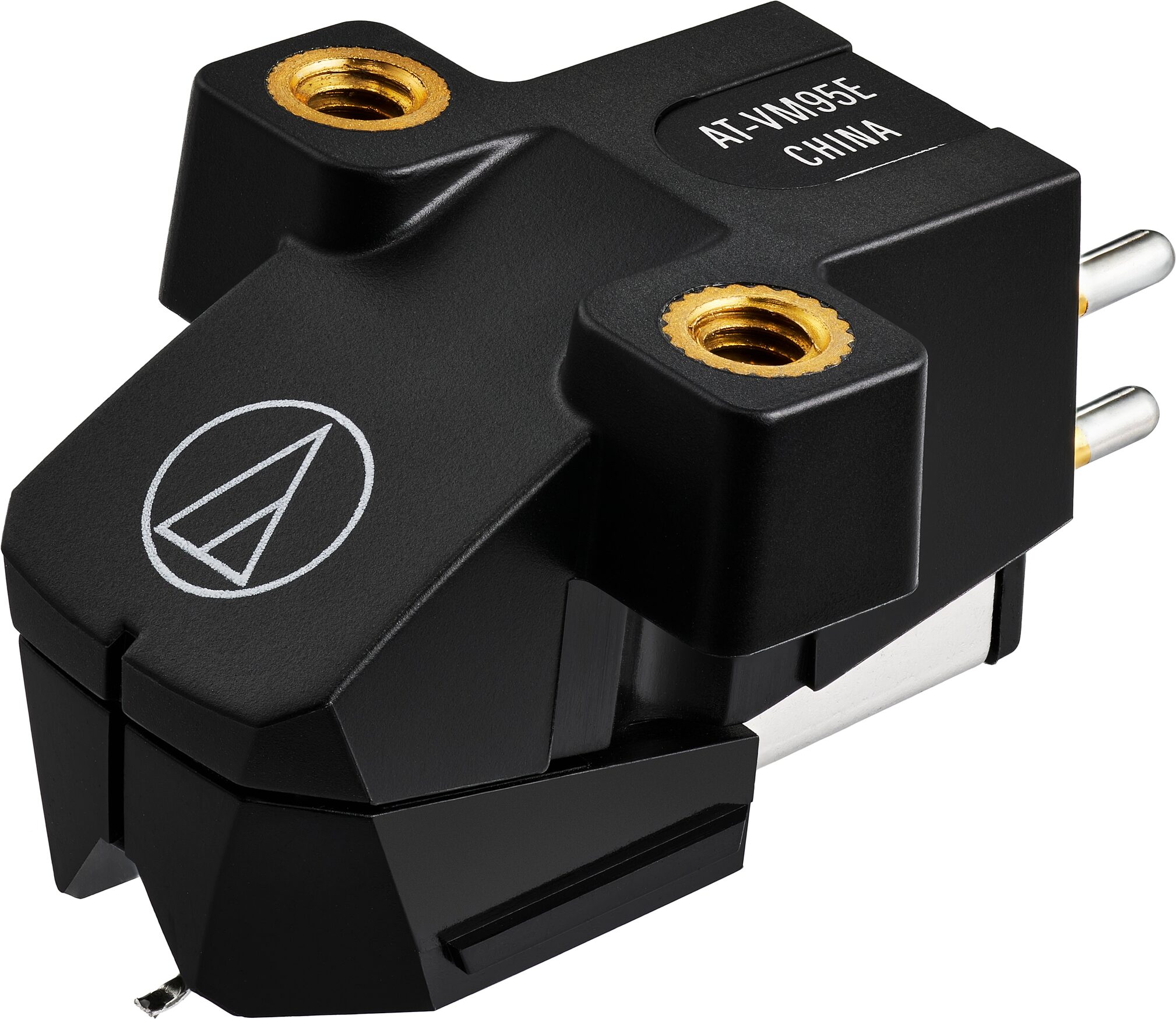

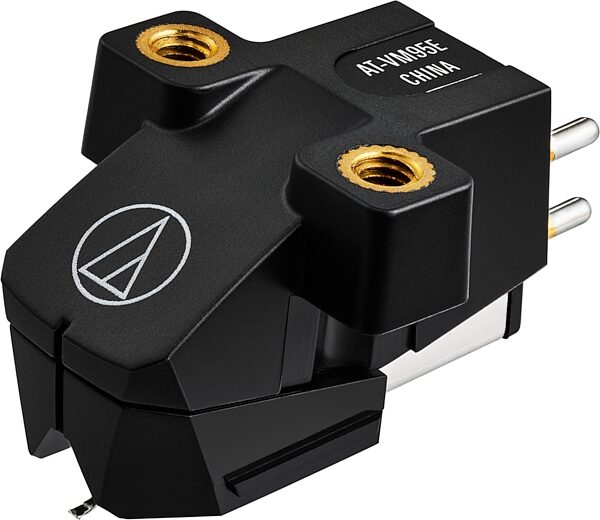

- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws - no nuts required
- Compatible with any AT-VMN95 replacement stylus
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

- Frequency Response: 20-22,000 Hz
- Channel Separation: 20 (dB at 1 kHz)
- Vertical Tracking Angle: 23*
- Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 3.3 k ohms (1 kHz)
- DC Resistance: 485 ohms
- Coil Inductance: 550 mH (1 kHz)
- Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Aluminum pipe
- Static Compliance: 17 x 10 - 6 cm / dyne
- Dynamic Compliance: 7 x 10 - 6 cm / dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 6.1g
- Dimensions: 17.2 mm (0.68"") H x 18.9 mm (0.74"") W x 28.3 mm (1.20"") D

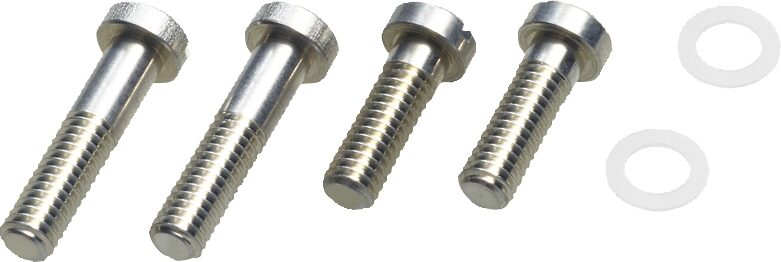

- Accessories Included:Two 11 mm installation screws, two 8 mm installation screws, two washers

- Model AT-VM95E:
- Mounting Feature: Half-inch mount
- Recommended Load Capacitance: 100 to 200 pF

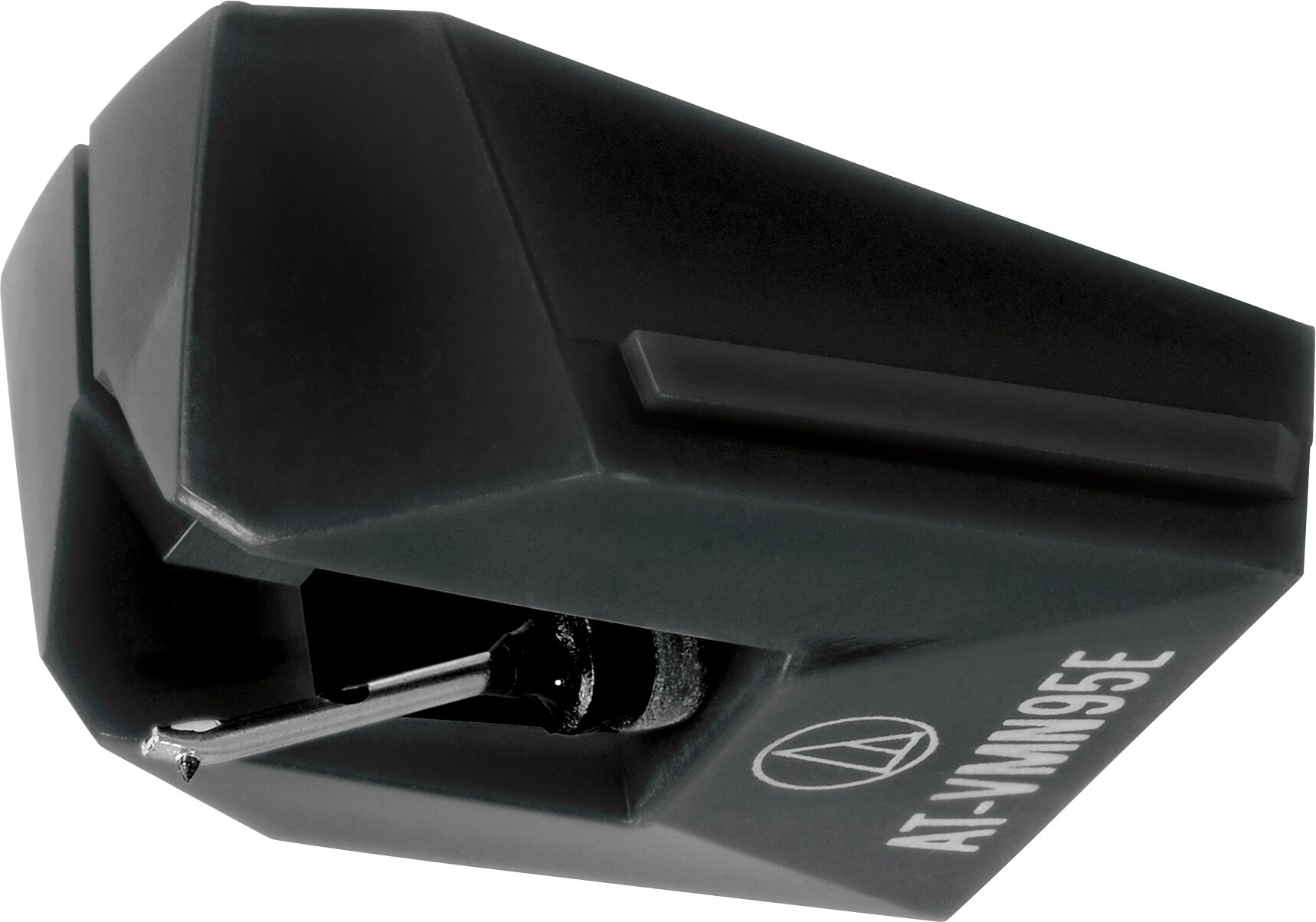

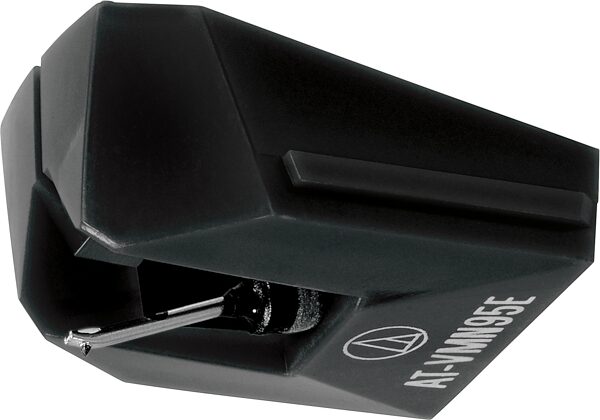

- Replacement Stylus: AT-VMN95E
- Stylus Size: 0.3 x 0.7 mil
- Type: VM Stereo Dual Magnet
- Weight: 6.1 g (0.22 oz)
- Wire: Wire Used for Coil T.P. Copper

Dimensions and Weight in Packaging

Single

  • Shipping Weight: 0.08 lbs
  • Shipping Dimensions: 4 x 3 x 1 in
  • Manufacturer Part Number (MPN): AT-VM95EBK

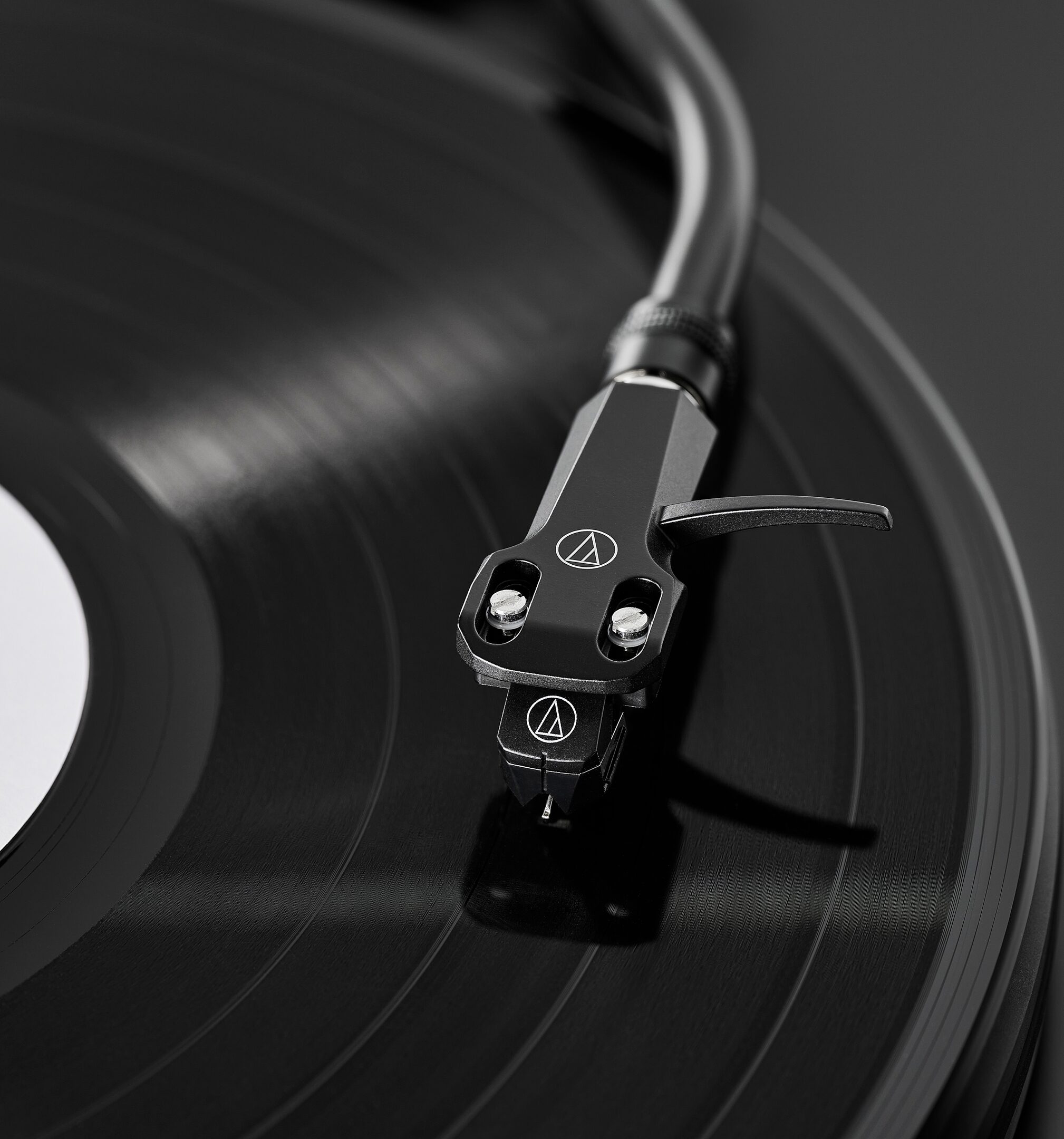

And Headshell Kit

  • Shipping Weight: 0.16 lbs
  • Shipping Dimensions: 5 x 3 x 2 in
  • Manufacturer Part Number (MPN): AT-VM95EBK/H
