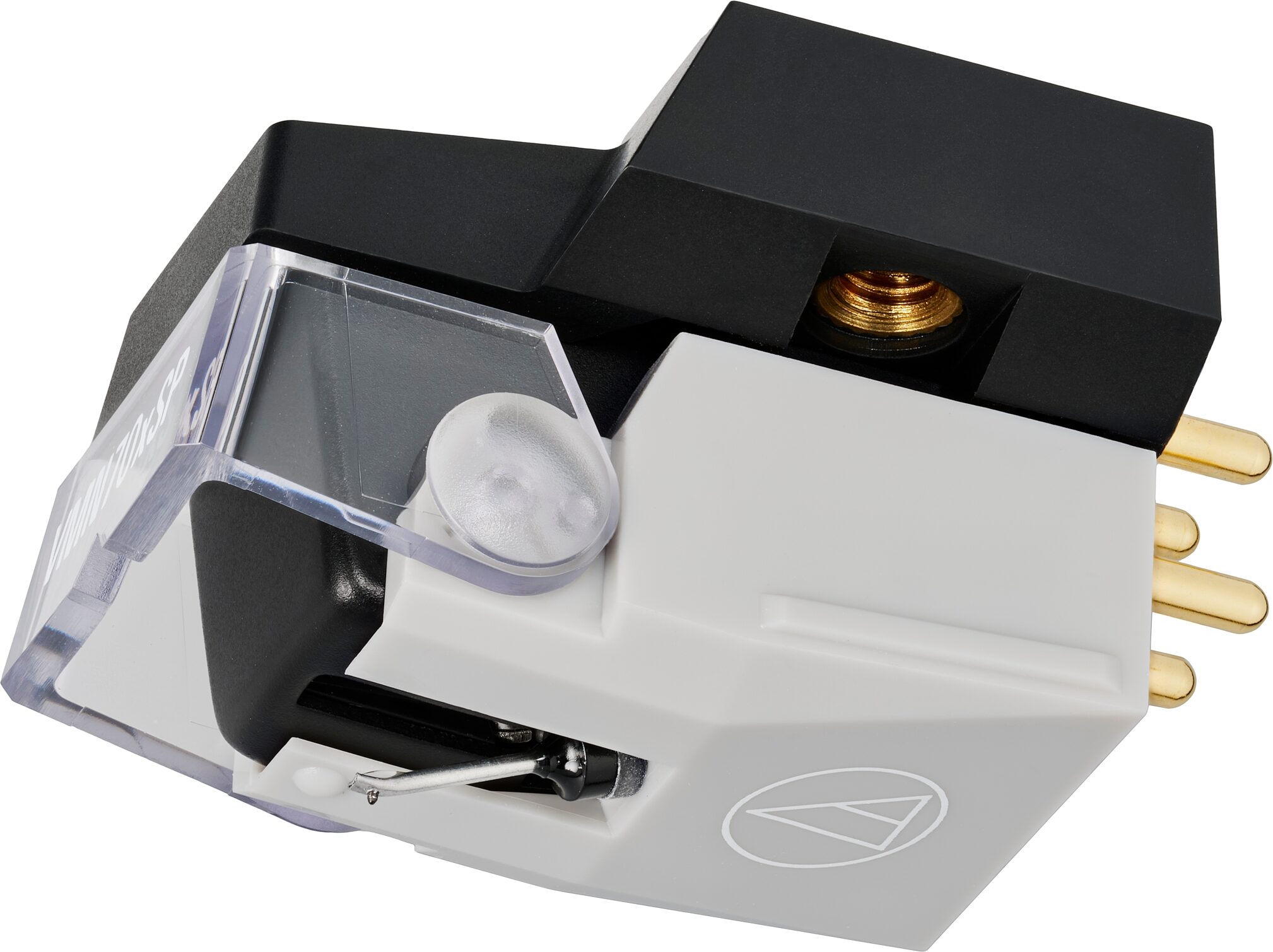

Audio-Technica AT-VM670xSP VMx Phono Cartridge SP

Overview
The AT-VM670xSP from the AT-VMx series brings new warmth and realism to Audio-Technica's premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that's alive with musical detail. This latest renewal of the line introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression. The AT-VM670xSP cartridge is designed for playing 78 RPM monaural records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused "center" sound image that stereo cartridges can't provide.
Like all VMx cartridges, the AT-VM670xSP features PCUHD(R) (Pure Copper Ultra High Drawability), resulting in richer, more nuanced audio reproduction. The number of coil turns has also been slightly reduced to improve transient response, allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy. The stylus's 3.0 mil curvature radius makes it an excellent choice for playing 78s from many different eras.
We've also added threaded inserts to the body of each VMx cartridge, making it easier to mount (just two screws required), especially to the integrated tonearms common on high-end turntables. And a new V-cut in the stylus's flip-up protector provides quick reference of the stylus position, serving as a guide when lowering the stylus onto a record.
The replacement stylus of this product… read more is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes. For more details, visit our Audio-Technica website. Two Cartridge installation screws (5.0 mm (0.20")) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box. For product improvement, the product is subject to modification without notice.
- 3.0 mil conical bonded stylus designed for playing 78 RPM records
- Paratoroidal coils improve generating efficiency for enhanced transient response
- PCUHD (Pure Copper Ultra High Drawability) coils - and fewer coil turns - deliver highly responsive, three-dimensional sound reproduction with excellent transient response
- Threaded inserts make cartridge easier to mount, especially to integrated tonearms
- V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
- Durable low-resonance polymer housing
- Aluminum cantilever
- Mono body terminating left and right channels reduces surface noise
- Compatible with any turntable headshell that accepts 1/2" cartridges
read less
Like all VMx cartridges, the AT-VM670xSP features PCUHD(R) (Pure Copper Ultra High Drawability), resulting in richer, more nuanced audio reproduction. The number of coil turns has also been slightly reduced to improve transient response, allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy. The stylus's 3.0 mil curvature radius makes it an excellent choice for playing 78s from many different eras.
We've also added threaded inserts to the body of each VMx cartridge, making it easier to mount (just two screws required), especially to the integrated tonearms common on high-end turntables. And a new V-cut in the stylus's flip-up protector provides quick reference of the stylus position, serving as a guide when lowering the stylus onto a record.
The replacement stylus of this product… read more is used for AT-VMx series products. In this series, we offer replacement styli with different stylus tip structures and point shapes. For more details, visit our Audio-Technica website. Two Cartridge installation screws (5.0 mm (0.20")) x 2 are used to secure the cartridge in the box at the time of purchase. Be sure to keep and not lose these after removing the cartridge from the box. For product improvement, the product is subject to modification without notice.
Features:
- AT-VMx dual moving magnet cartridge with 3.0 mil conical bonded stylus- 3.0 mil conical bonded stylus designed for playing 78 RPM records
- Paratoroidal coils improve generating efficiency for enhanced transient response
- PCUHD (Pure Copper Ultra High Drawability) coils - and fewer coil turns - deliver highly responsive, three-dimensional sound reproduction with excellent transient response
- Threaded inserts make cartridge easier to mount, especially to integrated tonearms
- V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
- Durable low-resonance polymer housing
- Aluminum cantilever
- Mono body terminating left and right channels reduces surface noise
- Compatible with any turntable headshell that accepts 1/2" cartridges
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
Model: AT-VM670xSP Dual Moving Magnet Cartridge For 78 rpm SP Record
Type: VM
Frequency response: 20 to 20,000 Hz
Output voltage: 4.7 mV (1 kHz, 5 cm/sec.)
Horizontal/vertical output ratio: 20 dB (1 kHz)
Tracking force: 4.5 to 5.5 g (5.0 g standard)
Coil impedance: 1.6 k ohms (1 kHz)
DC resistance: 375 ohms
Recommended load impedance: 47 k ohms
Recommended load capacitance: 150 to 250 pF
Coil inductance: 240 mH (1 kHz)
Static compliance: 23 \0xD7 10-6 cm/dyne
Stylus: Conical bonded (3.0 mil)
Stylus curvature radius:> 3.0 mil
Cantilever: Aluminum pipe
Vertical tracking angle: 20*
Dimensions: 28.0 mm (1.1") \0xD7 18.3 mm (0.72") \0xD7 17.6 mm (0.69") (H \0xD7 W \0xD7 D)
Threaded hole: M2.6 \0xD7 2
Weight: 7.2 g (0.25 oz)
Replacement stylus (sold separately): (1) AT-VMN70xSP
Accessories: (2) .Cartridge installation screws (M2.6) (10.0 mm (0.39") \0xD7 2, 8.0 mm (0.31") \0xD7 2, 5.0mm (0.20") \0xD7 2).Washer \0xD7 2*1
Type: VM
Frequency response: 20 to 20,000 Hz
Output voltage: 4.7 mV (1 kHz, 5 cm/sec.)
Horizontal/vertical output ratio: 20 dB (1 kHz)
Tracking force: 4.5 to 5.5 g (5.0 g standard)
Coil impedance: 1.6 k ohms (1 kHz)
DC resistance: 375 ohms
Recommended load impedance: 47 k ohms
Recommended load capacitance: 150 to 250 pF
Coil inductance: 240 mH (1 kHz)
Static compliance: 23 \0xD7 10-6 cm/dyne
Stylus: Conical bonded (3.0 mil)
Stylus curvature radius:> 3.0 mil
Cantilever: Aluminum pipe
Vertical tracking angle: 20*
Dimensions: 28.0 mm (1.1") \0xD7 18.3 mm (0.72") \0xD7 17.6 mm (0.69") (H \0xD7 W \0xD7 D)
Threaded hole: M2.6 \0xD7 2
Weight: 7.2 g (0.25 oz)
Replacement stylus (sold separately): (1) AT-VMN70xSP
Accessories: (2) .Cartridge installation screws (M2.6) (10.0 mm (0.39") \0xD7 2, 8.0 mm (0.31") \0xD7 2, 5.0mm (0.20") \0xD7 2).Washer \0xD7 2*1
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 0.11 lbs
- Shipping Dimensions: 4 x 3 x 2 in
- Manufacturer Part Number (MPN): AT-VM670xSP
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 330-686-2600 x5000
Email: audio-solutions@atus.com
Phone: 330-686-2600 x5000
Email: audio-solutions@atus.com
