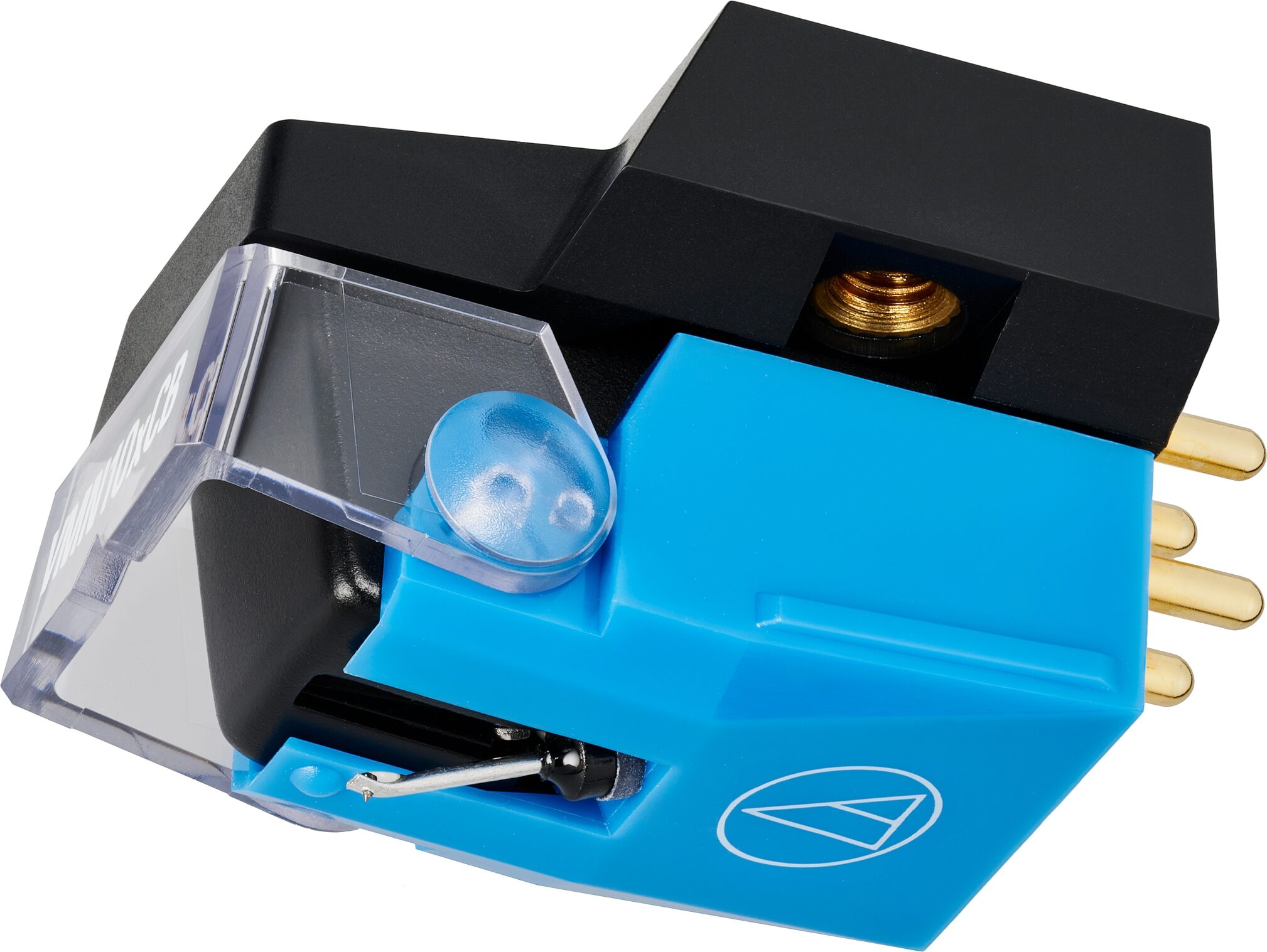

Audio-Technica AT-VM610xMONO Dual Moving Magnet Cartridge

Overview
The AT-VM610xMONO from the AT-VMx series brings new warmth and realism to Audio-Technica's premium dual moving magnet (MM) cartridge line, delivering an expansive soundstage that's alive with musical detail. This latest renewal of the line introduces material and design changes to further refine the VM sound, offering responsive playback that is especially sensitive to the dynamism of musical expression.
As its name indicates, the AT-VM610xMONO is designed for playing mono records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused "center" sound image that stereo cartridges can't provide. Like all VMx cartridges, the AT-VM610xMONO features PCUHD(R) (Pure Copper Ultra High Drawability), resulting in richer, more nuanced audio reproduction. The number of coil turns has also been slightly reduced to improve transient response, allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy.
The 0.6 mil conical bonded stylus of the AT-VM610xMONO tracks the center of the record groove for reliable performance and excellent fidelity. We've also added threaded inserts to the body of each VMx cartridge, making it easier to mount (just two screws required), especially to the integrated tonearms common on high-end turntables. And a new V-cut in the stylus's flip-up protector provides quick reference of the stylus position, serving as a guide when lowering the stylus onto a… read more record.
- 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity
- Paratoroidal coils improve generating efficiency for enhanced transient response
- PCUHD (Pure Copper Ultra High Drawability) coils - and fewer coil turns - deliver highly responsive, three-dimensional sound reproduction with excellent transient response
- Threaded inserts make cartridge easier to mount, especially to integrated tonearms
- V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
- Durable low-resonance polymer housing
- Aluminum cantilever
- Mono body terminating left and right channels reduces surface noise
- Compatible with any turntable headshell that accepts 1/2" cartridges
read less
As its name indicates, the AT-VM610xMONO is designed for playing mono records. The dual magnets in this cartridge are internally connected to reduce record noise and obtain a highly focused "center" sound image that stereo cartridges can't provide. Like all VMx cartridges, the AT-VM610xMONO features PCUHD(R) (Pure Copper Ultra High Drawability), resulting in richer, more nuanced audio reproduction. The number of coil turns has also been slightly reduced to improve transient response, allowing the cartridge to react more quickly to signal changes for stunningly clean music with lifelike immediacy.
The 0.6 mil conical bonded stylus of the AT-VM610xMONO tracks the center of the record groove for reliable performance and excellent fidelity. We've also added threaded inserts to the body of each VMx cartridge, making it easier to mount (just two screws required), especially to the integrated tonearms common on high-end turntables. And a new V-cut in the stylus's flip-up protector provides quick reference of the stylus position, serving as a guide when lowering the stylus onto a… read more record.
Features:
- AT-VMx dual moving magnet cartridge with 0.6 mil conical bonded stylus- 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity
- Paratoroidal coils improve generating efficiency for enhanced transient response
- PCUHD (Pure Copper Ultra High Drawability) coils - and fewer coil turns - deliver highly responsive, three-dimensional sound reproduction with excellent transient response
- Threaded inserts make cartridge easier to mount, especially to integrated tonearms
- V-cut in the flip-up stylus protector shows stylus position, serving as a guide for lowering the stylus onto a record
- Durable low-resonance polymer housing
- Aluminum cantilever
- Mono body terminating left and right channels reduces surface noise
- Compatible with any turntable headshell that accepts 1/2" cartridges
WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.
Specs
Model: AT-VM520xEB
Type: VM - Dual Moving Magnet Stereo Cartridge
Frequency Response: 20 to 20,000 Hz
Output Voltage: 5.0 mV (1 kHz, 5 cm/sec.)
Channel Separation: 24 dB (1 kHz)
Output Balance: 1.5 dB (1 kHz)
Tracking Force: 1.8 to 2.2 g (2.0 g standard)
Coil Impedance: 3.2 k ohms (1 kHz)
DC Resistance: 750 ohms
Recommended Load Impedance: 47 k ohms
Recommended Load Capacitance: 150 to 250 pF
Coil Inductance: 480 mH (1 kHz)
Static Compliance 23 \0xD7 10-6 cm/dyne
Dynamic Compliance: 7 \0xD7 10-6 cm/dyne (100 Hz)
Stylus: Elliptical Bonded
Stylus Curvature Radius: 0.3 \0xD7 0.7 mil
Cantilever: Aluminum Pipe
Vertical Tracking Angle: 20*
Dimensions: 67.4 mm (2.7") \0xD7 18.5 mm (0.73") \0xD7 21.5 mm (0.85") (H \0xD7 W \0xD7 D)
Threaded hole: M2.6 \0xD7 2
Weight: 18.3 g (0.65 oz)
Replacement Stylus (sold separately): (1) AT-VMN20xEB
Type: VM - Dual Moving Magnet Stereo Cartridge
Frequency Response: 20 to 20,000 Hz
Output Voltage: 5.0 mV (1 kHz, 5 cm/sec.)
Channel Separation: 24 dB (1 kHz)
Output Balance: 1.5 dB (1 kHz)
Tracking Force: 1.8 to 2.2 g (2.0 g standard)
Coil Impedance: 3.2 k ohms (1 kHz)
DC Resistance: 750 ohms
Recommended Load Impedance: 47 k ohms
Recommended Load Capacitance: 150 to 250 pF
Coil Inductance: 480 mH (1 kHz)
Static Compliance 23 \0xD7 10-6 cm/dyne
Dynamic Compliance: 7 \0xD7 10-6 cm/dyne (100 Hz)
Stylus: Elliptical Bonded
Stylus Curvature Radius: 0.3 \0xD7 0.7 mil
Cantilever: Aluminum Pipe
Vertical Tracking Angle: 20*
Dimensions: 67.4 mm (2.7") \0xD7 18.5 mm (0.73") \0xD7 21.5 mm (0.85") (H \0xD7 W \0xD7 D)
Threaded hole: M2.6 \0xD7 2
Weight: 18.3 g (0.65 oz)
Replacement Stylus (sold separately): (1) AT-VMN20xEB
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 0.11 lbs
- Shipping Dimensions: 4 x 3 x 2 in
- Manufacturer Part Number (MPN): AT-VM610xMONO
