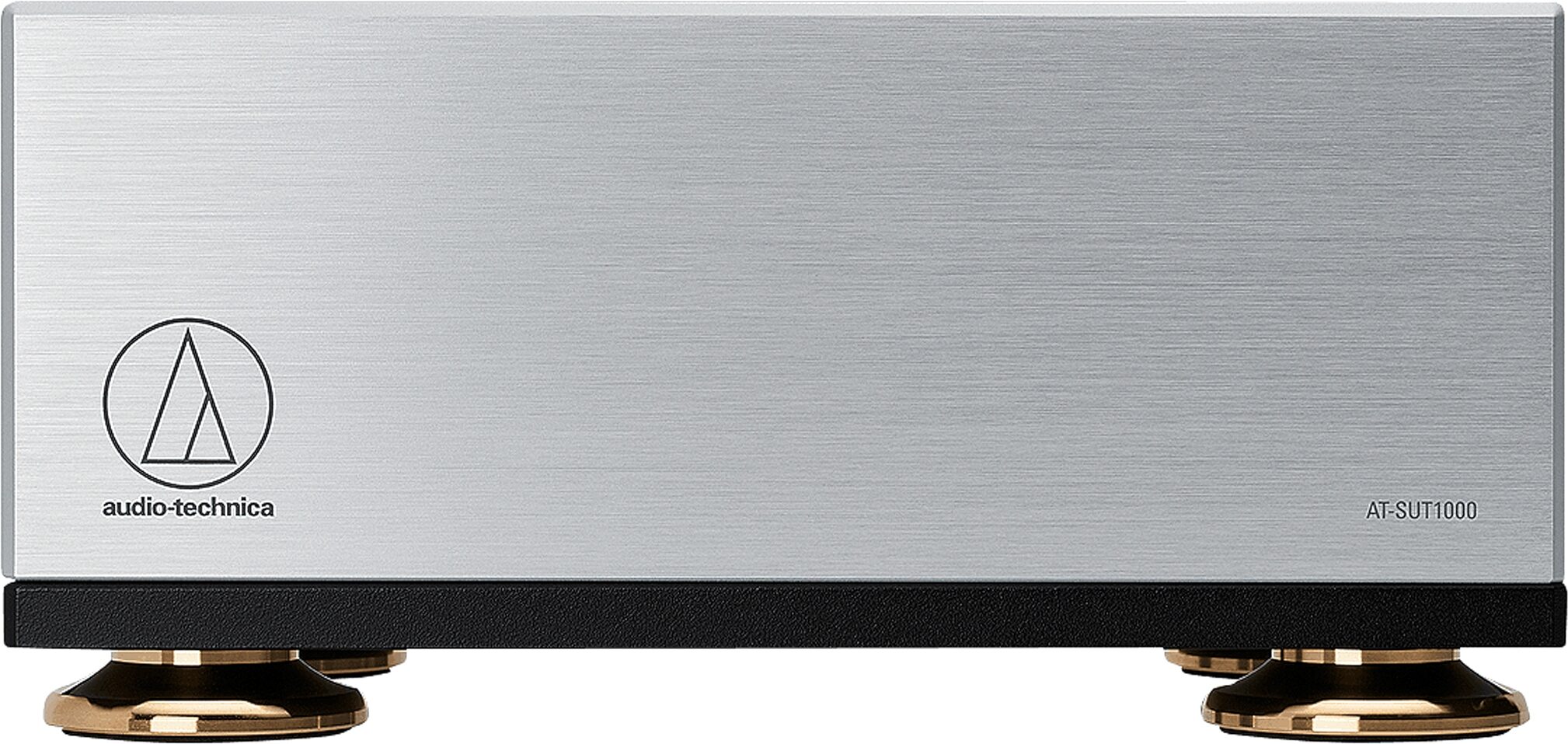

Audio-Technica AT-SUT1000 MC Step-Up Transformer

This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
Audio-Technica AT-SUT1000 MC Step-Up Transformer, USED, Warehouse Resealed, Action Position Back
Audio-Technica AT-SUT1000 MC Step-Up Transformer, USED, Warehouse Resealed, Action Position Back
Audio-Technica AT-SUT1000 MC Step-Up Transformer, USED, Warehouse Resealed, Action Position Back Audio-Technica AT-SUT1000 MC Step-Up Transformer, USED, Warehouse Resealed, Action Position Back
Get a natural, unaltered sound for your home hi-fi vinyl setup. The Audio-Technica AT-SUT1000 MC step-up transformer provides high headroom and low noise.

Employing the finest materials and production methods, the AT-SUT1000 MC step-up transformer is built to deliver unaltered sound from a moving coil phono cartridge for the best analog listening experience possible. It features a special hand-wound, large-core transformer that is capable of a wide range of voltages, making it ideal for stepping up low-impedance moving coil cartridges. The transformer maintains a balanced signal from the moving-coil cartridge through to the phono preamp. Or users can opt for an unbalanced connection, if desired. The AT-SUT1000 utilizes HANENITE rubber mounting to suppress vibrations and permalloy magnetic shielding to block external noise.

- Frequency Response:
- 10 - 200 kHz (-3 dB to +1 dB at 3.0 ohms)
- 10 - 60 kHz (-3 dB to +1 dB at 10 ohms)
- 10 to 40 kHz (-3 dB to +1 dB at 17 ohms)
- Input/Output: Stereo right/left

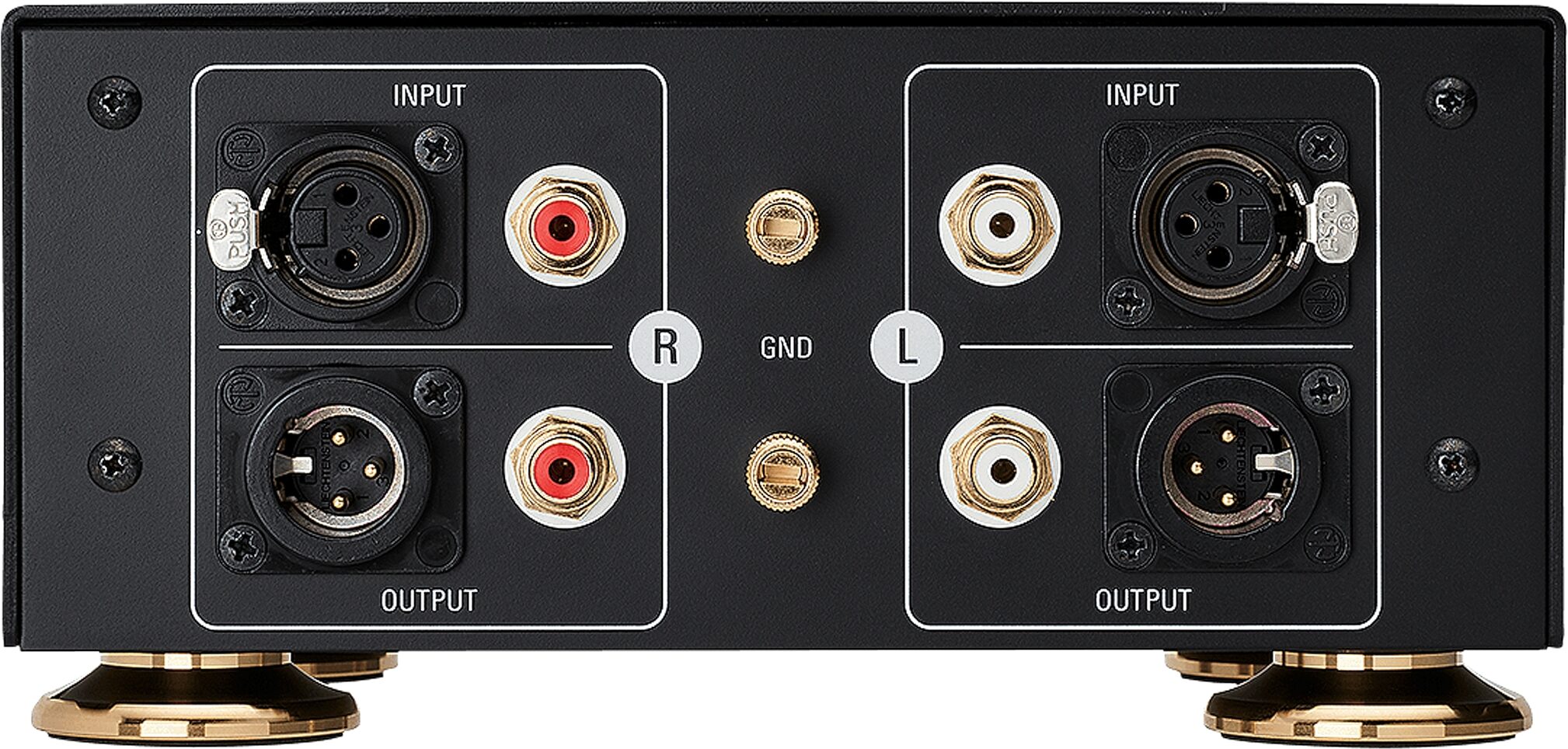

- Input/Output Terminal: RCA or XLR (2: hot)
- Step-Up Ratio: 22 dB
- Supported Cartridge: 2 to 17 ohms
- Recommended Load Impedance: 47,000 ohms
- Channel Balance: 0.5 dB or less
- Channel Separation: 100 dB or more
- Dimensions: 92 mm (3.6") H x 196 mm (7.7") W x 150 mm (5.9") D, excluding protrusions
- Weight Approx.: 5 kg (11 lbs.)
- Accessories: 1.0 m (3.3') ground wire
Dimensions and Weight in Packaging
Base Item
Shipping Weight: 12.25 lbs
Shipping Dimensions: 11 x 10 x 7 in
Manufacturer Part Number (MPN): AT-SUT1000
Warehouse Resealed, USED
Shipping Weight: 12.25 lbs
Shipping Dimensions: 11 x 10 x 7 in
Manufacturer Part Number (MPN): AT-SUT1000
