Audio-Technica AT898cW Cardioid Condenser Lavalier (Microphone Only)
No longer available at zZounds


zZounds Gear Experts Say...

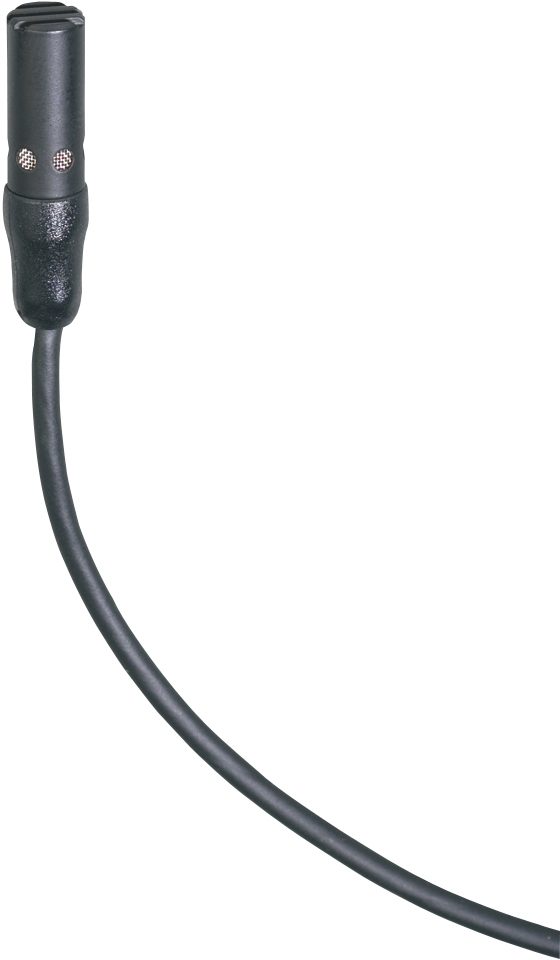

Just 5 mm in diameter, this lav microphone is a discreet choice. This model features a cW-style locking 4-pin connector for A-T UniPak wireless bodypacks.
Overview
Designed to be worn as a lavalier or hidden in clothing, Audio-Technica's discreet-design cardioid AT898 offers maximum intelligibility, accurate voice reproduction and unobtrusive appearance for use in houses of worship, broadcast studios, theaters, etc. The AT898CW is terminated with locking 4-pin connector for Audio Technica A-T UniPak wireless systems. Its switchable low-frequency roll-off reduces sensitivity to popping. Battery or phantom power.
- Low-profile design (a mere 5 mm in diameter) is ideal for applications requiring minimum visibility
- Operates on battery or phantom power
- Extensive array of provided accessories includes a clothing clip, viper clip, magnet clip and lanyard (black models only), windscreens, interchangeable single and double mic holders
- Accessories available separately
- RoHS compliant -- free from all substances specified in the EU directive on hazardous substances
Features:
- Maximum intelligibility and clean, accurate reproduction for lecturers, stage and television talent, and houses of worship- Low-profile design (a mere 5 mm in diameter) is ideal for applications requiring minimum visibility
- Operates on battery or phantom power
- Extensive array of provided accessories includes a clothing clip, viper clip, magnet clip and lanyard (black models only), windscreens, interchangeable single and double mic holders
- Accessories available separately
- RoHS compliant -- free from all substances specified in the EU directive on hazardous substances
Specs
Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid
Freq. Response: 200-15,000 Hz
LF Roll-Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: Phantom: -43 dB (7.0 mV) re 1V at 1 Pa
Battery: -46 dB (5.0 mV) re 1V at 1 Pa
Impedance: Phantom: 200 ohms
Battery: 250 ohms
Max. Input Sound Level: Phantom: 131 dB SPL, 1 kHz at 1% T.H.D.
Battery: 115 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range (typical): Phantom: 100 dB, 1 kHz at Max SPL
Battery: 84 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 63 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 2 mA typical
Battery Type: 1.5V AA/UM3
Battery Current: / LIFE 0.4 mA / 1200 hours typical (alkaline)
Switch: Flat, roll-off (recessed)
Weight (Mic): 0.03 oz (0.9 g)
Dimensions (Microphone): 0.91 in. (23.0 mm) long, 0.21 in. (5.3 mm) diameter

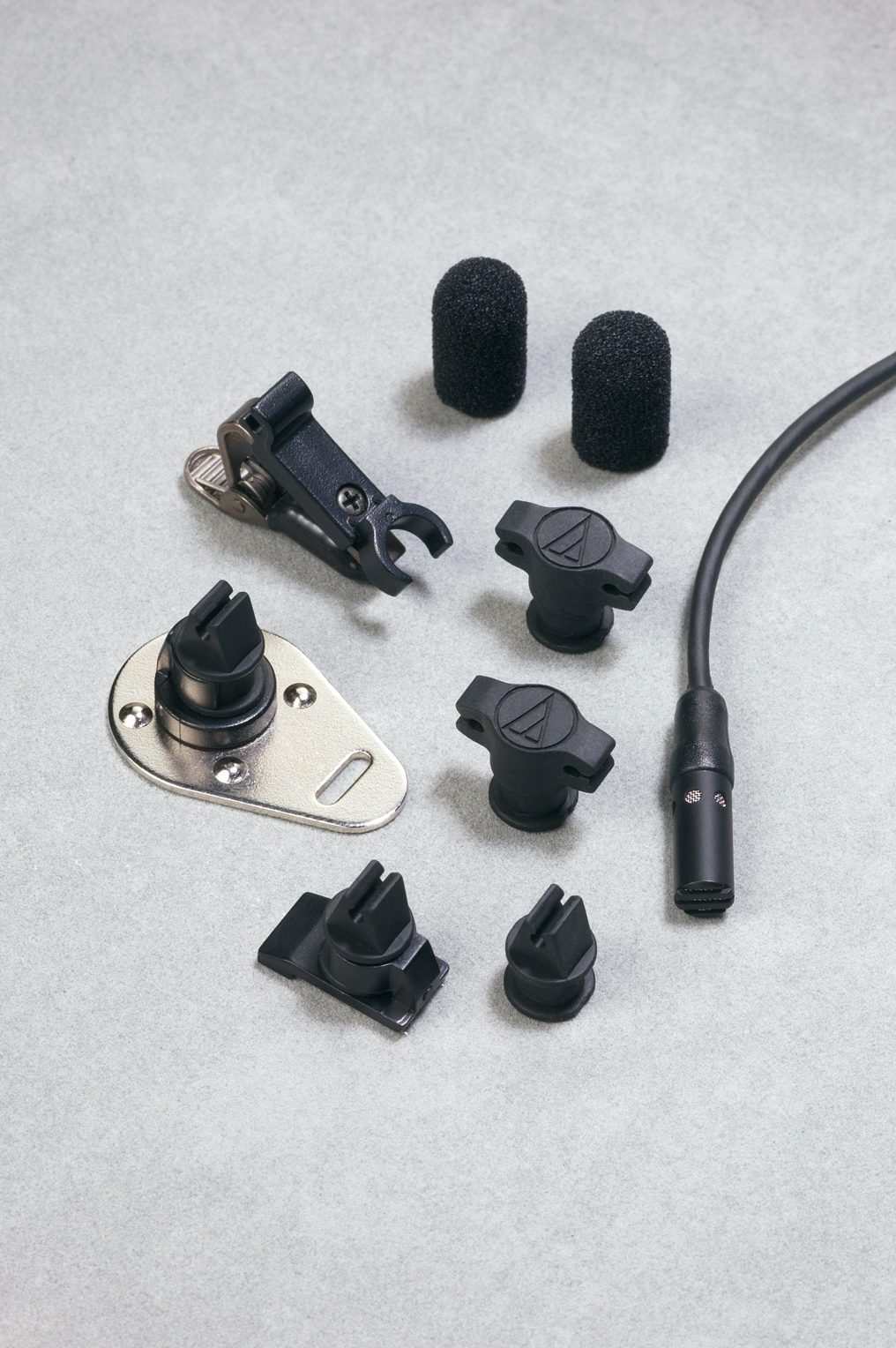

Accessories Furnished: AT8439 cable clip; clothing clip base; viper clip base; magnet clip base and plate with lanyard; three single mic holders; two double mic holders; two windscreens; battery; protective carrying case
Audio Technica Case Style: M30
Polar Pattern: Cardioid
Freq. Response: 200-15,000 Hz
LF Roll-Off: 80 Hz, 12 dB/octave
Open Circuit Sensitivity: Phantom: -43 dB (7.0 mV) re 1V at 1 Pa
Battery: -46 dB (5.0 mV) re 1V at 1 Pa
Impedance: Phantom: 200 ohms
Battery: 250 ohms
Max. Input Sound Level: Phantom: 131 dB SPL, 1 kHz at 1% T.H.D.
Battery: 115 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range (typical): Phantom: 100 dB, 1 kHz at Max SPL
Battery: 84 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio: 63 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 11-52V DC, 2 mA typical
Battery Type: 1.5V AA/UM3
Battery Current: / LIFE 0.4 mA / 1200 hours typical (alkaline)
Switch: Flat, roll-off (recessed)
Weight (Mic): 0.03 oz (0.9 g)
Dimensions (Microphone): 0.91 in. (23.0 mm) long, 0.21 in. (5.3 mm) diameter
Accessories Furnished: AT8439 cable clip; clothing clip base; viper clip base; magnet clip base and plate with lanyard; three single mic holders; two double mic holders; two windscreens; battery; protective carrying case
Audio Technica Case Style: M30
