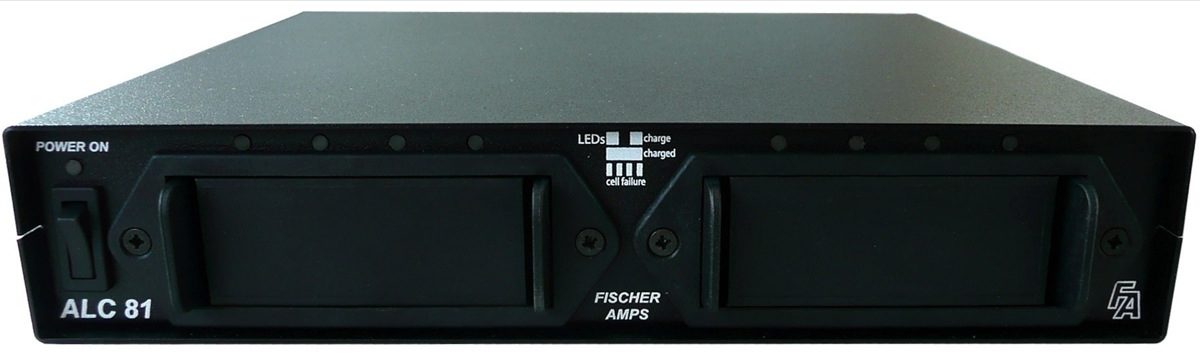

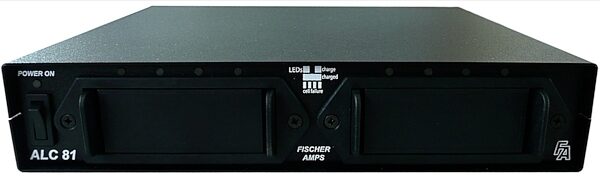

Fischer Amps ALC81 Half Rack AA and AAA Battery Charger

No longer available at zZounds

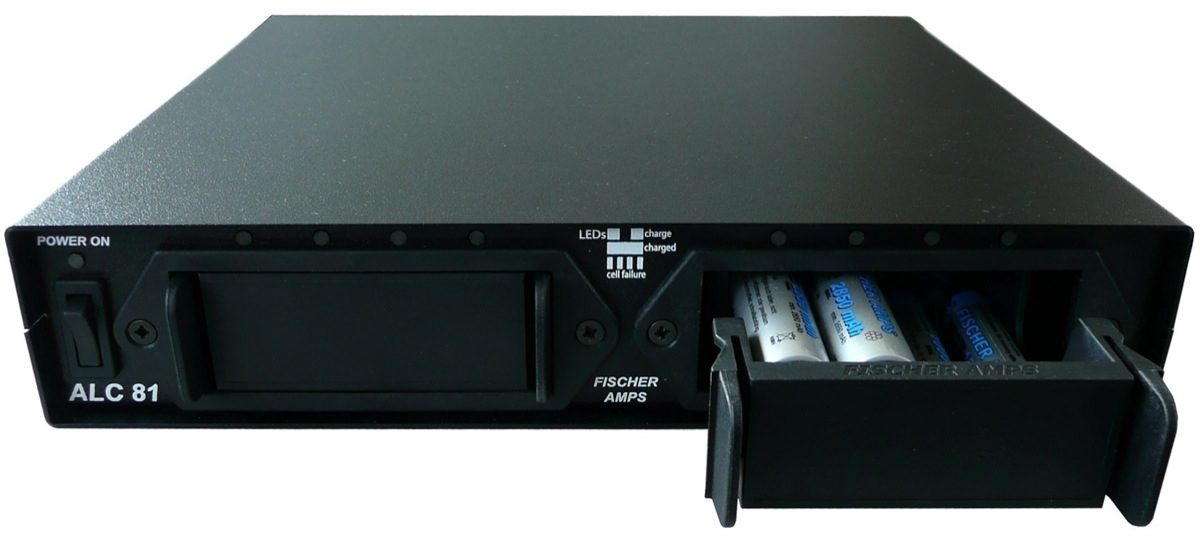

Fischer Amps ALC81 Half Rack AA and AAA Battery Charger, Open

zZounds Gear Experts Say...

Work with confidence thanks to the rack-mountable ALC81 AA/AAA battery charger. It fuels batteries quickly and effectively thanks to its current detection and faulty cell diagnosis.

Overview

The ALC 81's new electronics charges AA or AAA batteries individually and offers a higher current of 800mAh for AA batteries with shorter charging times as well as an automatic detection of AAA batteries with a charging current of 400mAh. Fischer Amps have developed a new battery compartment for either AA or AAA batteries. The handling of the battery drawers has been considerably improved; they can be opened much easier.

Features:

- 9.5-inch steel housing 1U (44mm)
- All 9.5-inch chargers can be mounted in a 19-inch rack, individually or two chargers next to each other
- Fast charging in 2 to 3 hours (with empty batteries)
- -deltaV cutoff with micro-controlled electronics
- Separate supervision per charging module
- No memory effect when using NiMH rechargeable batteries
- Faulty cells detection
- Trickle charging after fast charging
- Charging status indicator per module
- Integrated switching power supply 90V to 250V AC without switchover

Specs

- Operating voltage / frequency: 90 250V AC / 50/60 Hz (automatic voltage adjustment)
- Max. input power: 50 W
- Type and number of batteries: 8 pcs AA batteries (2850mAh) or AAA batteries (1000mAh) individual charging
- Charging current max.: 8 x 800mA (AA), 8 x 400mA (AAA) automatic detection
- Charging time max.: AA batteries 2850mAh 240 min, AAA batteries 1000mAh 150 min
- Dimensions (WxHxD): 219 x 44 x 195mm
- Weight (excluding batteries): 1.8 kg
