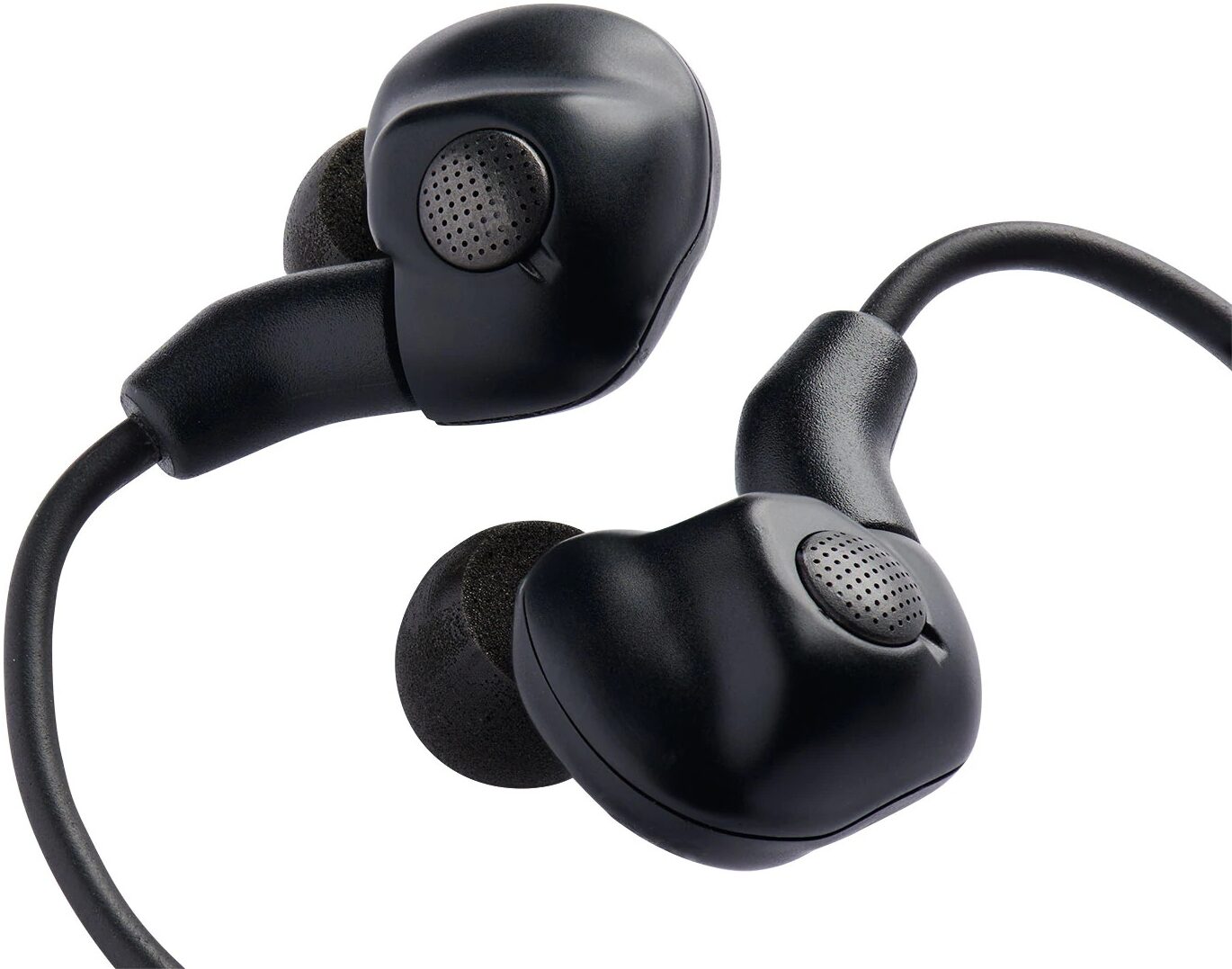

ASI Audio 3DME Bluetooth Active Ambient In-Ear Monitor Headphones

Start hearing in 3D! ASI Audio's 3DME Bluetooth in-ear monitors feature Active Ambient technology and binaural mics to capture the sound of your environment.

Overview

The ASI Audio 3DME Bluetooth IEM system is a completely tunable in-ear monitor system that lets you hear live room sound along with your in-ear mix! Get spectacular sound you control in live, studio, or streaming performances with the ASI Audio app and miniature microphones embedded in each earpiece. Hear your music, the audience and the room as never before.

True 3D ambient audio.

The ASI Audio 3DME IEM is embedded with binaural 3D mics to bring the full range of room ambience to your ears as a discrete, controllable signal. So in addition to an enhanced monitor mix, you hear your band mates and audience in a soundstage of your choosing.

Keep your ears out of the red

Discerning artists are proactive about hearing health. 3DME technology was developed and patented by Dr. Michael Santucci of Sensaphonics, the audiologist of choice for some of the world's top artists and performers.

Fluff from Riffs, Beards, and Gear reviews the 3DME system:

Specs

- Frequency Response: 20 Hz - 20 kHz
- Microphone Input Overload: 135 dB-SPL
- Maximum Output: 500 Hz, 122 dB-SPL
- Microphone Equivalent Input Noise: 27 dBA-SPL
- Monitor Equivalent Input Noise: -104 dBV(A) (EQ disengaged), -101 dBV(A) (EQ engaged)
- Output Noise: 20 dBA-SPL (EQ disengaged), 23 dBA-SPL (EQ engaged)
- Acoustic Insertion gain: Off, -24 dB to +12 dB in 16 steps
- Monitor Equivalent Input Noise: -104 dBV(A) (EQ disengaged), -101 dBV(A) (EQ engaged)
- Output Noise: 20 dBA-SPL (EQ disengaged), 23 dBA-SPL (EQ engaged)
- Acoustic Insertion gain: Off, -24 dB to +12 dB in 16 steps
- Monitor Sensitivity: 500 Hz, 102 dB-SPL for -20 dBV (100 mVrms) input
- Monitor Input Impedance: 10 kOhm
- Limiter Type: Adaptive attack, average responding, frequency selective
- Limiter Threshold: 84 dBA to 105 dBA in 8 steps and Off
- Maximum Limiter Gain Reduction: 20 dB
- Multiband EQ: +/-12 dB at 60, 140, 330, 770, 1800, 4300, 10000 Hz
- Latency: 0 (EQ disengaged), 350 usec (EQ engaged)
- Operating Time (from full charge): >7 hours
- Charge Time (fully depleted battery): ~4 hours
- Battery State-of-Charge Indication: Four LEDs, with flashing low battery warning
- Wireless Connectivity: Bluetooth
- Warranty: 1-year Limited Warranty

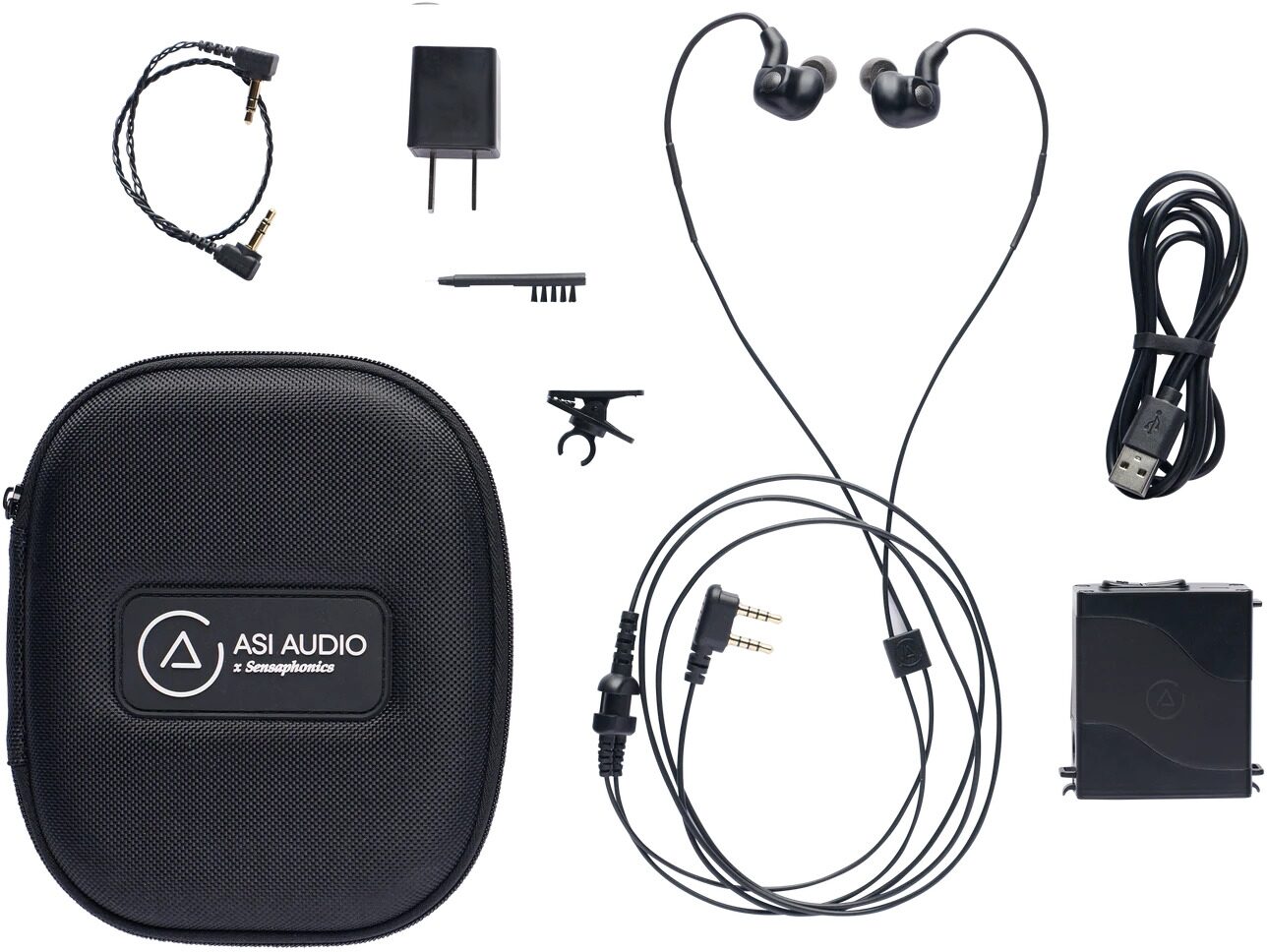

- In the box:
- 3DME In-Ear Monitors
- 3 pairs eartips, S, M, L
- Bodypack with lithium ion battery
- Stereo jumper cable
- USB bodypack charging cable
- Wall charger
- Carrying case
- Earpiece cleaning tool
- Shirt clip

Dimensions and Weight in Packaging
Base Item: Shipping Weight: 1.5 lbs; Shipping Dimensions: 9 x 8 x 3 in; Manufacturer Part Number (MPN): ASI 3D10000BT

Warranties and Docs

3DME Manual
