ART TCS Twin Compressor with Variable Voicing
No longer available at zZounds




zZounds Gear Experts Say...
Optical and VCA compression types.
Overview

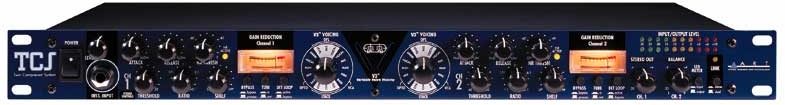

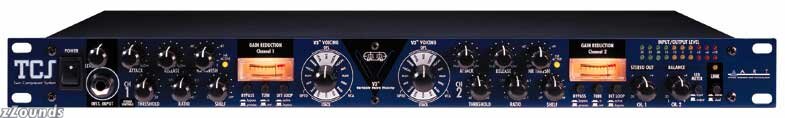

The 2-channel TCS compressor has a long list of impressive features, including two separate compression types: Optical and VCA. You can even stack them together! ART also added their famous V3(tm) technology with handy preset voicings for vocals, percussion, bass and other specific instruments - with full tweakability.

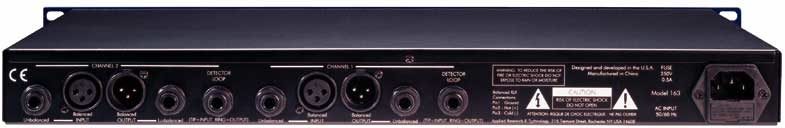

Other features include XLR & 1/4 in. inputs, front panel instrument input, side chain inserts, channel linking for stereo tracking, attack, release, threshold, and ratio knobs, de-essing, an expander/gate per channel, V3 control per channel, twin VU meters for measuring compression, twin LED input/output meter for ultra-precise level metering, and the ability to place a tube in the signal path to add some warmth to your signal.
Features
Optical Compression
VCA Compression
Expander, Gate, De-Esser and Limiter included
V3 (Variable Valve Voicing) Settings
Side Chain Inserts
XLR and 1/4 in. Inputs
Stereo Link
Analog VU Compression Meters
Precise LED Level Meters with Peak Hold
Front and Rear Instrument Inputs
Toroidal Transformer
All Steel Chassis
Other features include XLR & 1/4 in. inputs, front panel instrument input, side chain inserts, channel linking for stereo tracking, attack, release, threshold, and ratio knobs, de-essing, an expander/gate per channel, V3 control per channel, twin VU meters for measuring compression, twin LED input/output meter for ultra-precise level metering, and the ability to place a tube in the signal path to add some warmth to your signal.
Features
Optical Compression
VCA Compression
Expander, Gate, De-Esser and Limiter included
V3 (Variable Valve Voicing) Settings
Side Chain Inserts
XLR and 1/4 in. Inputs
Stereo Link
Analog VU Compression Meters
Precise LED Level Meters with Peak Hold
Front and Rear Instrument Inputs
Toroidal Transformer
All Steel Chassis
Specs
Specifications
Controls: Shelf cutoff (Hi/Low) 700 Hz/1.5kHz
Dimensions (H x W x D): 1.75 x 19.0 x 6.5 in.
Dynamic Range: 126 dB (typical)
Frequency Response: 10 Hz to 150 kHz, +/- 1 dB
Input Impedance: XLR, 1/4 in. 10k ohms
Input/Output Connections: XLR(balanced), 1/4 in. TRS (balanced/unbalanced)
Sidechain Input: 1/4 in. TRS (Tip=Receive, Ring=Send) Instrument: 1M ohm
Maximum Input Level: +20 dBu
Maximum Output Level: +20 dBu
Output Impedance: XLR, 1/4 in. 300 ohms (balanced)
Power Requirements: Transformer type: Toroidal
Slope: 1.7
THD: 0.01% @1kHz
Weight: 5.5 lbs (2.5 kg)
Controls: Shelf cutoff (Hi/Low) 700 Hz/1.5kHz
Dimensions (H x W x D): 1.75 x 19.0 x 6.5 in.
Dynamic Range: 126 dB (typical)
Frequency Response: 10 Hz to 150 kHz, +/- 1 dB
Input Impedance: XLR, 1/4 in. 10k ohms
Input/Output Connections: XLR(balanced), 1/4 in. TRS (balanced/unbalanced)
Sidechain Input: 1/4 in. TRS (Tip=Receive, Ring=Send) Instrument: 1M ohm
Maximum Input Level: +20 dBu
Maximum Output Level: +20 dBu
Output Impedance: XLR, 1/4 in. 300 ohms (balanced)
Power Requirements: Transformer type: Toroidal
Slope: 1.7
THD: 0.01% @1kHz
Weight: 5.5 lbs (2.5 kg)
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 716-297-2920
Web: https://www.artproaudio.com/support/
Phone: 716-297-2920
Web: https://www.artproaudio.com/support/
